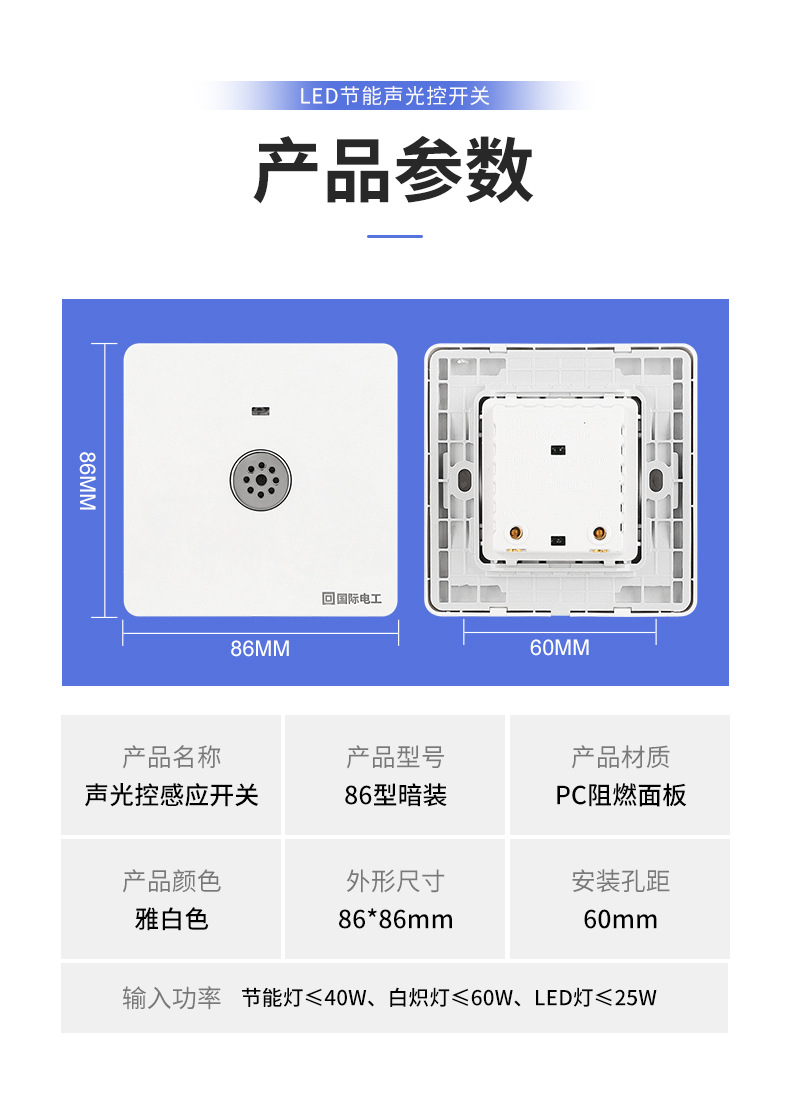

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel Specification image
86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel Application Scenario
86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel Item Picture
Attributes
Key attributes
Place of origin
China
Material
Others
Product code
2112045450188

Concealed sound and light control switch instructions: The switch must not be installed in (damp outdoor and noisy) places.

Free test reports and free invoices are provided

1. Both the sound and light control switches are single-controlled. If they are dual-controlled and affect the lifespan of the product chip, it is within the one-year warranty period

2. The sound and light control switch can only control lamps and cannot control non-lamp products.

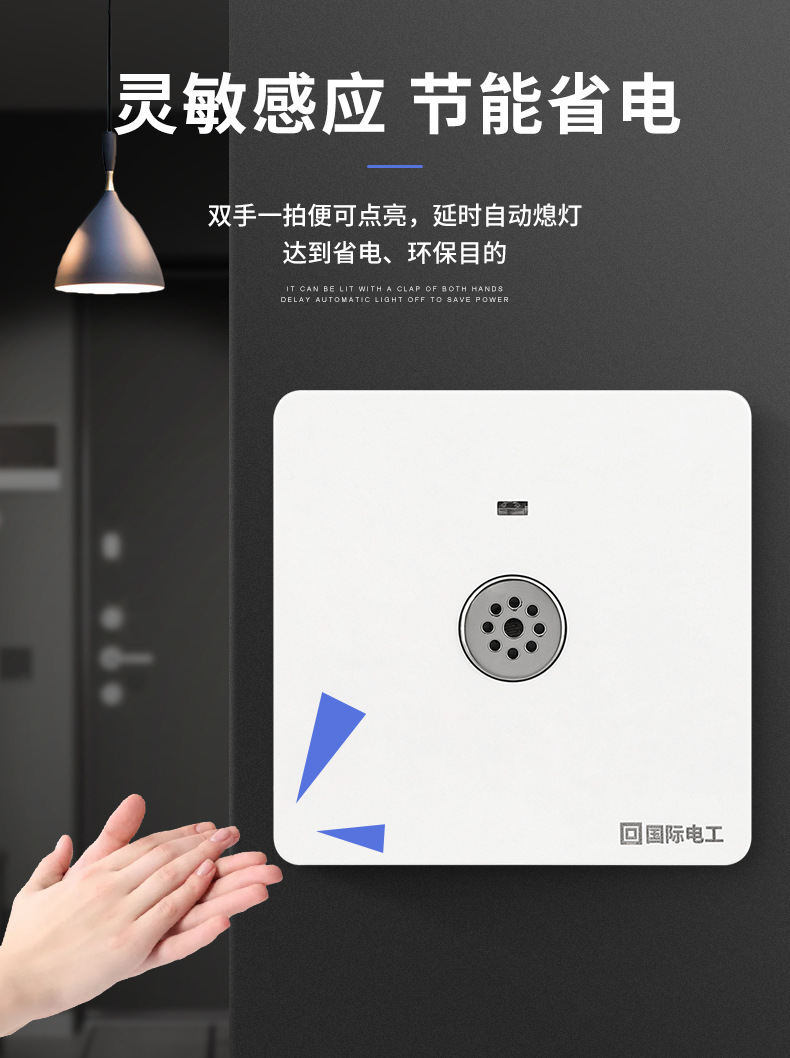

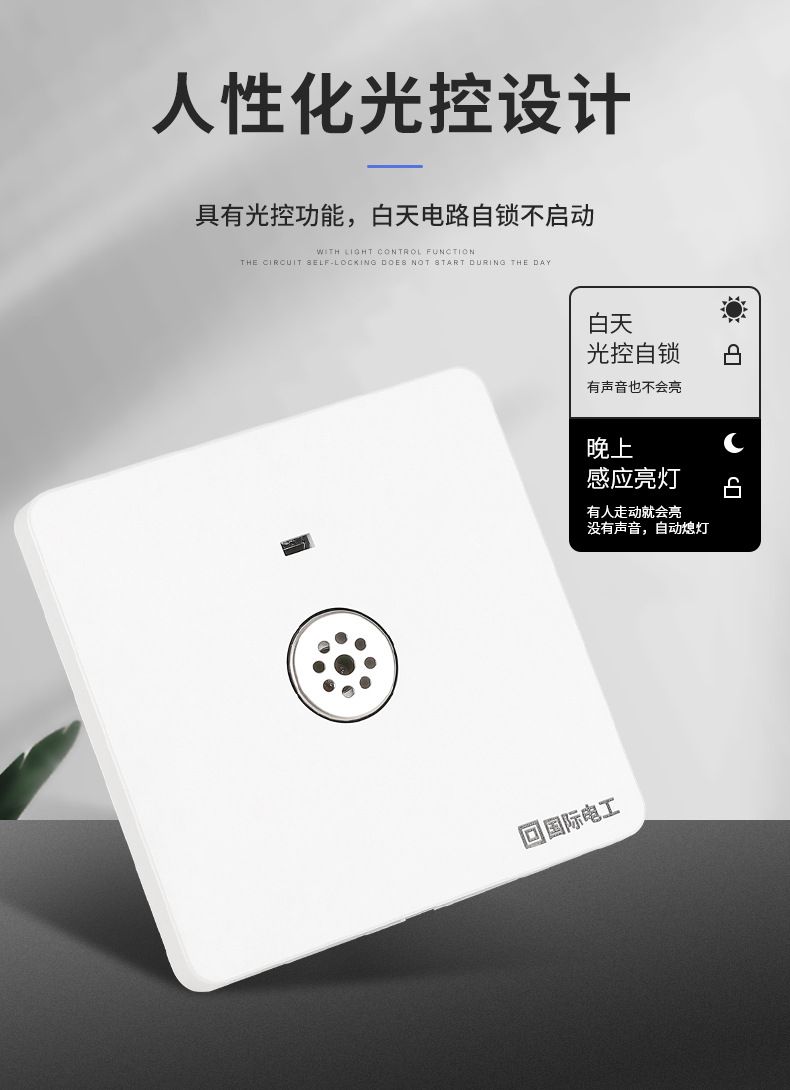

3. The product features an intelligent light-sensing function. It will automatically light up when the light is below 5LUX (equivalent to evening) and the sound is above 60 minutes. It will automatically turn off after a delay of 45 seconds. Electronic products do not support adjusting the time for light sensing.

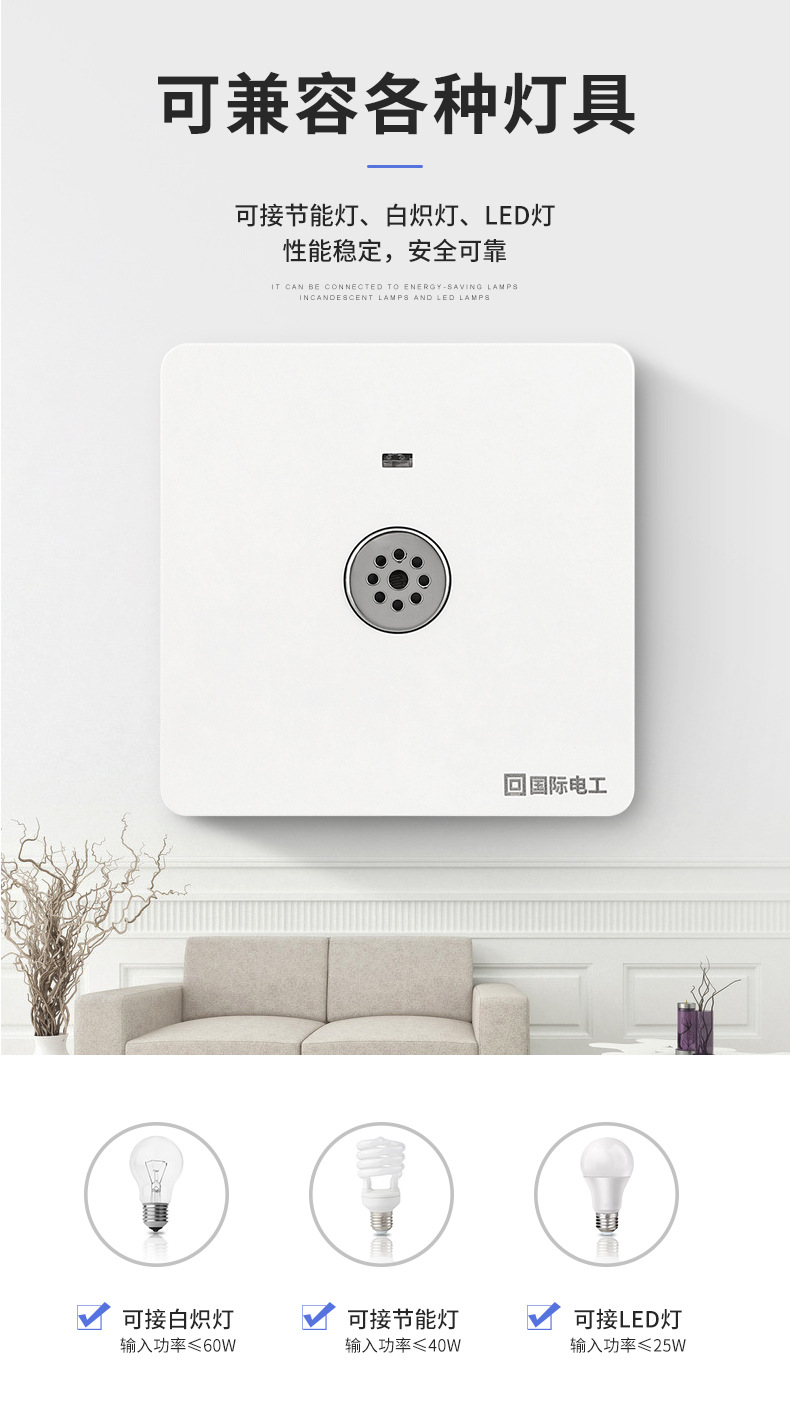

4. The load power of this sound and light controlled model: within 60W for incandescent lamps, within 40W for energy-saving lamps, and within 25W for LED lamps (ceiling lamps). Within the load range, it will not cause constant lighting or flickering.

5. Wiring method: Live wire input and live wire output. It can directly replace a switch or a touch switch.

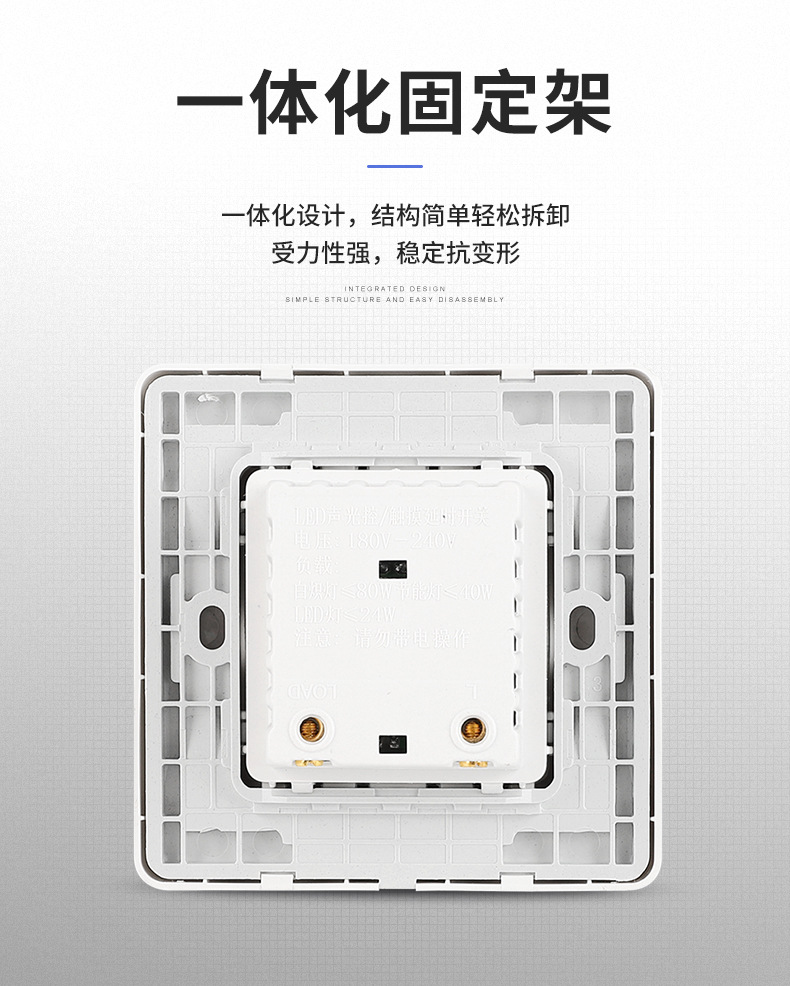

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 1

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 2

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 3

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 4

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 5

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 6

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 7

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 8

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 9

86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 10





















86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel pic 11
86-type concealed sound and light control two-wire delay corridor sensor sound control led light corridor household switch panel
≥1
$0.58
Note: The current price is EXW. Please discuss the final delivered price with the supplier.
Color
Voice control second line

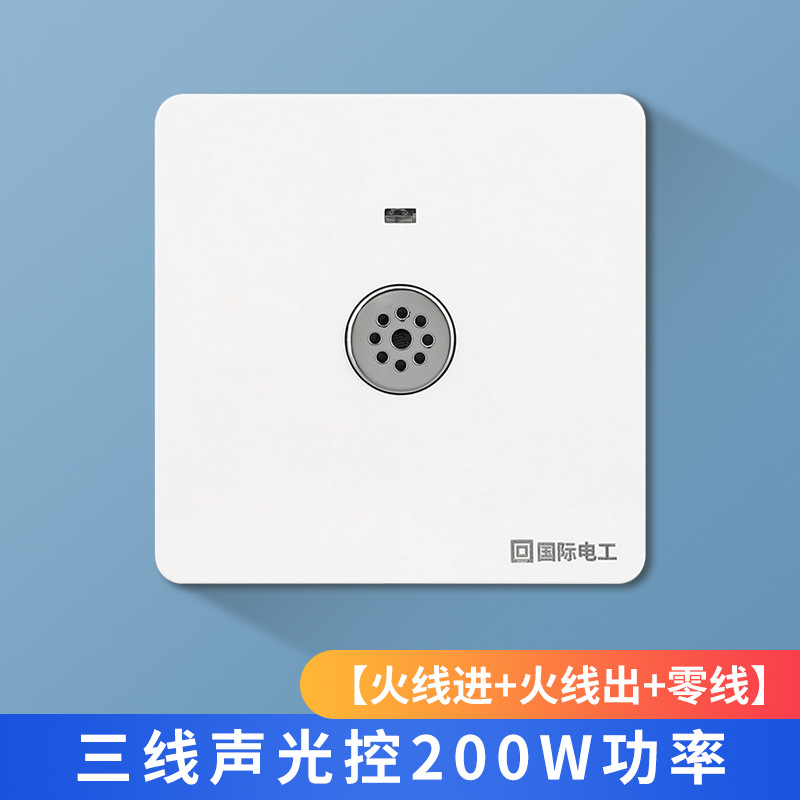

Three wires with a neutral wire
Three-line fire protection belt
Four-wire voice control
