Product name description: Glasses with light, eye repair, watch and jewelry appraisal magnifying glass
Product Model: 9892H-1
Main materials: ABS+ acrylic lenses
The size of the product color box is 160*72*51mm

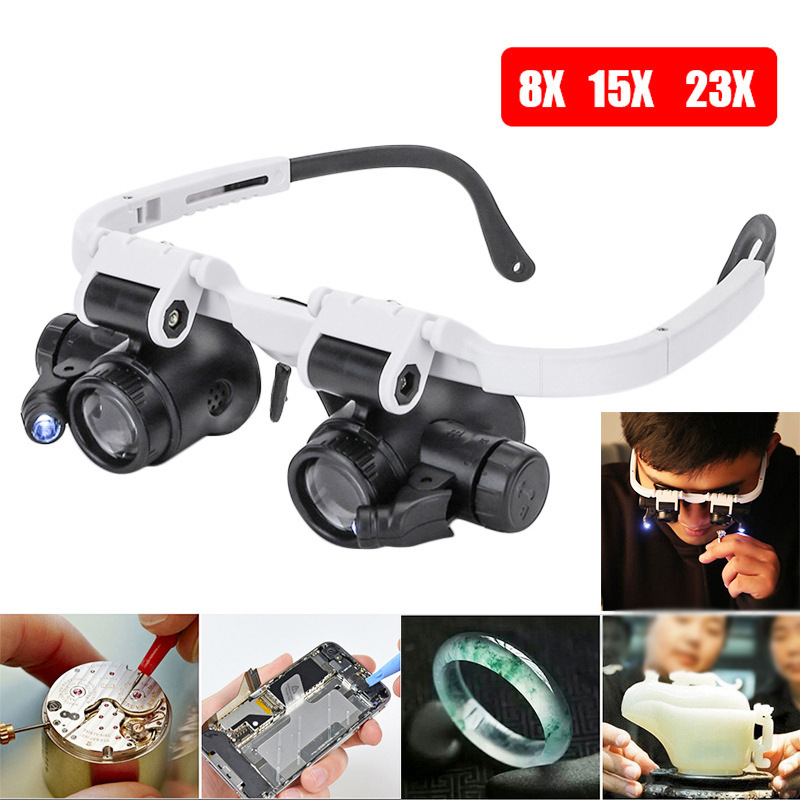

Product magnification: 8x main lens, 15x extended lens, maximum magnification 23x
Product weight: 70 grams (net weight)
Contains 95 grams of packaging

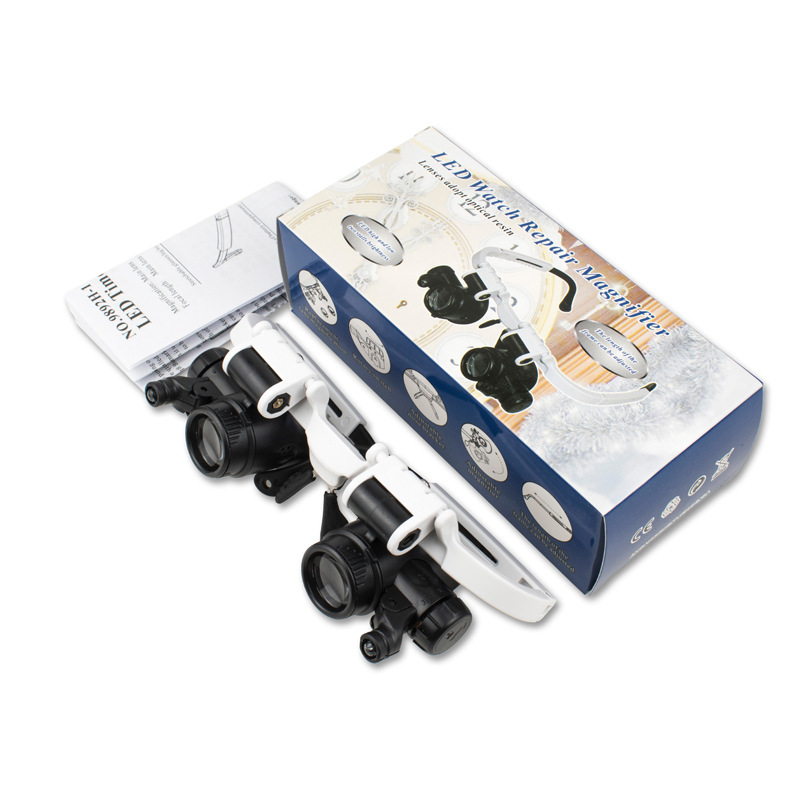

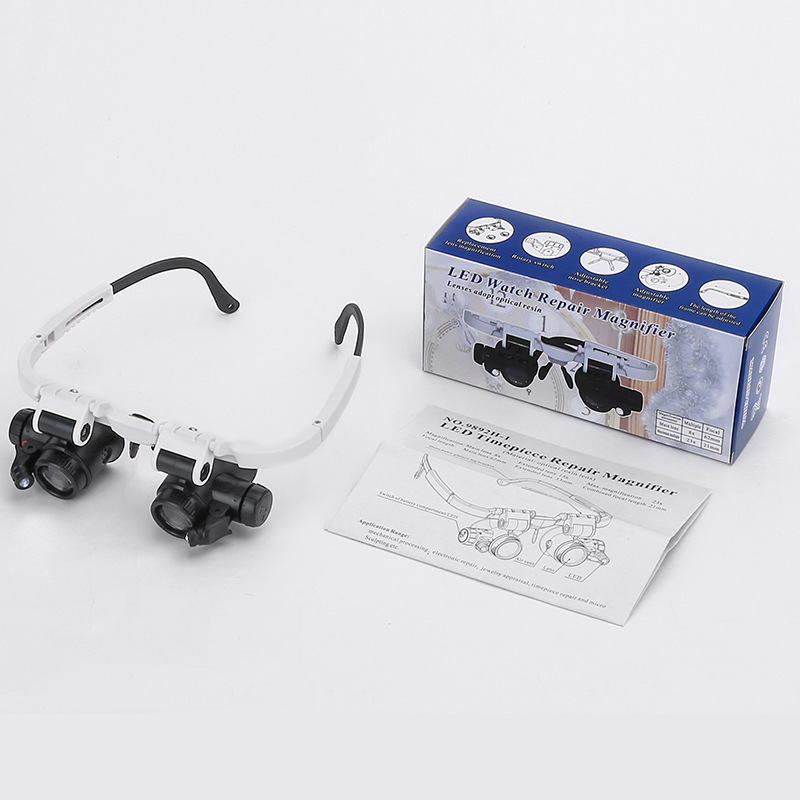

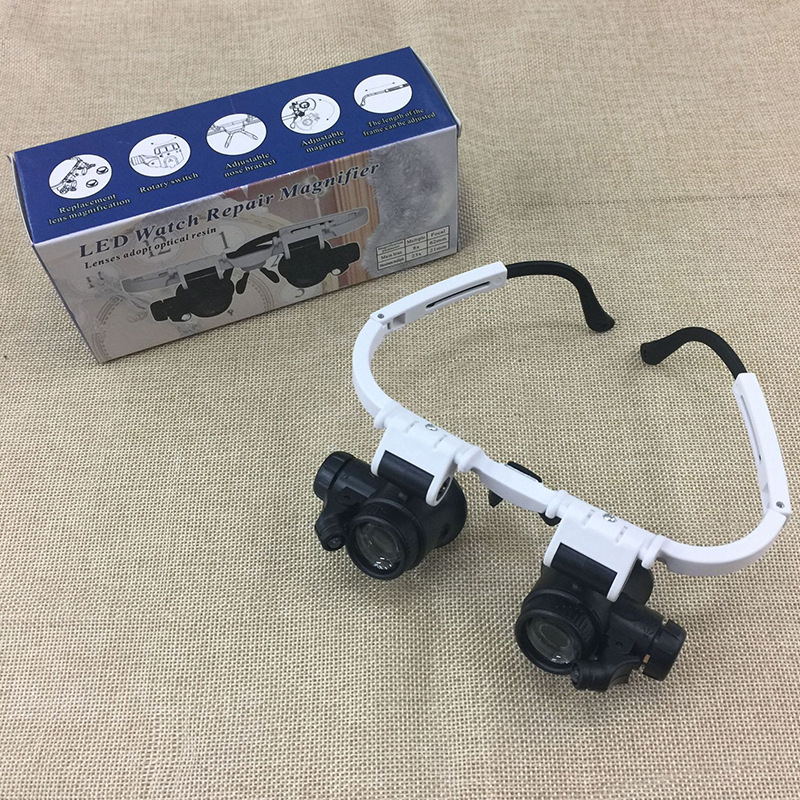

Product packaging: Color box
Packing quantity: 100 pieces, 55*35*43cm, 11 kilograms
The applicable distance range: The range from 6CM away to close to the objective lens is suitable for use
Usage: It is used for inspecting small items such as mechanical processing, electronic repair, watch repair, micro-engraving, jewelry, antiques, calligraphy and painting appraisal in the printing industry
Product selling points and features: One lens 8x, one lens 15x, can be used in combination to achieve a high magnification of 23x, dual magnification, flexible magnification available as needed, adjustable size of the spectacle frame, equipped with LED light, can be used alternately by both eyes, and the light intensity is adjustable.

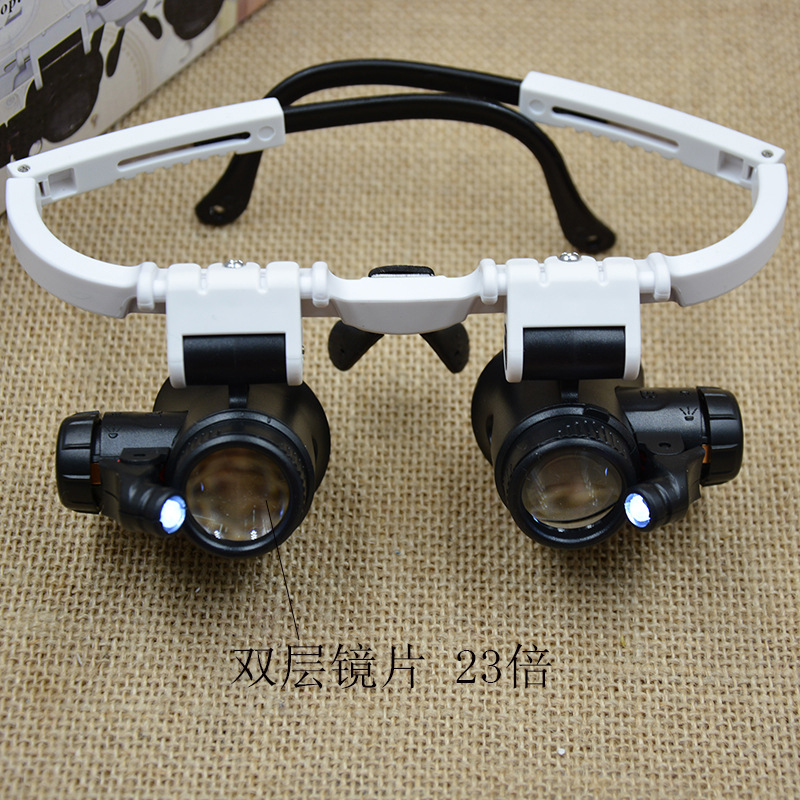

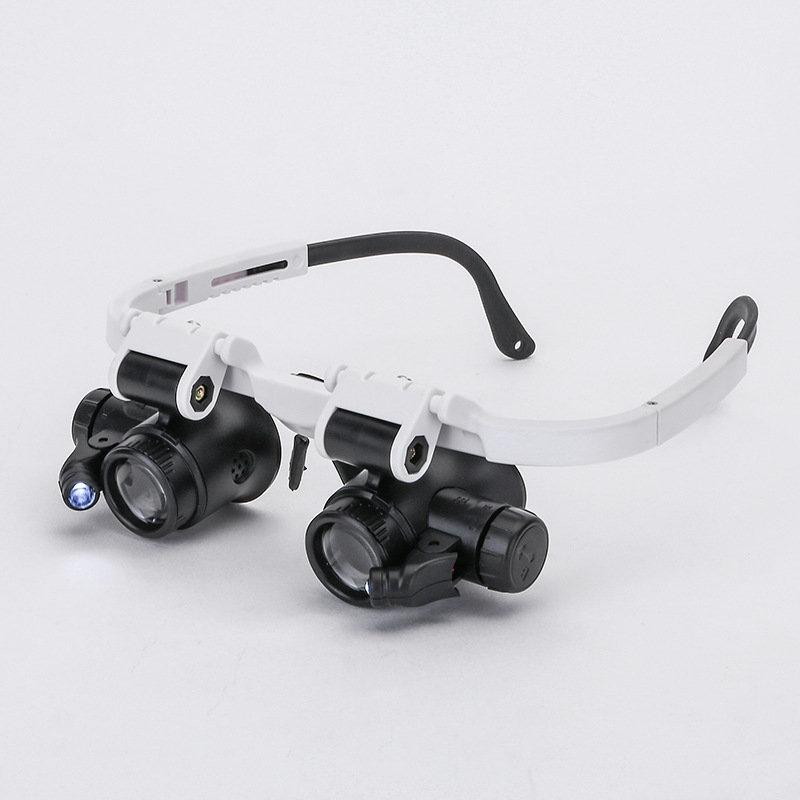

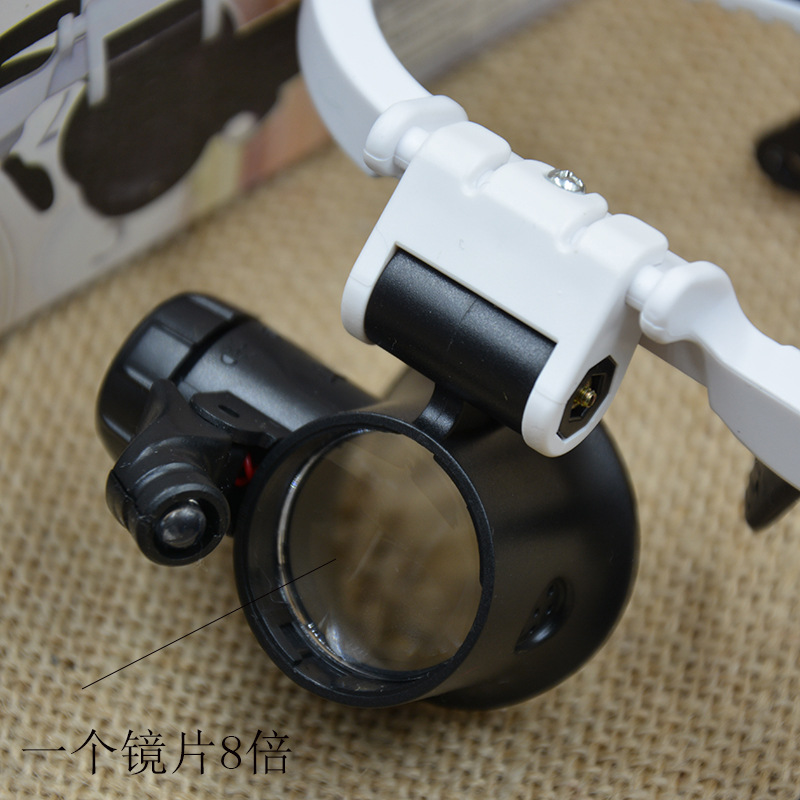

Install two LED magnifying eye masks on the left and right sides of the glasses bracket. Each eye mask is equipped with one 8x magnification lens and can be fitted with a 15x expansion lens to achieve a magnification of 23x. Alternating the use of the two lens tubes can relieve fatigue and improve work efficiency. When not in use, the tube can be turned up without removing the glasses.

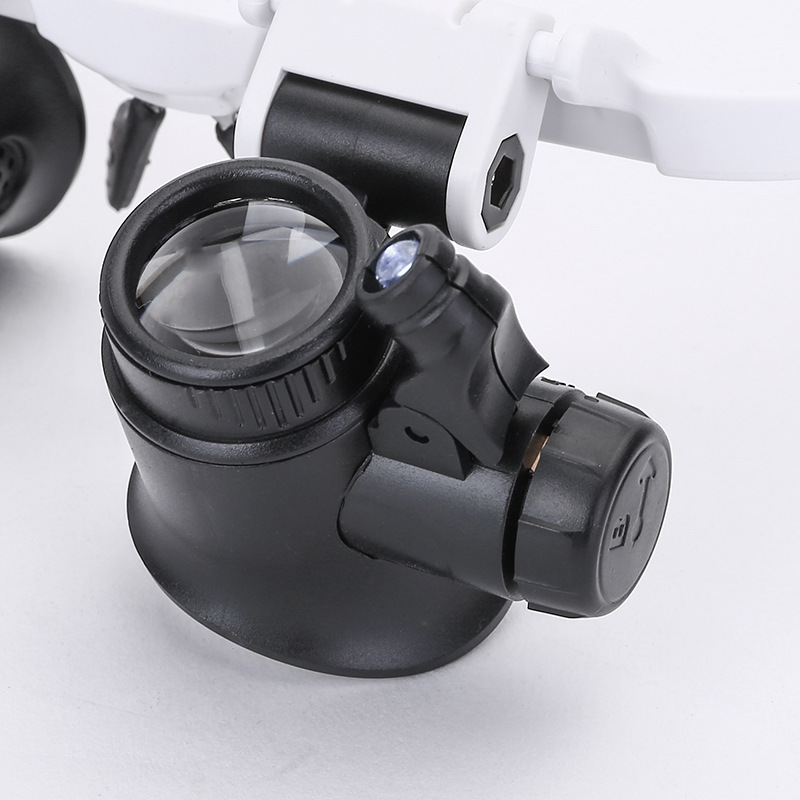

2. The LED lamp head and the battery compartment of the control switch are designed separately, which can prevent the light source irradiation point from being changed when operating the switch, and there is no need to recalibrate the irradiation point when used repeatedly.

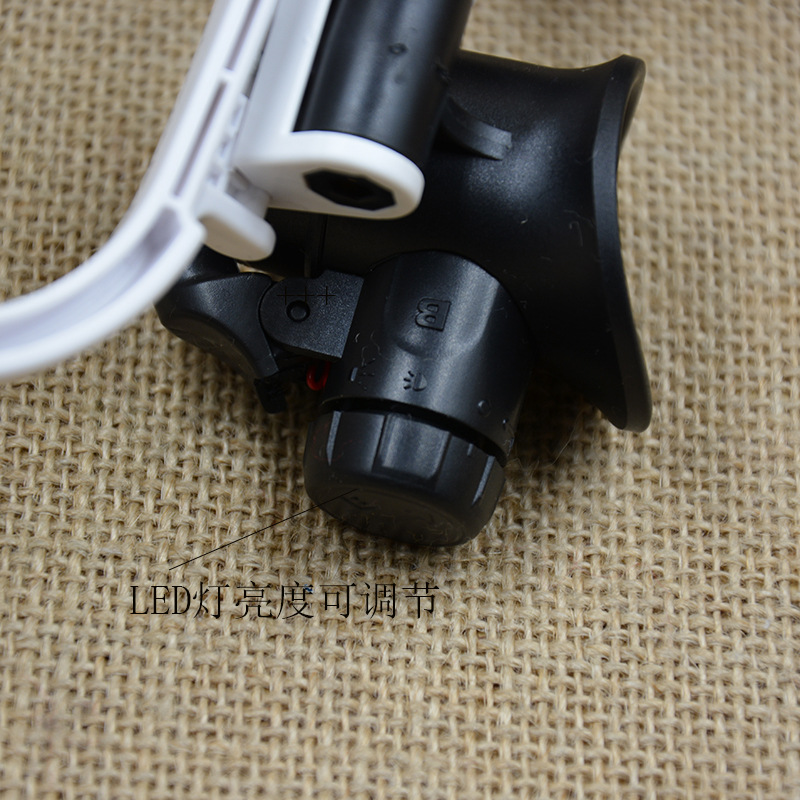

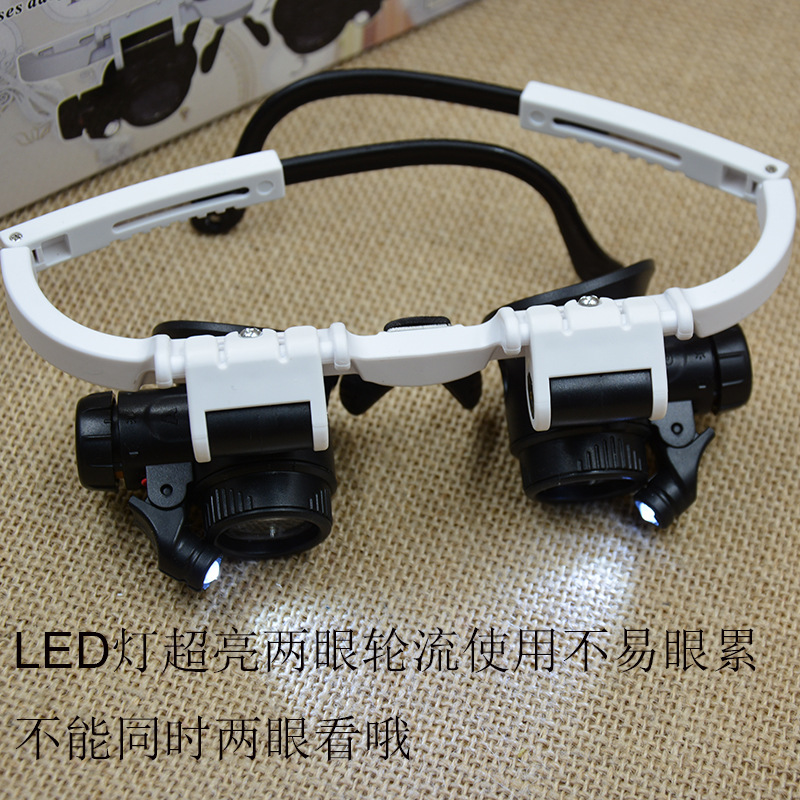

The LED light source has a two-level adjustment function, which can be respectively adjusted to soft light and high light to cope with different lighting conditions.

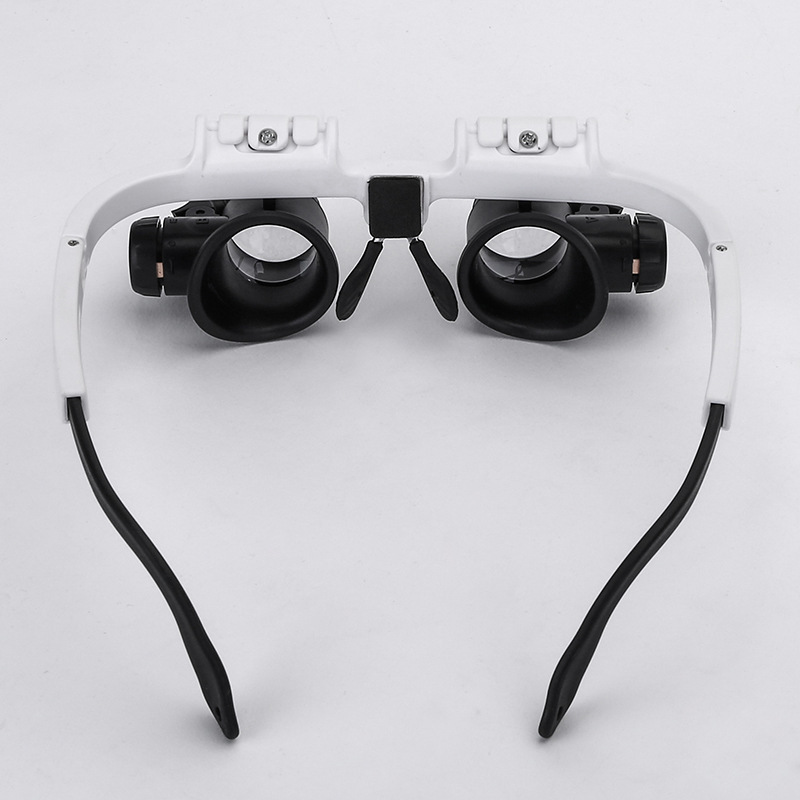

4. The length of the spectacle frame is adjustable. Users can adjust the length of the frame according to their own face shape, making it more comfortable to wear.
5. Adjustable nose drag, which can be adjusted according to the shape of the nose bridge to suit all kinds of people.
6. The position of the tube can be adjusted by moving it horizontally left and right by 5 millimeters on the stand. It can be adjusted according to the width of the face shape and the distance between the eyes to fit the eye mask at the center of the eyes.

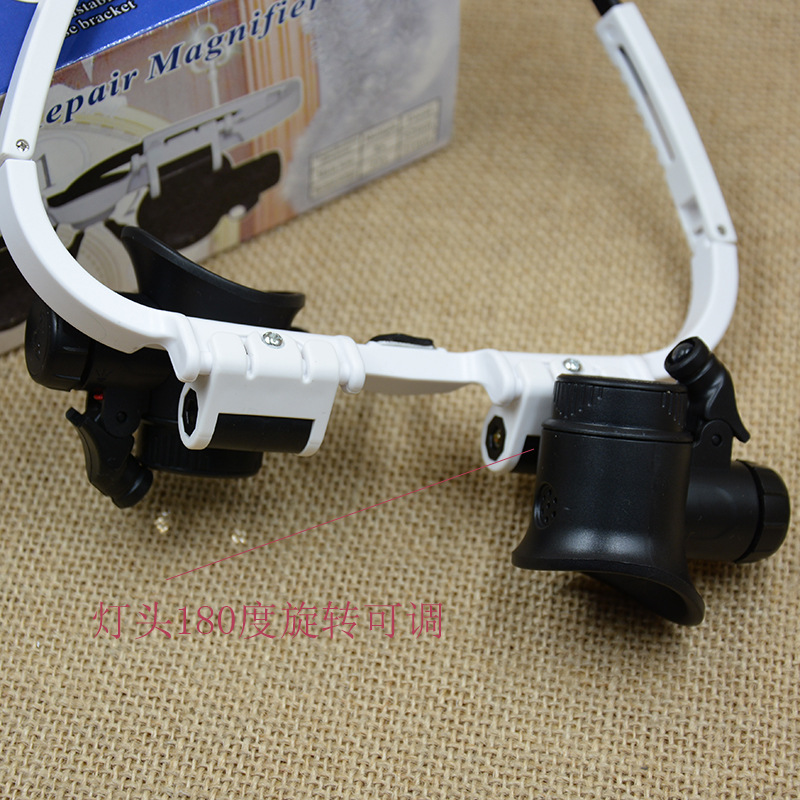

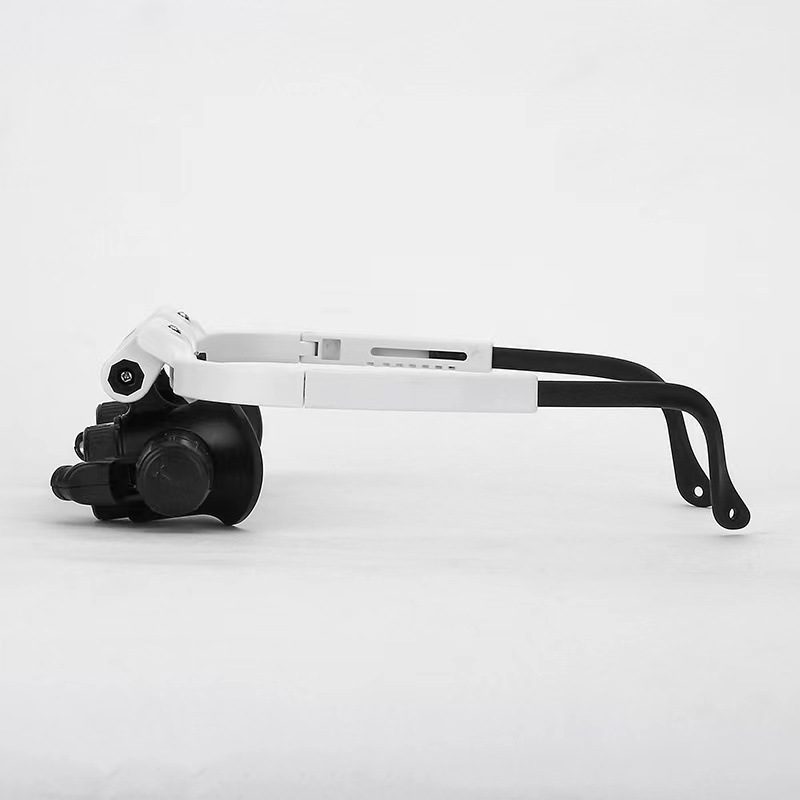

The eye mask can be rotated up and down by 180 degrees on the stand, so that when the magnifying glass is not in use temporarily, the entire frame does not have to be removed, making it convenient for reuse.
Operation method
1. Light source switching
There are three temperature indicators above the battery compartment, namely "High Brightness". You can align the indicator arrow on the battery cover until the temperature indicator is no longer used to switch the light source.

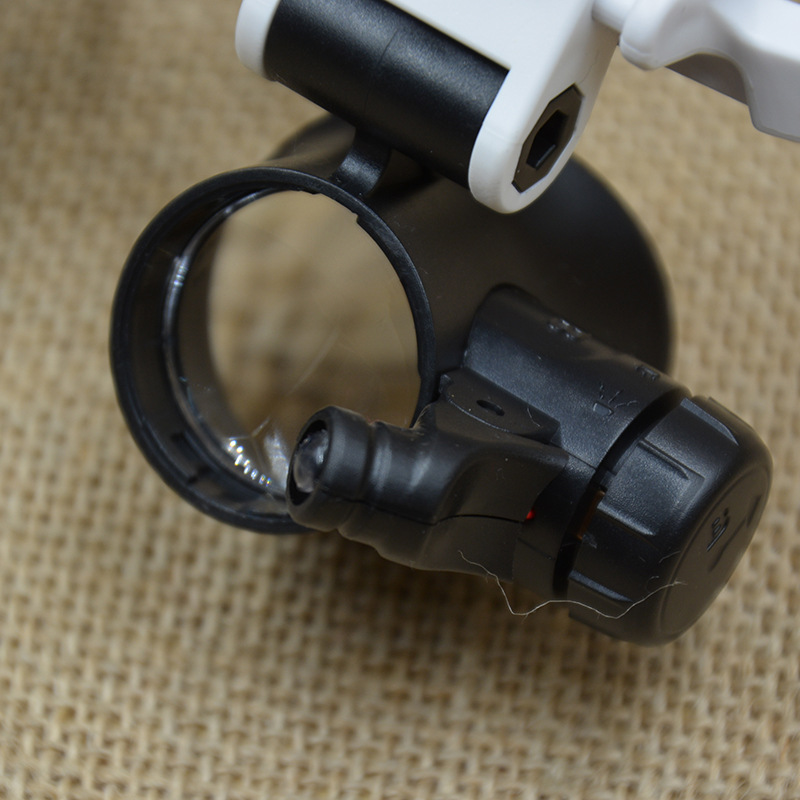

B. Pull the LED lamp head towards the lens tube. The lamp head will be closer to the lens, which can enhance the lighting effect.
2. Lens installation and disassembly

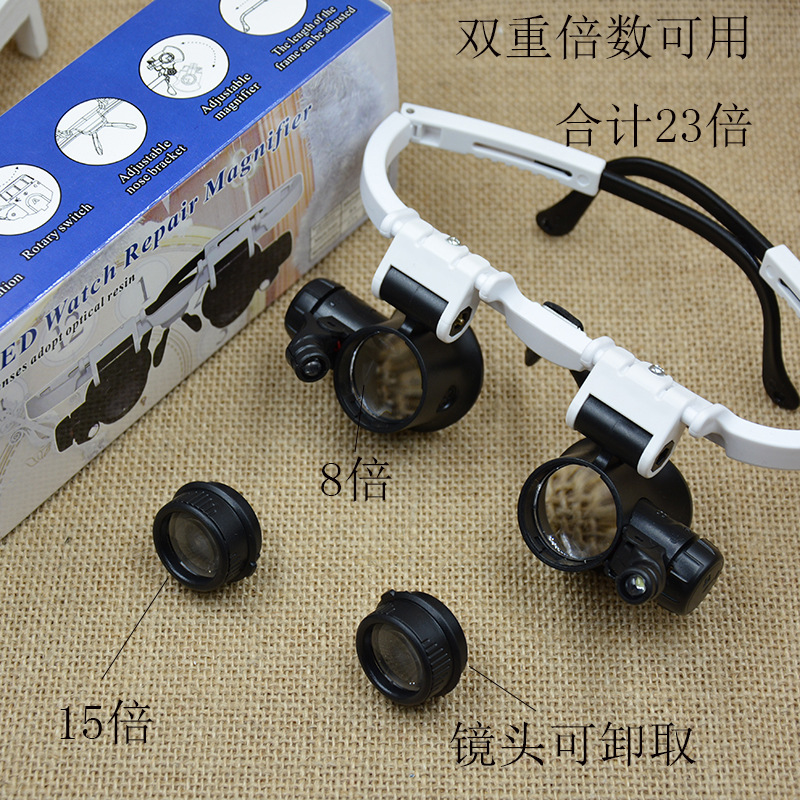

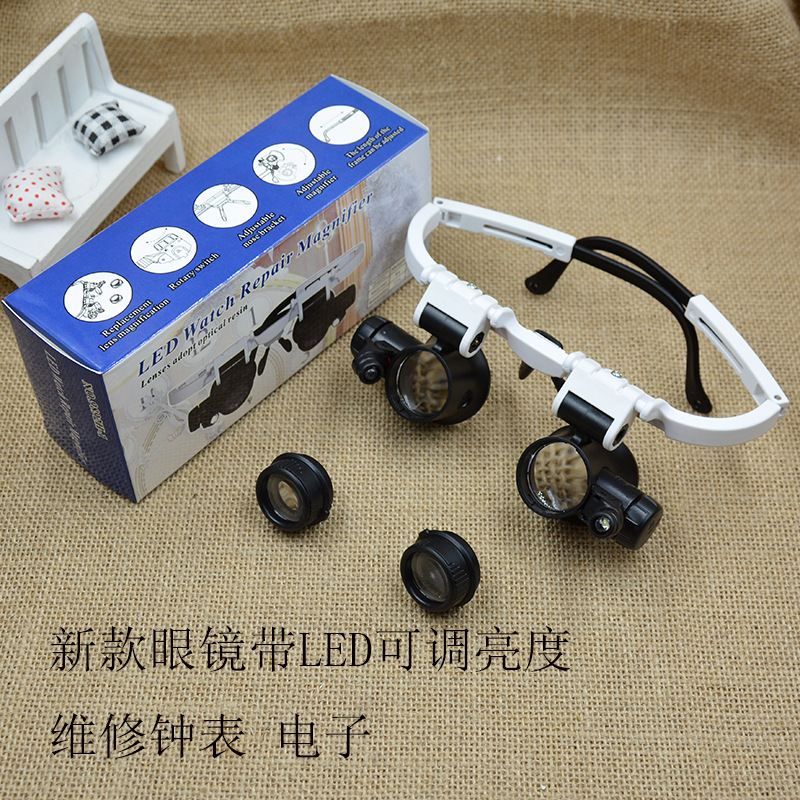

When it is necessary to increase the magnification, an extension lens can be installed. There is A raised indicator on the outer frame of the extension lens. Align it with the lens installation slot on the lens barrel and insert the extension lens, then tighten it to the right.
When it is necessary to remove the extension lens, simply unscrew it to the left and take it off.
3. Bracket adjustment

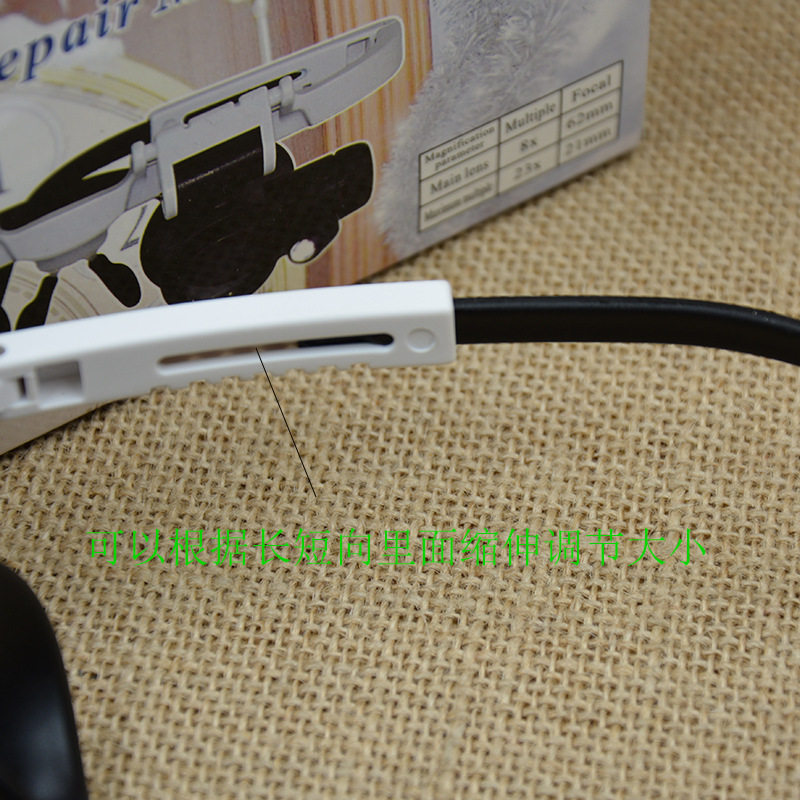

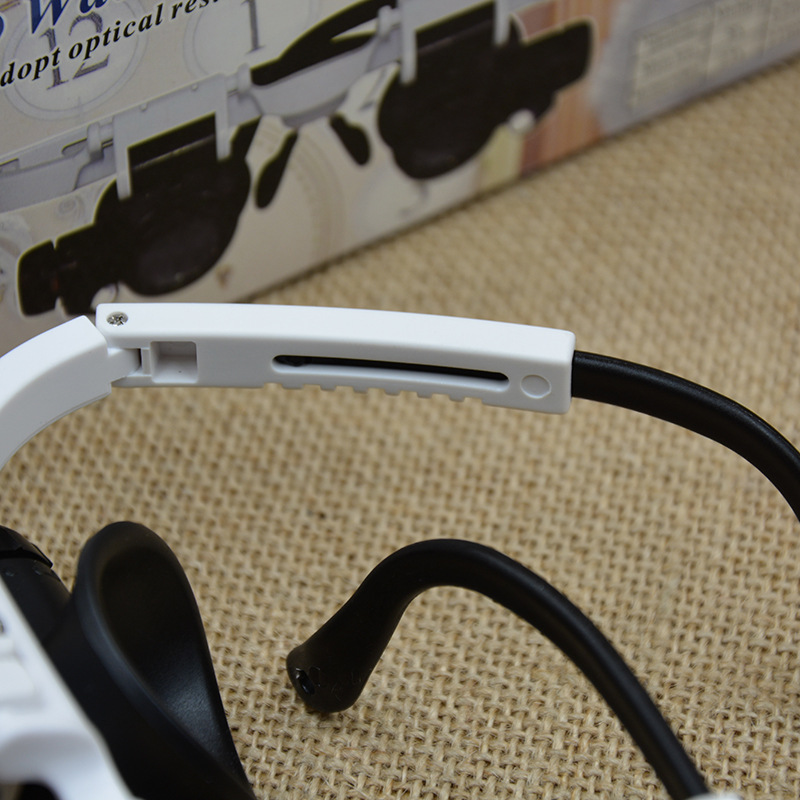

There is a raised indicator on the inner side of the glasses glue. Align it with the groove below the inner side of the bracket and pull out or push the glasses temple to adjust the length.
4. Barrel adjustment
An adjusting screw is installed at the connection between the tube and the frame. Loosen the adjusting screw slightly, and the tube can be adjusted horizontally on the stand. After adjusting to the appropriate position, tighten the screws.
5. Replace the battery
A. Adjust the indicator arrow on the battery cover to the "Off Light Source" position, then press the battery cover and continue to rotate it backward until it reaches the "Battery Compartment Open" mark to open the battery compartment.
B. Remove the old battery and replace it with three new 1130 button batteries. Align the indicator arrow on the battery cover with the "Battery Compartment Open" sign and press the battery cover. There are "A" and "B" marks on the two battery covers and the battery compartment respectively. When installing the battery cover, the "A" battery cover should correspond to the" A" battery compartment, and the "B" battery cover should correspond to the" B" battery compartment. Rotate it forward to the "Power Off" position to complete the battery replacement.
