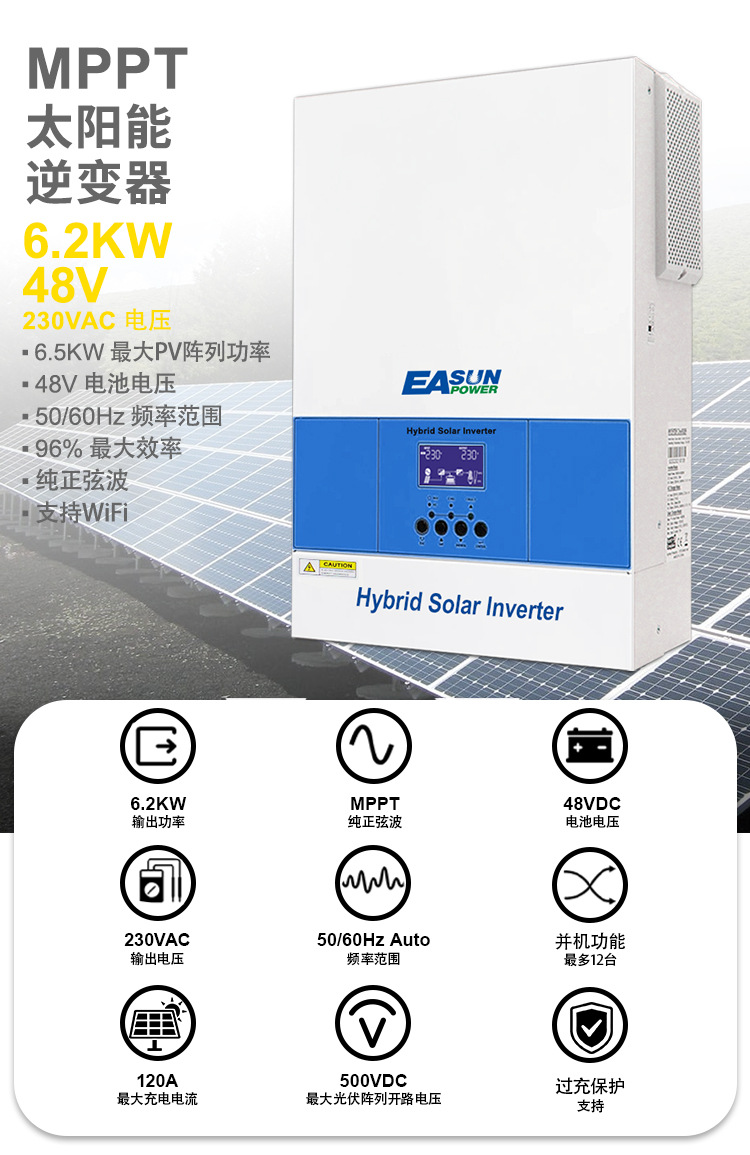

ISolar SMG 11 6.2KW 48V WiFi and ISolar SMG 11 6.2KP 48V WiFi are two models. Among them, ISolar SMG 11 6.2KP 48V WiFi can achieve parallel operation of up to 9 units. ISolar SMG 11 6.2KW 48V WiFi non-parallel units
Apart from this, there is no difference between the two machines. Please purchase as needed
| Model |
ISolar SMG 11 6.2KP 48V WiFi |
| Capacity |
6.2 KVA / 6.2 KW |
| Parallel capacity |
Up to 12 machines can be connected in parallel |
| Input |
|
| Nominal voltage |
230VAC |
| Acceptable voltage range |
170-280VAC(personal computer) 90-280vac(Home computer) |
| Frequency |
50/60 Hz(Automatic sensing) |
| Output |
|
| Nominal voltage |
220/230VAC+5% |
| Surge power |
12400VA |
| Frequency |
50/60Hz |
| Waveform |
Pure sine wave |
| Peak Efficiency (PV to INV |
96% |
| Peak efficiency (Battery to INV) |
93% |
| Peak factor |
3:1 |
| Battery |
|

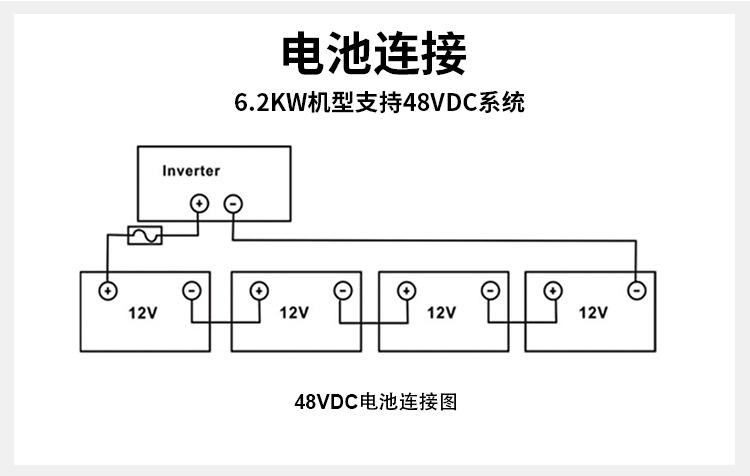

| Battery voltage |
48VDC |
| Floating charge volume |
54VDC |
| Overcharge protection |
63VDC |
| Charging method |
CC/ CV |
| Solar chargers and AC chargers |
|

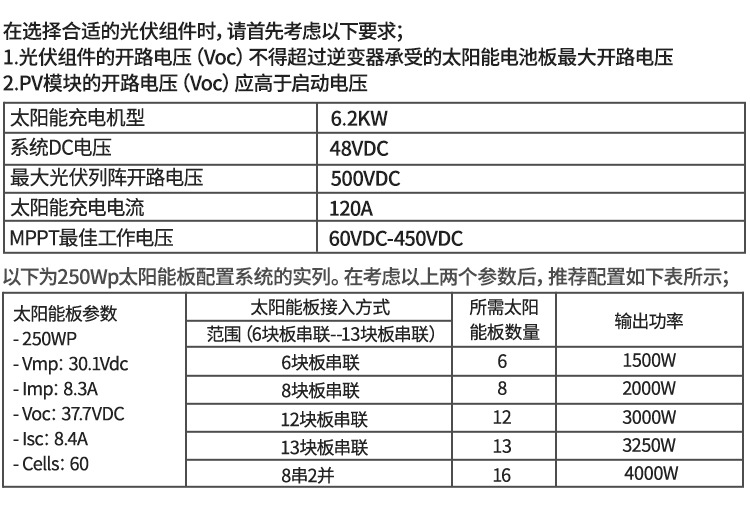

| Maximum photovoltaic array power |
6500W |
| Maximum open-circuit voltage of photovoltaic array |
500VDC |
| The MPPT voltage range of photovoltaic arrays |
60VDC~450VDC |
| Maximum solar input current |
27A |
| Maximum solar charge current |
120A |
| Maximum AC charging current |
80A |
| Maximum charging current |
120A |
| Physics |
|
| Dimensions,D x W x H(mm) |
450 * 300 * 130 |
| Packaging size,D x W x H(mm) |
540x390x210 |
| Net weight (Kg |
12 |

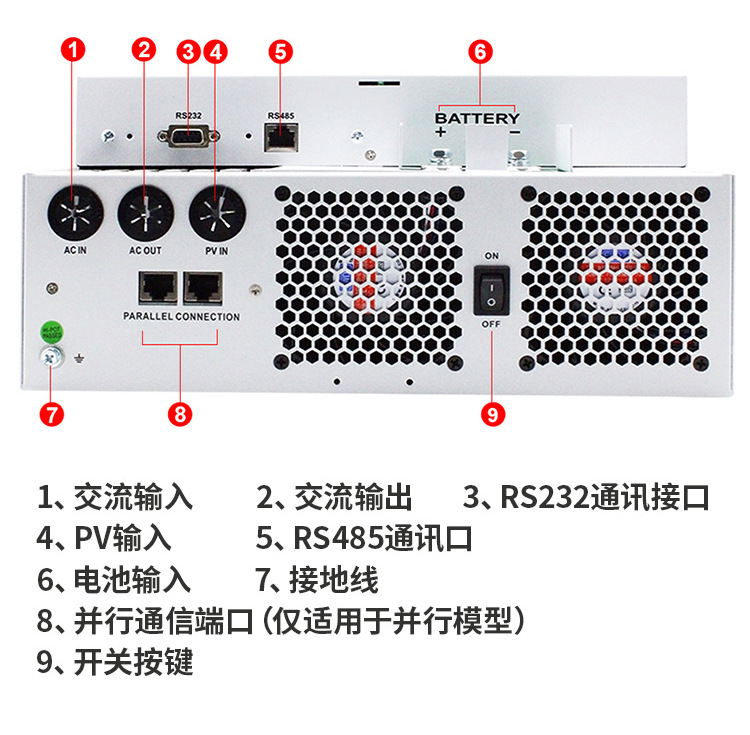

| Communication interface |
RS232 / RS485 / Dry contactor |
| Environment |
|
| Operating temperature range |
(-10°C to 50°C) |
| Storage temperature |
(-15°C ~ 50°C) |
| Humidity |
Relative humidity 5% to 95% (non-condensing) |
