Attributes

Key attributes

Place of origin

China

Material

Others

Product code

817015447317

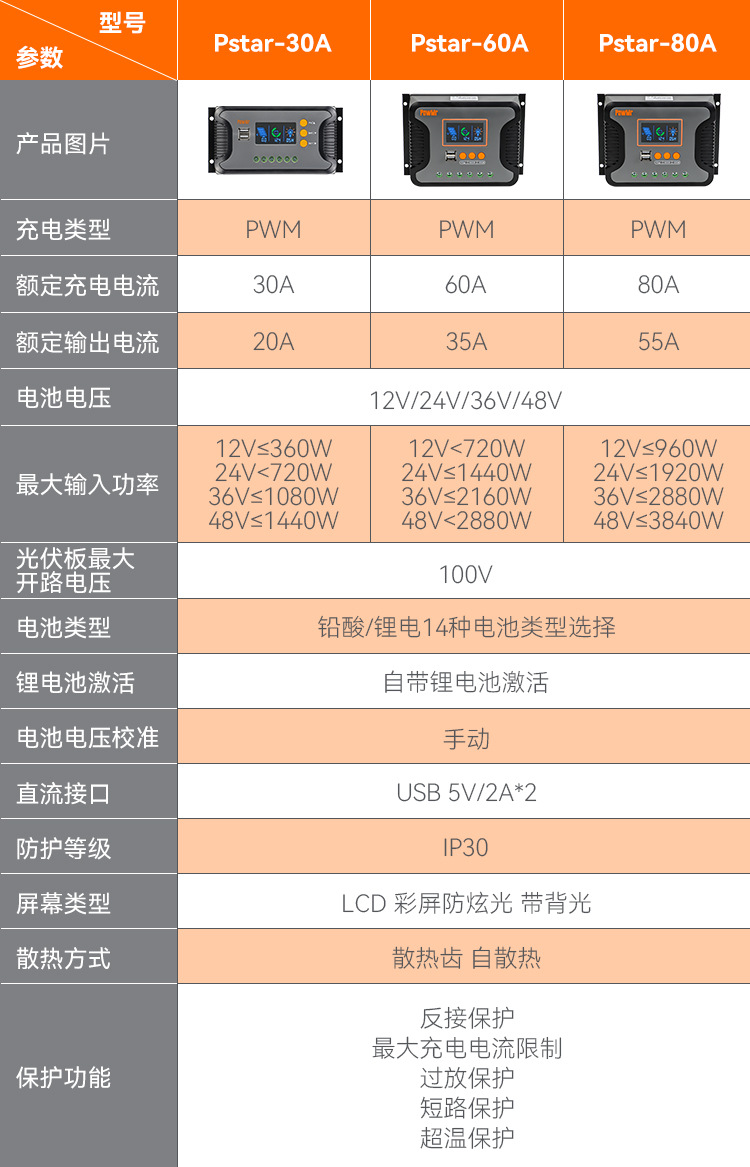

Comparison chart of parameters of various models of PWM solar controllers

1.1 Product Features

Integrated charging preset

The integrated charging mode includes adaptive charging logic and is highly suitable for most battery types, such as flooded lead-acid batteries, gel sealed lead-acid batteries and lithium batteries.

Flexible application

Automatically identify 12V/24V/36V/48V system voltages

Multi-stage charging algorithm

The multi-stage charging algorithm is specifically designed to optimize each charging cycle and maintain long-term charging.

Adaptive charging enhancement

During the initial charging period, the adaptive boost charging monitor monitors the battery's response and automatically determines the duration of the boost stage in each independent charging cycle, which is commensurate with the discharge level. This can ensure that the battery is fully charged at any discharge level or capacity, and avoid overcharging during the upcharging stage. (Can extend battery life

Durable and safe

a. Over-temperature protection: When the device temperature exceeds 85℃, the controller automatically stops charging. When the device temperature reaches 75℃, charging resumes.

b. Protection against output short circuit

c. Over-discharge protection

d. Anti-reverse polarity connection protection: When the polarity is reversed, the controller will not be damaged and will not operate.

e. Limit the maximum charging current: Protect battery performance and extend battery life.

Compatible with lithium batteries

Compatible with lithium batteries, when the battery type parameters are set to lithium battery, the charging cycle will be adjusted accordingly to meet the charging requirements of lithium batteries.

Warning: Do not charge the lithium battery when its temperature is below 0℃.

Cross-border shipment of PWM solar controllers for 30A/60A/80A and 12V-48V lithium battery photovoltaic controllers pic 3

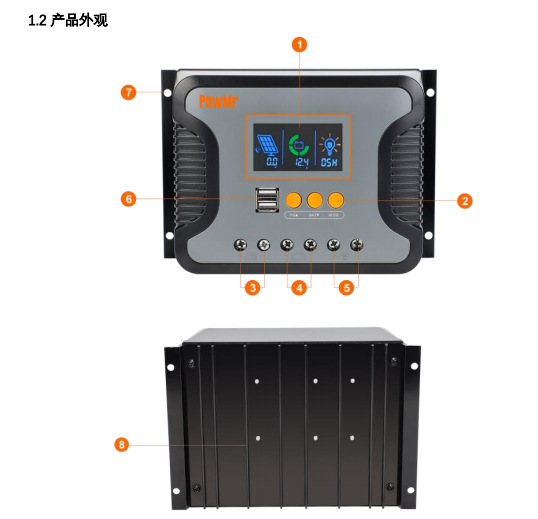

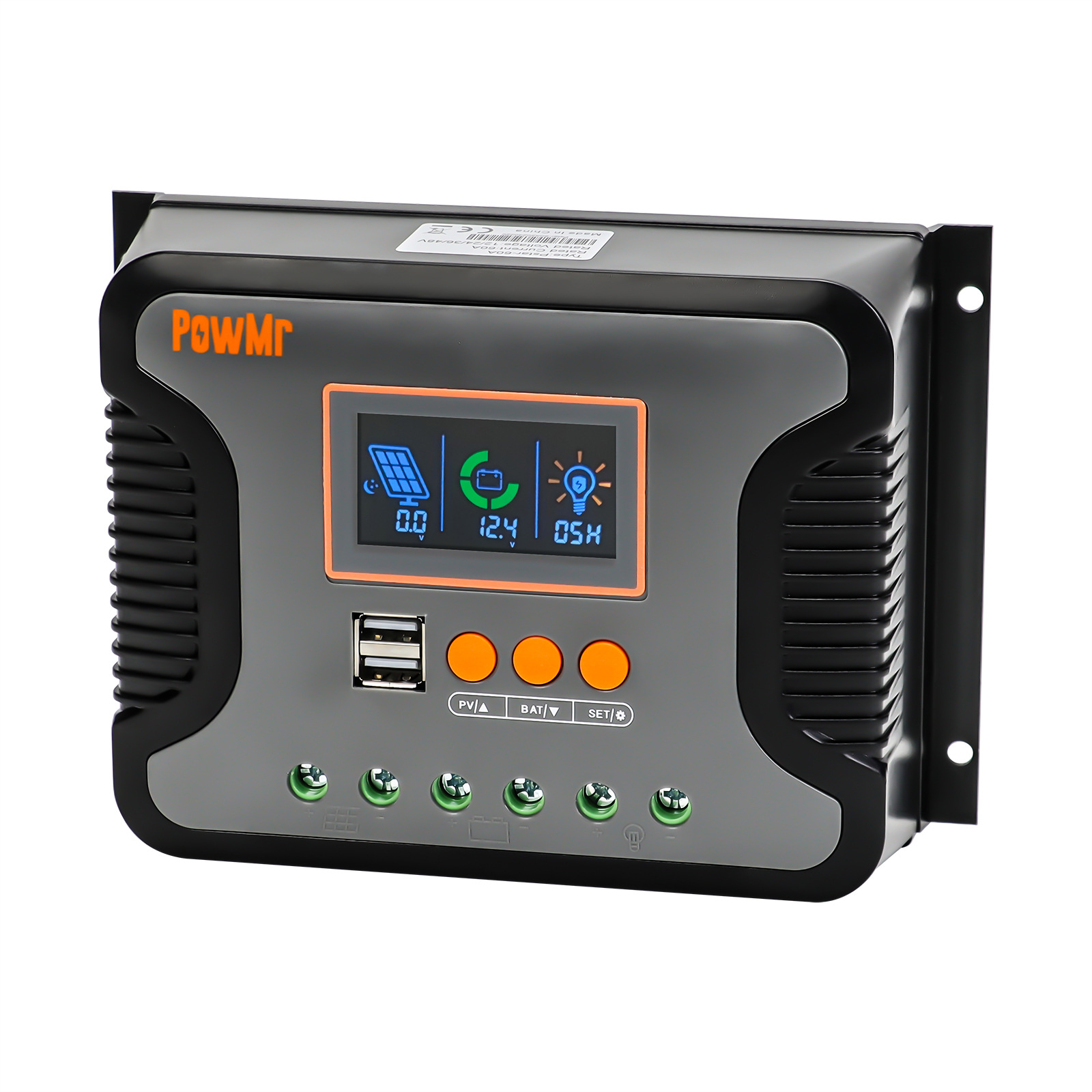

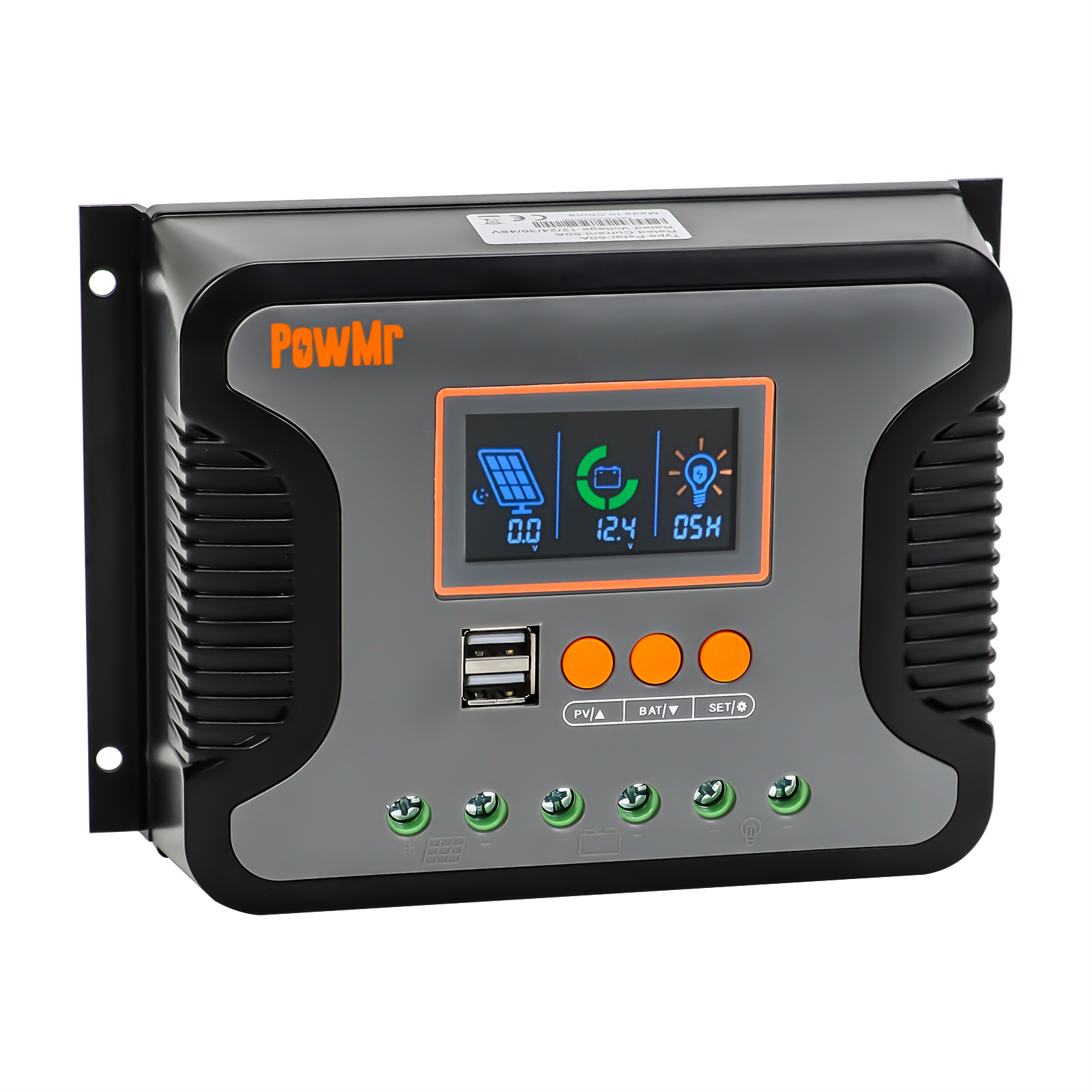

1	LCD display screen	5	Load interface
2	Function keys	6	USB interface
3	Photovoltaic input interface	7	Installation hole (4 x Ø5mm)

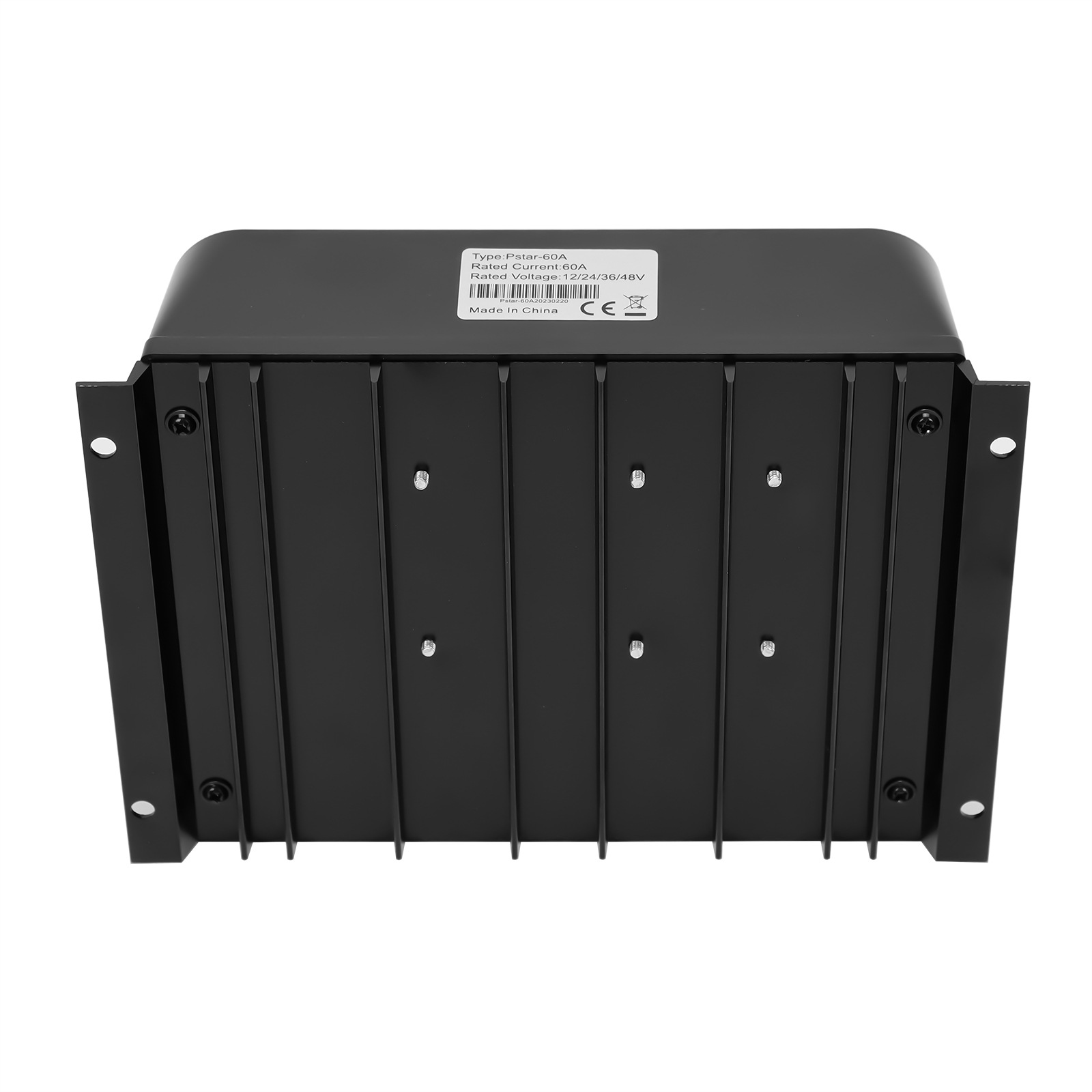

4	Battery interface	8	Heat sink

Cross-border shipment of PWM solar controllers for 30A/60A/80A and 12V-48V lithium battery photovoltaic controllers pic 4

Specification parameters

Model	Pstar-30A	Pstar-60A	Pstar-80A
Photovoltaic input
Maximum open-circuit voltage of photovoltaic array	100V
Photovoltaic open-circuit voltage range	System voltage, ≤100V
Maximum input power 12V system 24V system 36V system 48V system	≤360W ≤720W ≤1080W ≤1440W	≤720W ≤1440W ≤2160W ≤2880W	≤960W ≤1920W ≤2880W ≤3840W
Charging mode
Charging technology	PWM
Charging algorithm	3-Stages
Self-depletion	≤20mA
Nominal system voltage	12V/24V/36V/48V (Auto detection)
Rated charging current	30A	60A	80A
Dc output
Rated output current	20A	35A	50A
USB interface	5V/2A*2
Environment
Operating temperature range	- 20 ℃ ~ + 55 ℃
Humidity range	≤90%, Non-condensing
Conventional parameters
Protection level	IP30
"Size"	1879449mm	18713260mm	18713260mm
Net weight	0.49 kg	0.77 kg	0.79 kg

➢ Fast charging:

Before the voltage rises to increase the charging voltage, the battery is charged at the maximum charging current. The duration of the fast charging stage depends on the battery's discharge level, battery capacity and charging current. When the battery voltage reaches the preset value for boosting the charging voltage, it will automatically enter the boosting charging mode.

➢ Enhance charging

The controller charges the battery according to the default increased charging voltage. When the battery is fully charged, the charging current gradually decreases.

The default duration of the enhancement stage is determined by the discharge level of the fast charging stage.

When the photovoltaic modules are reconnected, a new cycle will commence. If the cells are fully charged, the charging phase will directly enter stage B, which is the stage of increasing the charging voltage, and the cell voltage in this stage will not exceed the set voltage in stage B. At this point, the charging duration for stage B is 30 minutes.

➢ Floating charging

After the charging process is completed, the controller will lower the battery voltage by reducing the charging current and keep the battery at the float charging voltage set value, ensuring the battery is fully charged.

During the float charging stage, the load can obtain almost all the electricity from the solar panels. If the load is overloaded, the controller will no longer be able to maintain the battery voltage at the float charging stage. If the remaining battery voltage is lower than the charging voltage for entering a new cycle, the system will leave the float charging stage and return to the fast charging stage.

Wiring precautions

A. Please have the installation and wiring work completed by a certified electrician.

b. To avoid short circuits and reverse polarity connections, please ensure that the positive cable is connected to the positive terminal of the equipment and the negative cable to the negative terminal when wiring.

c. Cables that are too thin and/or not connected tightly will cause the cables or terminals to overheat. Therefore, please tighten all the cables to minimize the transition resistance as much as possible. Please use cables that meet the size requirements. For specific details, please refer to "2.4 Cable Specifications Selected by Circuit Breaker Model".

d. Do not connect the inverter to the load end of the controller; otherwise, it will cause irreversible damage to the equipment. If an inverter needs to be connected,

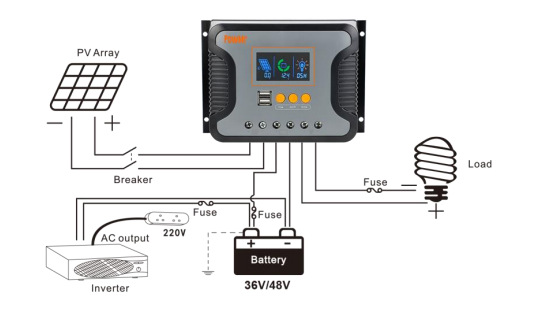

Please wire according to the following controller system application diagram.

Cross-border shipment of PWM solar controllers for 30A/60A/80A and 12V-48V lithium battery photovoltaic controllers pic 6

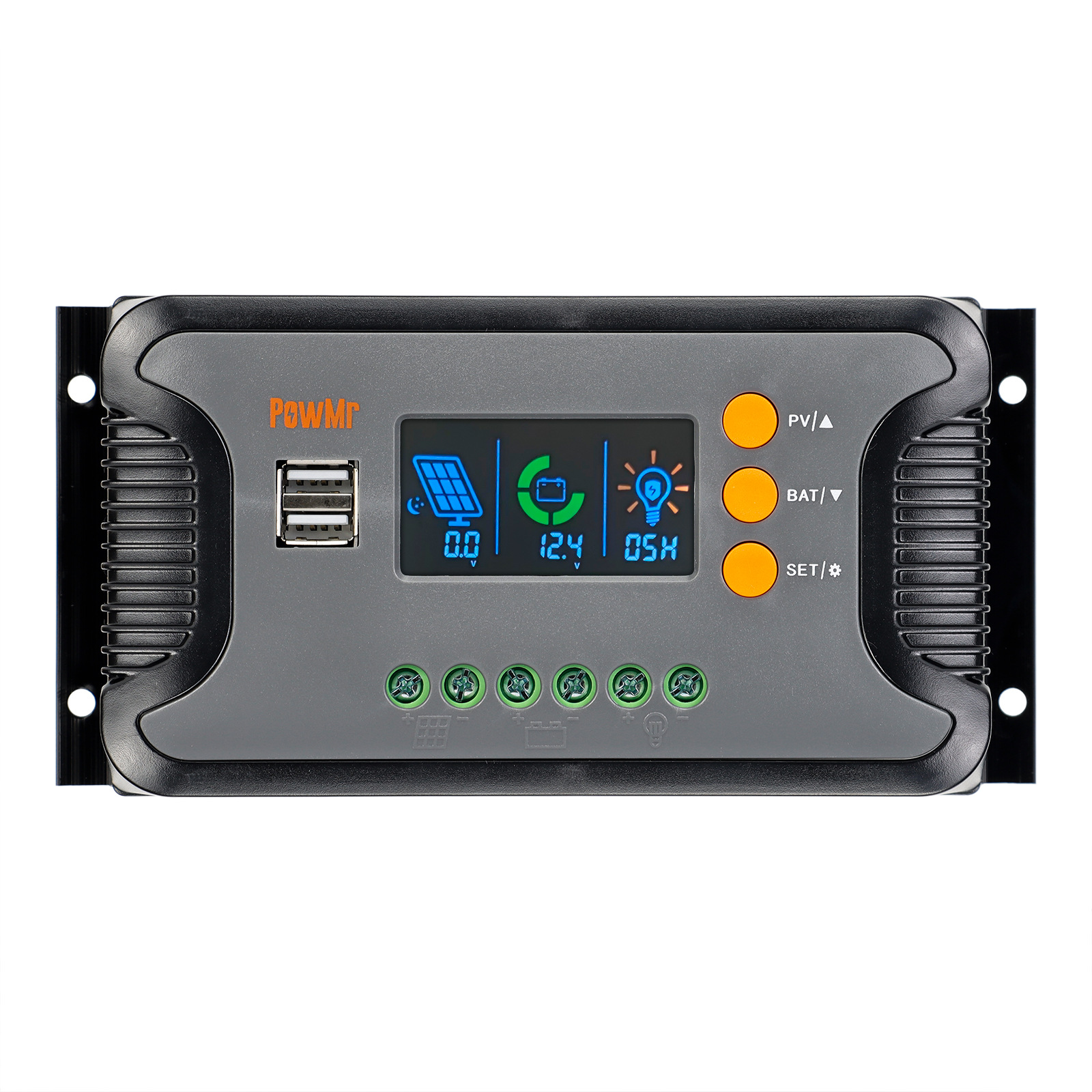

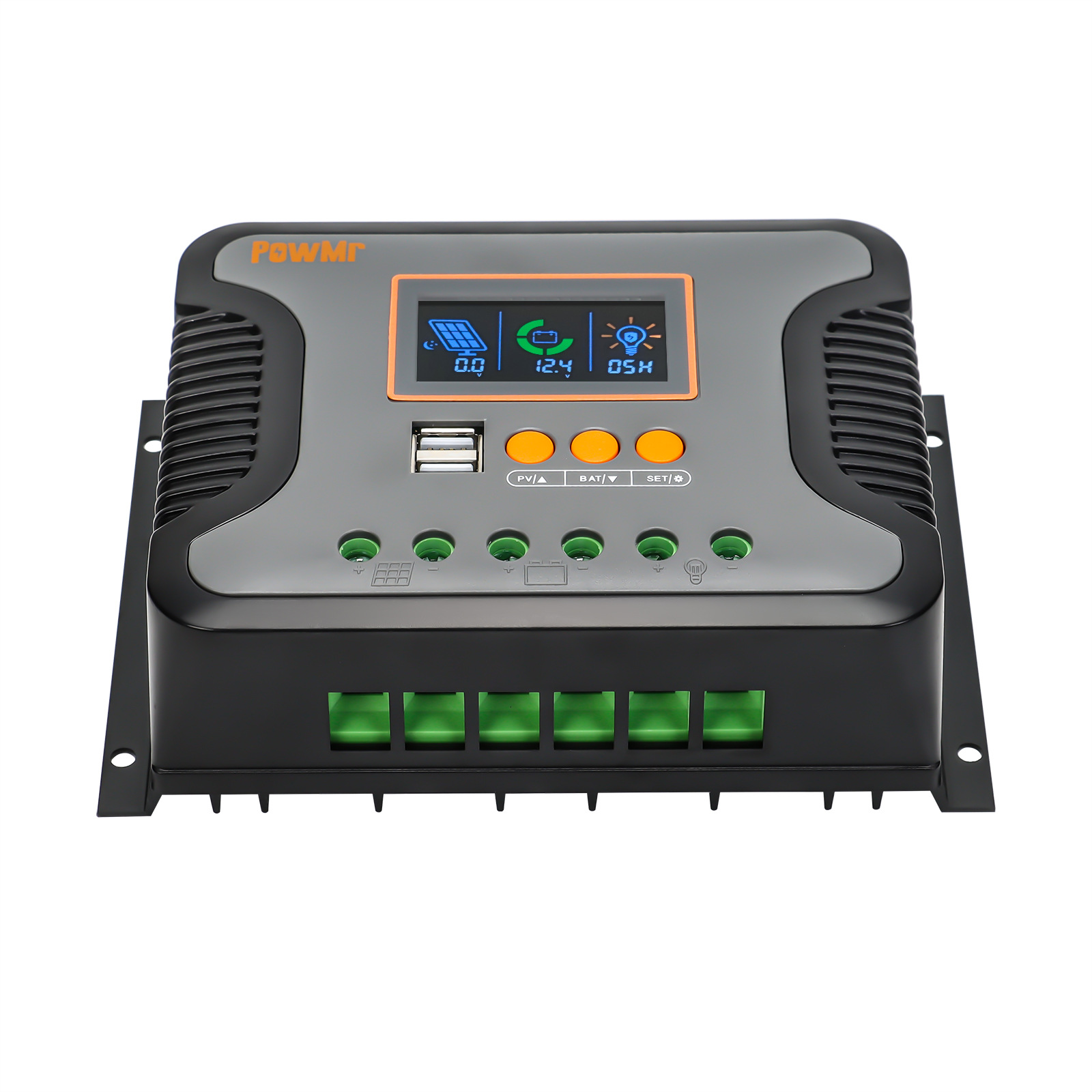

The picture above shows the actual Pstar 30A

Note: The actual product of Pstar 30A is not consistent with Pstar 60A and 80A.
