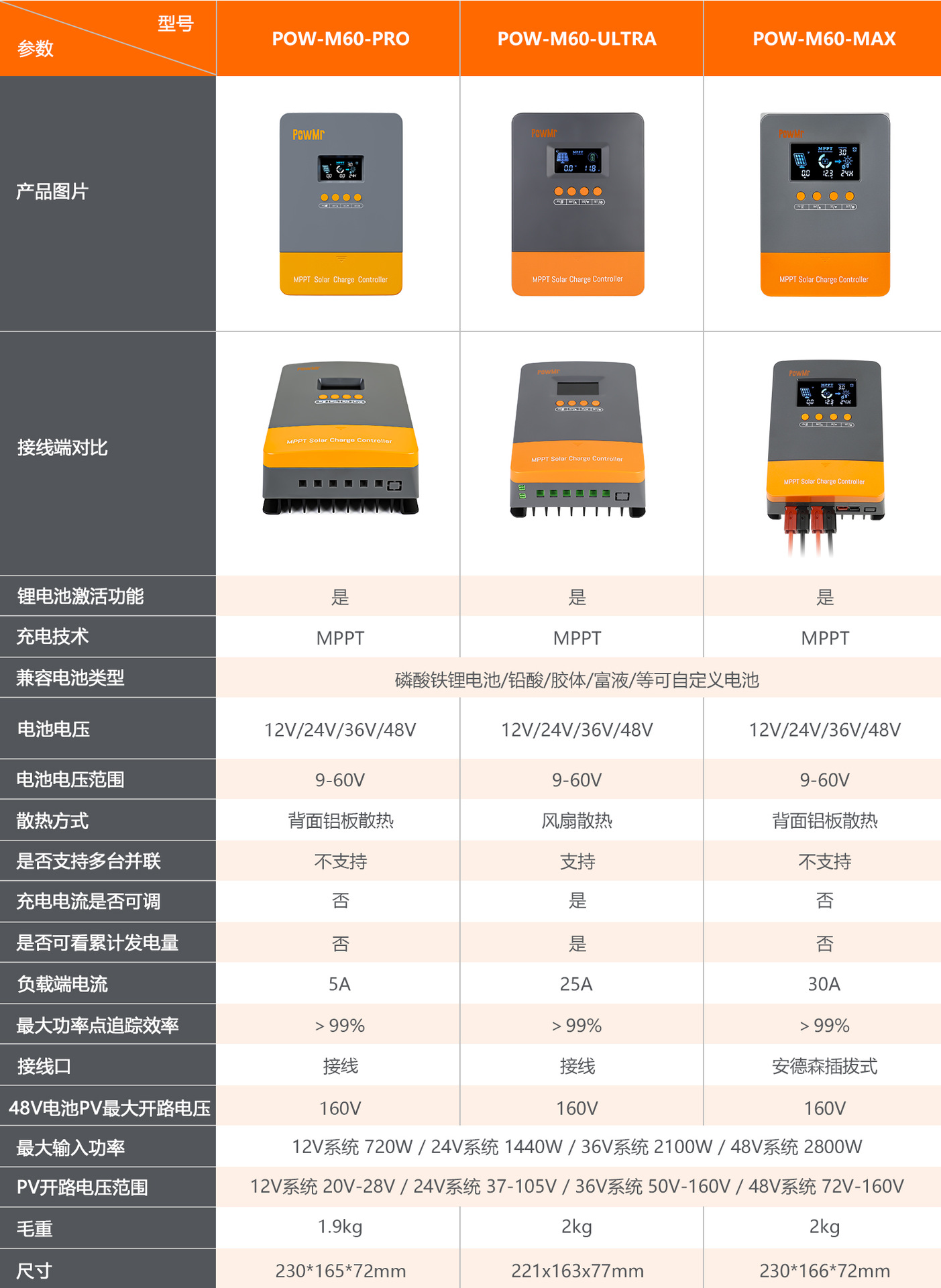

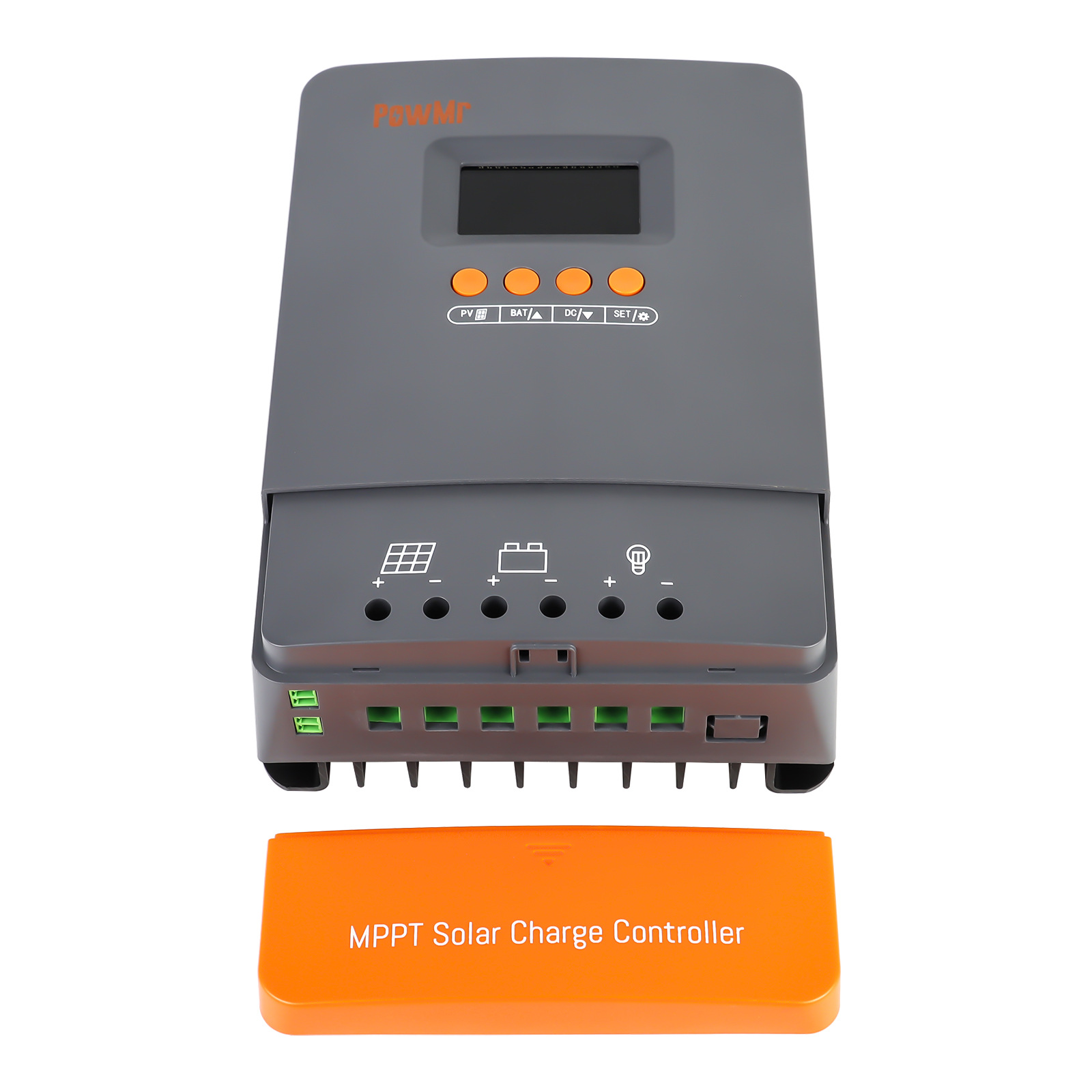

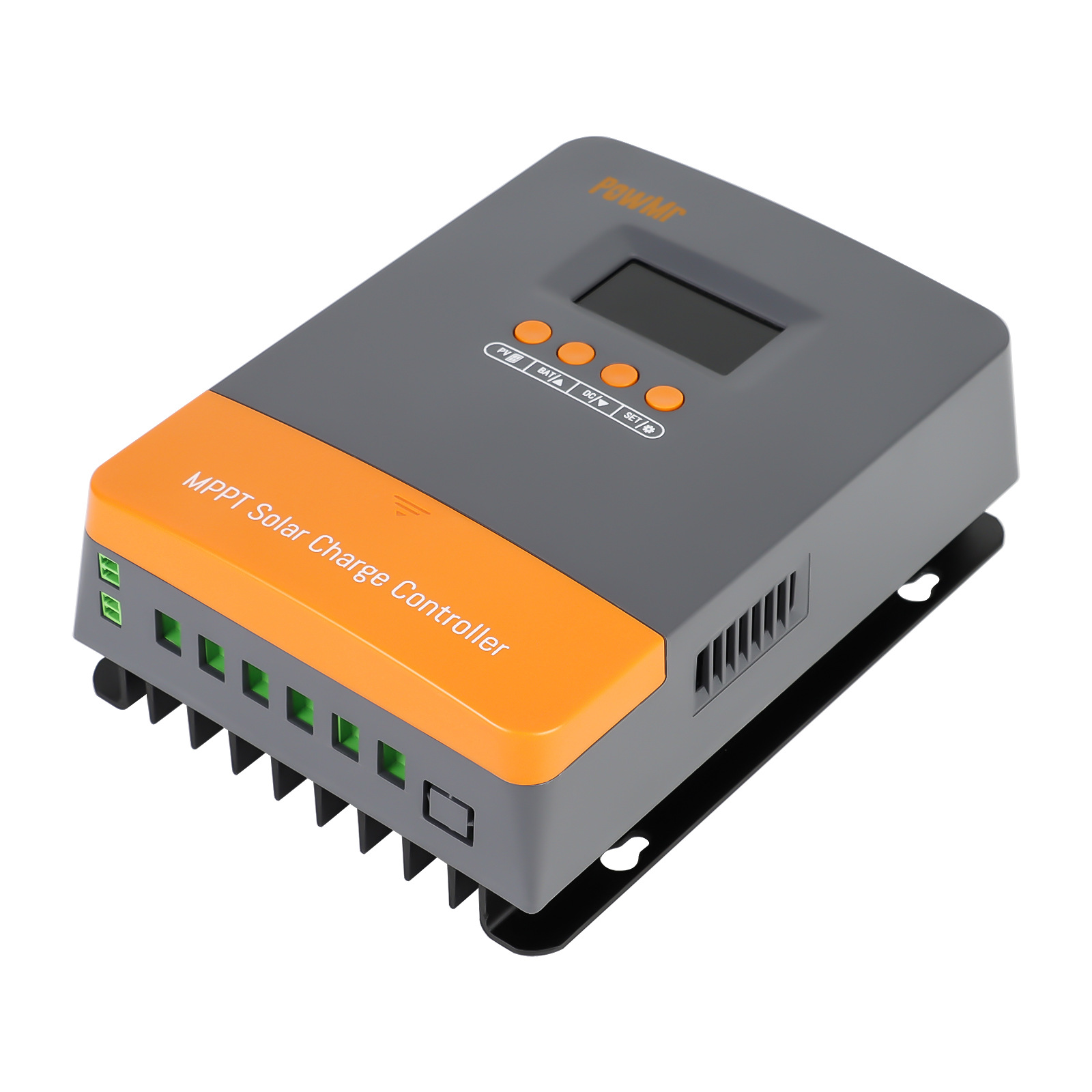

MPPT controller model: POW-M60-PRO

Charging mode

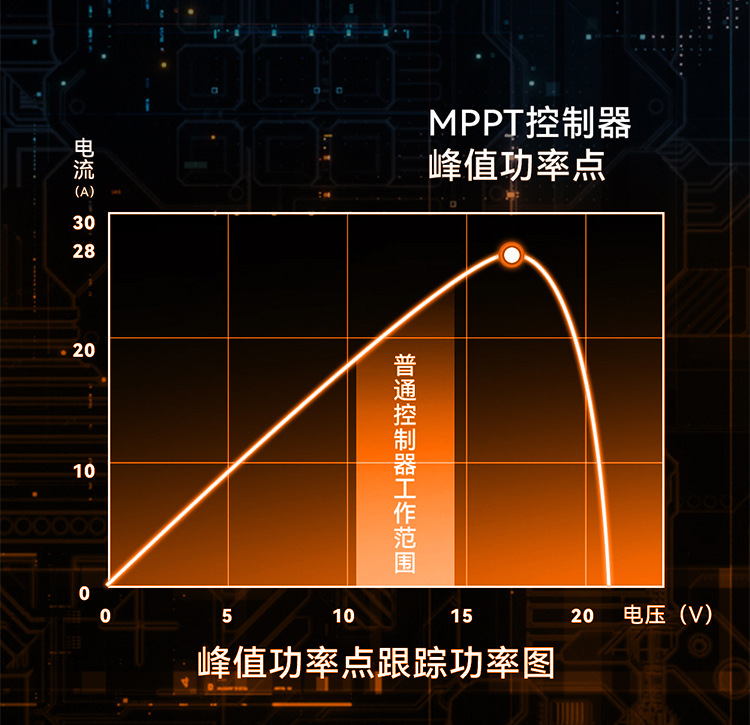

MPPT automatic maximum power point tracking

Charging method

Phase Three: Constant current (MPPT), constant voltage, float charge

System type

DC12V/24V/36V/48V

"Automatic identification"

System identification voltage

12V system

DC9V~DC15V

24V system

DC18V~DC29V

36V system

DC30V~DC39V

48V system

DC40V~DC60V

Soft start time

12V/24V/36V/48V systems

≤1S

Dynamic response recovery time

12V/24V/36V/48V systems

100us

Overall machine efficiency

12V/24V/36V/48V systems

≥98.1%

Utilization rate of photovoltaic modules

12V/24V/36V/48V systems

≥99%

Input characteristics

MPPT working voltage and range

12V system

Recommended input voltage for PV open-circuit voltage: DC20V to DC80V

24V system

Recommended input voltage for PV open-circuit voltage: DC37V to DC105V

36V system

Recommended input voltage for PV open-circuit voltage: DC50V to DC160V

48V system

Recommended input voltage for PV open-circuit voltage: DC72V to DC160V

Maximum limit input voltage (VOC

12V/24V/36V/48V systems

DC190V

Maximum input power of solar panels

12V system

400W

480W

600W

720W

24V system

720W

960W

1200W

1440W

36V system

1000W

1400W

1800W

2100W

48V system

1200W

1700W

2200W

2800W

Output characteristics

Selectable battery types (default is GEL gel battery)

12V/24V/36V/48V systems

Sealed lead-acid battery, discharge battery

Colloid battery, nickel-cadmium battery

It can also be customized to charge for other types of battery voltages.

Constant voltage

12V/24V/36V/48V systems

Please refer to the charging voltage parameter table of the battery type

Float charging voltage

12V/24V/36V/48V systems

Overcharge protection voltage

12V system

15V

24V system

30V

36V system

45V

48V system

60V

Output rated current

12V/24V/36V/48V systems

60A

Current limiting protection

12V/24V/36V/48V systems

61A

Temperature coefficient

12V/24V/36V/48V systems

Plus or minus 0.02% / ℃

Automatic temperature compensation

12V/24V/36V/48V systems

14.2V- (maximum temperature -25℃) *0.3

Output voltage ripple peak-peak

12V/24V/36V/48V systems

100mV

Output voltage stabilization accuracy

12V/24V/36V/48V systems

Plus or minus 1% or less

The maximum current is output at terminals OU+ and OU-

12V/24V/36V/48V systems

≤5A

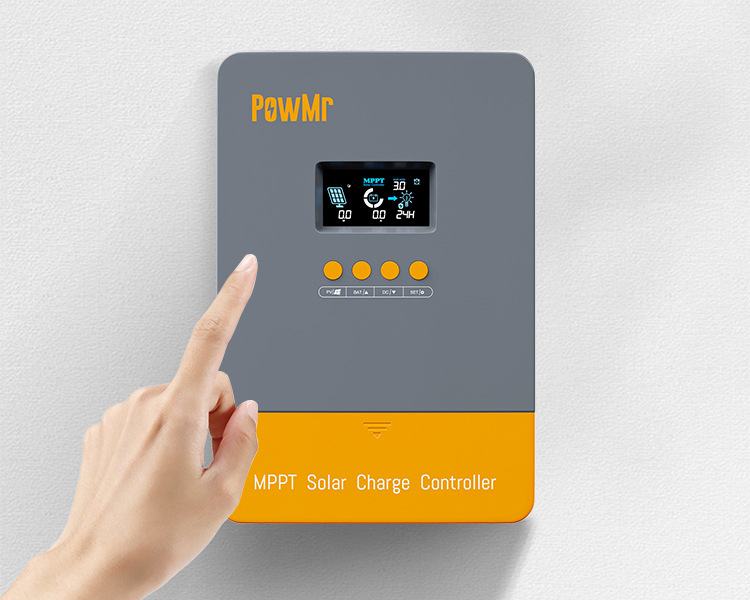

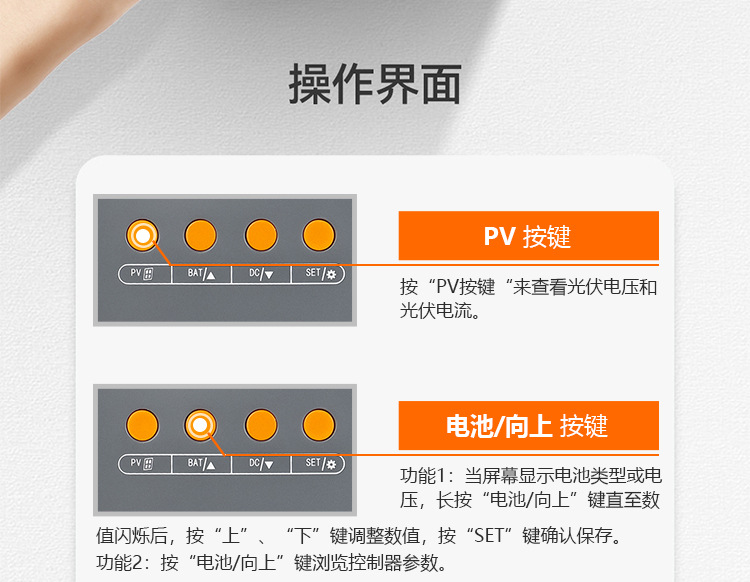

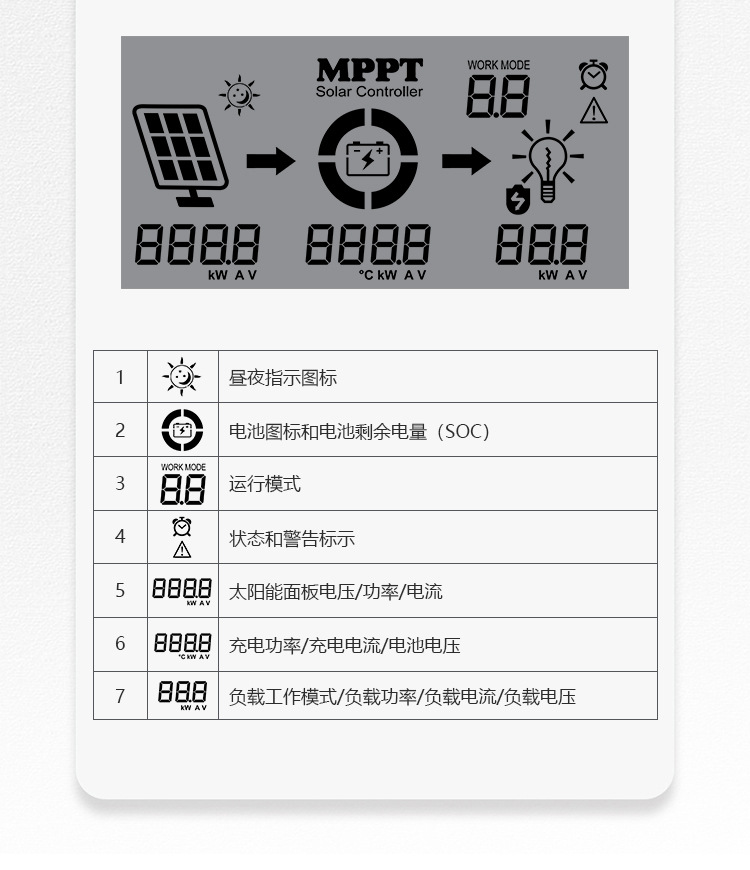

"Display

LCD display

Input, output parameters and output power, etc

(For details, please refer to the LCD display instructions

Protective function

Output overvoltage and undervoltage protection

See Output Characteristics

Input anti-backflow protection

have

Temperature protection

75 ℃

Temperature rise protection

When the temperature is above 70℃, the power output is reduced. When it is below 55 ℃, the normal power output is reduced

Fan operating temperature

> 40 ℃

Fan shutdown temperature

The < 35 ℃

Other parameters

Heat dissipation method

Self-cooling

Components

Imported materials, in compliance with EU standards, within the standard industrial grade range

Smell

It does not produce any unpleasant odors or smells harmful to health

Environmental protection requirements

Complies with 2002/95/EC;

No cadmium, hydrides or fluorides;

"Attribute"

Dimension (mm

215x115x50

Net weight (Kg

1.1

Gross weight (Kg

1.2

Safety level

CE, PSE, FCC, EMC,EN60950

Electromagnetic compatibility

EN61000, EN55022, EN55024
