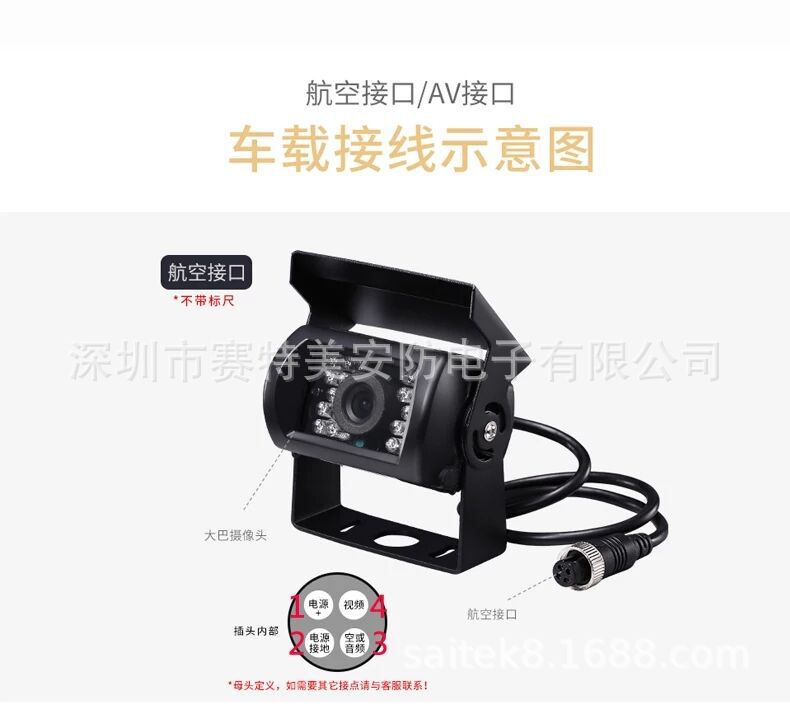

The vehicle-mounted waterproof and shockproof side-view side-mounted reversing focus camera adopts a 1/3SONYCCD: infrared LED, anti-fog, wide voltage, and low power consumption design. It successfully solves the problem of unstable image quality and blurred effect caused by ordinary cameras in vehicles after a period of use
Parameter
The vehicle-mounted AHD type waterproof and shockproof side-view and side-mounted reversing high-definition megapixel camera: The image processing adopts 18 low-power LED infrared lamps, which are anti-fog, shockproof and have a wide voltage range. The design successfully solved the problem of unstable picture quality and blurred effect caused by ordinary cameras on vehicles after a period of use.
Product features
1. Full HD 1.3-megapixel CMOS imaging device, with each frame having 1.3 million pixels, ensuring high image clarity.
2. The brand-new digital exposure function can achieve excellent image effects under different lighting conditions and with strong contrast.
4. It has high temperature resistance. Under high-temperature operation, the dark level remains stable, and there are no black vertical bars or white bright lines in night vision.
5. Shock-resistant, wide voltage range of 8V-18V, specially customized products for vehicle-mounted monitoring
| Model |
STM-750cs |
|
| Image sensor |
CCD |
|
| Effective pixels |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
|
| Signal system |
PAL/NTSC |
|
| Horizontal clarity |
450 TV cable |
|
| Low illumination |
0Lux(When the infrared lamp is turned on) |
|
| Built-in lens |
2.8mm. |
|
| Shutter speed |
1/50 (1/60) - 1/100,000 (second) |
|
| Signal-to-noise ratio |
Greater than 48db(AGC OFF) |
|
| Video output |
1.0 the Vp - p, 75 Ω |
|
| Power supply used: |
DC9V-18V/250MA (Please select 12V / 500mA for normal power supply) |
|
| Infrared wavelength |
18 F5 lamps /850nm |
|
| Infrared lamp distance |
0-20M |
|
| Working temperature; |
-20 to 50 degrees |
|
| Infrared lamp automatic start |
Night/day on/off |
|

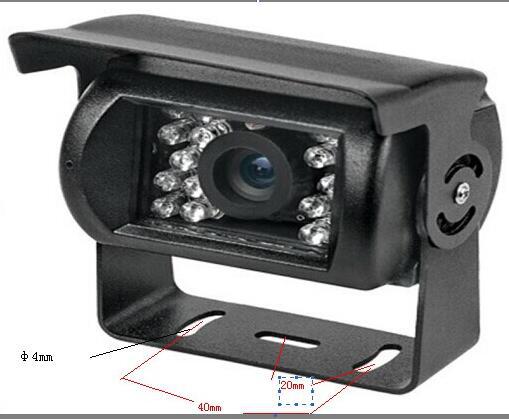

| Dimensions (millimeters) / |
|
|
| Weight (grams) : |
||
