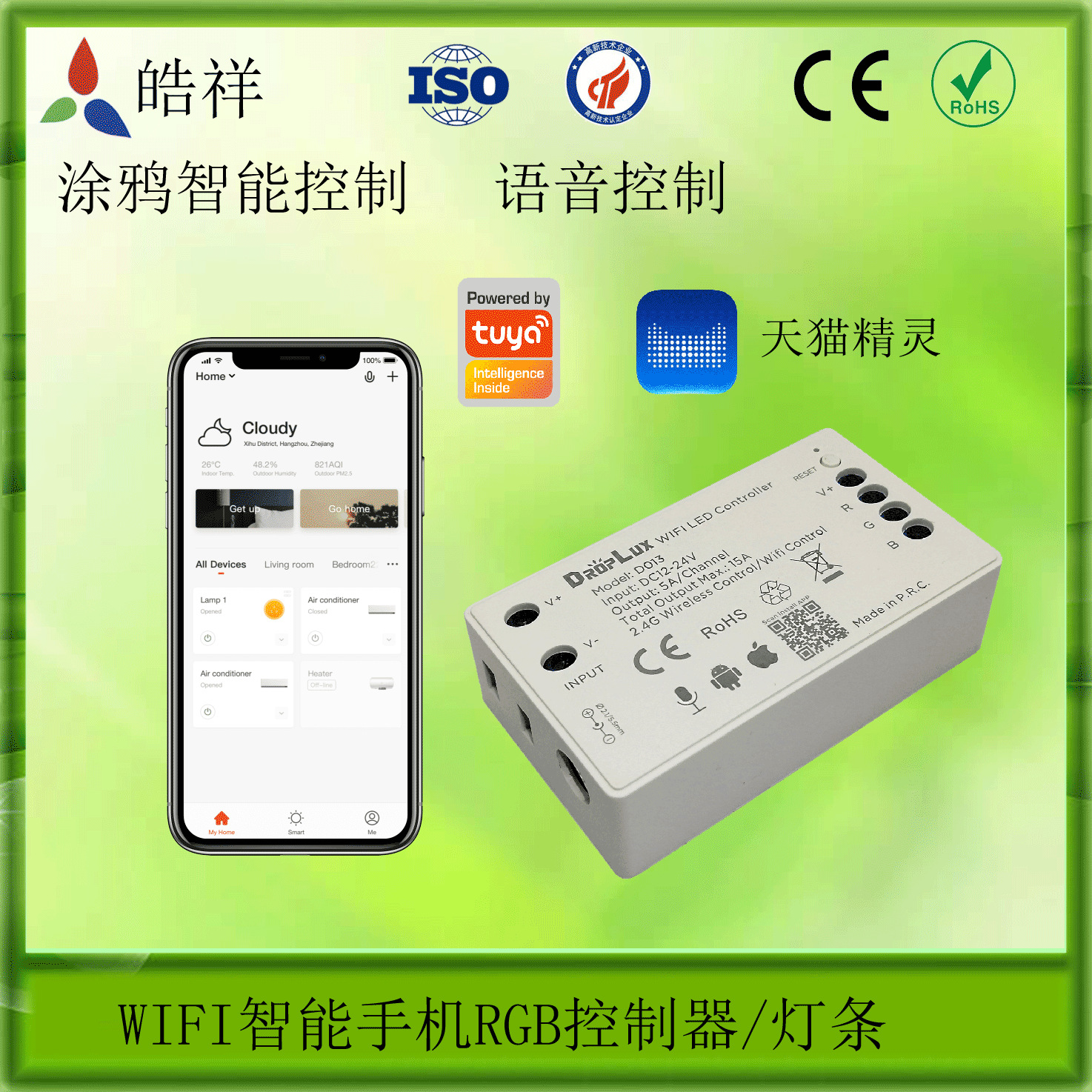

Product Introduction
This controller is a constant voltage WIFI RGB controller that adopts advanced PWM(Pulse Width Modulation) control technology. It is suitable for controlling various led RGB constant voltage lamps, such as: LED light strips, LED modules, LED light strings, etc. It adopts 2.4GHz wireless radio frequency remote control and WIFI control for mode selection and adjustment to achieve static, jump, gradient, flicker and other lighting change effects. It can adjust the brightness of static colors and the speed of dynamic changes. Customers can also achieve functions such as remote control, group synchronous dimming, timing setting, music control, and custom modes through the mobile phone APP. They can also bind smart speakers for intelligent voice control.
Product features
The WIFI technology adopts the Tuya Smart APP, which can achieve voice intelligent control.
The l control has short-circuit protection function.
This product is a constant voltage controller. The standard product is supplied with a wide voltage and cannot be used for other voltages.
This product is a constant voltage controller with a working voltage of DC12-24V, an output current of 3 channels *4A, and an output power of DC12V/144W and DC24V/288W.

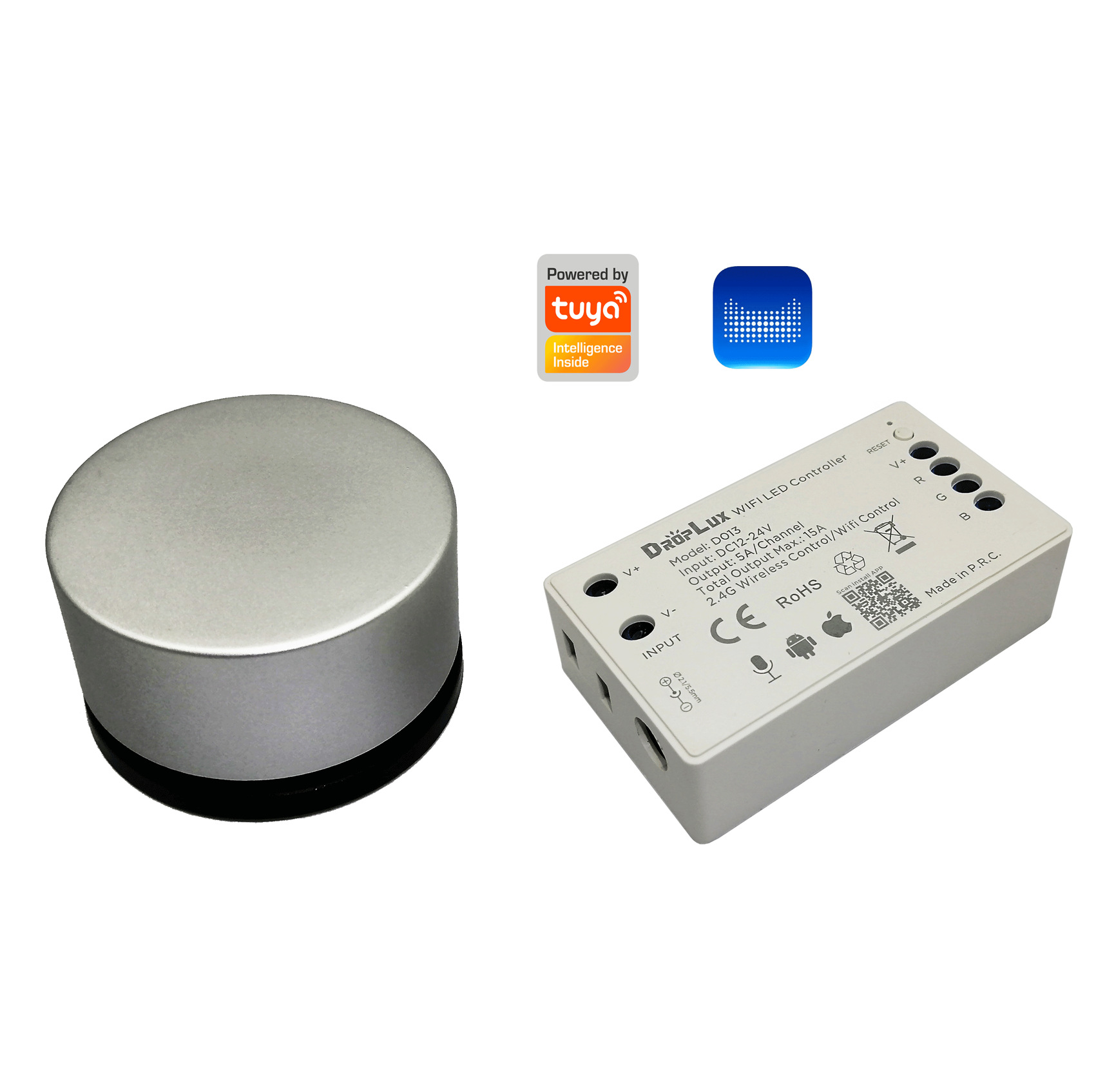

l can also be controlled by a universal 2.4GHz wireless knob remote control, which is convenient and aesthetically pleasing.
It has a memory function and saves the previously set change effects each time it is powered on.
The warranty period for this product is 3 years, but it does not cover various external factors such as damage caused by human factors, damage during transportation after purchase, and damage caused by natural forces.
Technical parameters
Controller technical parameters
| Working temperature |
- 20 to 60 ℃ |
Supply voltage |
DC12~24V |
| Static power consumption |
<1W |
Connection method |
Gongyang |
| Gray scale level |
Level 1024 |
Speed gear |
Level 1024 |
| Net weight |
65G |
MAO Zhong |
80G |
| External dimensions |
L70*W40*H20 mm |
Packaging size |
L95*W47*H33mm |
| Output |
"3 circuits |
Output current |
≤4A(per loop) |
| Wireless frequency |
2.4 GHz |
Remote control distance |
≤20m |
| Power-off memory function |
have |
Output power |
12V:<144W, 24V:<288W |
Technical parameters of wireless remote control
| Working temperature |
- 20 to 60 ℃ |
Supply voltage |
3V (AAA*2PCS) |
| Sleep current |
<25uA |
Emission current |
<17mA |
| Sleep power consumption |
<75uW |
Transmission power consumption |
<51mW |
| Net weight |
80g(including battery |
External dimensions |
L60*W60*H35 (mm) |
| Remote control distance |
≤30m |
Transmission frequency |
2.4 GHz |
| Remote control accessories |
Battery: 3V(2*AAA |
||
Instructions for Use
1. WIFI control is achieved through the Tuya APP.
Download and register the Tuya APP. Please read the operation instructions of Tuya Smart to complete the binding of WIFI and add the smart controller. It can achieve functions such as remote control, group synchronous dimming, timing setting, music control, and custom modes.
2. Voice control of Tmall Genie;
Download and register the Tmall Genie APP. Please read the operation instructions of Tmall Genie and complete the binding of the Tuya APP to achieve voice control in a timely manner.
Compatible smart speakers: Tmall Genie, Xiaomi Xiaoai, Baidu Duer, JD Ding Dong, Amazon Alexa, Google Assistant, Yandex Alice;
Typical applications

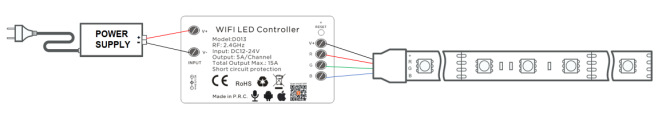

Wiring diagram: RGB

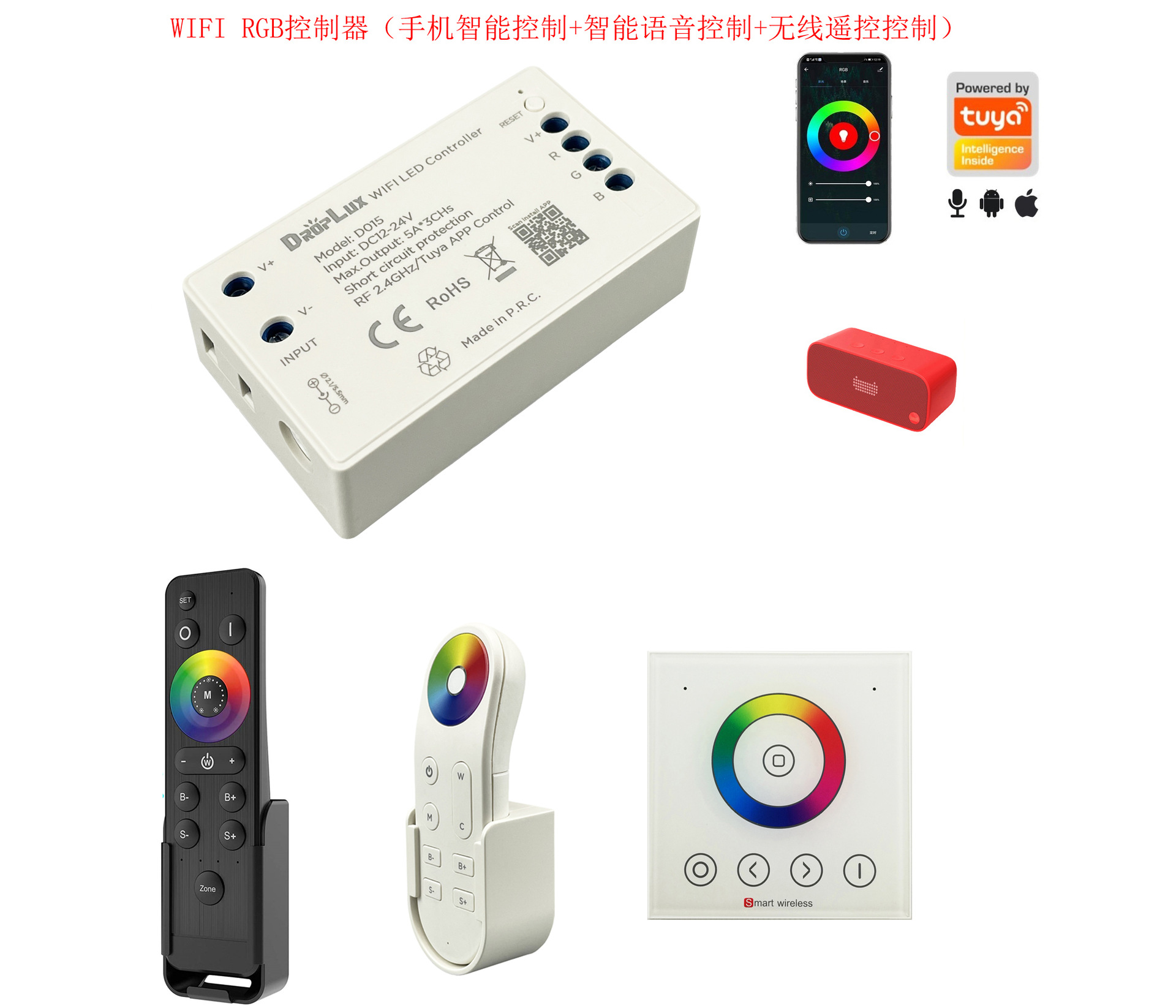

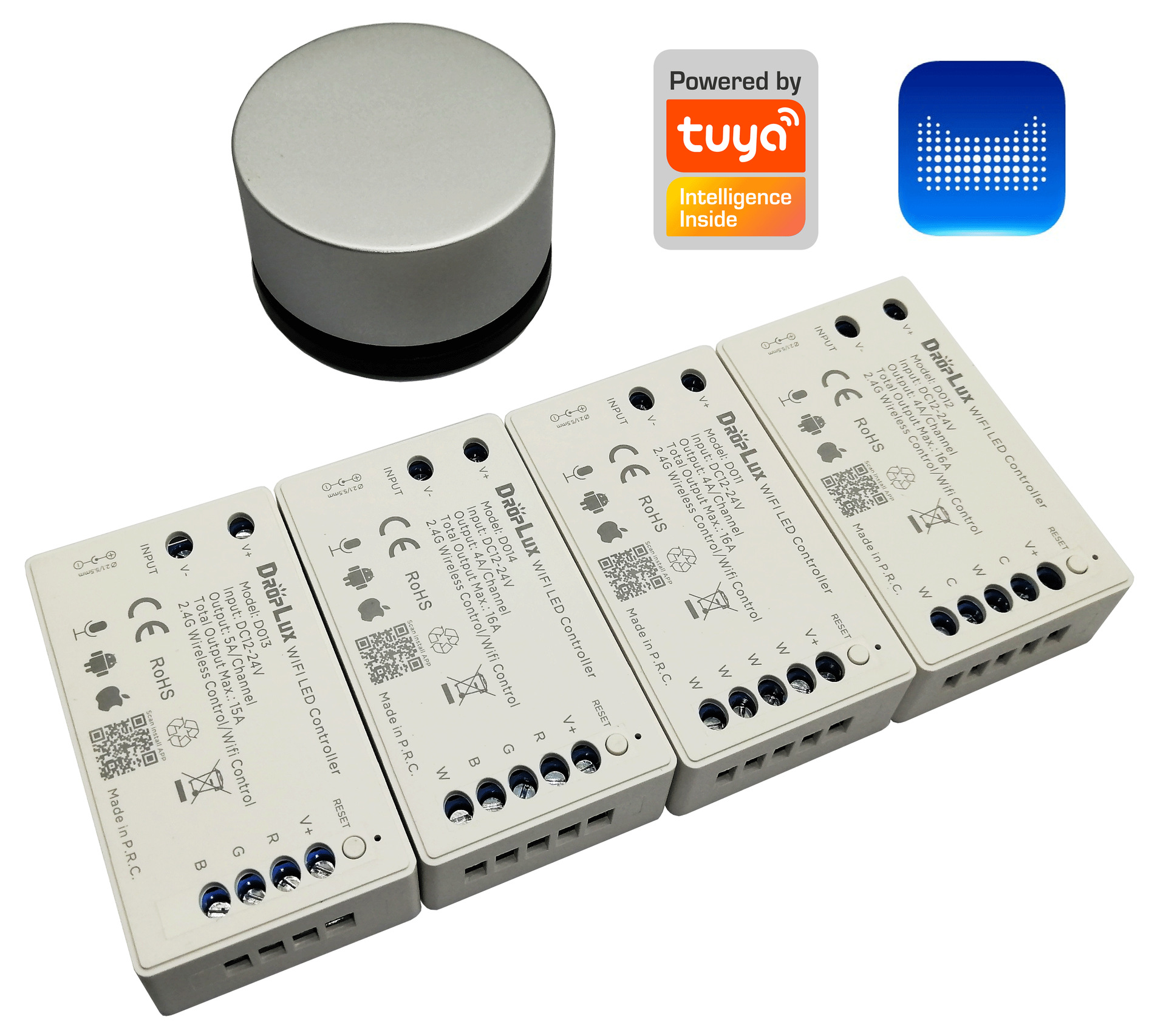

Compatible with multiple remote controls (enabling wireless synchronous control)
