Specification parameters |
|
|
Product model |
FAP660 |
|
CPU |
MT7628DAN |
|
Flash |
8M |
|
DDR2 |
64M |
|
2.4GWorking frequency band |
2.4GHz – 2.484GHz |
|
2.4G WIFITransmission Protocol |
802.11 b / g / n |
|
Built-in antenna2 .4G |
Omnidirectional antenna2pcs，Each gain：2dBi |
|
SSIDHide |
Support |
|
Rate |
300Mbps |
|
Support wireless access |
32+ |
|
Interface (WAN) |
1a10/100MbpsAdaptiveWAN mouth，Support48V PoEPower supply |
|
Interface（LAN） |
1a10/100MbpsAdaptiveLAN mouth |
|
PoE |
802.3af |
|
Key press |
resetkey（Short press1Turn off the lights for the second time，Long press6-10Restore the factory default configuration in seconds） |
|
状态指示lamp |
SYSlamp |
|
Power consumption |
< 8W |
|
ESDTest |
Air discharge：±8KV，Contact discharge：±4KV |
|
Surge |
Common mode1kV，Differential mode0.5kV |
|
Product size |
87mm*86mm*35.8mm |
|
Weight |
0.28kg |
|
Working environment |
Normal operating temperature：-20°C to 40°C；Storage temperature：-40°C to 70°C； Humidity：5％～95％（No condensation） |
以上数据来源实验室环境，For reference only

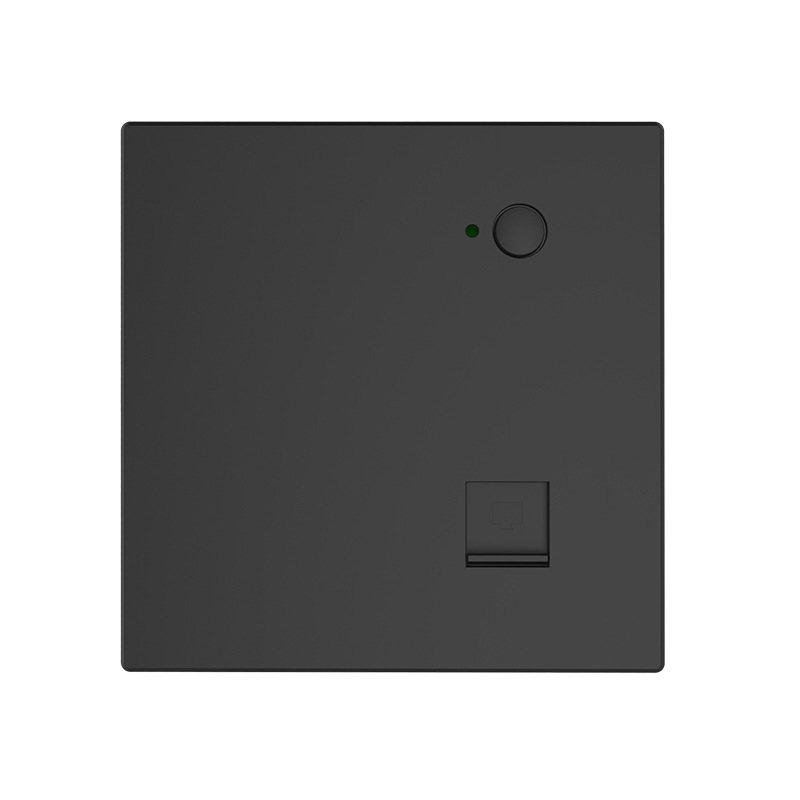

black

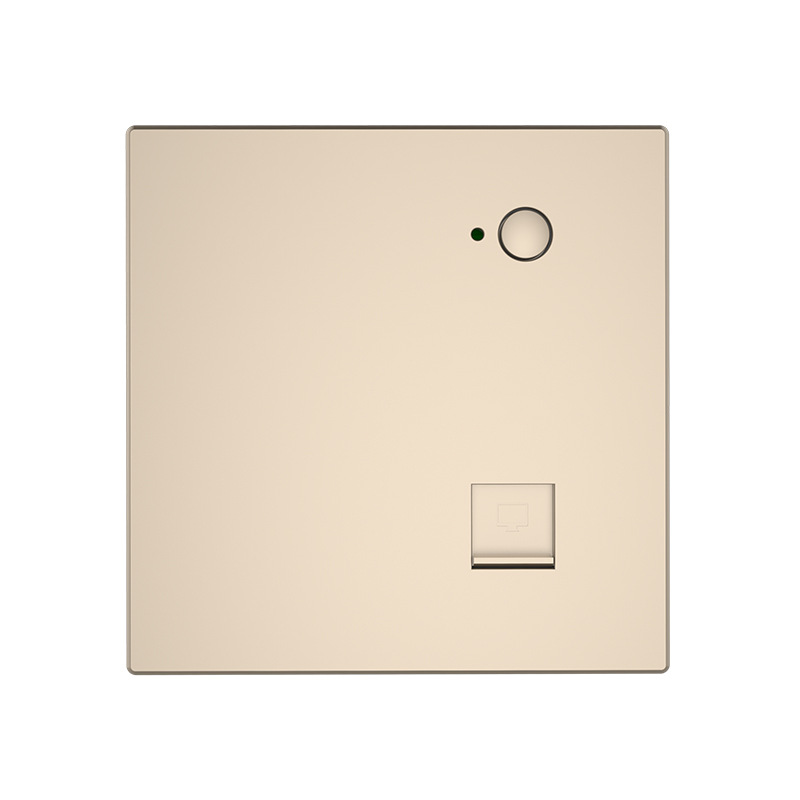

"Milan Gold"

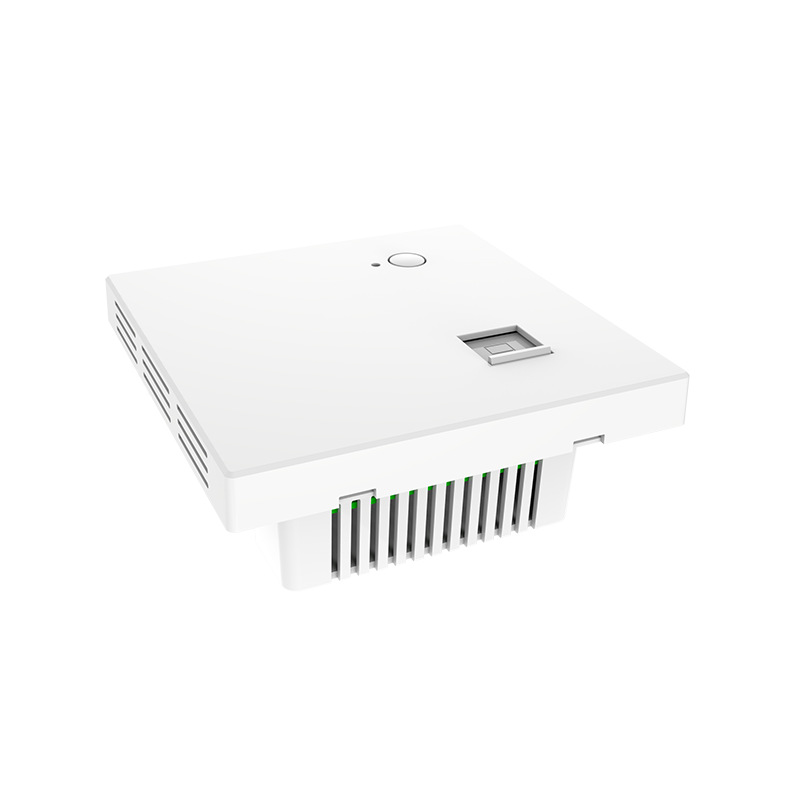

white

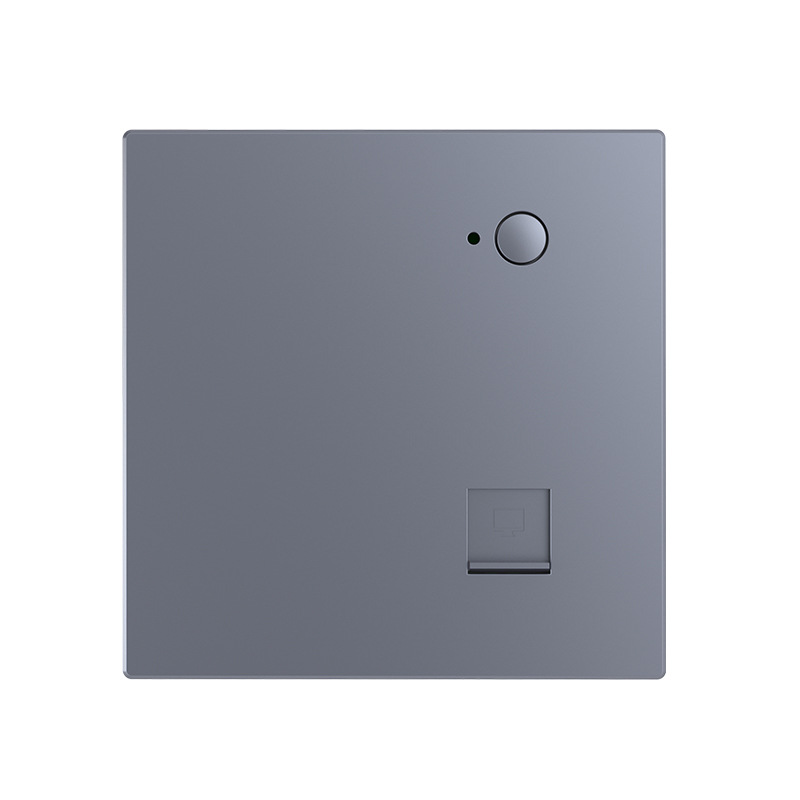

Simon Grey
