Note: The marked price is for one product, and the packaging is one box. The system defaults to shipping one box.

Product Introduction

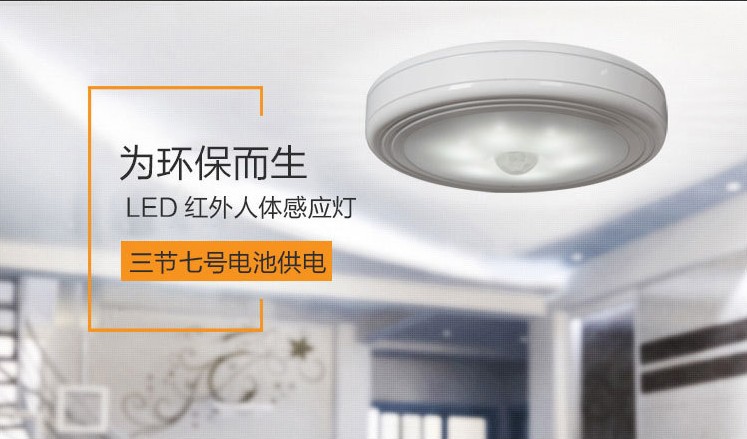

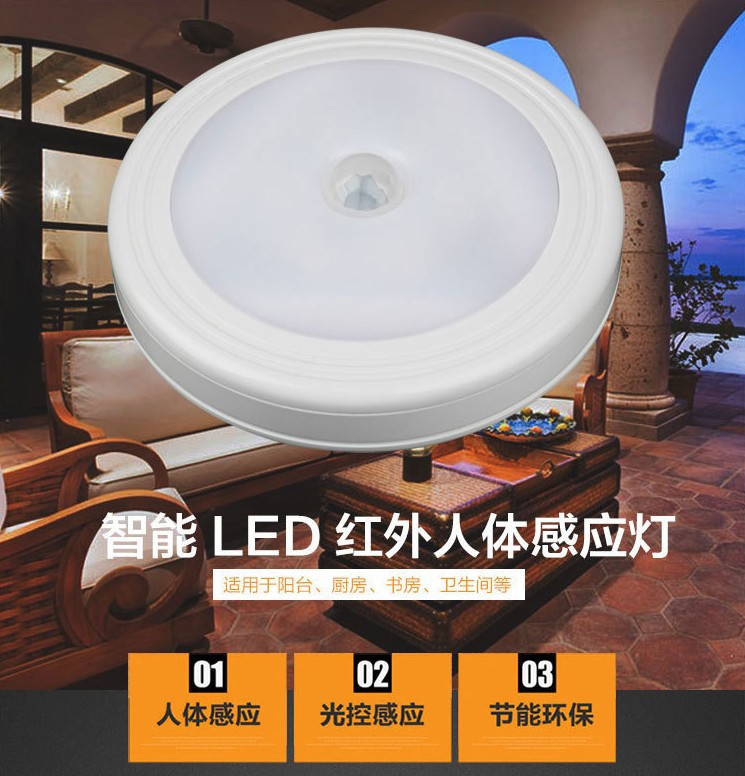

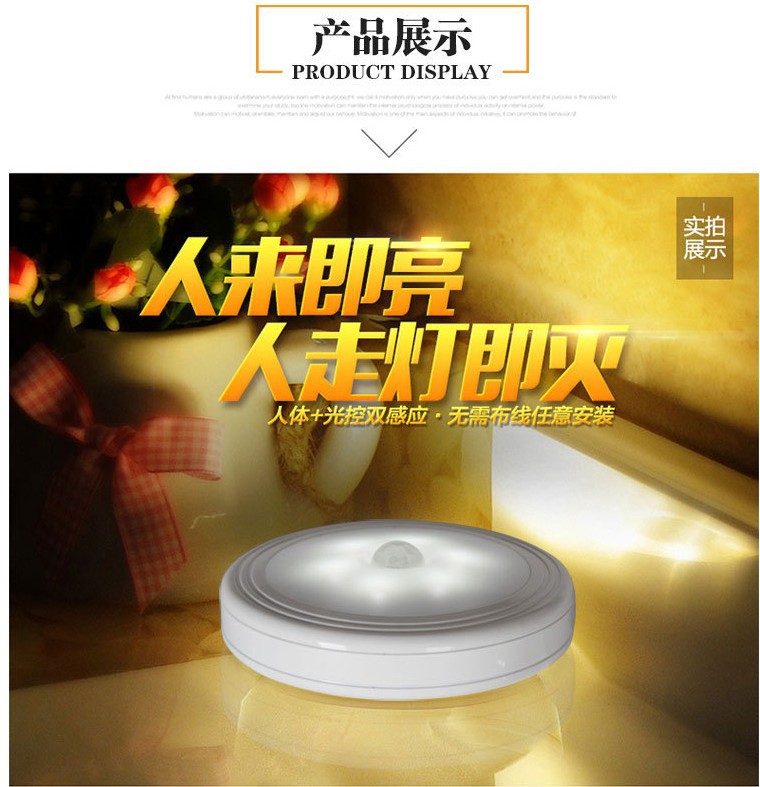

Modern intelligent infrared sensor lamps for human bodies light up when people come and turn off when they leave.

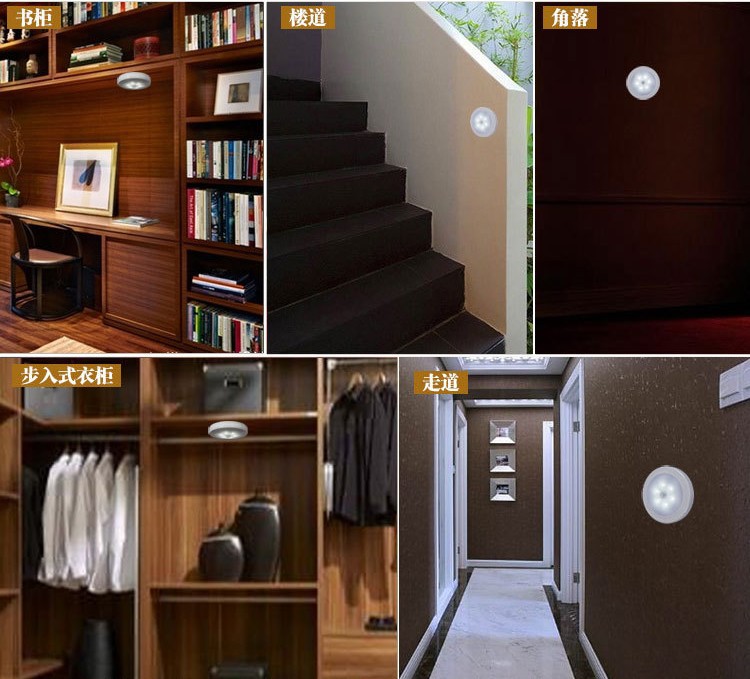

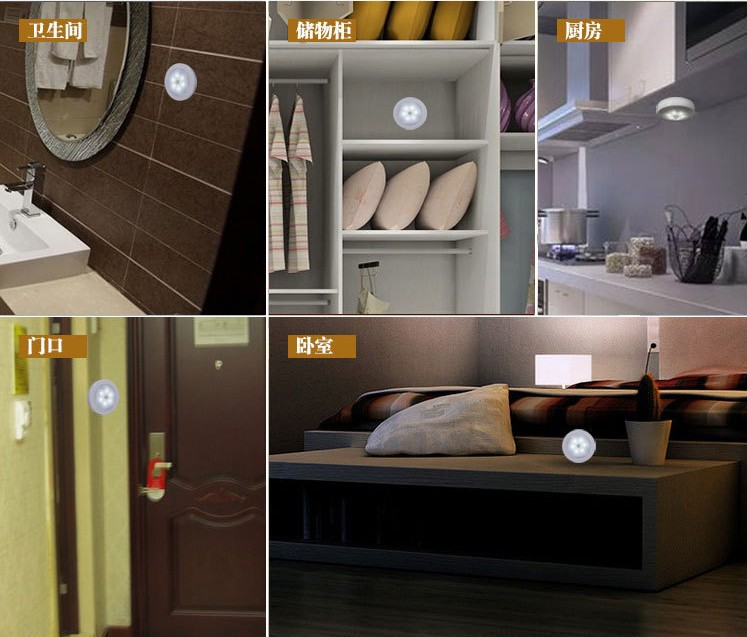

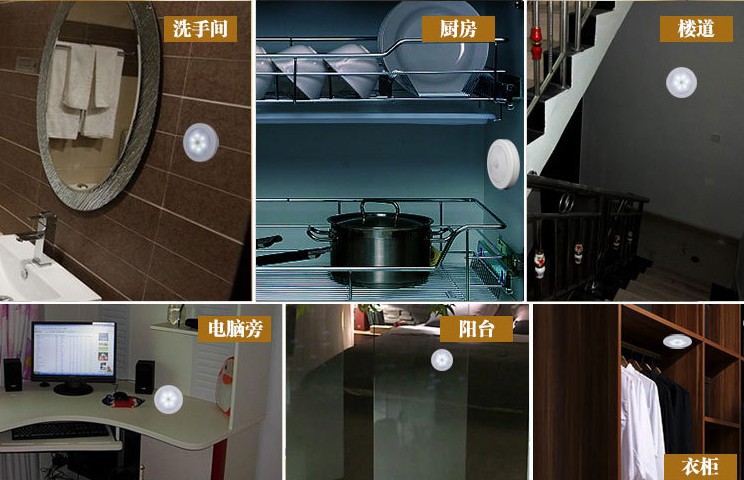

Suitable for every place in the house that needs light, such as: bedside, wardrobe, corridor, balcony, closet, bathroom......
The compact size and classic design are the heart-stirring moments of meeting
The sensitive sensing and simple installation are the attractions of the acquaintance
Bright lighting and ultra-low power consumption are interdependent for a long time

Technical parameters

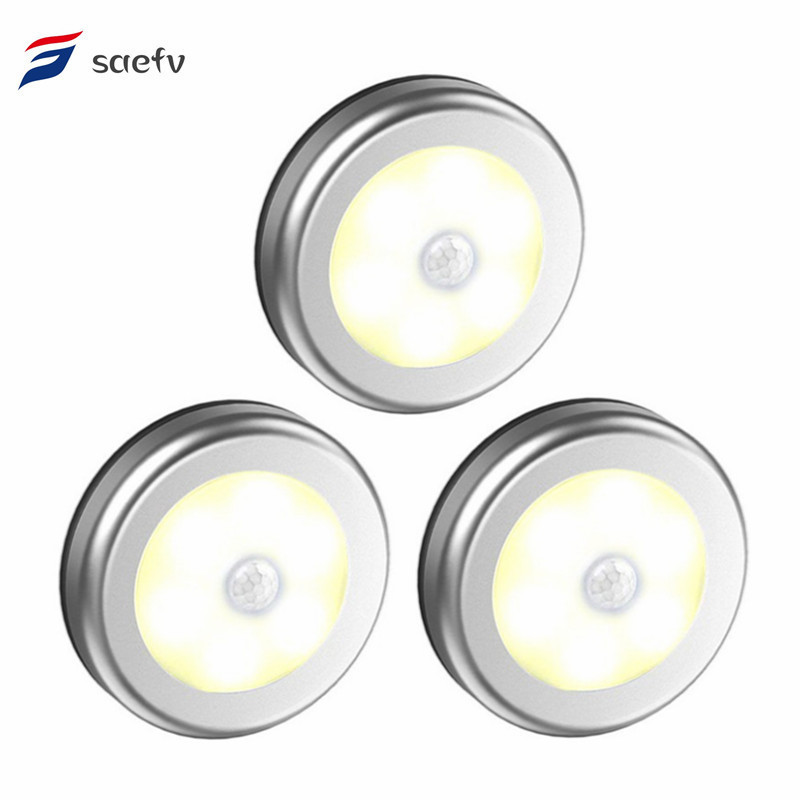

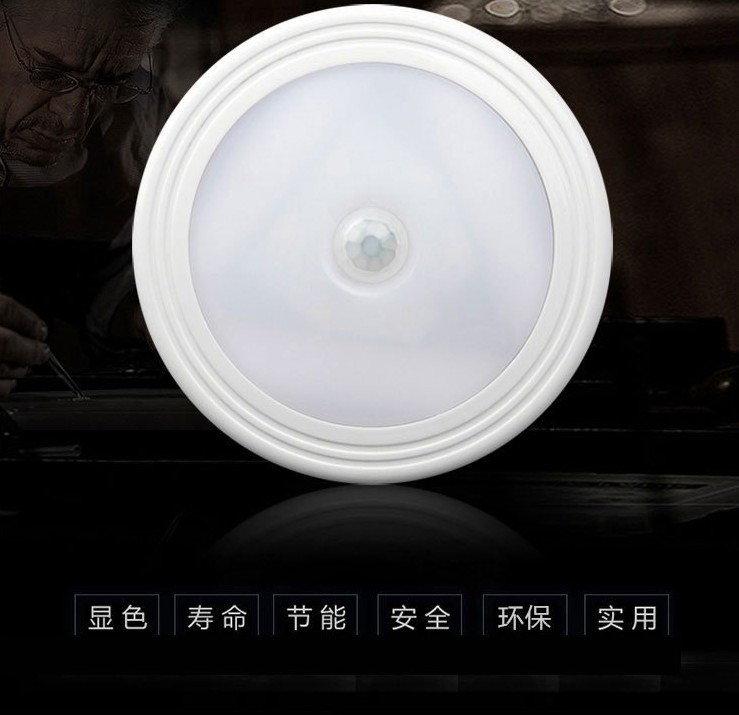

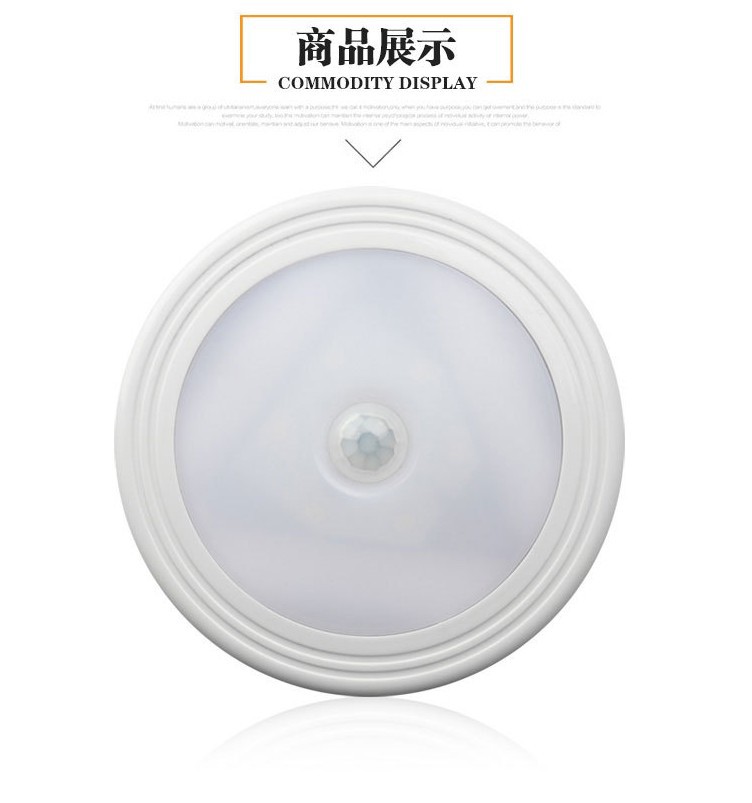

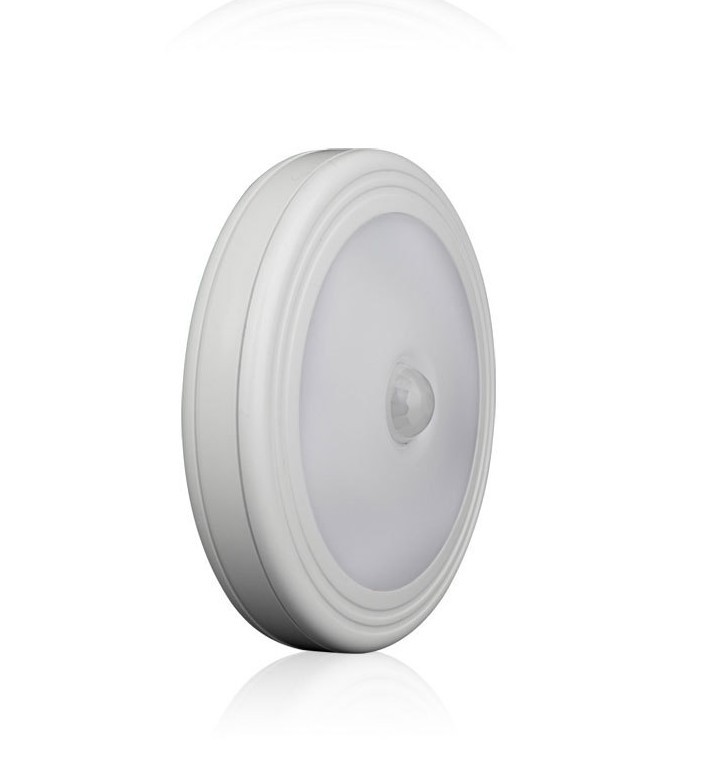

① Product Name: Circular Human Body sensor Lamp
② Product size: 8*8*1.8cm
③ Product weight: Net weight 43g, each package 63g (box size: 8.8*8.8*3.8cm).
④ Battery: 3 AA alkaline batteries (not included in the shipment) can be used normally for more than 3 months
⑤ Input voltage 4.5V, rated power 1W
⑥ Sensing distance: 0-5 meters, sensing Angle: 120 degrees
⑦ Working environment temperature: -20 ° C to 40 ° C
Working environment humidity: 5%-93%
⑧ Light source: 6 3528 SMD surface mount 6000K pure white or 3200K warm light LED lamps
⑨ Brightness: 35 lumens
⑩ Assembly: Each box comes with a 3M sticker and an instruction manual

Box specification
200 per outer box
Net weight: 12.6KGS
Gross weight: 13.2KGS
Outer box dimensions: 46.5×41×38.5CM

Instructions for Use

1: Intelligent light sensing. When there is sufficient light, it will not light up regardless of whether it enters the sensing area or not.

2: In areas with insufficient light, when a person enters the sensing area to move around, it will immediately light up.

When a person leaves the sensing area, the sensing light will automatically turn off in about 15 seconds.

4: If a person keeps moving within the sensing area, the light will remain on constantly.

5: Please conduct the test in a dark environment. It will not light up in a bright environment.

6: Please do not install or use it near damp environments, heating pipes, air conditioning outlets or other hot and humid environments, as it may cause abnormal operation.

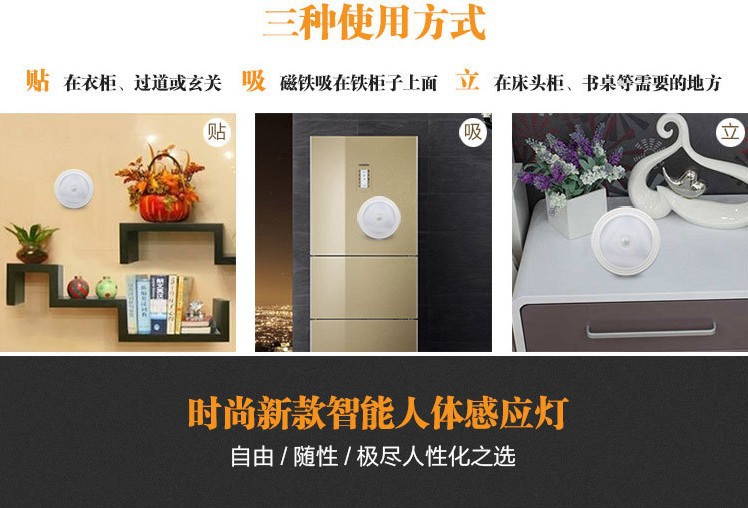

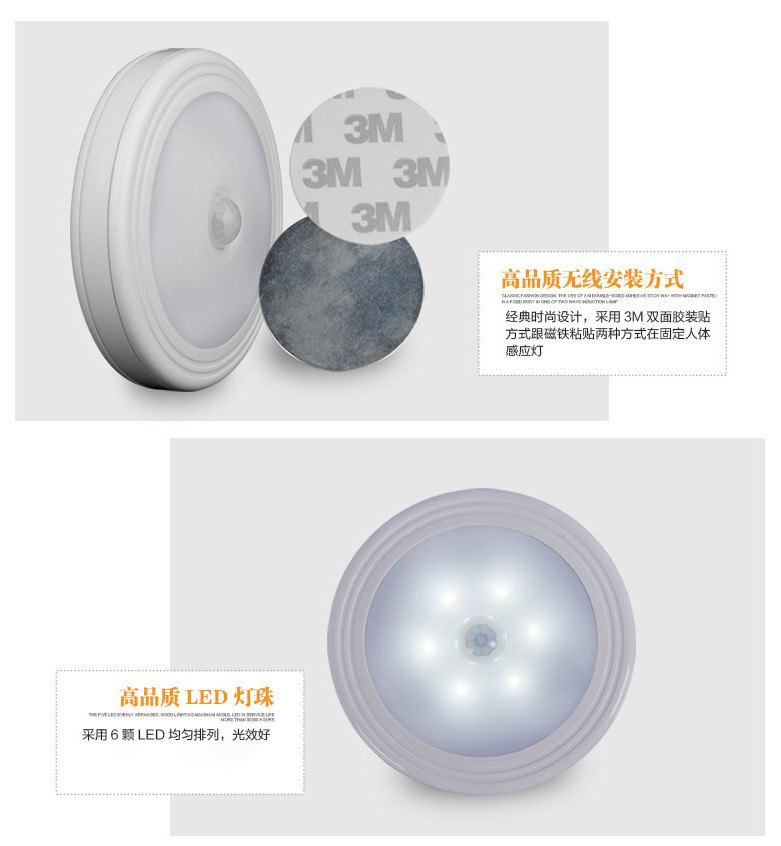

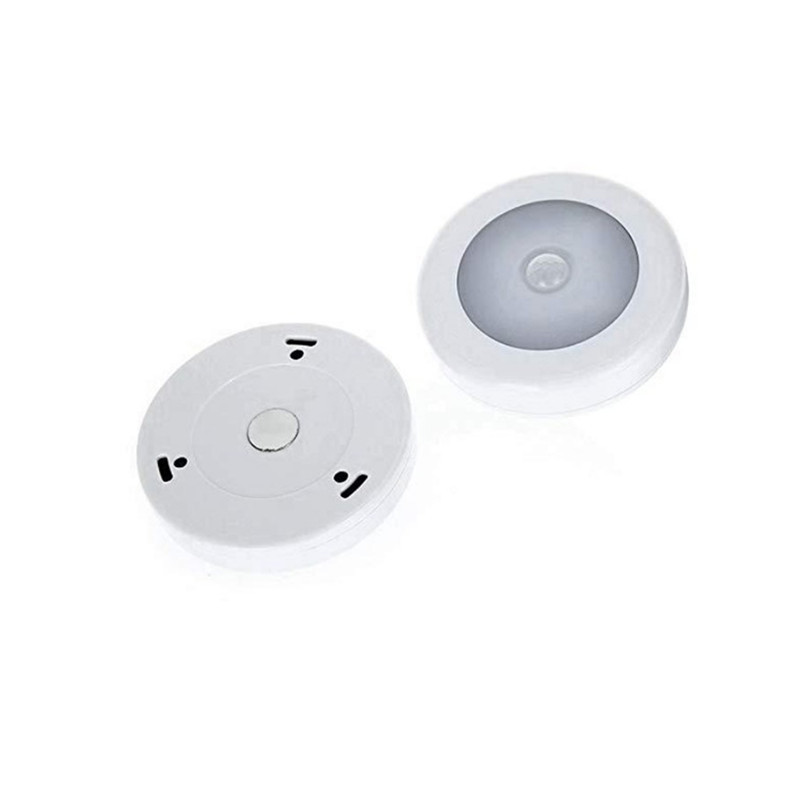

7: The product not only can be adhered with double-sided tape but also comes with a strong magnetic field that can be attached to iron cabinets at any time, featuring a more user-friendly design (each product comes with a 3M sticker).

Product inspection steps

① Install the battery horizontally (cover the light with your hand) : The lamp beads are normal

② Place the sensor light in a dark box and wait for the light to go out. Then, insert it into the box or cover the lampshade with your palm for 10 seconds. Once the light comes on, the sensor will be normal

③ The sensing distance of human movement varies according to the ambient light. The darker the light, the farther the sensing distance, which can reach up to 5 meters

④ Our factory has cumulatively shipped several million units of this product. Each product undergoes strict testing before leaving the factory (the product has passed CE and FCC certifications).
