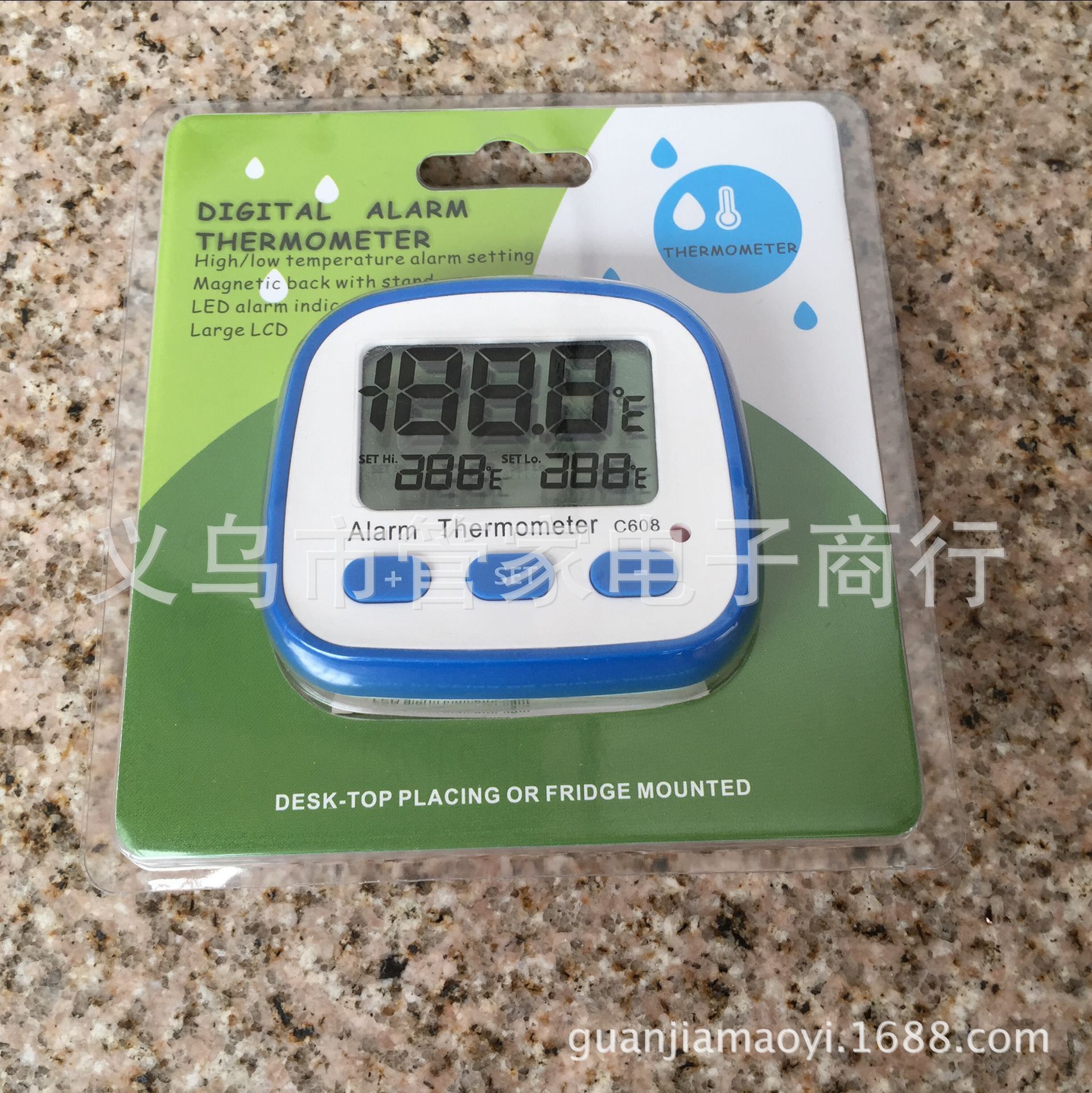

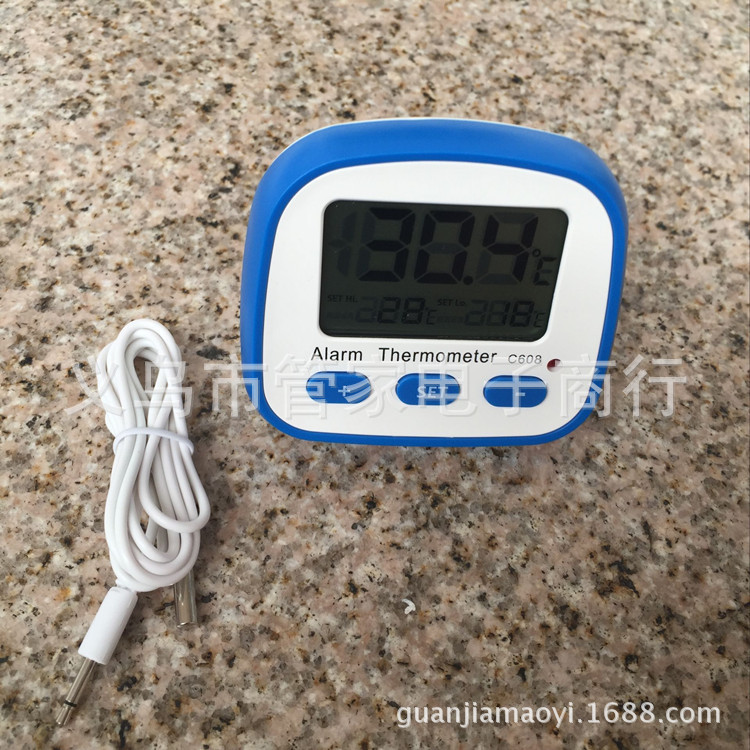

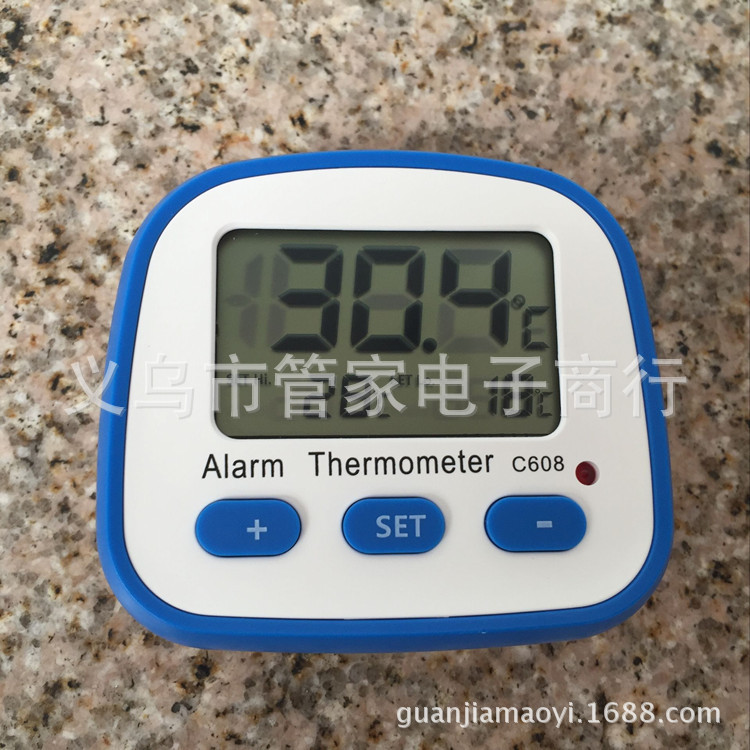

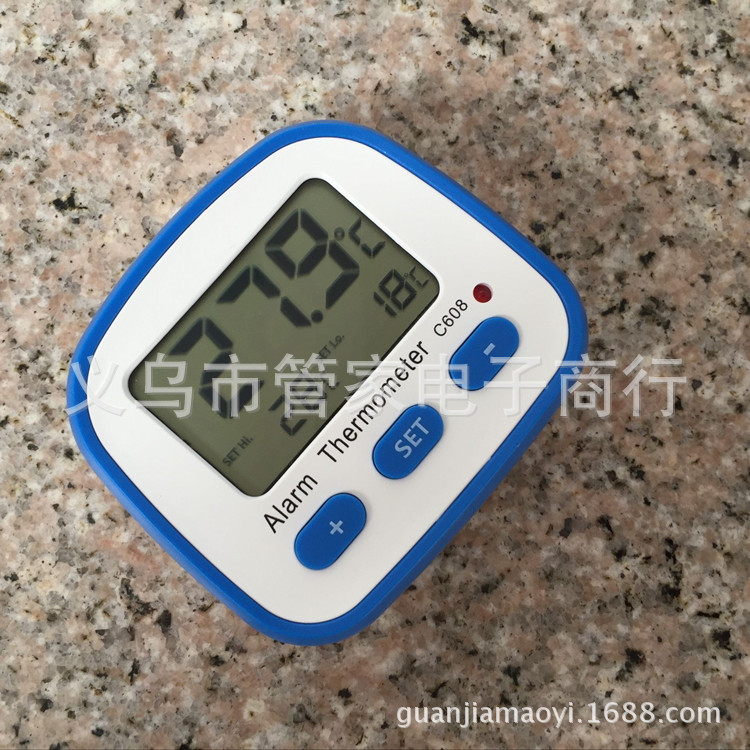

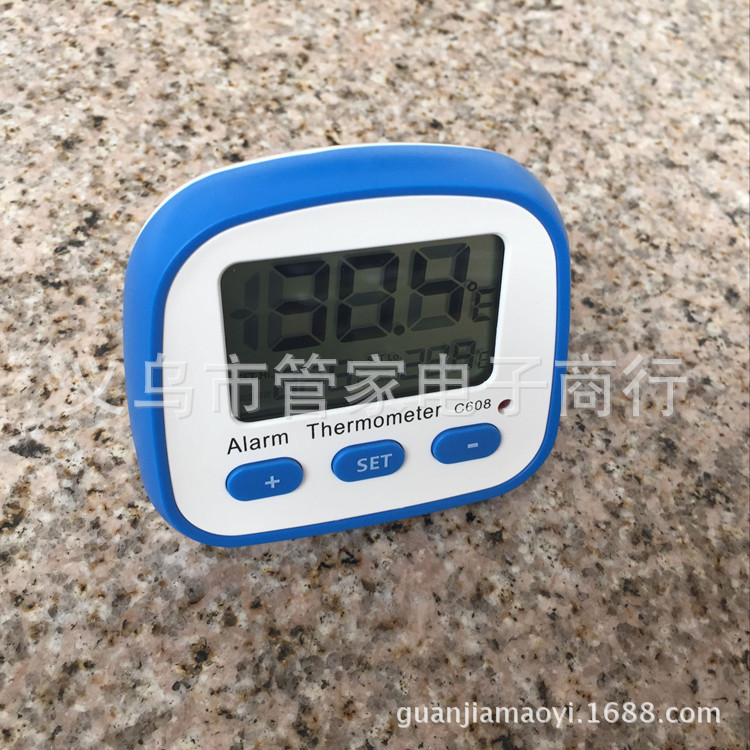

Model: C608

Product dimensions: 88*46*16mm

Net weight: 4.2KG

Gross weight: 4.9KG

Volume: 53*37.3*15.7CM

One box: 50 per PS

• Product Specifications

Temperature measurement range

? Indoor: -10℃ to +50℃ (+14℉ to +122℉)

? Outdoor: -40℃ to +70℃ (-40℉ to +158℉)

Battery usage: 1.5V (AAA) ×1

• Basic Functions

Temperature display (indoor/outdoor temperature modes available)

Automatic alarm function for high and low temperatures (default high temperature 28℃, low temperature 18℃)

Any high-temperature and low-temperature alarm range can be set

Temperature switching display between ℃ and ℉

LED lights indicate the alarm

• Ø Operating Method

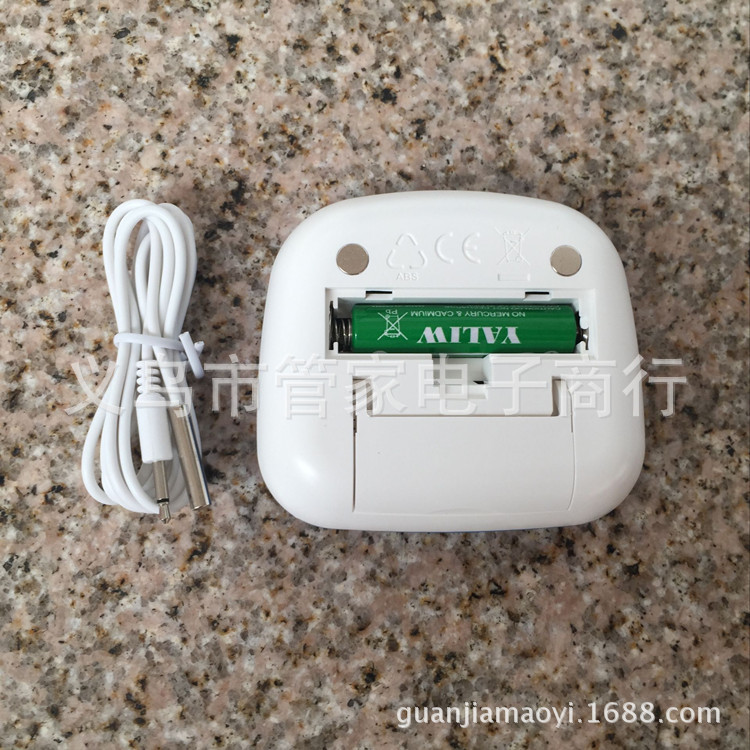

1. 1. Push open the battery cover in the direction indicated on the back of the machine, remove the battery separator, and then reinstall the battery cover. The machine is now ready for use.
2. 2. Key functions:

[SET] Set the maximum and minimum temperature alarm ranges;

[+] Increase the value of the project being set up;

Reduce the values of the projects being set up;

[℃/℉] Switch the temperature unit to be displayed in ℃(Celsius) or ℉(Fahrenheit).

[RESET] Clear all set values and return to the initial state.

[IN/OUT] Toggle the switch to switch the indoor/outdoor temperature display.

1. 3. In the initial state, hold down [SET] for 2 seconds. The temperature value at the "SET Hi. High Temperature setting" position (the maximum temperature alarm value) starts to flash. Press [+] /[-] to increase/decrease the maximum temperature value, and long press to speed up the value adjustment. Press [SET] once again. The temperature value at the "SETLo. Low Temperature Setting" position (the minimum temperature alarm value) will start to flash. Press [+] /[-] to increase/decrease the minimum temperature value. Long press to speed up the value adjustment. Press the [SET] key once last to confirm the Settings.
2. When the [IN/OUT] switch is toggled to the "IN" position, the indoor temperature is displayed. At this time, the temperature alarm range on the screen is the indoor temperature alarm range. Conversely, when the [IN/OUT] switch is toggled to the "OUT" position, the outdoor temperature is displayed, and at this time, the temperature alarm range on the screen is the outdoor temperature alarm range.
3. When switching between indoor and outdoor temperatures, the temperature on the screen will switch to the corresponding display within 10 seconds.
4. 6. When the actual temperature exceeds the SET temperature alarm range (higher than the temperature at the "SET Hi." position or lower than the temperature at the "SETLo." position), the LED light will flash for the first time with the alarm for 10 seconds. Meanwhile, the temperature at the "SET Hi." or "SETLo." position will keep flashing. Pressing any key can stop the alarm and the LED light from flashing. If the actual temperature continuously exceeds the temperature alarm range, the LED light will flash once every hour along with the alarm.

• Ø Precautions

1. When using or replacing the battery for the first time, please press [RESET] once (located below the bracket).
2. 2. If any malfunction occurs with this machine, please press [RESET] once.
3. 3. Please return the battery to the designated location by the government after use.
4. 4. Any technical changes will not be notified separately.
