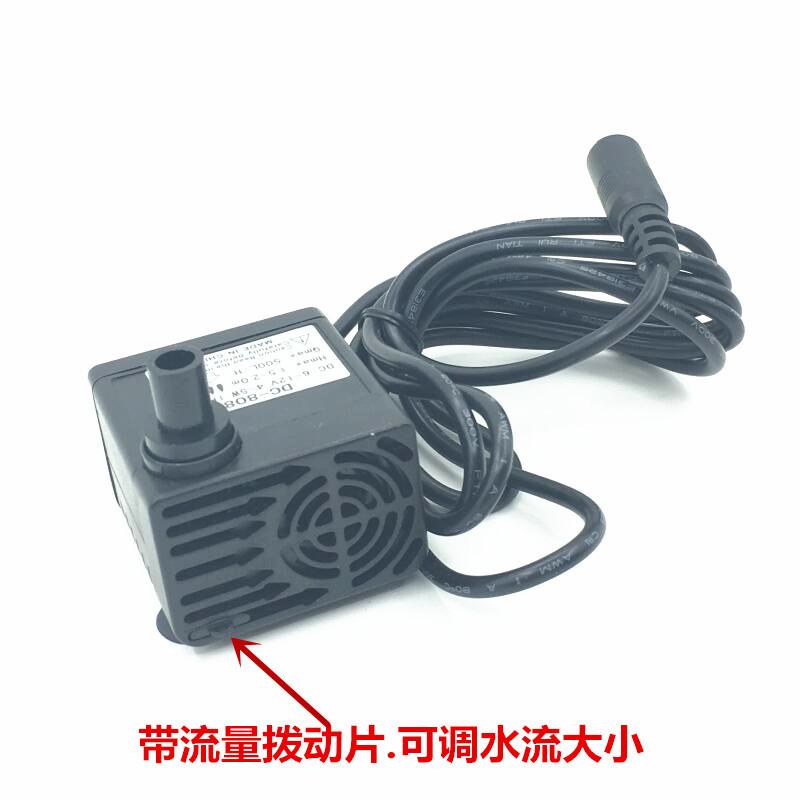

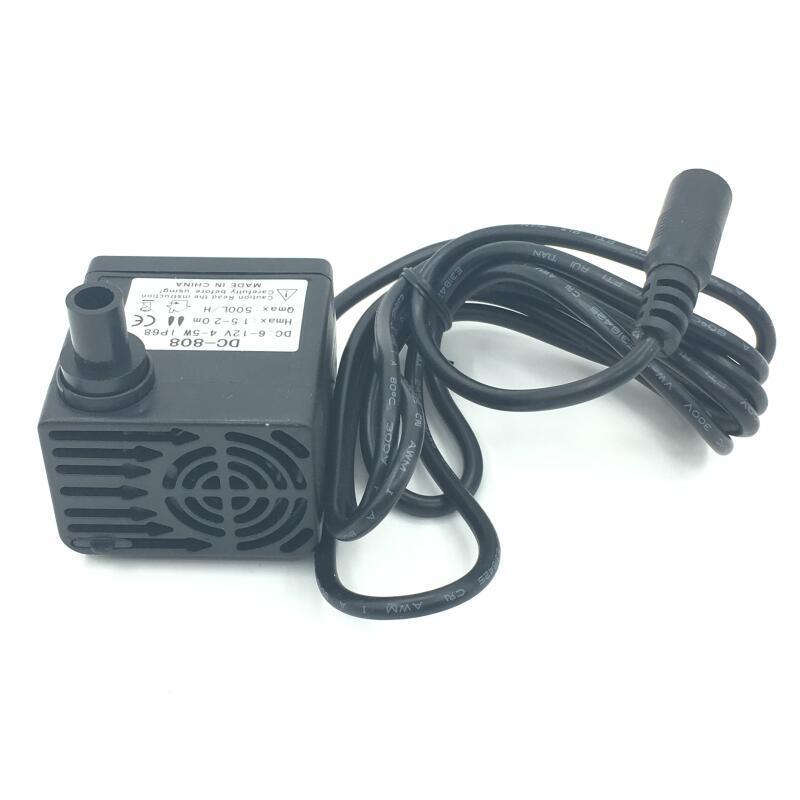

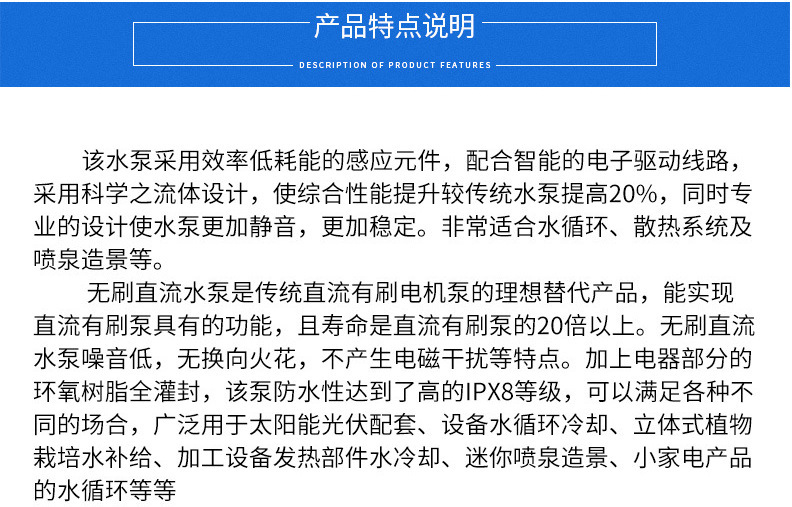

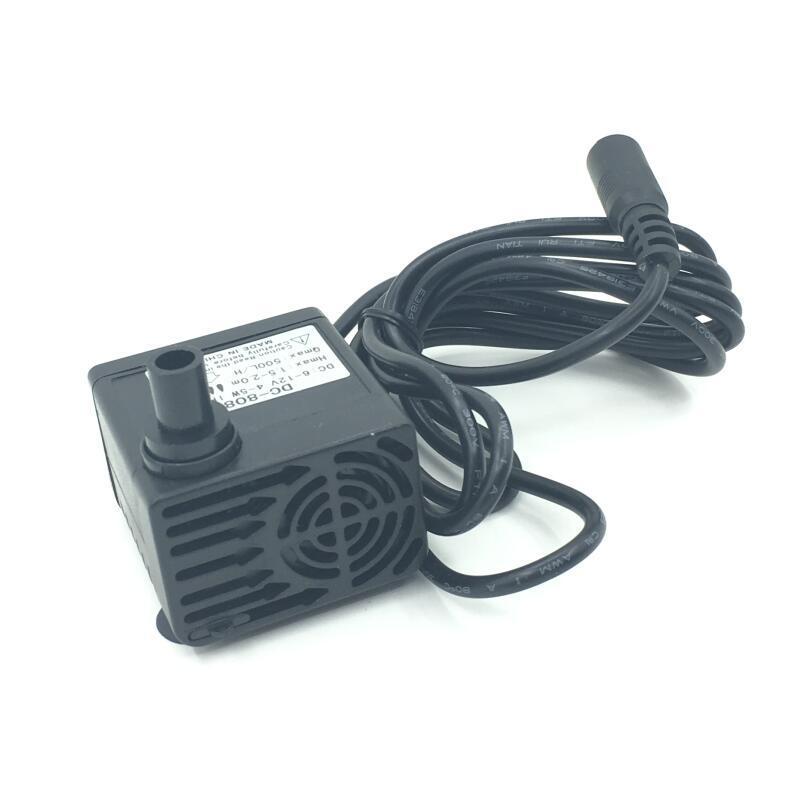

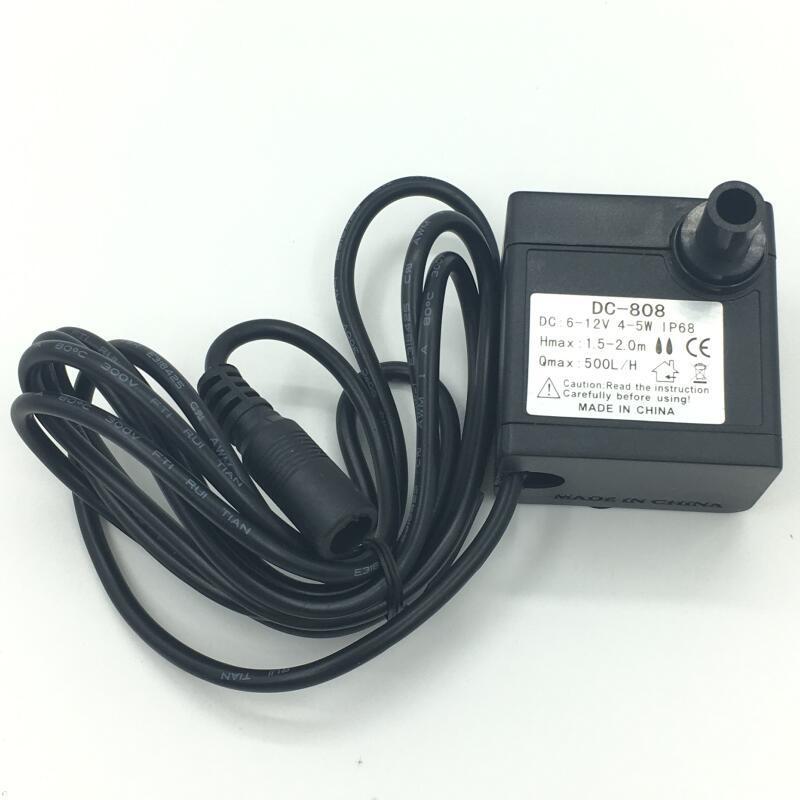

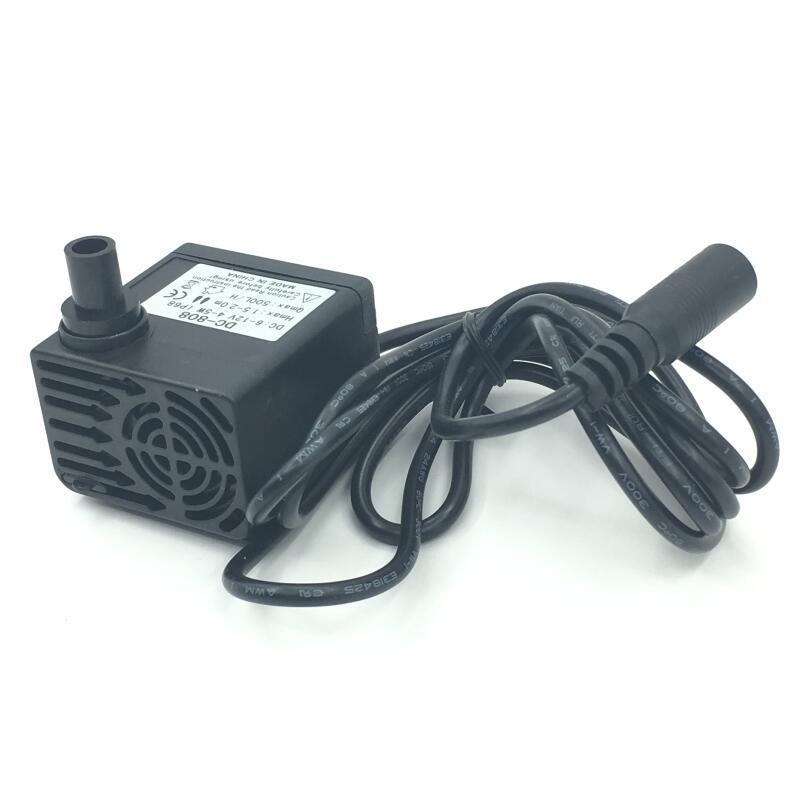

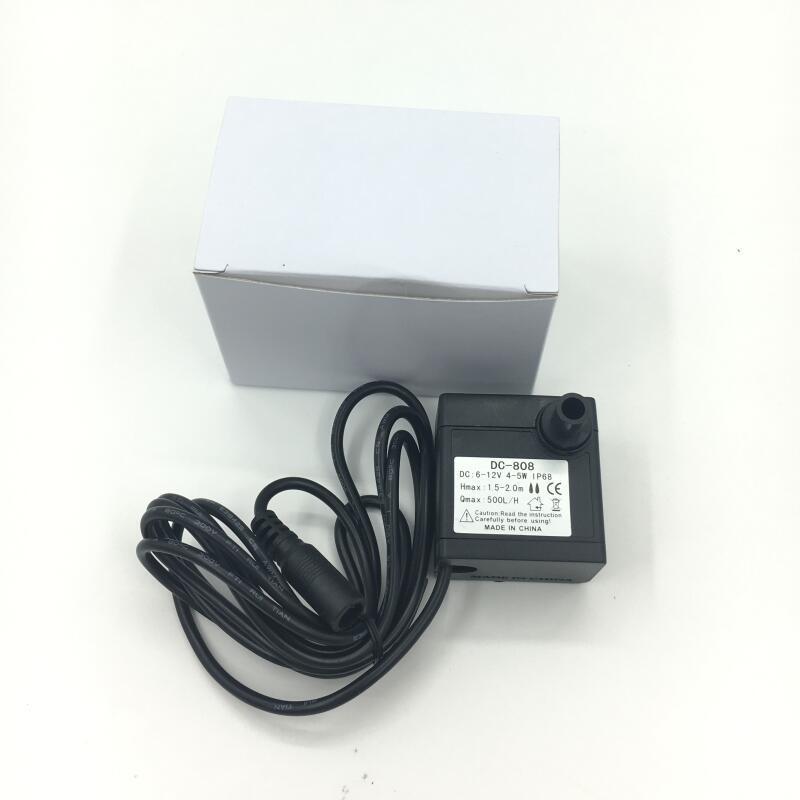

This product is a brushless DC water pump, featuring a long service life, low noise, no commutation sparks, and no electromagnetic interference. It is widely used in medical and industrial circulation refrigeration, water circulation cooling and water replenishment for various small household appliances, as well as in home landscapes, musical fountains, pet water supply, modern soilless cultivation water supply, water-cooled fans, aquarium equipment, etc. ; This product features a unique design. It is driven by high-sensitivity, low-consumption, high-efficiency and intelligent electronic circuits, combined with a moving fluid structure design. As a result, its overall performance is more energy-efficient and quieter than that of traditional water pumps. It is a model product of the new generation of micro pumps.
Product parameters
Rated voltage: DC6V- 12V
Power: 5W
Flow rate: 500L/H
Head: 1.2 meters
Pump housing material: ABS
Colour: Black
Outer diameter of the water outlet: Ø8.5mm
Working environment temperature: 35℃
Drive mode: Brushless, magnetic-electric isolation
Sound noise: <40db
Waterproof rating: IP68(submersible installation)

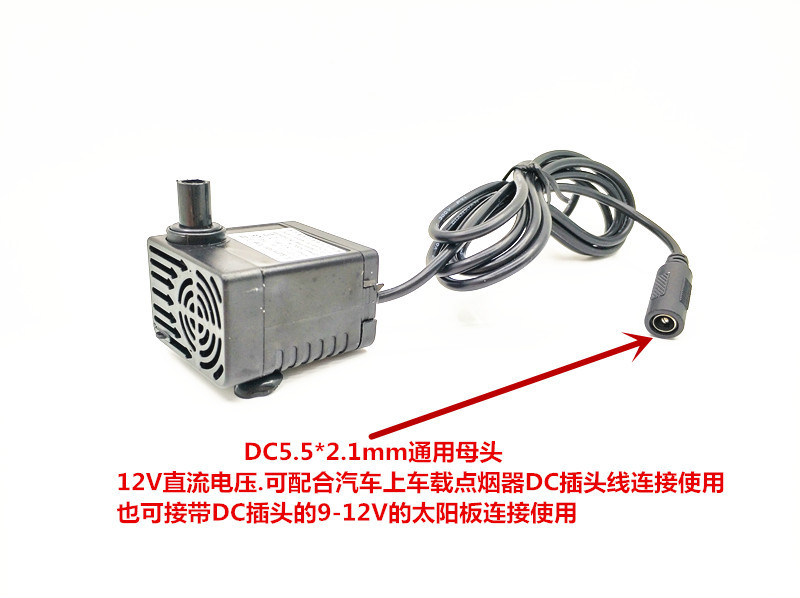

Power cord length: 1.4 meters. Dc 5.5x2.1 female connector
Power supply mode: DC or 12V power adapter (If a solar panel needs to be connected, the solar panel should be equipped with a voltage stabilizing circuit)
Pump dimensions :48*45.5*43.35mm
Neutral packaging box size :10X7X7cm. The total weight of the box is 150g.
Instructions for Use
1. Overpressure operation is strictly prohibited. It cannot be directly connected to 220V voltage. It must be transformed into 12V by a transformer before use.
2. The water pump is used in a clean water medium environment.
3. It is recommended that the water pump be used in an environment below 35° C

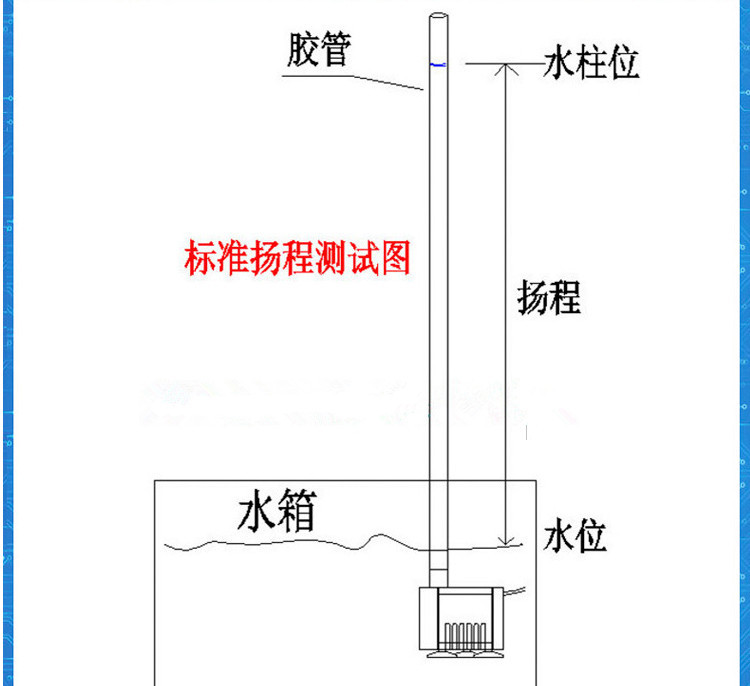

Head issue: For instance, a head of 1.5 meters does not mean that it can spray 1.5 meters high when connected to power. The head refers to the vertical height of the water column in the water pipe after the water outlet is connected to the water pipe. The jet height is much lower than the head!
