Controller connection steps (see the above figure)
1. Connect the positive and negative terminals of the battery as shown in the figure
The controller will automatically detect the battery voltage.
2. Connect the solar panels to the controller;
3. Connect the load as shown in the figure. Do not connect it in reverse.

Note: Please connect the wires strictly in accordance with the diagram.
Otherwise, it may cause a short circuit in the controller.
The disassembly sequence is the opposite of the connection sequence.

Features

Made of high-quality materials, it is environmentally friendly, durable and exquisite. Its conversion rate is very high.

2. Dual-output solar panels with USB interfaces, meeting any of your requirements.

3. Environmentally friendly and pollution-free, it realizes the conversion of solar energy into electricity.

4. It has a wide range of applications and can be used in various places such as automobiles and small household appliances.

5. Solar panels are devices that directly or indirectly convert solar radiation into electrical energy by absorbing sunlight. Compared with ordinary batteries and rechargeable batteries, solar panels are more energy-efficient and environmentally friendly.

Specification

Name: Flexible Solar Panel

Material: Polycrystalline silicon

Solar panel power: 20W

Solar panel voltage: DC12-18V

The controller supports a peak power of 300W

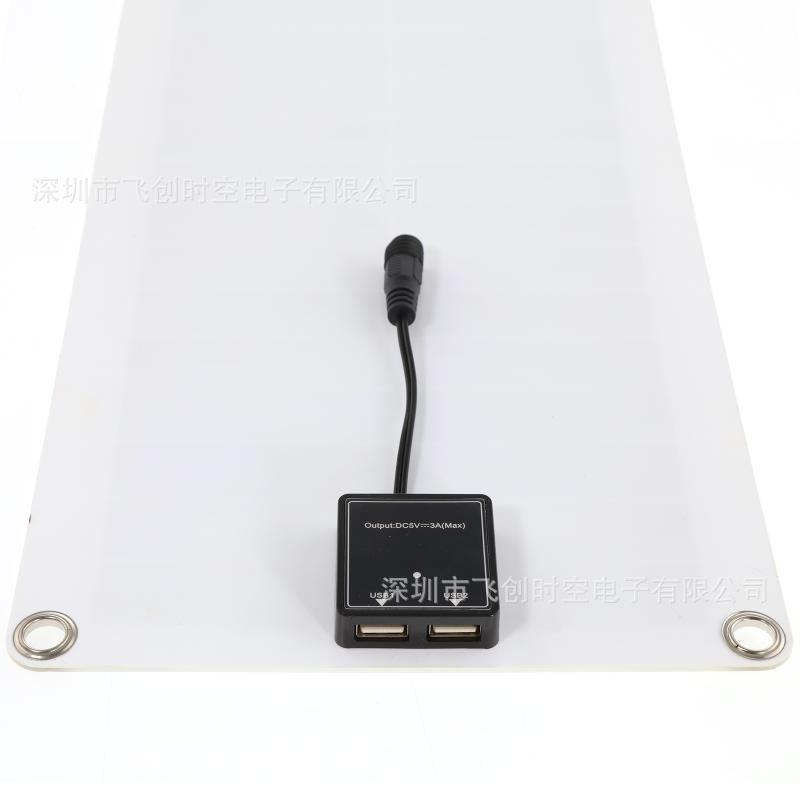

USB output: 5V

Number of USB ports: 2

Open-circuit voltage (VOC) : 5V

Short-circuit current (Isc) : 3A

Output: USB

Dimensions: 435 * 200 * 2.5mm

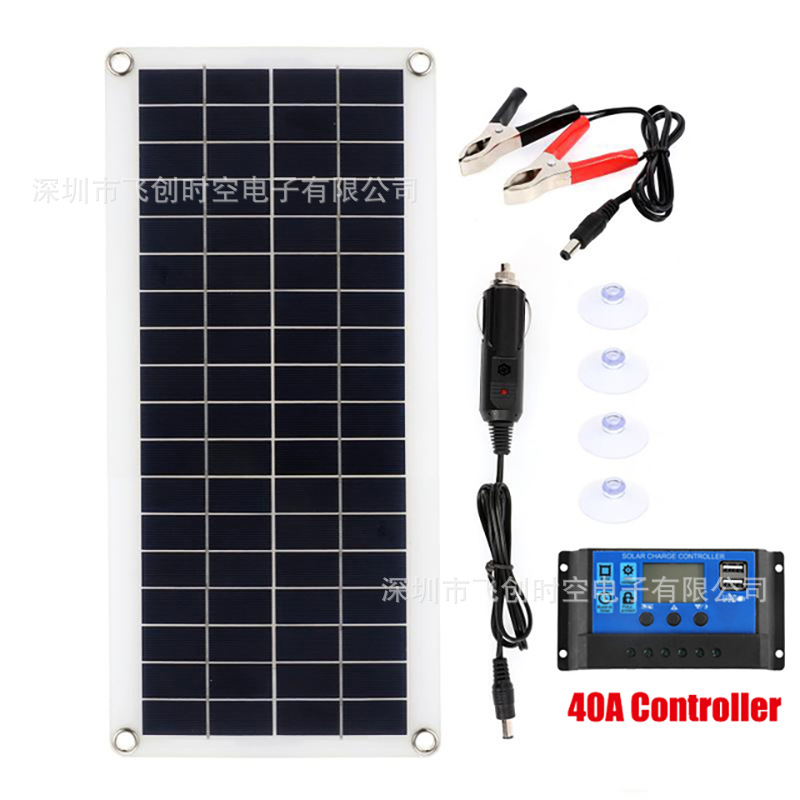

The packaging includes:

1 X solar panel

2 X Crocodile clip

1 X Car charger

4 X accessories

Note: The solar panel power is 20W, and the controller supports a maximum output of 300W

Please allow for differences of 1-3cm (0.4 -1.18") due to manual measurement and slight color variations with different display Settings.

2. Due to differences in lighting and screens, the color of the product may slightly differ from the picture.
