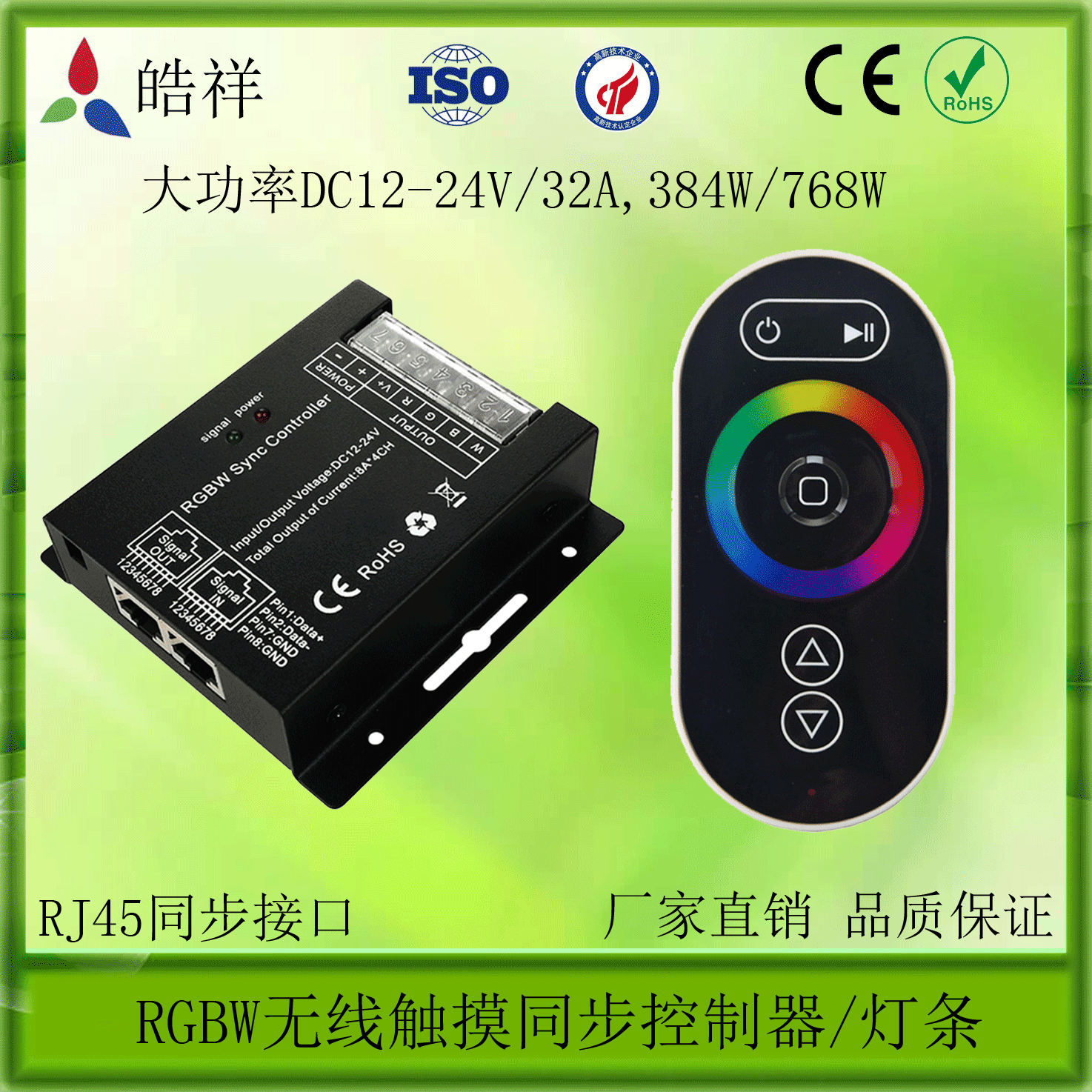

Product Introduction

The HX-SZ600-RGBW-TOUCH is a 4-channel output constant voltage RGBW controller that adopts advanced PWM(Pulse Width Modulation) control technology. It is suitable for controlling various constant voltage led lamps that can achieve RGBW four-loop color changes, such as: LED light strips, LED modules, LED light strings, etc. The RGB interface and the W interface can be independently controlled without affecting each other. The mode selection and adjustment are carried out by RF wireless radio frequency remote control to achieve static, jump, gradient, stroboscopic and other lighting change effects. Meanwhile, customers can adjust the brightness of static colors and the speed of dynamic changes according to their actual needs. This type of controller can be connected to each other through RJ45 network cables to achieve synchronous changes of more LED lights. In theory, countless units can be connected.



Product features

This product is a constant voltage RGBW controller. The standard product's power supply voltage is 12-24V, which is a wide voltage range. Power supplies within this range can be used interchangeably.

2. It adopts RF wireless touch panel remote control, which is simple to wire and convenient to use.

3. The mode key contains 10 modes, including 1 static color and 9 dynamic changes.

4. Sensitive touch, smooth and stable dimming effect, no flicker.

5. The brightness key and speed key are shared. When adjusting the brightness and speed, you can directly hold down the key to quickly and continuously adjust.

6. Each controller is equipped with an RJ45 synchronous network port, allowing for synchronous changes among controllers.



Technical parameters

Controller technical parameters





Remote control parameters

Working temperature	- 20 to 60 ℃	Supply voltage	4.5V (AAA*3PCS)
Sleep current	8uA	Emission current	30mA
Sleep power consumption	36uW	Transmission power consumption	135mW
Net weight	65g	External dimensions	L150*W40*H20 (mm)
Remote control distance	≤20m	Transmission frequency	433.92 MHz



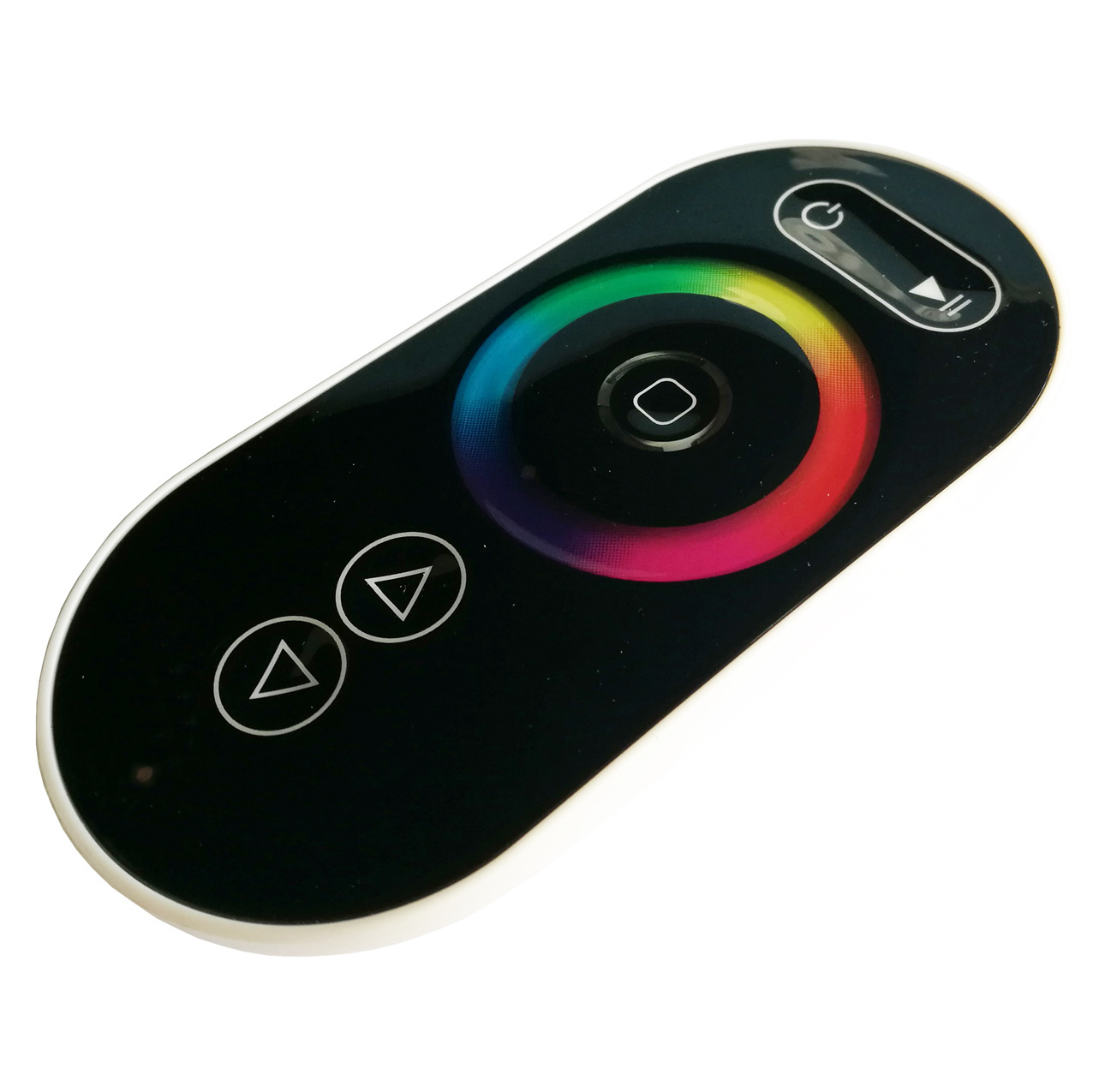

Use of remote control

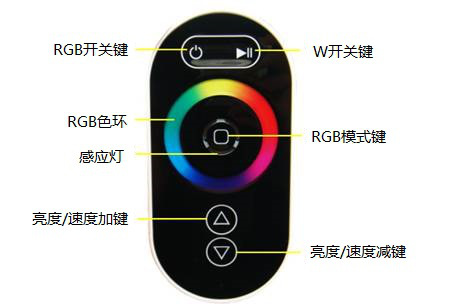

Key name	Explanation	Remarks
W on/off key	The W monochromatic white light can be switched and controlled in any state
RGB on/off key	RGB can be switched on and off in any state
RGB mode key	The sample color function selection key changes the light sample color each time it is pressed
Speed/Brightness increase key	Increase the brightness of the lamps in static mode/speed up the construction in dynamic mode	It has a continuous receiving function
Speed/Brightness reduction key	Reduce the brightness of the lamp in static mode/reduce the speed in dynamic mode	It has a continuous receiving function
Touch the color ring	When the device is turned on, wherever your hand touches, the lamp will display the corresponding color
Color ring sensor light	When pressing the color wheel, the corresponding part will display the light of the corresponding color







Each time you press, the red indicator light flashes, indicating that you have entered the next state.



The changes of the standard mode are shown in the following table



Serial number	Sample color	Sample color
1	Static white	Adjustable brightness
2	White stroboscopic	The speed is adjustable, but the brightness is not
3	White breathing
4	Three-color transition
5	Seven-color transformation
6	Three-color gradient
7	Seven-color gradient
8	Red and green gradient
9	Red and blue gradient
10	Green and blue gradient

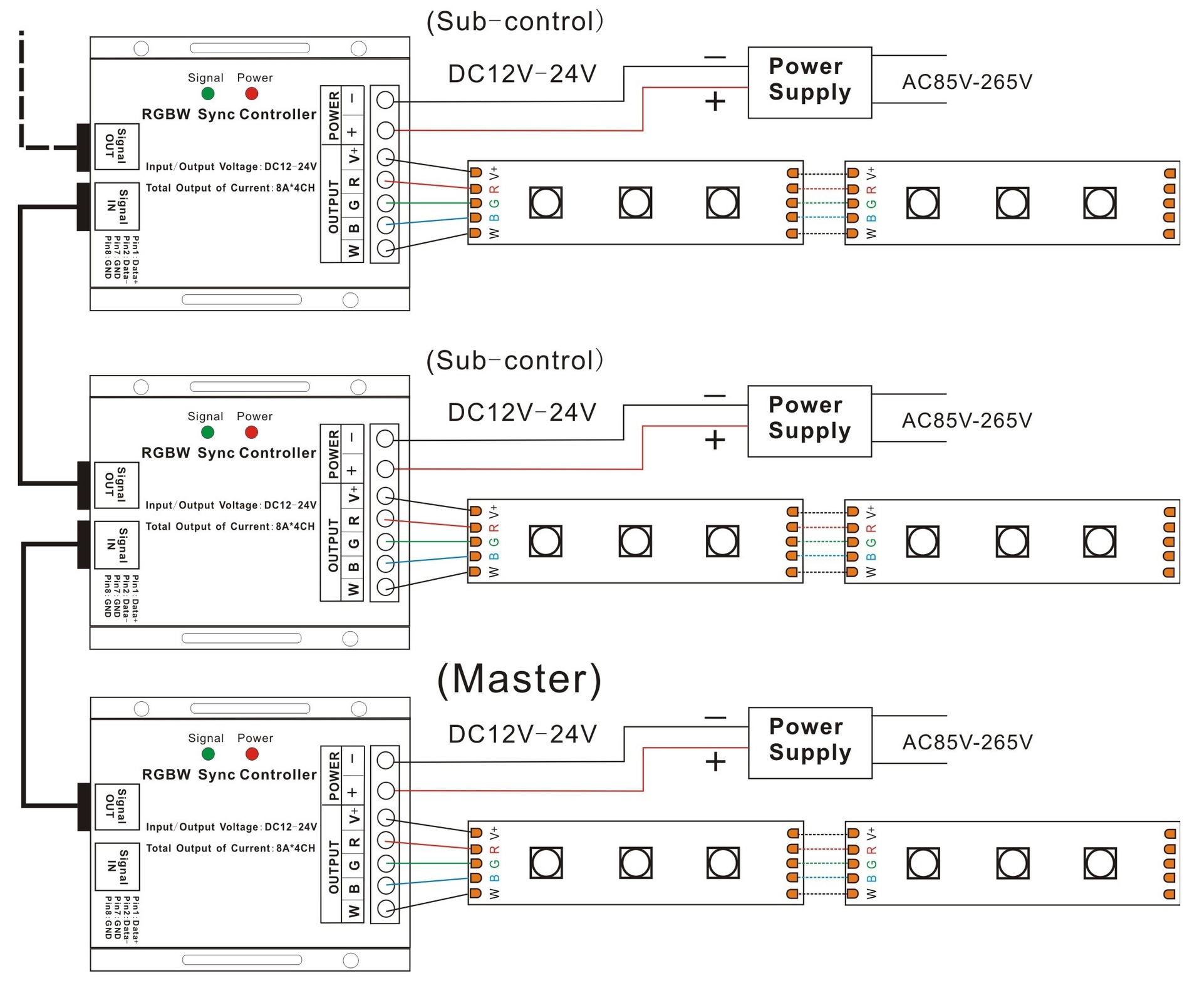

Wiring diagram (Multiple units cascaded synchronous control)
