Attention, attention, everyone, please pay attention
The wheel frame of the AB52 pump head has been modified. The wheel frame of the previous old model was made of plastic, but now it has been changed to a metal one, which is more durable! The installation method, flow rate, and other aspects remain unchanged. For details, please refer to the following pump head comparison chart.
The new metal wheel frame model will be dispatched starting from March 18, 2021. Please be informed!

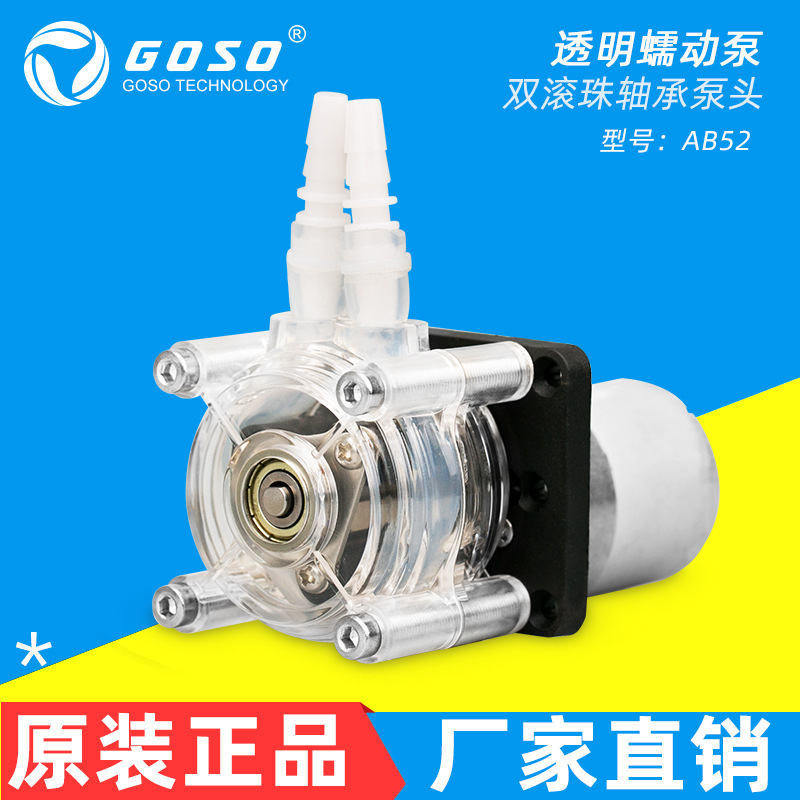

Parameters of AB52 peristaltic pump
◆ Applicable pump pipes: Applicable pump pipes with a wall thickness of 1.6mm and an outer diameter less than 10mm. If there are no special requirements, the standard pump pipe configuration is 6.4*9.6. The materials of the pump tubes include: silicone rubber/corrosion-resistant composite rubber tubes
◆ Reasonable flow rate: 6.4*9.6 for pump pipe, flow rate per revolution of pump head: 1.5 milliliters. It is recommended that the rotational speed be less than 400 revolutions per minute. (For short working time and sufficient heat dissipation, the maximum speed can be designed to 500 revolutions per minute when necessary.)
◆ Pump pipe selection: Generally, the standard pump pipes are 4.8*8 and 6.4*9.6
◆ Number of rollers: There are 3 rotor rollers
◆ Pump cover color: Transparent
◆ Optional voltages: DC gear motors have 6V, 12V, and 24V; stepper motors have 6-24V; synchronous motors have 110V and 220V (special voltages can be customized).
◆ Motor power: approximately 10W for DC gear motor, approximately 30W for 42 stepper motor, and approximately 10W for 50 synchronous motor
◆ Product weight: The pump head is approximately 92 grams, the DC reduction motor is approximately 134 grams, the 42 stepper motor is approximately 282 grams, and the 50 synchronous motor is approximately 188 grams
◆ Shell material: PC plastic (polycarbonate)
◆ Roller material: POM plastic (polyoxymethylene)
◆ Motor selection: DC reduction motor, 42 stepper motor, synchronous motor
The newly upgraded and improved product has been improved one by one in response to the numerous problems found in the peristaltic pumps on the market. For example: Metal parts are not rust-proof, the casing is not corrosion-resistant, the noise is loud, the rollers wear out too quickly, and the roller part is dented. The hose is moving, and there are interruptions or backflows during the liquid transmission process. These phenomena more or less trouble you.
Typical uses:
Detergent delivery for washing machines and dishwashers, sample injection for analytical testing instruments, ink delivery, ice cream extraction, beverage machine pumping, kitchen Equipment Warewashing Equipment, Laundry Equipment
Our company specializes in the research and development, manufacturing and promotion of peristaltic pumps. We can provide OEM and various personalized customization services. We have always been recognized by all kinds of customers for our high quality and low price. Welcome your inquiries.
The new metal wheel frame model will be released starting from March 18, 2021. Please be informed!

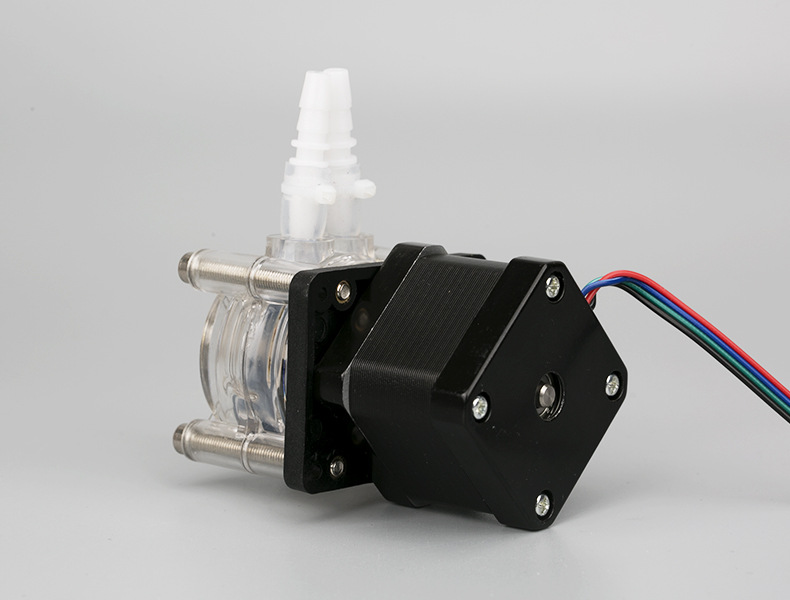

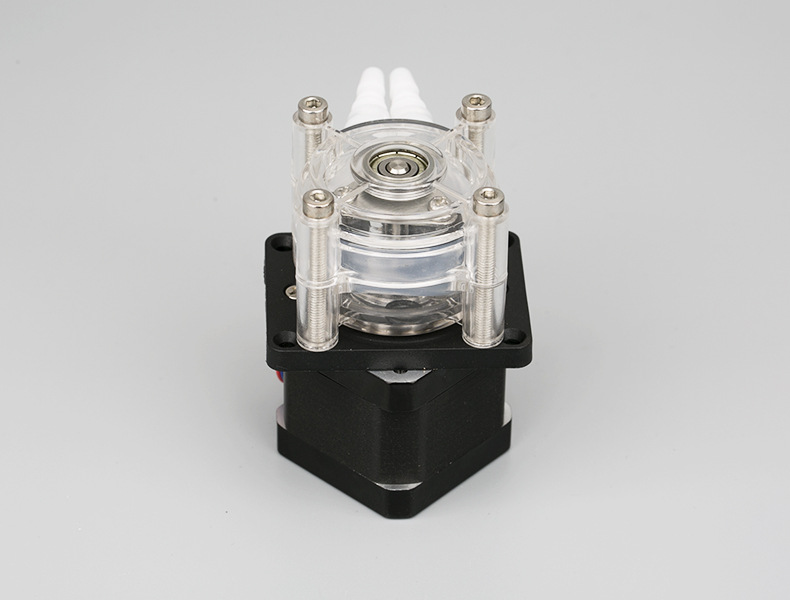

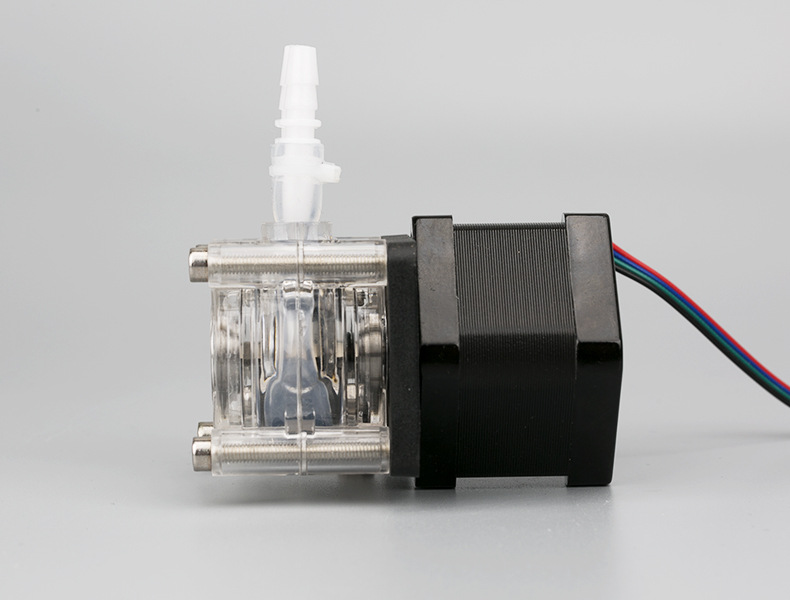

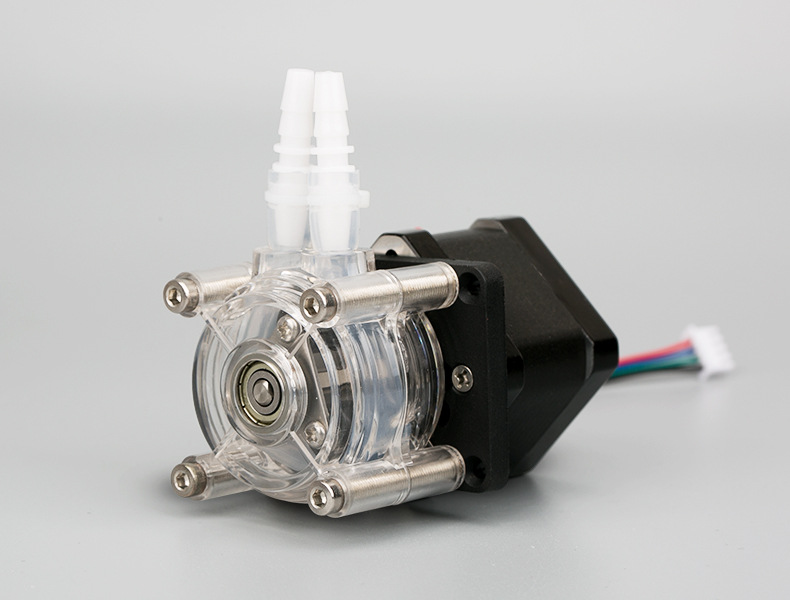

The following are the detailed pictures of the new metal wheel frame model

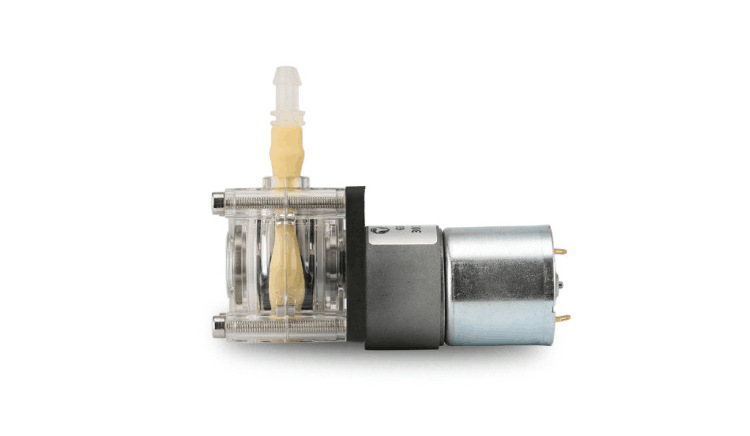

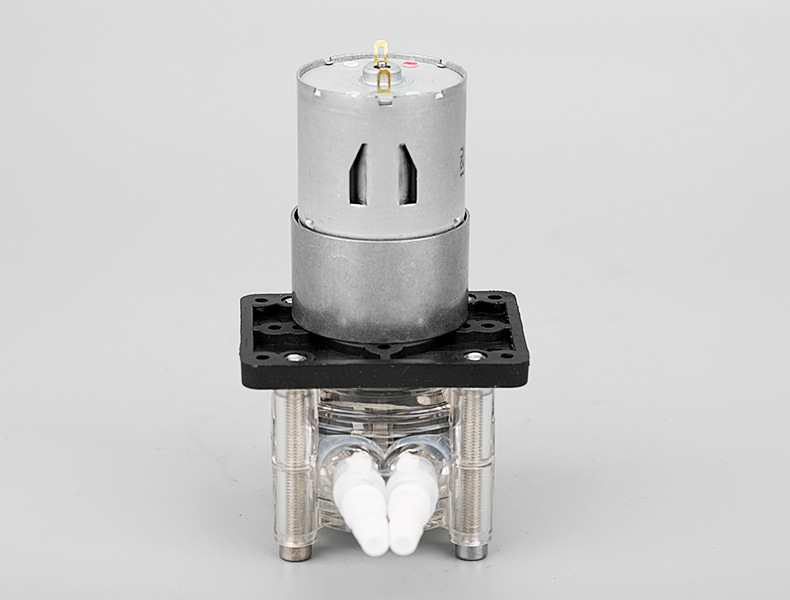

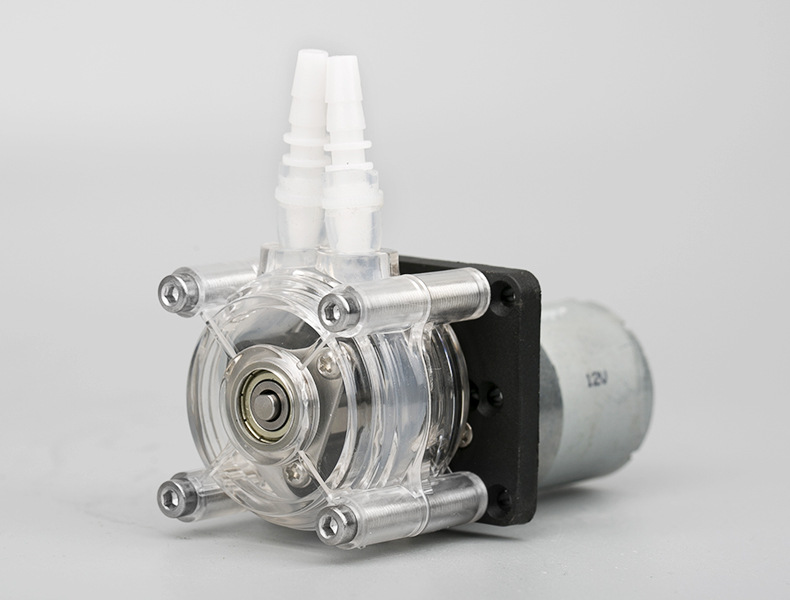

Detailed pictures of the DC gear motor model

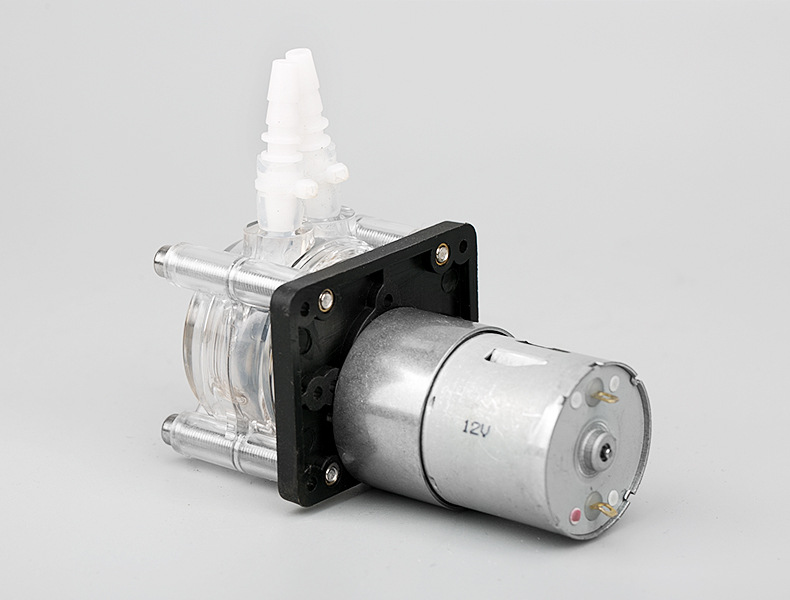

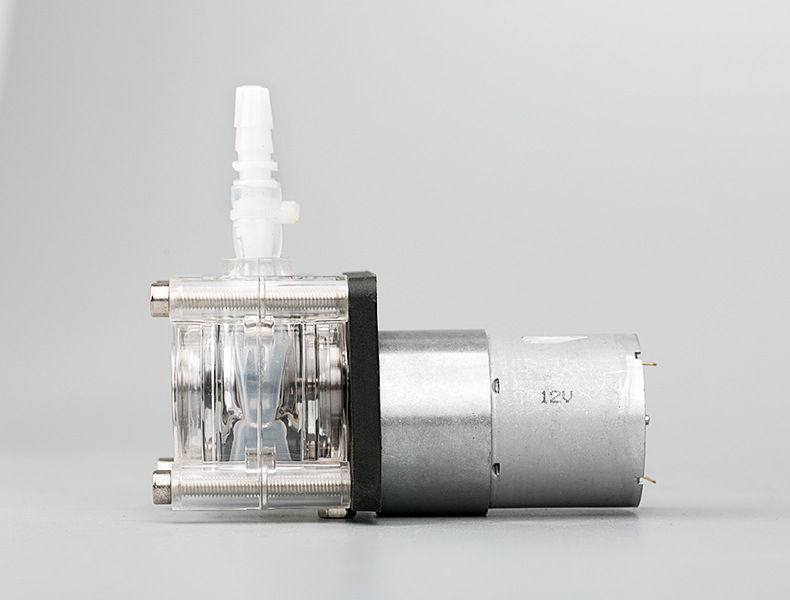

Detailed pictures of the DC gear motor model

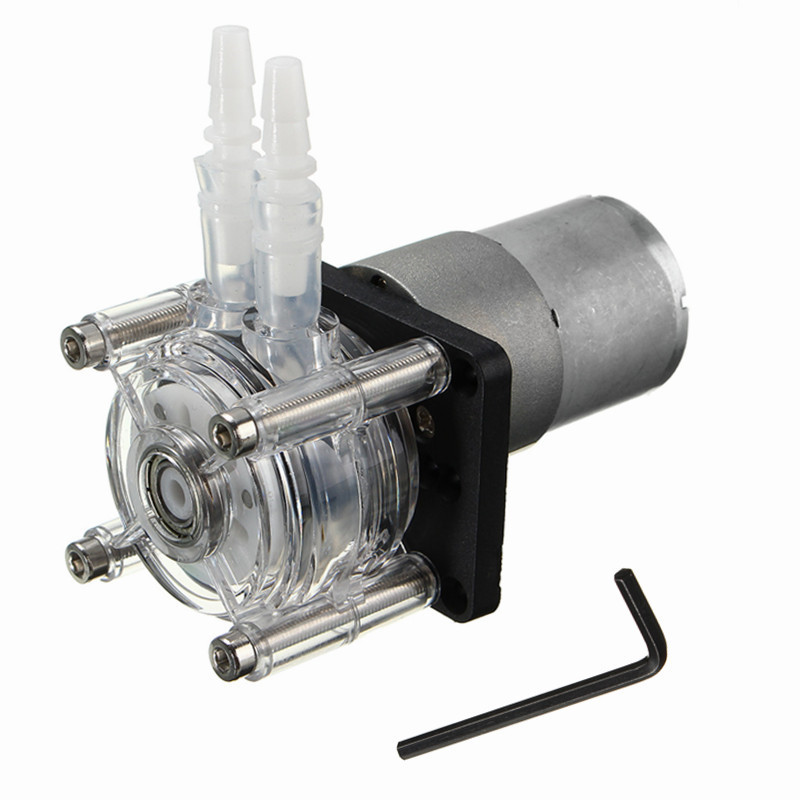

The following is a detailed picture of the old plastic wheel frame. This plastic wheel frame has been discontinued and will not be released in the future. Please be informed. Thank you!

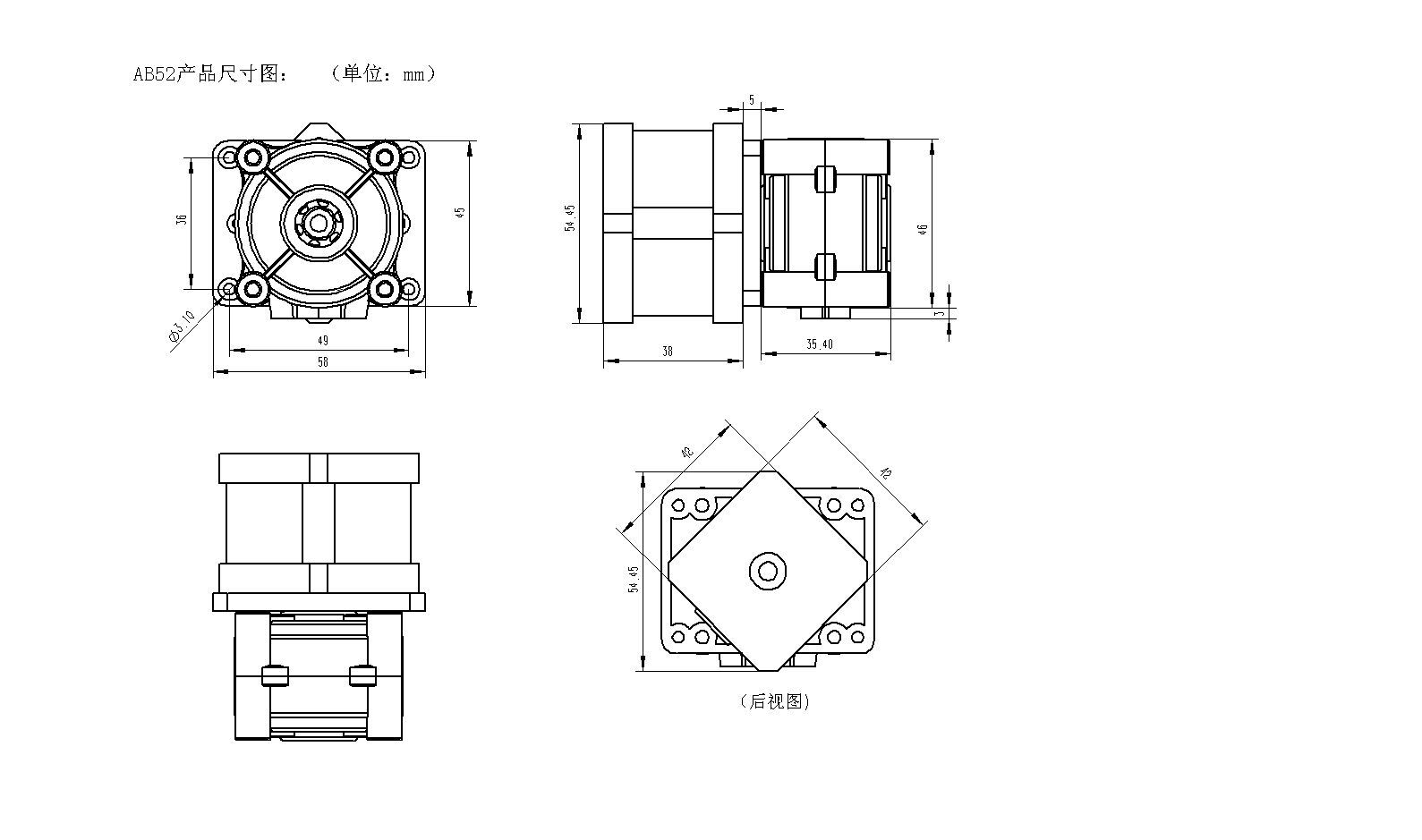

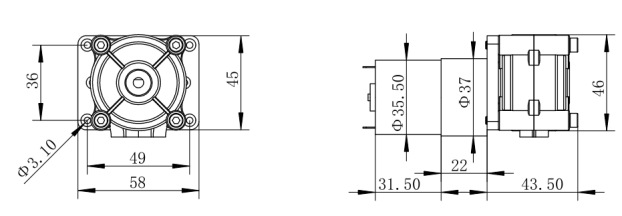

Product installation dimension drawing
