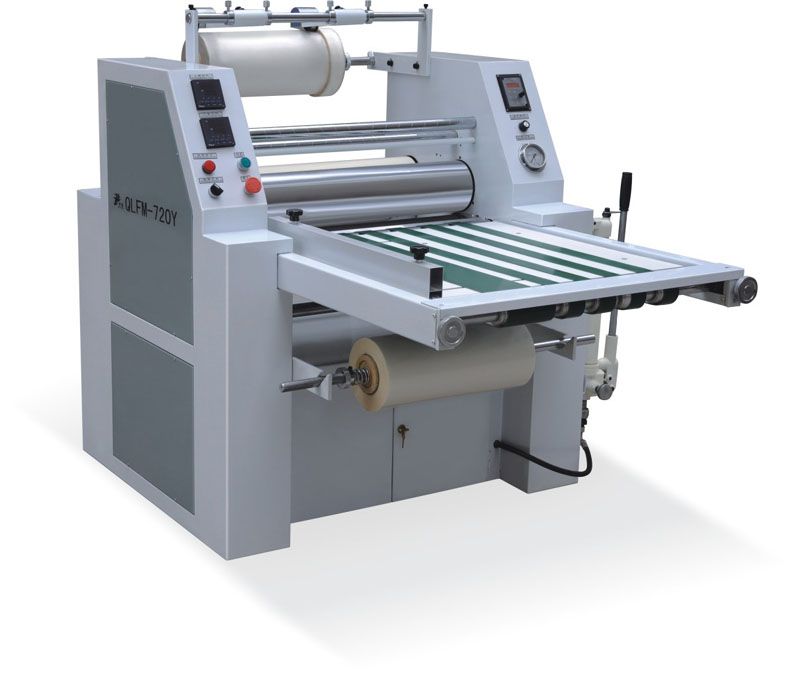

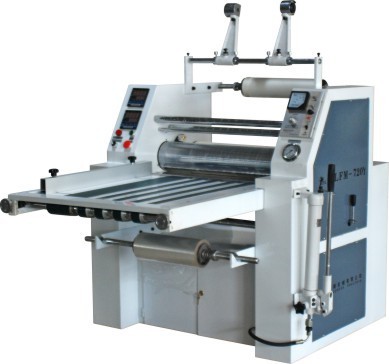

The QLFS-720/900/1000/1200Y type hydraulic laminating machine (with slitting) takes up a small area, is easy to operate, has a high speed, is equipped with automatic temperature and speed control, and has an automatic paper conveying function. It can perform single-sided or double-sided laminating and is also equipped with an automatic slitting function for multiple rolls and excess materials at one time, which can replace slitting machines. This machine uses pre-coated polyester film as the material and can be widely applied to the surface lamination of window packaging boxes, food boxes, books and periodicals, drawings, advertisements, certificates, laser glass and other products. The printed matter after lamination is waterproof, durable, with clear patterns and strong three-dimensional effect. Technical Parameter Model QLFM-720Y QLFM-900Y QLFM-1000Y QLFM-1200Y Max laminating width 650mm 850mm 980mm 1150mm Laminating speed 0-20m/min 0-20m/min 0-20m/min 0-20m/min Laminating temperature 60-130℃ 60-130℃ 60-130℃ 60-130℃ Motor power: 0.55Kw, 0.75Kw, 0.75Kw, 1.1Kw Electric heater power: 2.4Kw, 3.6Kw, 4.8Kw, 5.4Kw Voltage: 380V, 380V, 380V, 380V Overal dimensions 1150x1100x1400mm 1350x1100x1400mm 1550x1250x1400mm 1750x1250x1450mm Weight 380kgs 500kgs 580kgs 650kgs Pressure 0-4Mpa 0-5Mpa 0-10Mpa 0-10Mpa
