Establish a printing machinery limited company
2F-20828,Unit 7,Floor 2,Street 4,Gate A7,International Production Materials Market






Attributes
Key attributes
Product code
86710710210693289
Application: The creasing and cutting machine is a specialized equipment for pressing and cutting various types of cardboard, corrugated cardboard, plastic sheets, and leather products. It is suitable for use in the printing, packaging decoration, and plastic industries. This machine features a compact structure, fine manufacturing, large pressing and cutting force, high precision, convenient operation, and safe and reliable operation. The body is made of high-quality materials with high overall casting strength. The single-plate electromagnetic clutch operates sensitively and reliably. The operation height is reasonably arranged and the opening Angle of the pressure frame is large. The electrical system is designed in accordance with IEC standards. Single sheet pressing and cutting, continuous pressing and cutting, and opening delay three functions [the delay range is adjustable]. The safety protection system is reliable. Main technical parameters: Maximum effective creasing and cutting area: 930*670mm, creasing and cutting line length <25M, working speed: 23+ 2, main unit power: 5KW, external dimensions; 1900*2200*1620MM, weight :3300KG, maximum pressure :80T

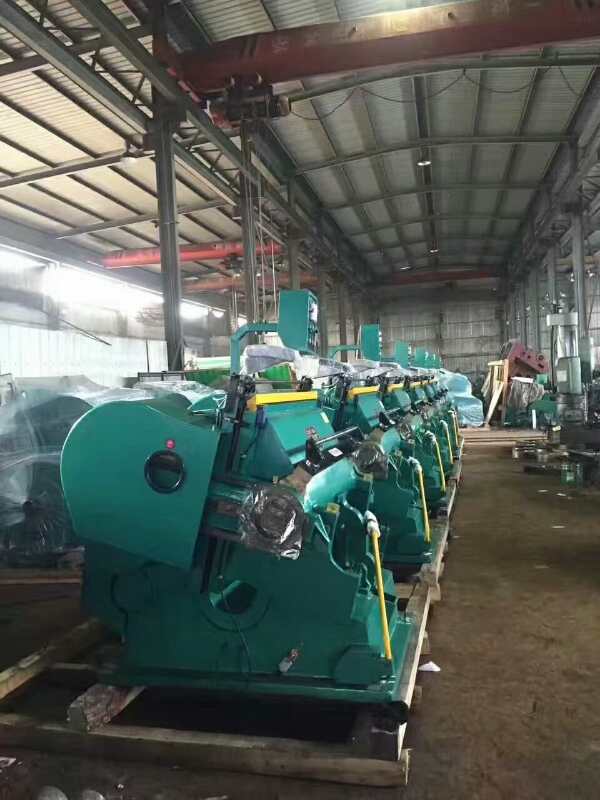

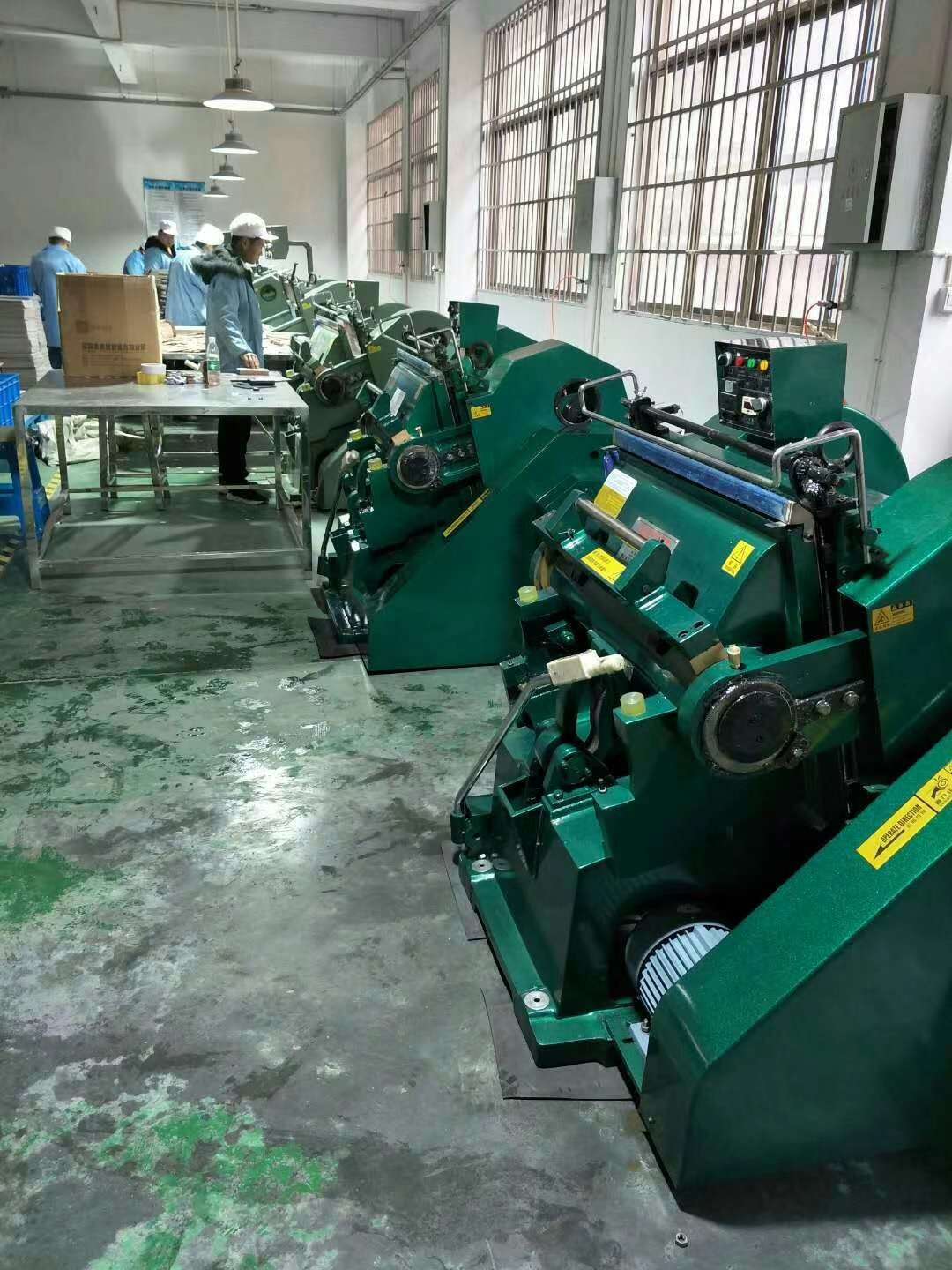

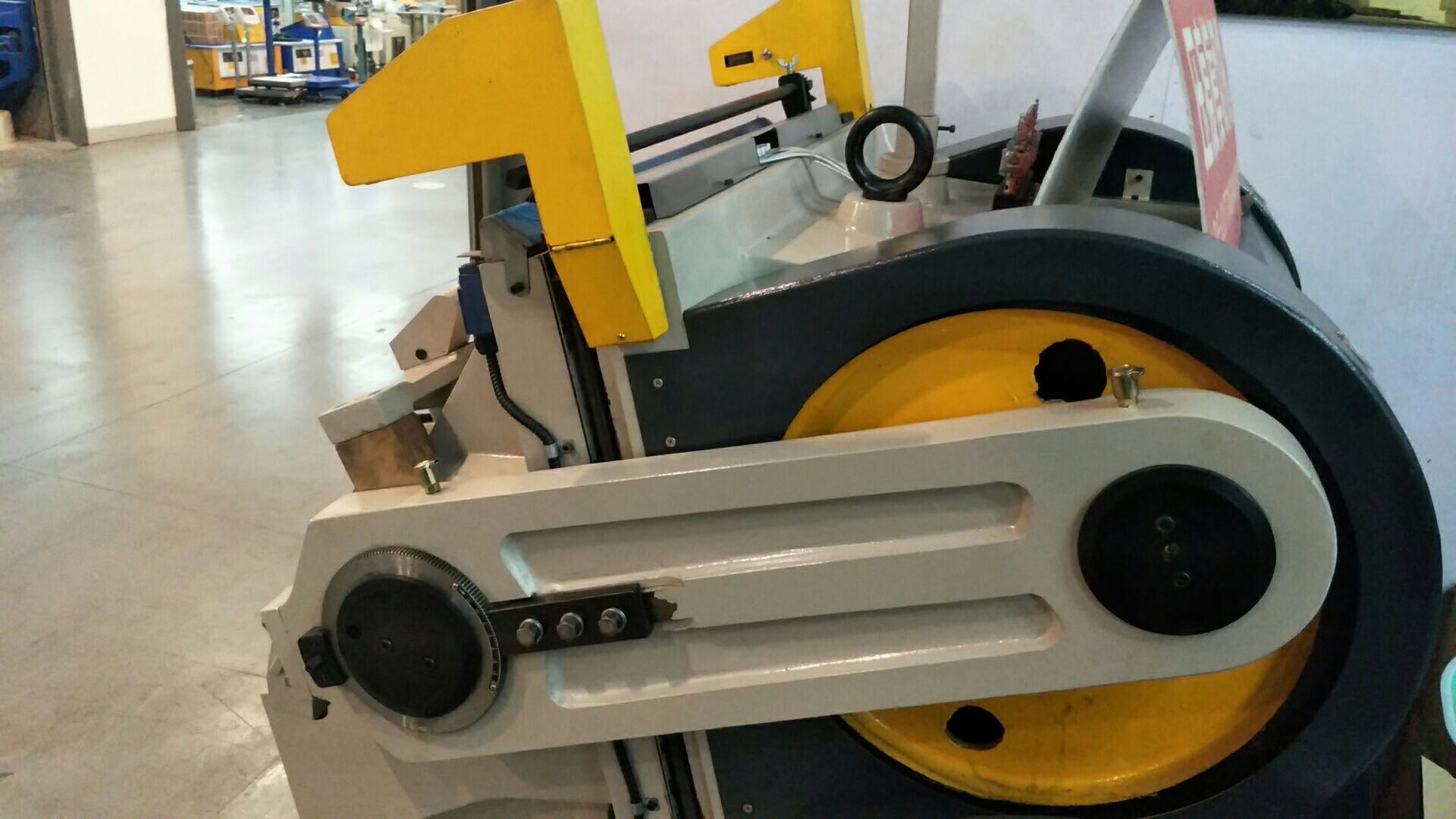

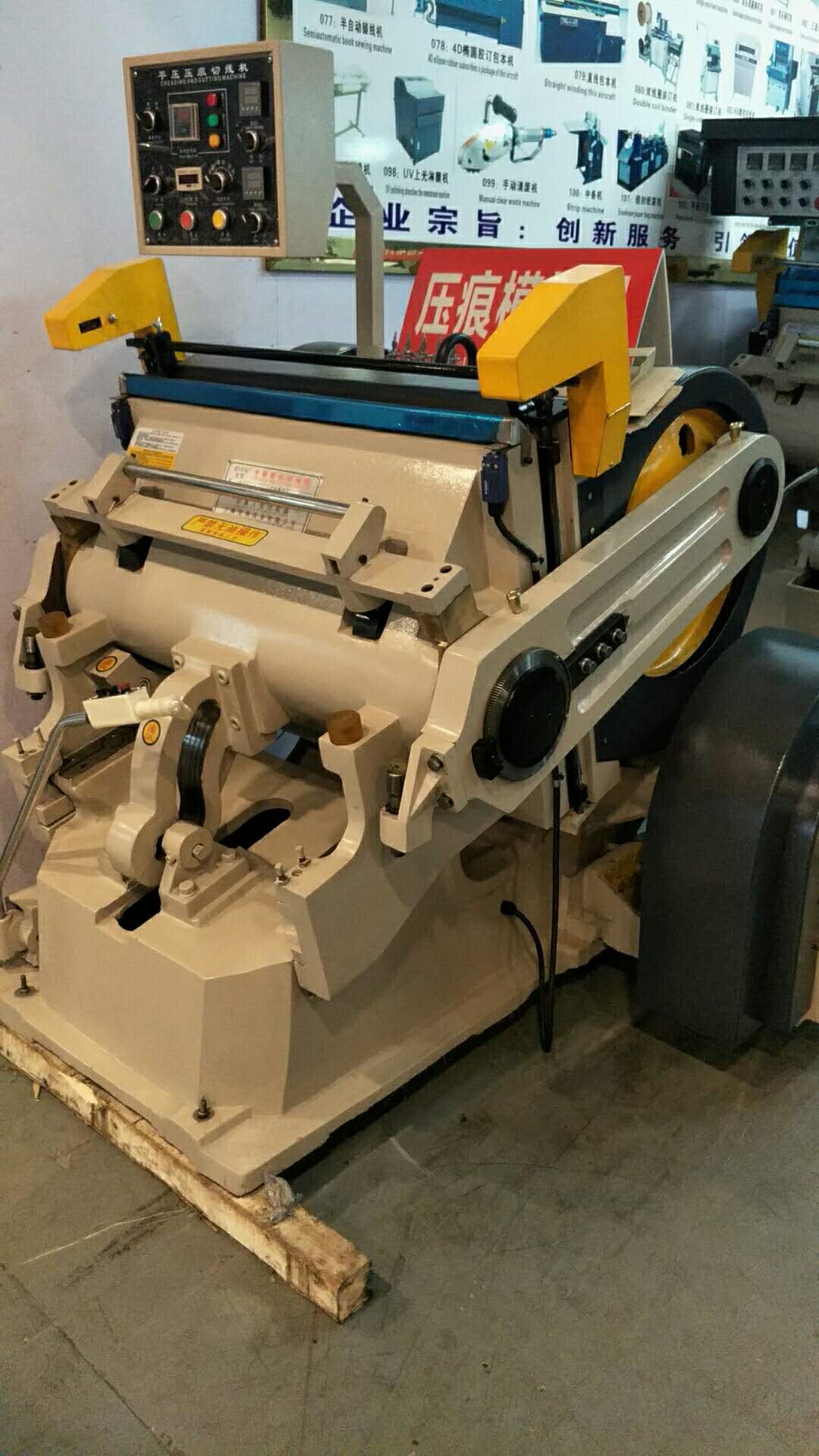

Model ML930 of the 930 heated weighted creasing die-cutting machine
≥1
$6,139.00
Note: The current price is EXW. Please discuss the final delivered price with the supplier.
