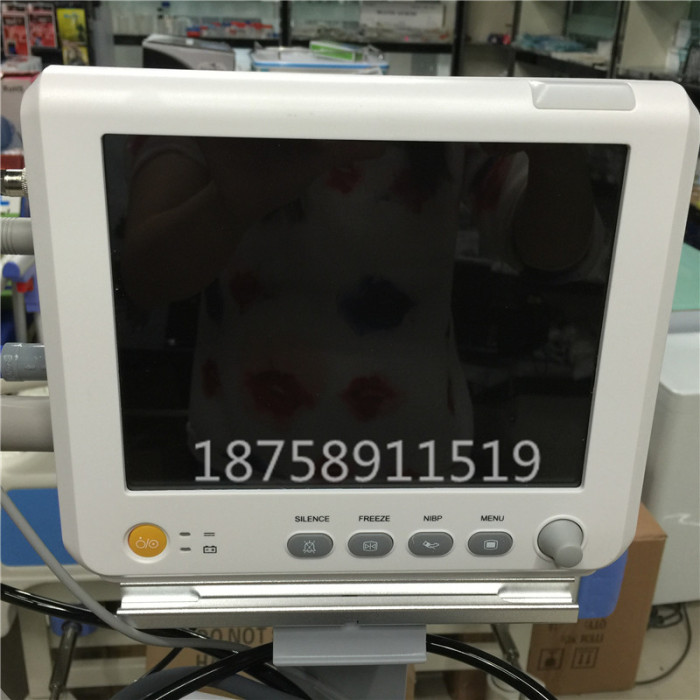

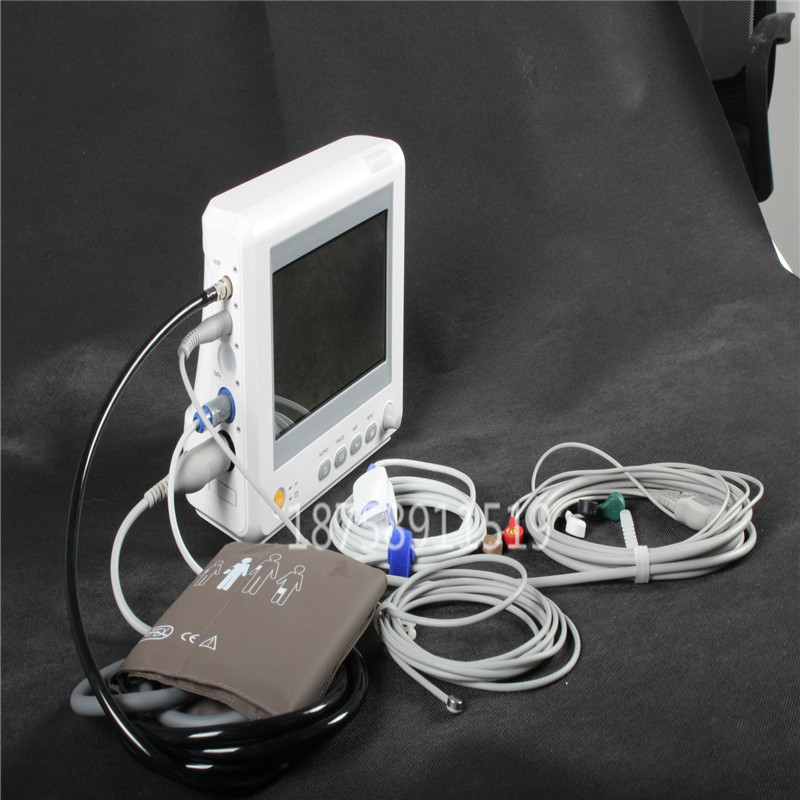

The M8 features a 7-inch screen with true color, wide viewing Angle and high-brightness LCD display. It can be optionally equipped with a touch screen.
The display interface is simple and convenient to operate, intuitive and friendly.
- ? It is equipped with a built-in rechargeable high-capacity battery for convenient patient transfer.
- ? Long-term waveform and monitoring data recording playback and browsing function.
- ? Automatic dual alarm of sound and light.
- ? Anti-defibrillation and anti-high-frequency electrosurgical interference.
2.1 Working Environment
Temperature range
Operating temperature: 0 to 40 °C
Transportation and storage temperature: -20 to 60 °C
Humidity range
Work ≤ 85%
Transportation and storage humidity ≤93% (no condensation)
Altitude range
Work -500-4,600 meters (-1,600-15,000 feet)
Transportation and storage altitude: -500-13,100 meters (-1,600-43,000 feet)
English Instruction Manual

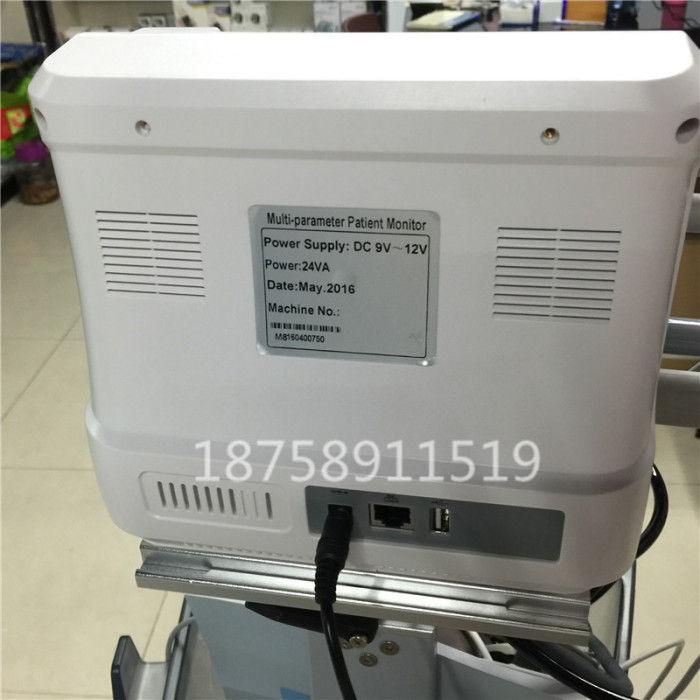

Electrical specifications
The input circuit is 100 to 240 V AC, 50/60 Hz
The output circuit is 12V, 2A, and the maximum output power is 24W
The fuse is of the T 2.0A display specification
2.2 Display Information
Up to 6 waveforms are displayed
An alarm indicator light (yellow/red)
A working indicator light (green)
A battery charging status indicator light (yellow)
Three sound alarm modes corresponding to the alarm status
2.3 Battery
2200mA 7.4V lithium battery
Under normal conditions, the fully charged working time is more than 100 minutes.
After the first low power alarm, it can continue to work for approximately 5 minutes
The maximum charging time of the battery does not exceed 12 hours.
2.4 Review
Trend review: Short trend 2 hours, resolution 1 minute
The long trend can last up to 160 hours, with a resolution of 5 minutes or 10 minutes
A review of 400 NIBP measurement data
2.5 Dimensions and Weight
M7: Dimensions: 210mm×100mm×185mm
Weight: 1.30(kg)
M8: Dimensions: 210mm×100mm×185mm
Weight: 1.41(kg
3 ECG specifications
3.1 Lead Configuration

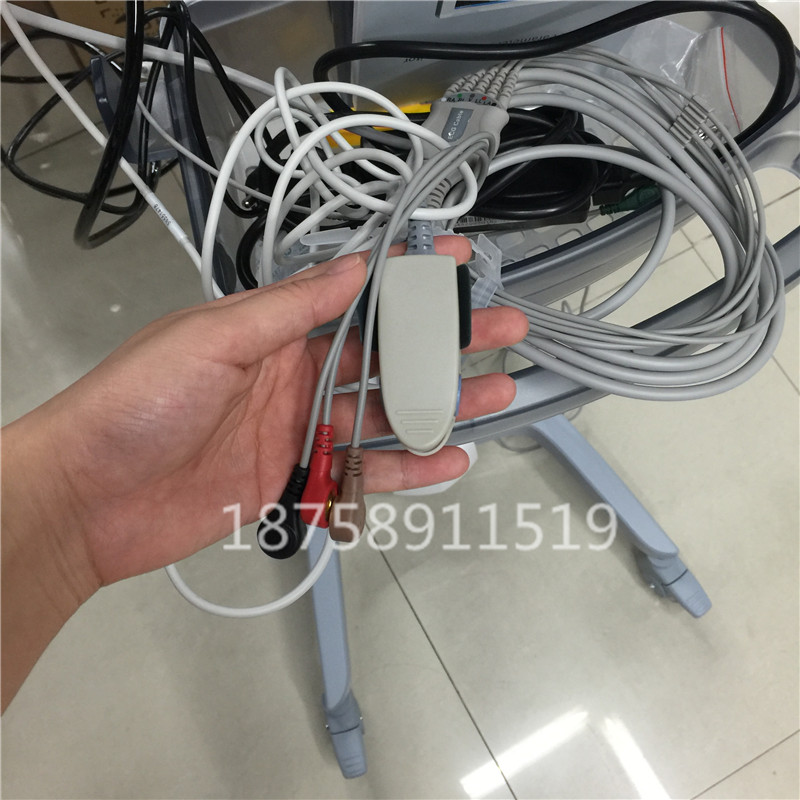

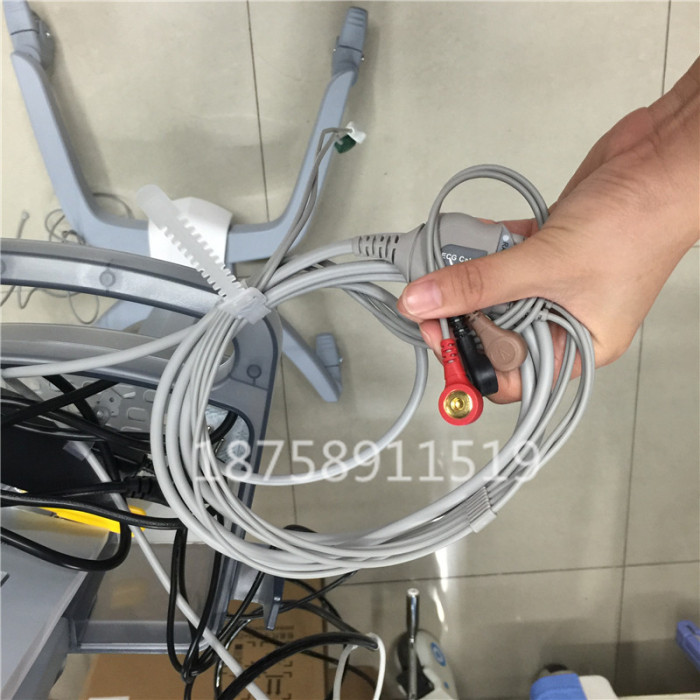

Standard three-conductor or five-conductor cables
Three leads RA, LA, LL, lead types: I, II, III
Five leads: RA, LA, LL, RL, V. Lead types: I, II, III, aVR, aVL, aVF, V
3.2 Gain
"0.25, 0.5, 1, 2, automatic.
3.3 Heart Rate
Heart rate range for adults: 15 to 300bpm (beats per minute)
Newborns/children: 15-350 bpm(beats per minute)
Accuracy: ±1% or ±1bpm, whichever is higher
Resolution: 1 bpm(beats per minute)
3.4 Sensitivity
> 200 uV (peak-to-peak value
3.5 Input Impedance
> 5 (megohms)
3.6 Bandwidth
Diagnostic mode: 0.05-130Hz
Monitoring mode: 0.5 to 40Hz
Surgical mode: 1 to 20Hz
3.7 Common-mode rejection ratio
Diagnostic mode > 90 dB
Supervision mode > 100 dB
Surgical mode > 100 dB
3.8 Electrode polarization voltage range
±300mV
3.9 Pacing Pulse detection
For pacing pulses that meet the following conditions, detection can be carried out
Amplitude: ±2 mV to ±700mV
Width: 0.1ms to 2ms
Rise time: 10 μs to 100μs
3.10 Pacing pulse suppression
When the pacing analysis switch is turned on, pacing pulses that meet the following conditions can be suppressed without affecting heart rate calculation:
Amplitude: ±2 mV to ±700mV
Width: 0.1ms to 2ms
Rise time: 10 μs to 100μs
