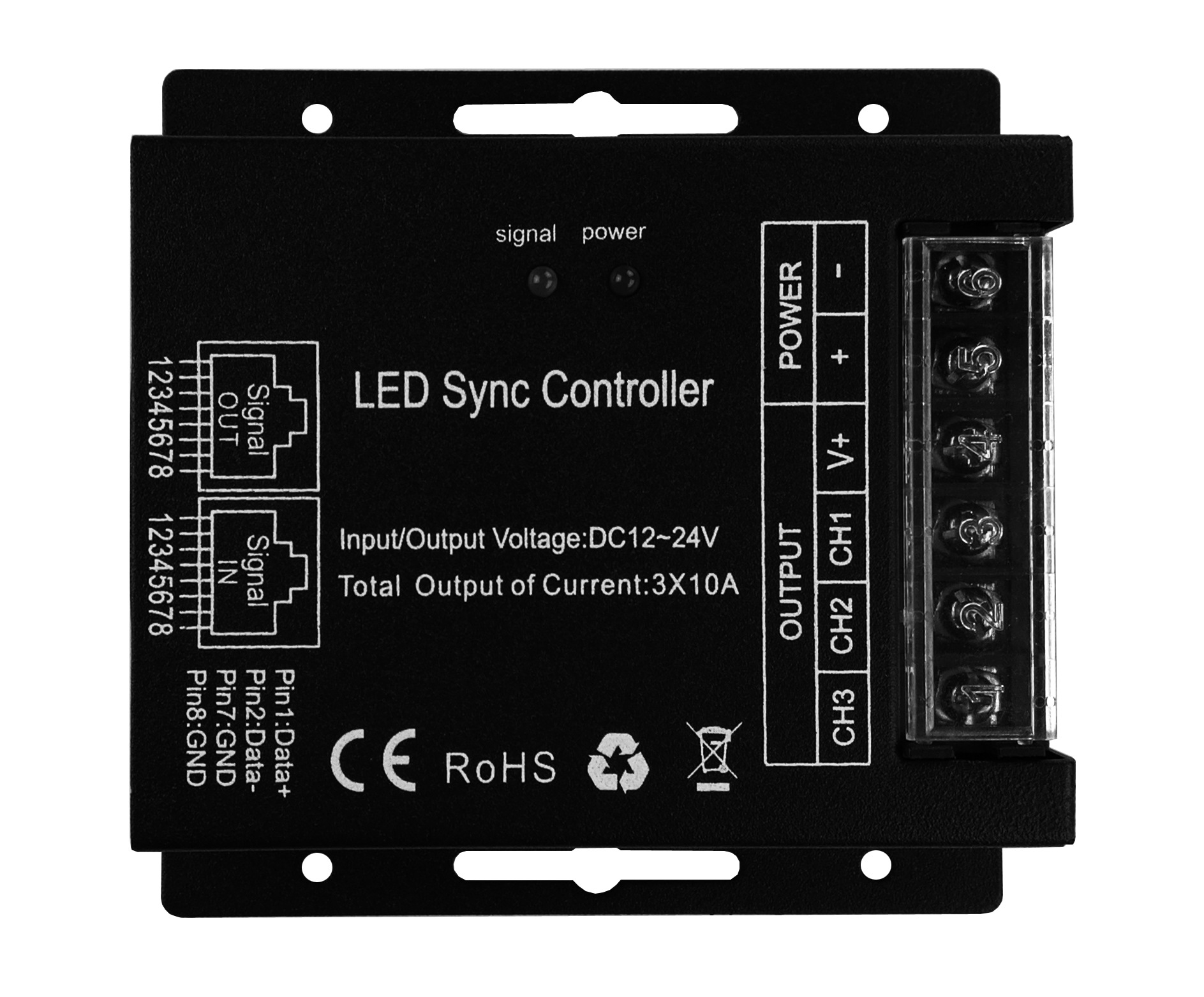

High-power RGB wireless controller HX-SZ600-20K
Product features
Product Introduction
The HX-SZ600-20K LED seven-color controller adopts advanced PWM control technology and is used to control various constant-voltage led lamps capable of achieving RGB color changes, such as RGB LED light strips, LED modules, LED light strings, etc. The mode selection and adjustment are carried out by RF wireless radio frequency remote control to achieve static, jump, gradient, stroboscopic and other lighting change effects. Meanwhile, customers can adjust the brightness of static colors and the speed of dynamic changes according to their actual needs. This type of controller can be connected to each other through RJ45 network cables to achieve synchronous changes of more LED lights. In theory, countless units can be connected.
Technical parameters
| Working temperature |
- 20 to 60 ℃ |
Supply voltage |
DC12~24V |
| Static power consumption |
<1W |
Connection method |
Gongyang |
| Gray level |
Level 256 (can be sent continuously) |
Speed gear |
Level 100 (Can be sent continuously) |
| Net weight |
210g |
MAO Zhong |
240g |
| External dimensions |
L91*W88*H24 mm |
Packaging size |
L106*W106*H66 mm |
| Output |
"3 circuits |
Output current |
≤10A(per circuit) |
| RF wireless remote control distance |
≤20m |
Transmitting and receiving frequency |
433.92 Mhz |
| Power-off memory function |
have |
"Mode" |
14 kinds |
| Output power |
12V:≤360W, 24V:≤720W |
||
Product features
This product is a constant voltage controller. The standard product's power supply voltage is 12-24V, which is a wide voltage range. Power supplies within this range can be used interchangeably.
2. The output is three circuits, with each circuit allowing a maximum current of 10A. It can support 25 meters of 12V60 light/meter light strips and 50 meters of 24V60 light/meter light strips.

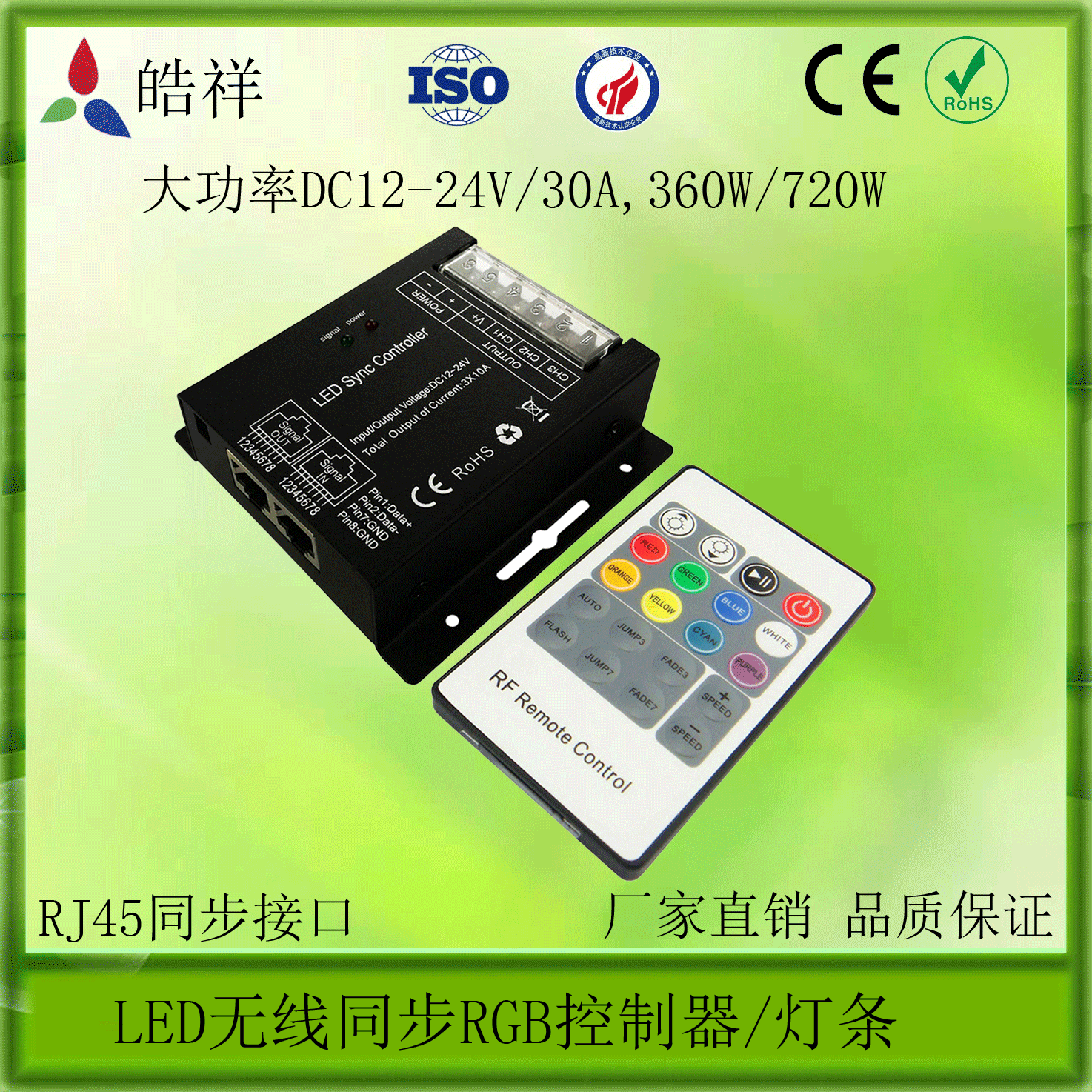

3. It adopts a 20-key wireless remote control method. The remote control is intuitive and convenient, has no directionality, and can penetrate obstacles of a certain thickness. The maximum distance can reach 20 meters. The wireless remote control for regular products is universal. If one-to-one control is required, manual coding can be done.
4. It has a power-off memory storage function. Each time power is restored, the change mode from the last power-off will be retained.
5. 14 modes, including 8 static colors and 6 dynamic changes; Static colors can be adjusted in terms of brightness, and dynamic changes can be adjusted in terms of speed. For detailed information, please refer to the user manual below.
6. When adjusting the brightness and speed, you can directly hold down the key and make rapid and continuous adjustments.
7. Each controller is equipped with an RJ45 synchronous network port, allowing for synchronous changes among controllers.
Instructions for Using the Remote Control
| Brightness increase |
Brightness drop |
Pause button |
Power button |
| Static red |
Static green |
Static blue |
Static white |
| Static orange |
Static yellow |
Static cyan |
Static purple |
| Automatic cycle |
Three-color transition |
Three-color gradient |
Speed plus |
| White stroboscopic |
Seven-color transformation |
Seven-color gradient |
Speed decrease |

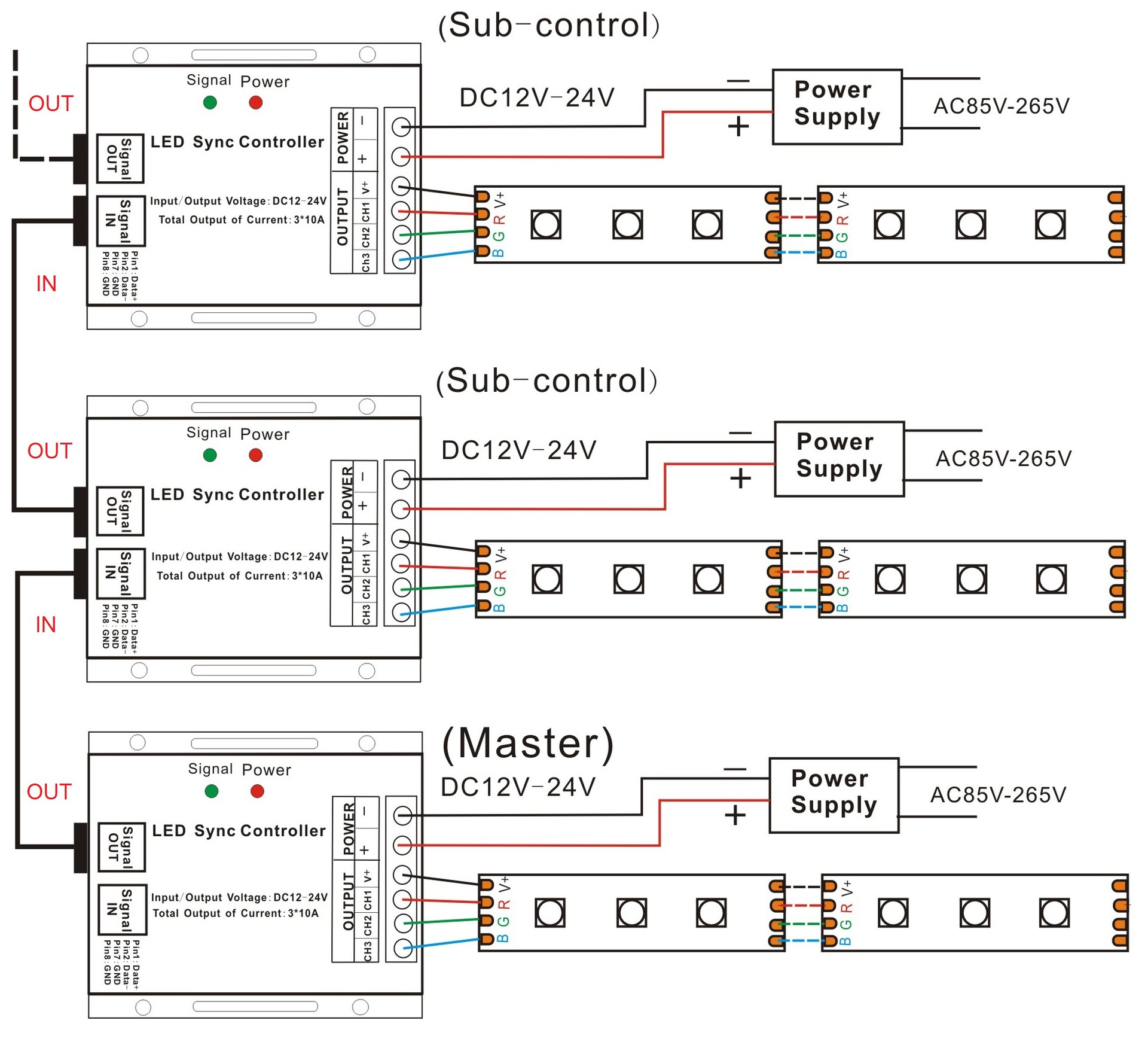

Wiring diagram (Multiple units cascaded synchronous control)
