It adopts a snap-on design. Just press it gently with your hand to remove the pump head, which is very convenient for the replacement and cleaning of the pump tube. The ingenious design not only offers the convenience of the tablet type but also avoids many problems such as the movement of the rubber hose of the tablet type pump head.

Applicable power supplies: DC 6V, 12V, 24V
Working environment: Temperature 0-40℃, relative humidity < 80%
The flow direction of the medium: The flow direction of the peristaltic pump depends on the connection method of the positive and negative terminals of the power supply. The positive and negative terminals can be selected arbitrarily
Flow range: 0.1-100 ml/min
Speed range: 0.1-100 rpm
Driver dimensions (Φx H) : Diameter 27.6 x height 37.9(mm)
Pump head dimensions (Φx H) : Diameter 31.7 x height 20.1(mm)
Pump pipe (IDxOD) : Inner diameter 2 x outer diameter 4(mm) (The pipe can be replaced as needed, but the delivery will be delayed.)
The complete set weight of the micro peristaltic pump is 0.2 Kg
The pump head is designed as an easy-to-disassemble type, which is convenient for cleaning and maintenance.

Under the

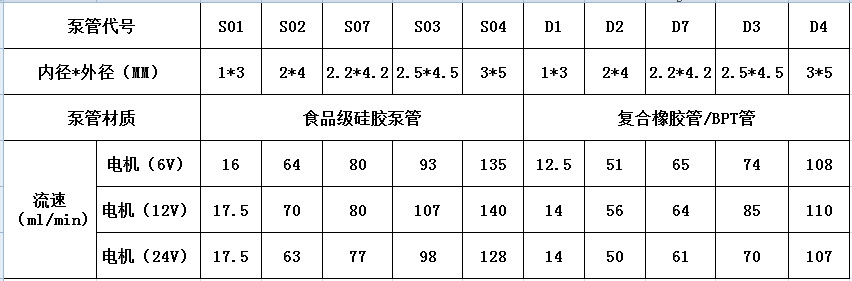

The product traffic detail table is as follows:

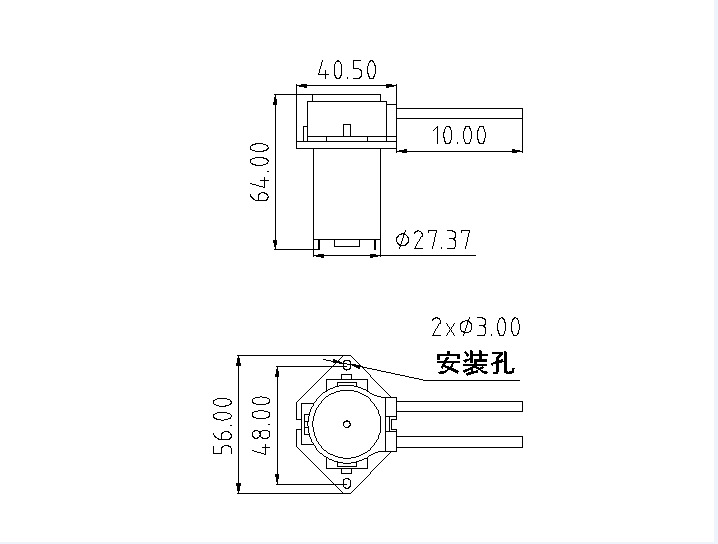

Product installation dimension drawing

L-shaped mounting plate assembly effect: front L-shaped mounting plate assembly effect, side straight plate mounting plate assembly effect: front straight plate mounting plate assembly effect, side straight plate mounting plate assembly effect

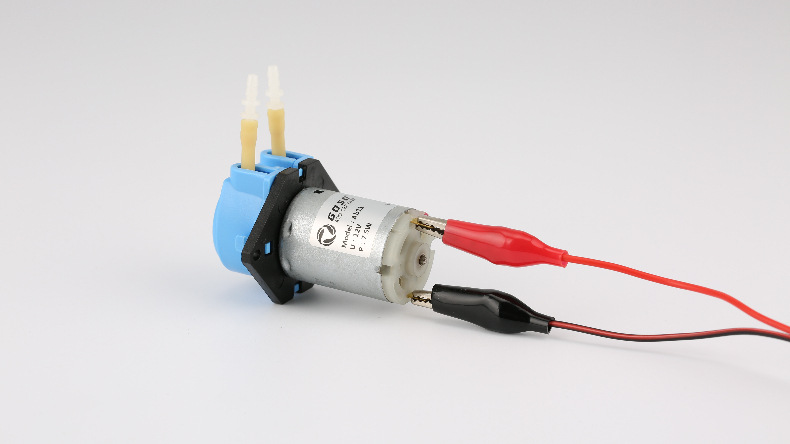

When the motor terminals are connected to electricity, it works. If the positive and negative wires are reversed, the motor will reverse.
