Welcome to our factory direct sales store! Supports custom labels, export to European standards, German style and other output ports, supports customization to 110V, 60ZH, 230V to 240V, 50HZ, etc. This link series defaults to 220V 50HZ. If you need to convert to 110V 50HZ, please contact customer service. Thank you for your understanding. Welcome to consult our factory's customer service. Bulk purchase offers better prices. For customers who need to place large orders, please contact Mr. Yao at 18319734157. His VX number is the same. We are available 24 hours a day. You can also send text messages or leave messages. Mr. Yao is dedicated to serving you! Welcome to consult our factory's customer service! Thank you for coming!

If the inverter you are operating has some heavy loads/inductive loads,
Please contact us before placing an order.
Thank you.



Note
It cannot be connected to a household power socket for use

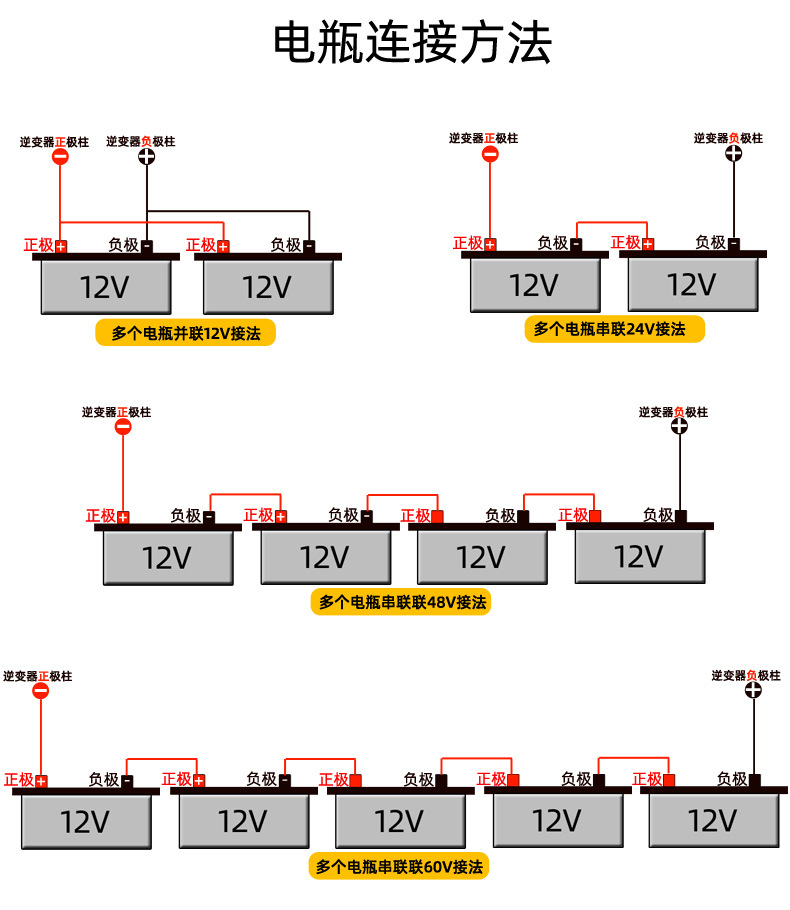

Before connecting the battery, please distinguish the positive and negative terminals of the battery first
3. Minors are not allowed to use it
4. Pay attention to waterproofing, moisture-proofing, shock-proofing and pressure-proofing



When connecting the car cigarette lighter wire with 12V/24V, please do not exceed 120W (12V in the car). 200W (24V truck)

(24V input. Inverters with voltages lower than 20V or higher than 30V will automatically protect and disconnect the power supply.
When the inverter input is 12V and the voltage is lower than 10.5V or higher than 15V, it will automatically protect and disconnect the power supply.

Note

One battery holder

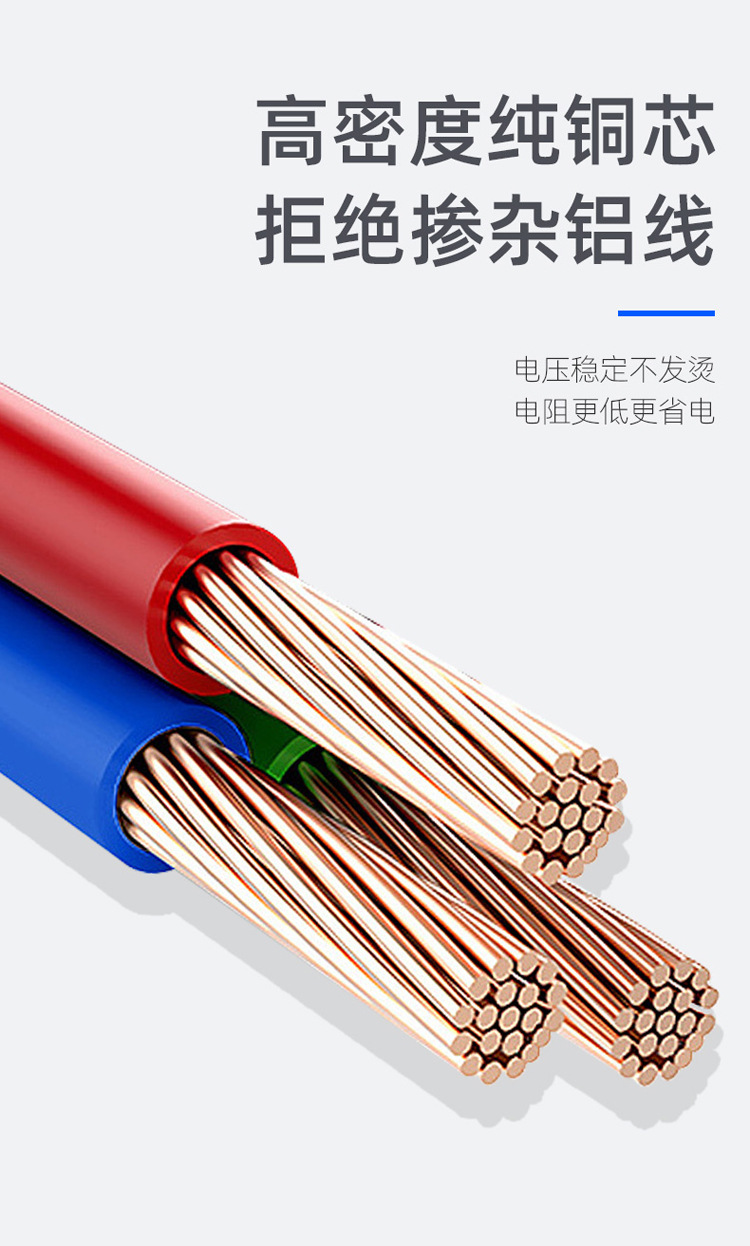

1 X battery thick wire

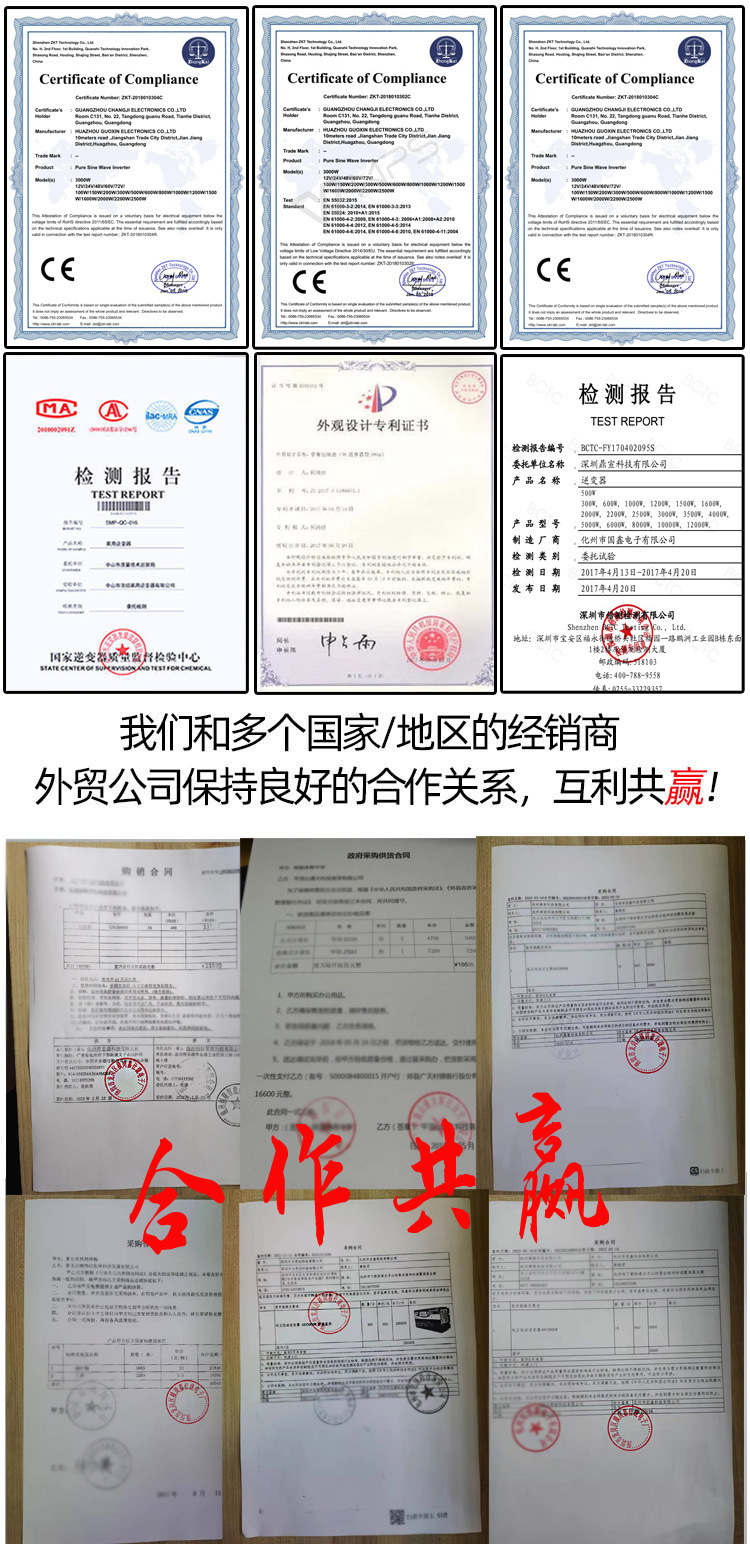

1x Certificate of Conformity
1 User Manual

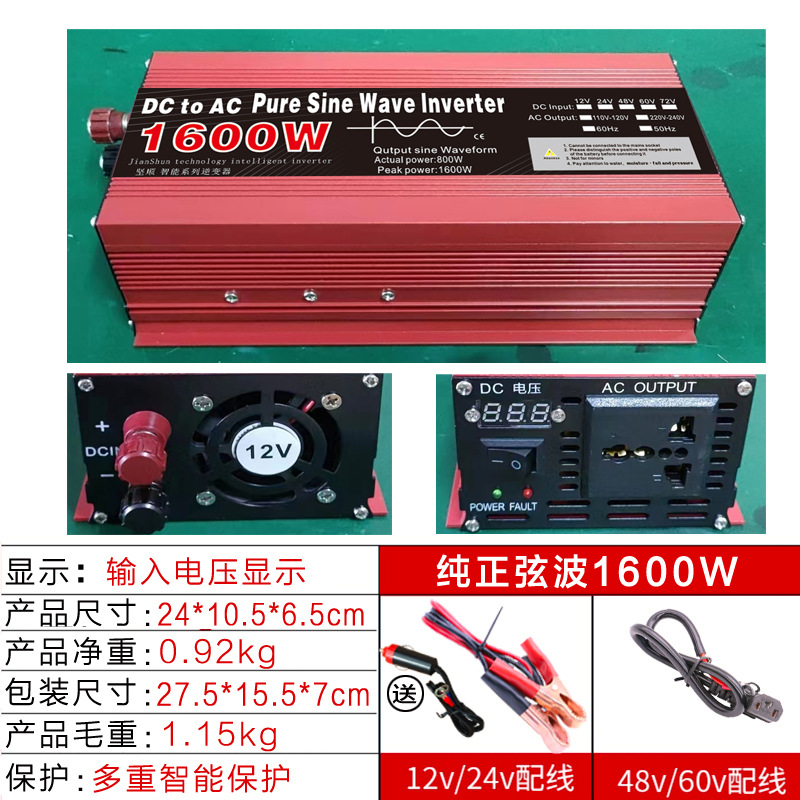

1 X pure sine wave inverter
The packaging includes:

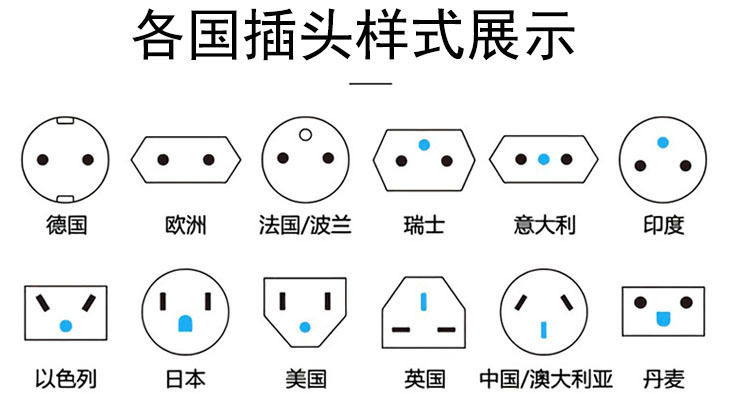

Socket: Universal type (commonly used in sockets in all countries/regions)
Power: 1600W/2200W/3000W
Output frequency: 50 Hertz
Input voltage :12V/ 24V/48v/60v/72v are selectable
Output voltage :220V

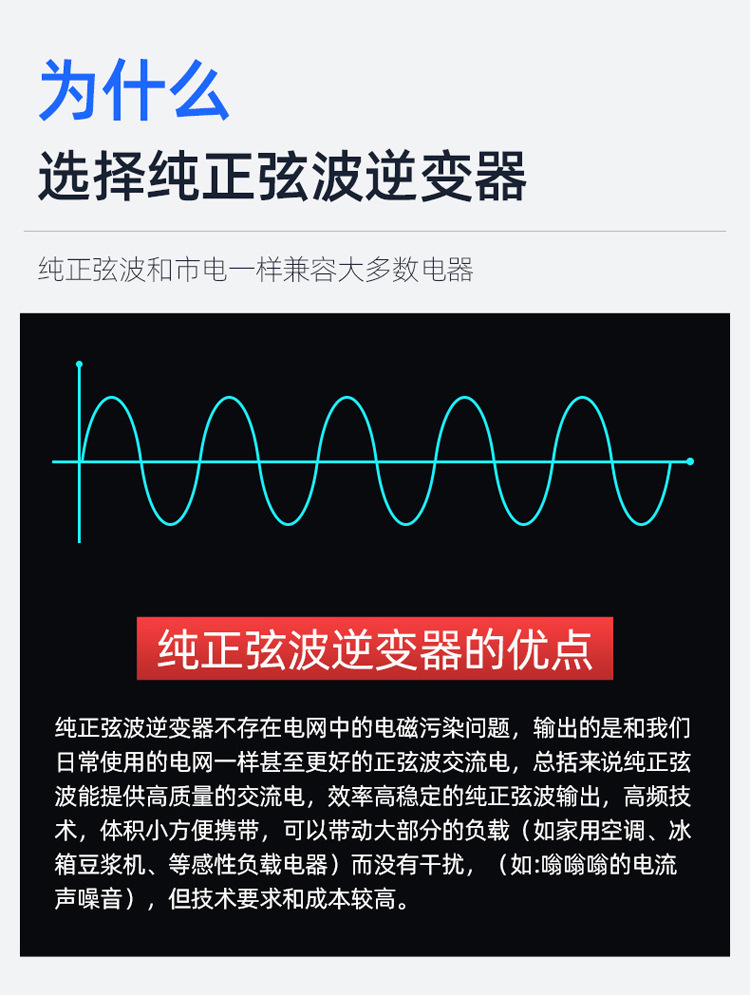

Output voltage waveform: Pure sine wave
Type: Pure sine wave inverter





A 1000W inverter with a continuous power of 500W and a starting power of 1000W.

A 1600W inverter with a continuous power of 800W and a starting power of 1600W.

A 2000W inverter with a continuous power of 1000W and a starting power of 2000W.

A 3000W inverter with a continuous power of 1500W and a starting power of 3000W.

A 4000W inverter with a continuous power of 2000W and a starting power of 4000W.

It is 2000W and can carry ordinary resistive devices within 1000W. 3000W can carry 1500W electrical appliances, such as computers, televisions, fans, and electric lights, all of which can carry resistive devices.

Despite this, the starting power of inductive load appliances is 3 to 12 times. If the continuous power meets the conditions, the starting power must also meet the conditions to drive.

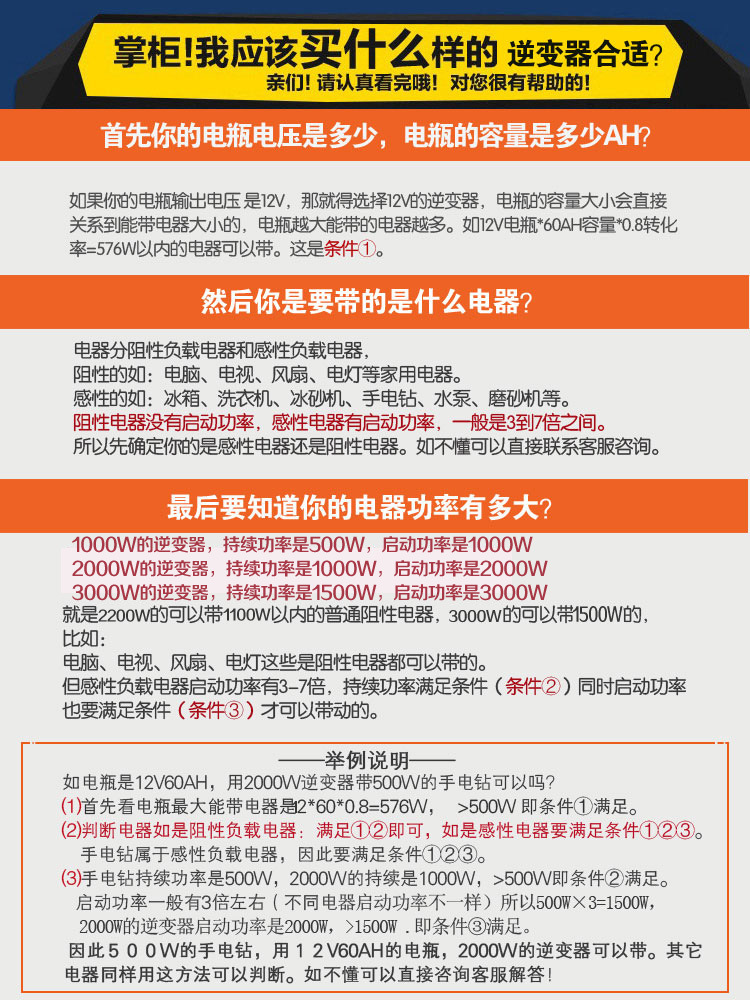

For example

If the battery is 12V / 60AH, can a 2000W inverter and a 500W hard drill be used?

First, the largest battery charger is: 12 * 60 * 0.8 = 576W, which is greater than 500W.

2. Determine whether the electrical appliance is a resistance type or an induction type: The hand drill is an induction type electric drill.

The continuous power of the hand drill is 500W, and the duration of 2000W is 1000W, which is greater than 500W.

The starting power is generally about three times (the starting power of Dove appliances is different), so 500W X 3 = 1500W. The starting power of a 2000W inverter is 2000W, which is greater than 1500W. Therefore, a 500W hand drill can be used together with a 12V / 60AH battery and a 2000W inverter.

Other electrical appliances can also be judged in this way.

If you encounter any problems or are not familiar with the operation, you can also consult the customer service. Thank you!

How to choose the right battery for an inverter

Working time =U (voltage payment) ×I (battery capacity) ×0. 8 × 0.9 ÷ Electricity

A 12V 50AH battery with a 220V 100W bulb

Working time =12 x50AH×0.8×0.9÷100W=4.32 (hours)

Note: 0.8 is the battery discharge coefficient (constant), and 0.9 is the inverter conversion efficiency (constant).
