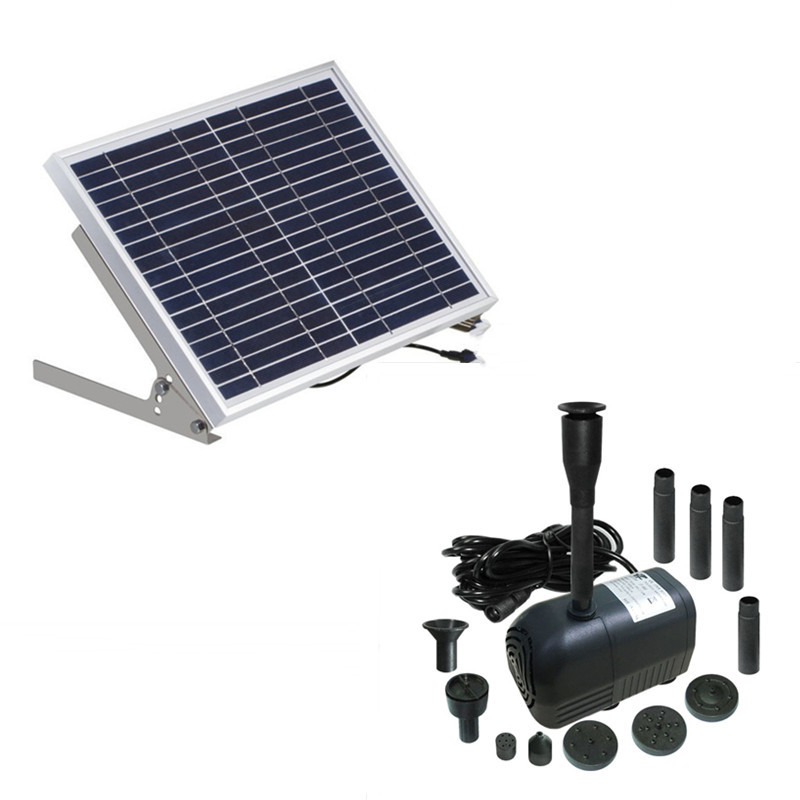

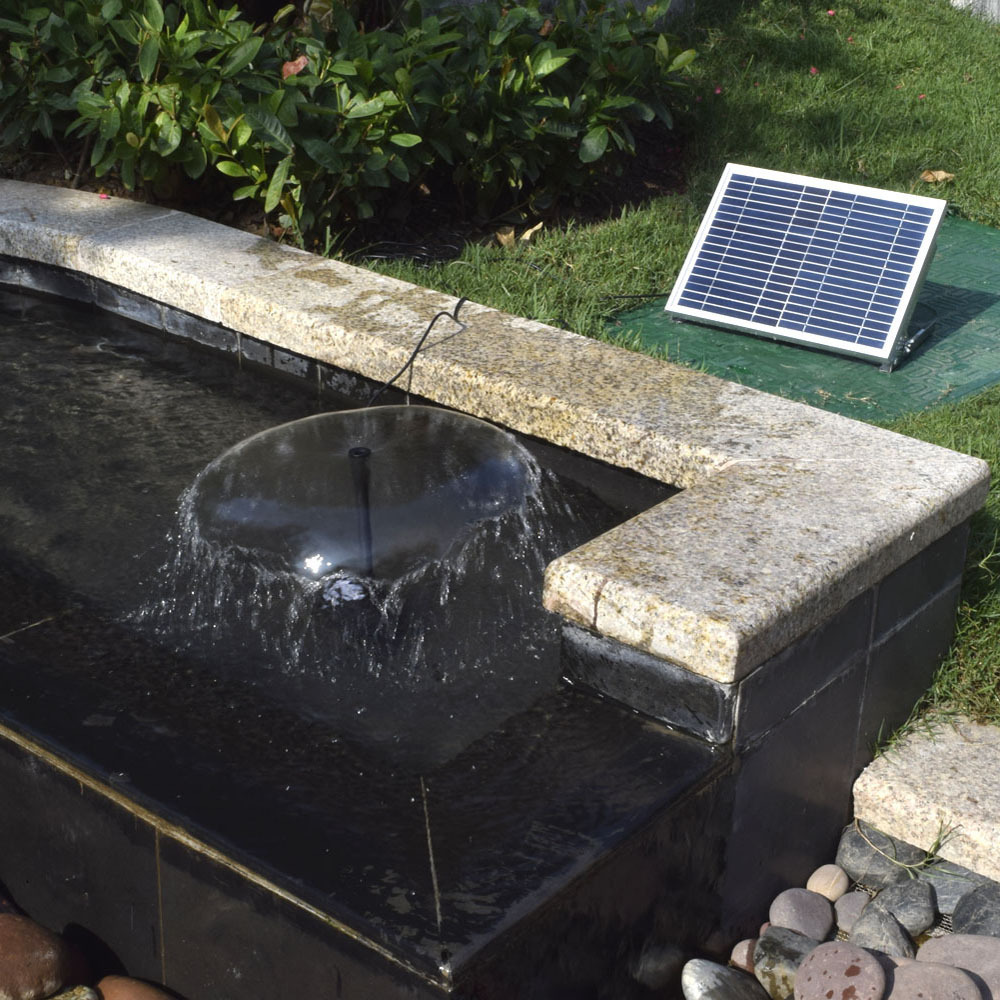

Solar-powered fountains are the new generation of green fountains. It is a landscape fountain device that uses solar energy to drive a water pump to draw water. This product adopts high-efficiency solar panels and a new type of brushless water pump, featuring quick start-up, high efficiency and strong stability. In addition, it has overcome the shortcomings of the brushless solar water pump, such as difficult start-up, low efficiency and poor stability, and is even easier to start than the brushed water pump of the same power. No external power supply is required, and there are no safety hazards. Low voltage without leakage. Easy to install and simple to operate. It can work as long as there is sunlight. When sunlight shines on the solar panels, the solar panels generate electricity and drive the water pump through the starter, and the water pump starts to spray water.

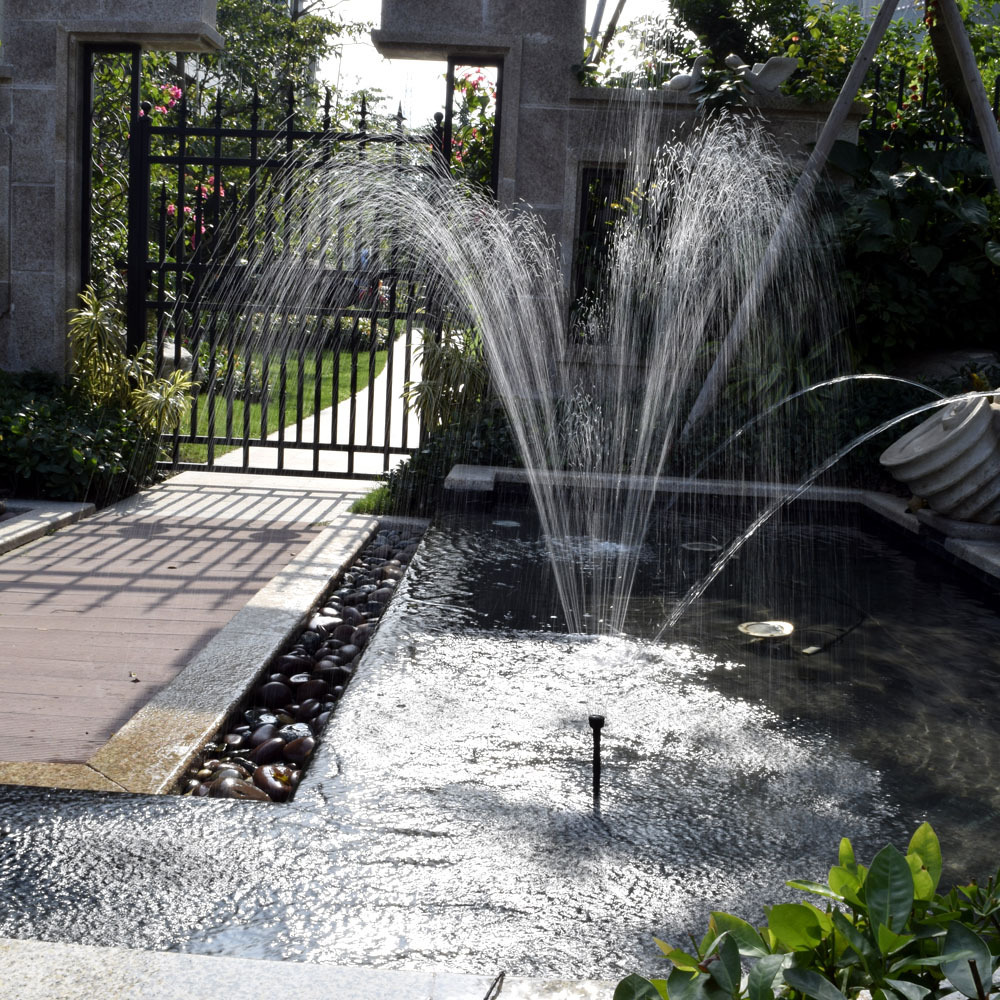

The products are widely used in places such as pool fountains, rockery fountains, and fish tank water circulation.

Note: This product adopts a solar direct drive power supply mode without a battery. It works when there is sunlight and stops when there is no sunlight. The water spray height depends on the intensity of sunlight. The water pump is a micro water pump and cannot discharge sewage. Please keep the water quality clean. The submersible water level of the water pump should be higher than the base but not higher than the nozzle.

Product Parameter :SP100

Solar panels :17V10W/15W

Solar panel dimensions: 10W with aluminum alloy frame :340*260mm/15W:340*360mm
Pump output: DC 6-24V
Maximum flow rate :450-1350L/h
Pump head: 2.5 meters

Maximum water spray height :200cm (depending on the intensity of sunlight

10W neutral packaging box dimensions :355*270*85mm, total box weight: 2.1kg, English instruction manual

15W neutral packaging box dimensions :370*360*105mm, total box weight: 2.7kg, English instruction manual

The outer box size of 10W is 47*37*28.5CM. Each box contains 5 sets. The gross weight is approximately 11.5 kilograms

Product performance
Based on the updated technology of brushless solar water pumps, the product has overcome the shortcomings of difficult start-up, low efficiency and poor stability of brushless solar water pumps, and is even easier to start than brushed water pumps of the same power.

Startup: When there is no Sunshine water pump and it stops working, the Sunshine water pump will restart within 3 seconds if it reappears.
Lifespan: 20,000 hours
Working hours on sunny days: 9:00 AM - 5:00 PM

Usage method

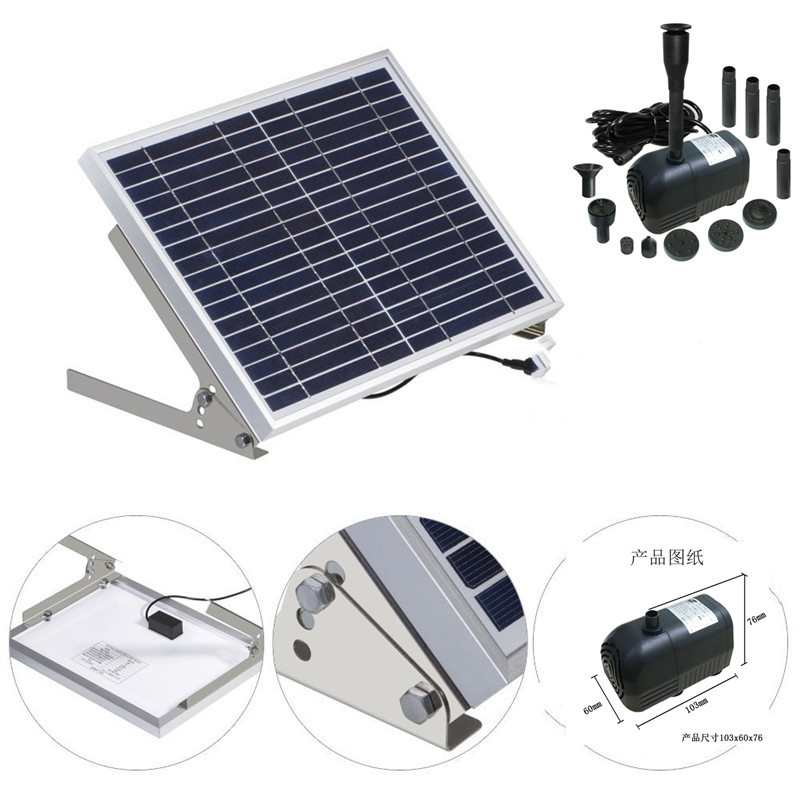

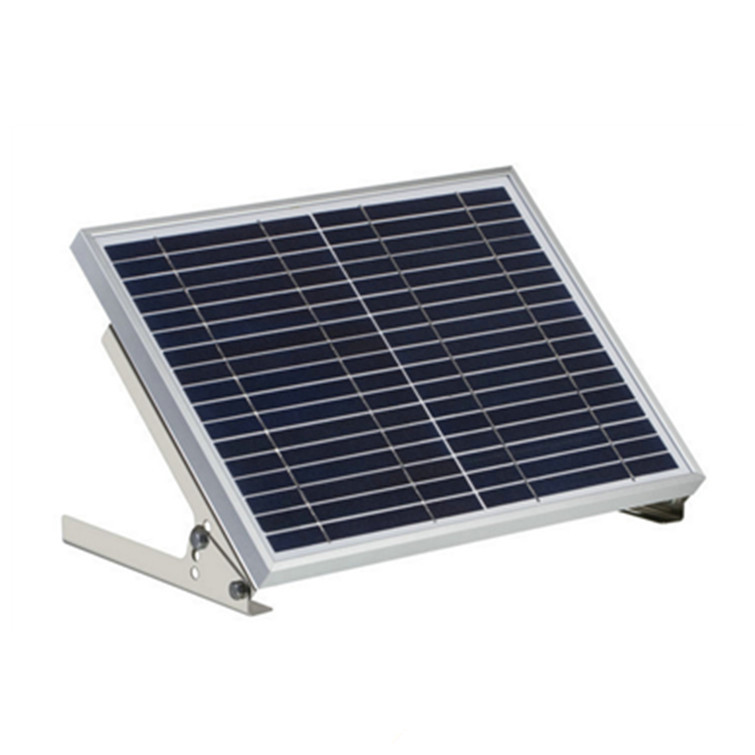

First, loosen the screws on the two stainless steel brackets that come with it, and then align the brackets with the holes of the two brackets on the solar panel. Then screw on the screws and lock them in place. The four expansion screws in the bag are spare. It is used to fix solar panels to the wall. If there is a suitable location beside your pool. There is no need to fix the solar panels to the wall. Just place it directly beside the pool.

2. Place the solar panels in a suitable location facing south to ensure they are not blocked by any other objects.

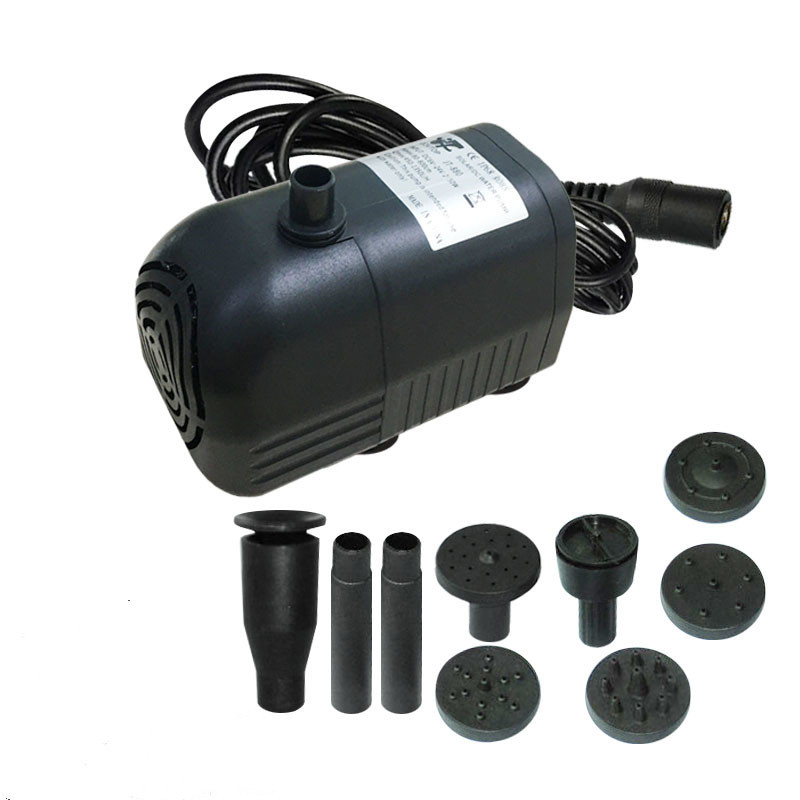

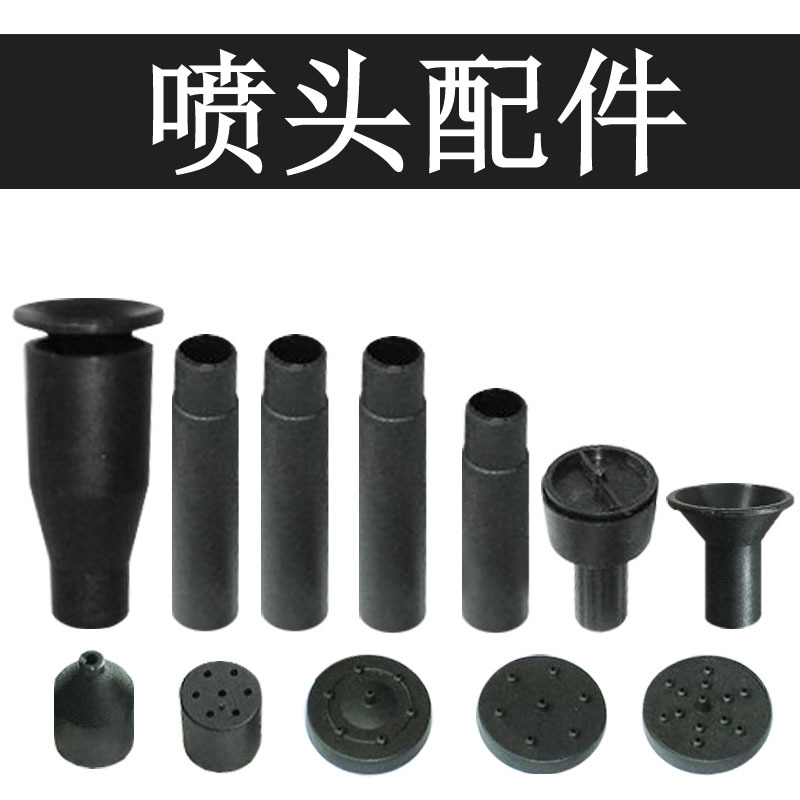

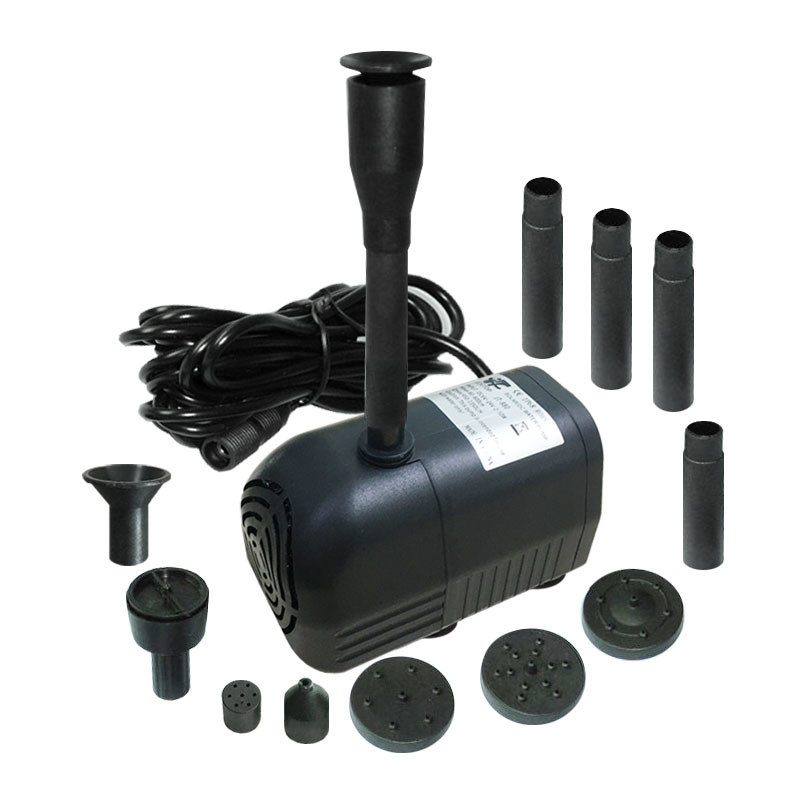

3. Fully immerse the base of the water pump in water. The outlet of the water pump is exposed above the water. Then connect the connection port of the solar panel to that of the water pump. Put the nozzle on the water pump according to your favorite nozzle. (When the water pump is just put into the water, there is air inside, which may affect the water spraying effect.) It is recommended to wait until the water pump sprays water normally before connecting the nozzle.

Notes
This product operates on a solar direct drive power supply mode without a battery. It works when there is sunlight and may not spray water or spray water intermittently when there is no sunlight. The height of the water spray depends on the intensity of the sunlight, so the water spray effect of the fountain can also be affected by weather conditions, seasonal changes, geographical location and other factors. The water pump is a micro one and cannot discharge sewage. Please keep the water clean. The submersible water level of the water pump should be higher than the base of the water pump but not higher than the nozzle.
2. Do not let the water pump run dry and empty outside the water when it is not in the water. Do not connect the solar panel to avoid burning out the water pump.
3. Please keep the water in the pool you are in clean. If there are any debris in the pool, please clear them up in time. To avoid clogging the water pump and affecting its normal operation.
4. Please wipe the dust off the solar panels regularly. So as to better absorb sunlight.
