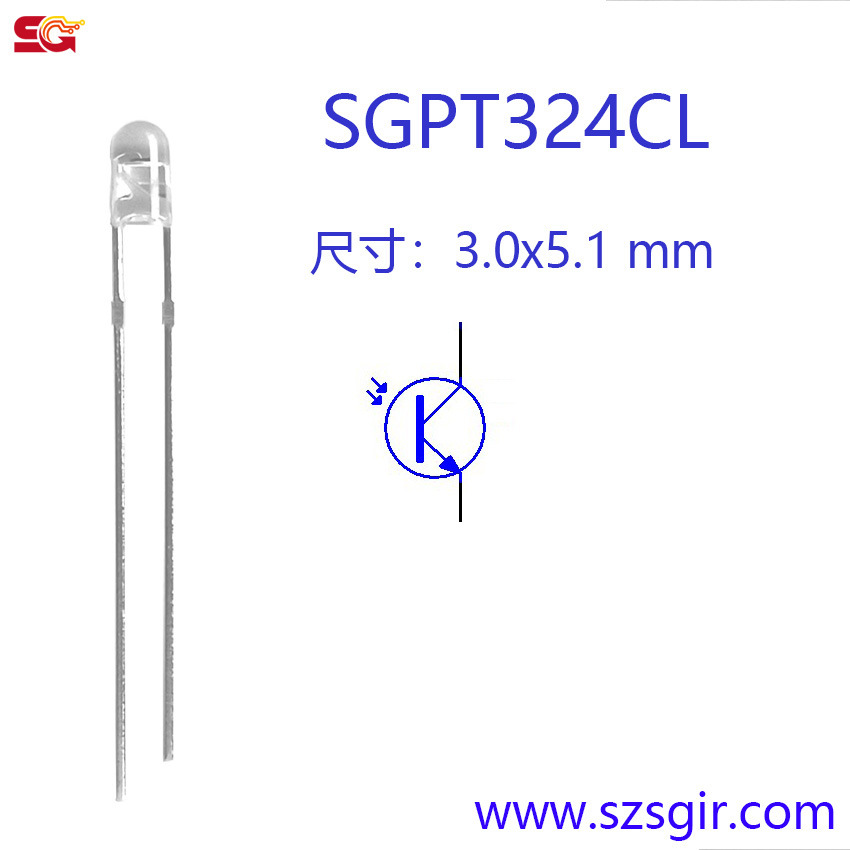

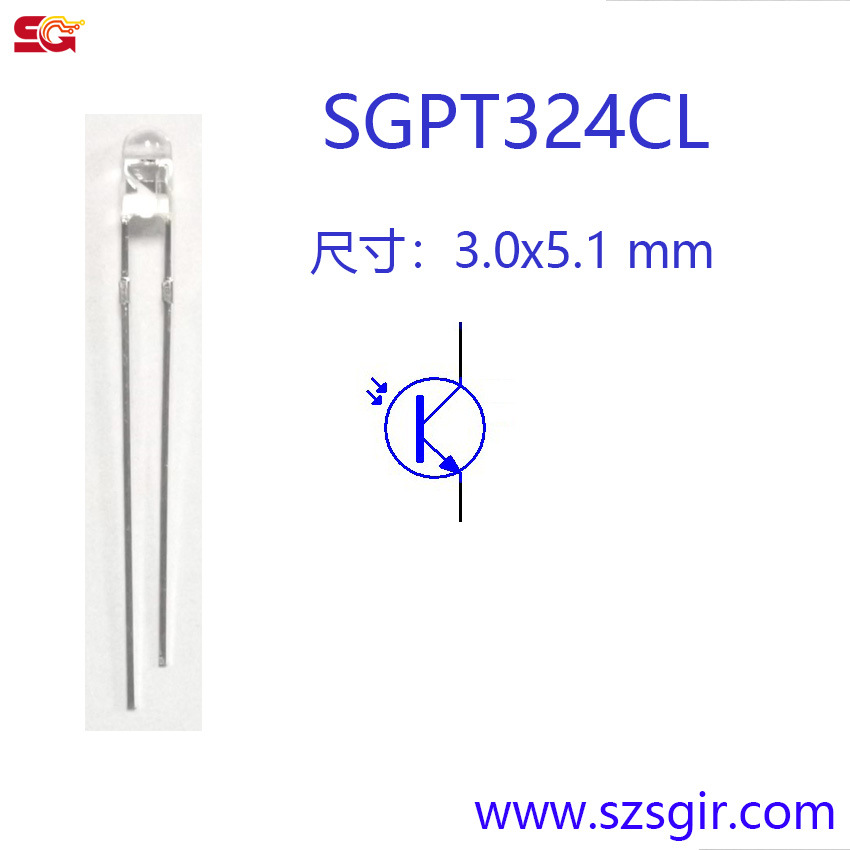

Infrared receiving tube photosensitive transistor SGPT324CL

For detailed parameters, please download the "Product Specification Sheet" from the company's website.

Parameters: Spectral bandwidth 400- 1100nm, magnification (Hfe)1000- 1800.

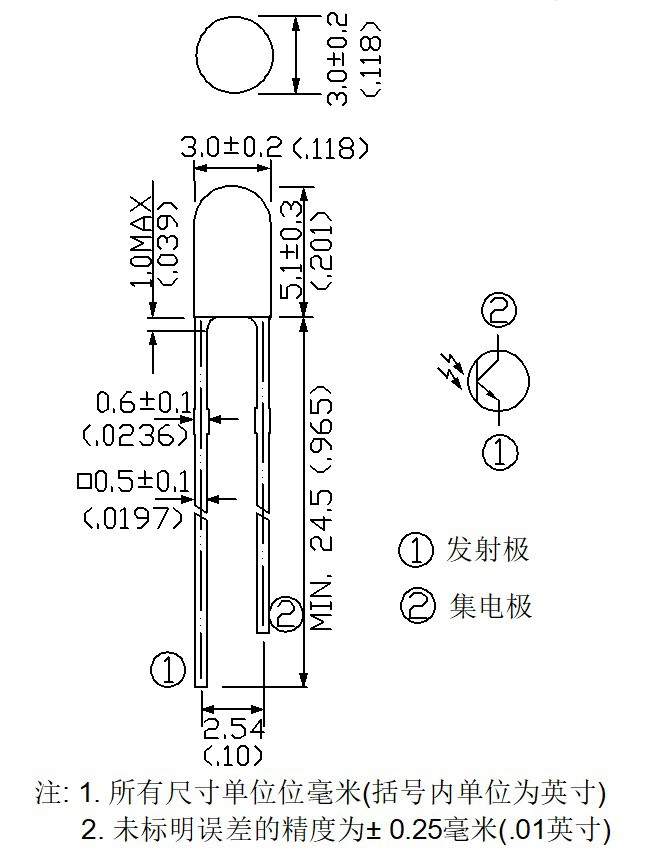

Pin position: Pin 1 emitter (long pin side), pin 2 collector (short pin side).

Size: feet Min 24.0 mm long, straight after: 3.0 + / - 0.2, height: 5.1 + / 0.3 transparent endless (3 mm)

Usage: Household appliances, office appliances, security systems, etc.

Packaging :1000 pieces per pack

Special reminder: This series of products are phototransistors. Please pay attention to the difference from photodiodes.

Comparison of the differences between photodiodes and phototransistors:

Abbreviation: Photodiode -PD Phototransistor -PT.

2. Pin Names: The two pins of a photodiode are the positive and negative terminals, while the two pins of a phototransistor are the collector and the emitter.

3. Chip structure: The photodiode is PN, and the phototransistor is NPN or PNP.

4. Response speed: Photodiodes have a fast response, at the nanosecond level, while phototransistors have a slow response, at the microsecond level.

5. Internal amplification characteristics of devices: Photodiodes do not have internal amplification, while phototransistors do, ranging from hundreds of times to hundreds of thousands of times. Different products have different amplification factors.

6. Output linearity: The output linearity of a photodiode is good, while that of a phototransistor is poor.

7. Photodiodes are generally used in reverse, that is, the negative terminal is connected to the high-level terminal and the positive terminal to the low-level terminal. The flow direction of the photosensitive current is from the negative terminal to the positive terminal. NPN type phototransistors typically have the collector connected to the high-level terminal and the emitter connected to the low-level terminal.

Our company specializes in manufacturing infrared receivers, photodiodes, phototransistors, photoelectric switches, photoelectric sensors, etc. If the product you need is not included in the sample, we can provide your requirements and our company can develop and design new products according to your requirements.

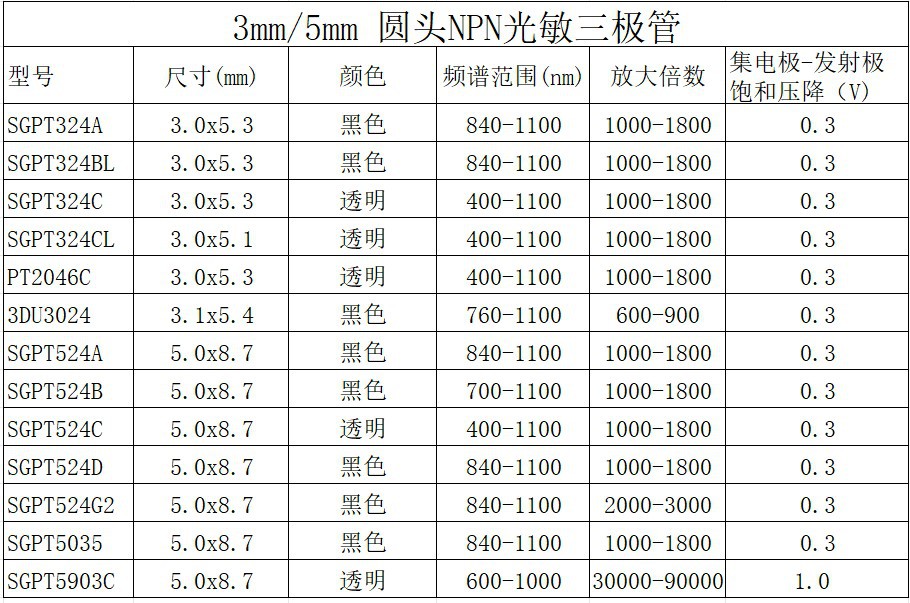

Round-head photosensitive transistor

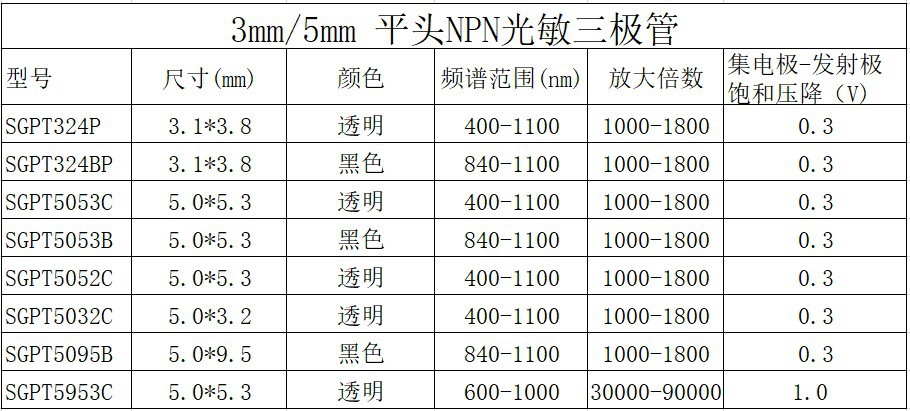

Flat-head photosensitive transistor

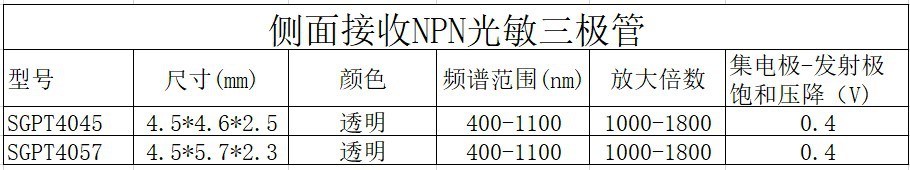

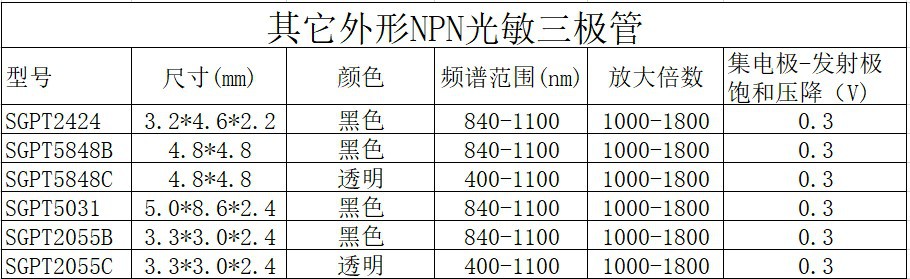

Side-view phototransistors and other shaped phototransistors

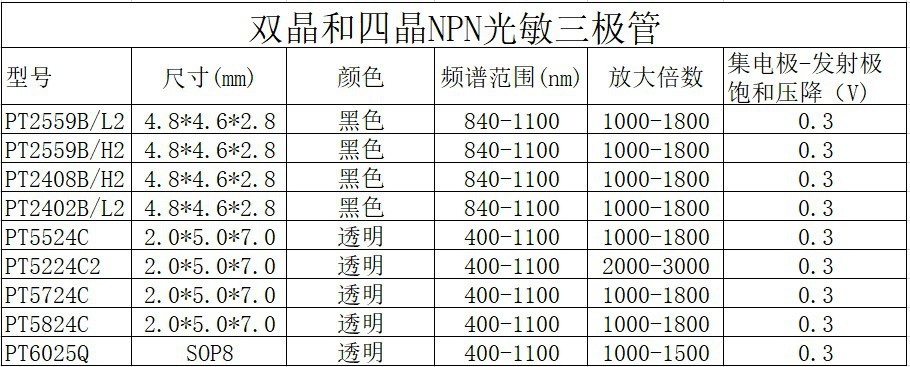

Dual-crystal photosensitive transistor

SMD surface mount phototransistor
