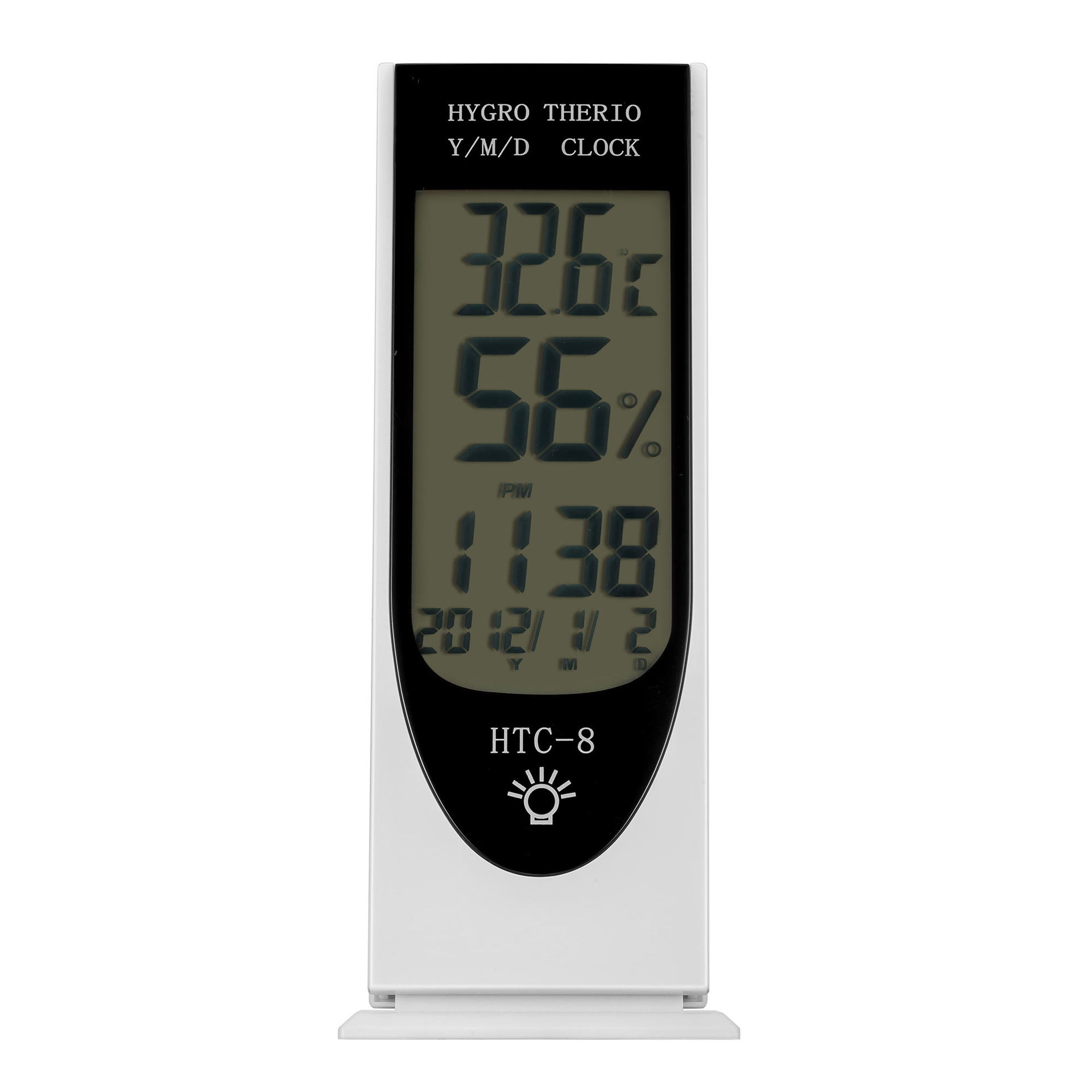

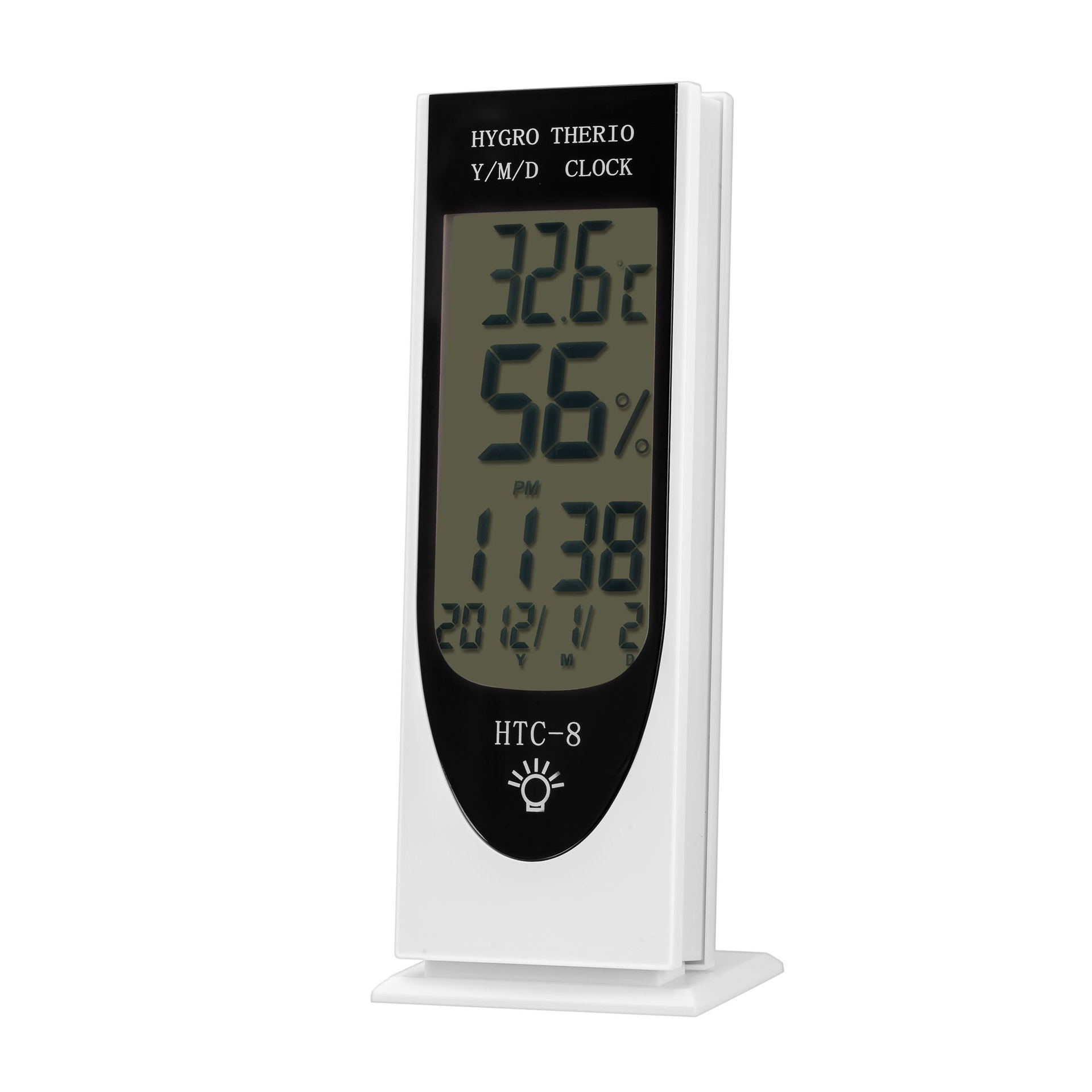

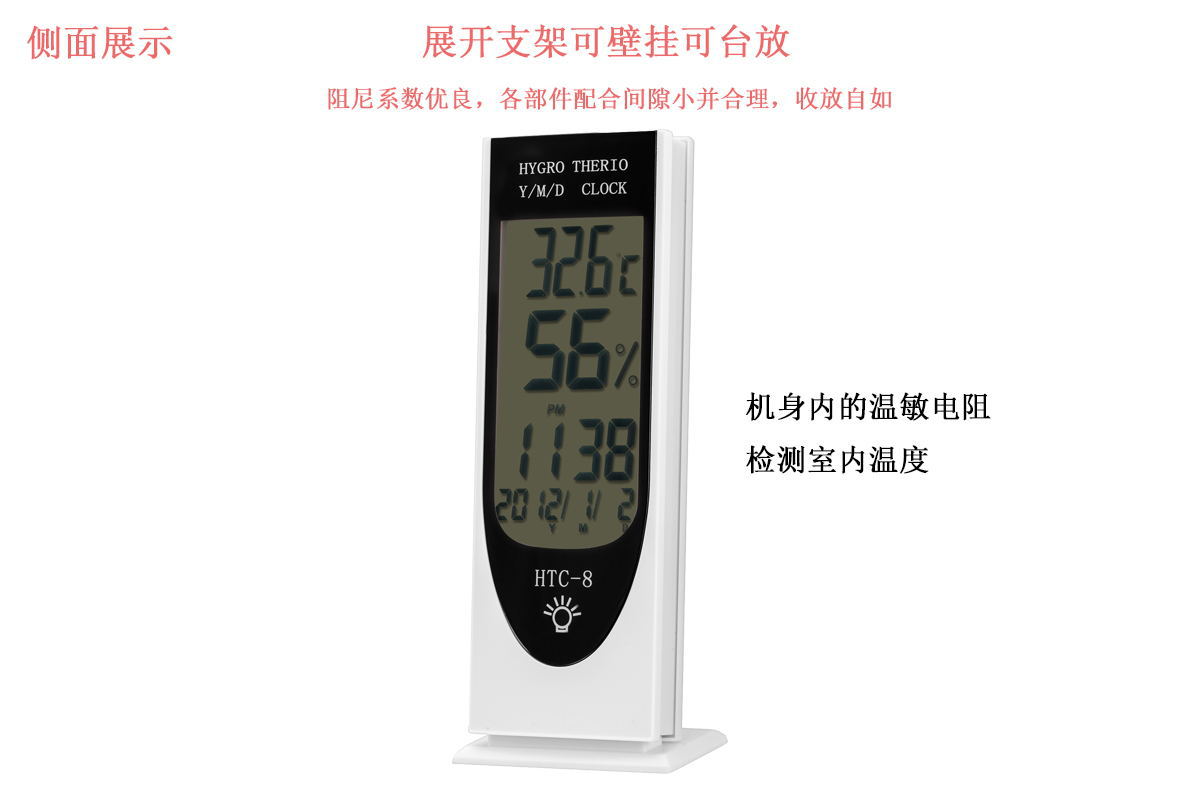

HTC-8 luminous temperature and humidity meter clock

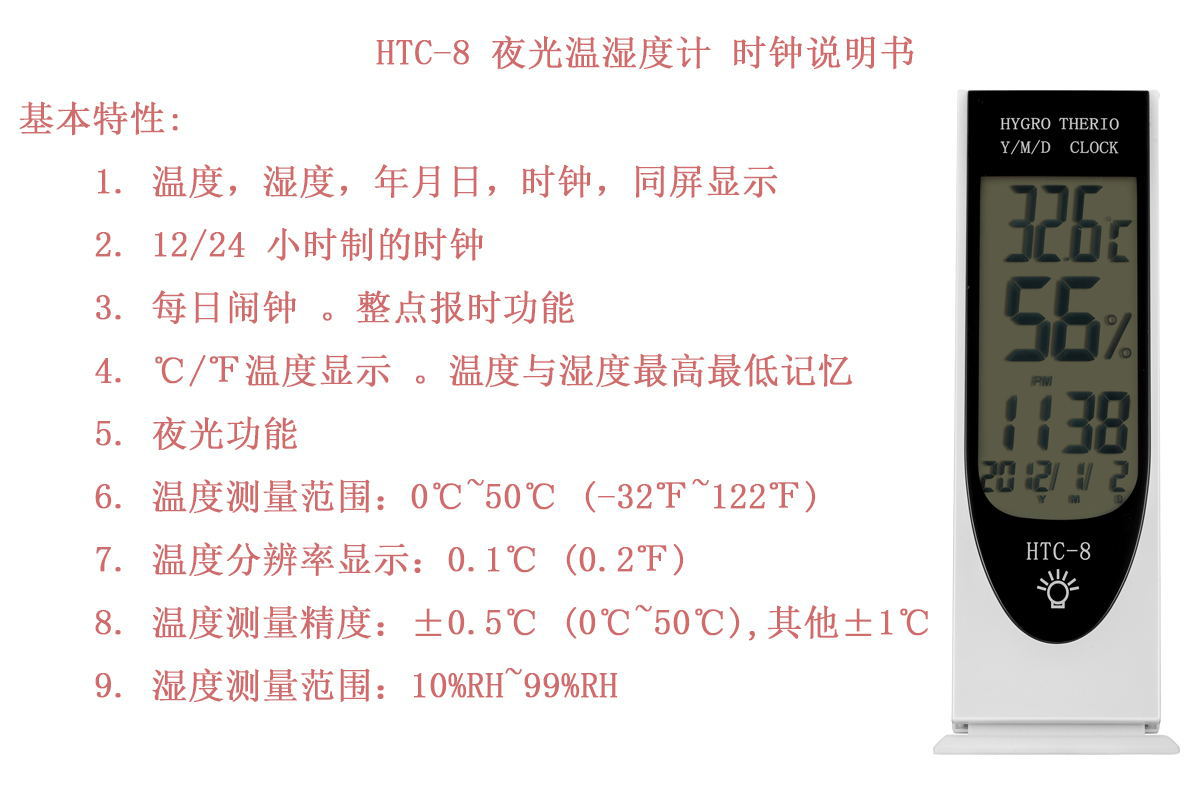

Basic features

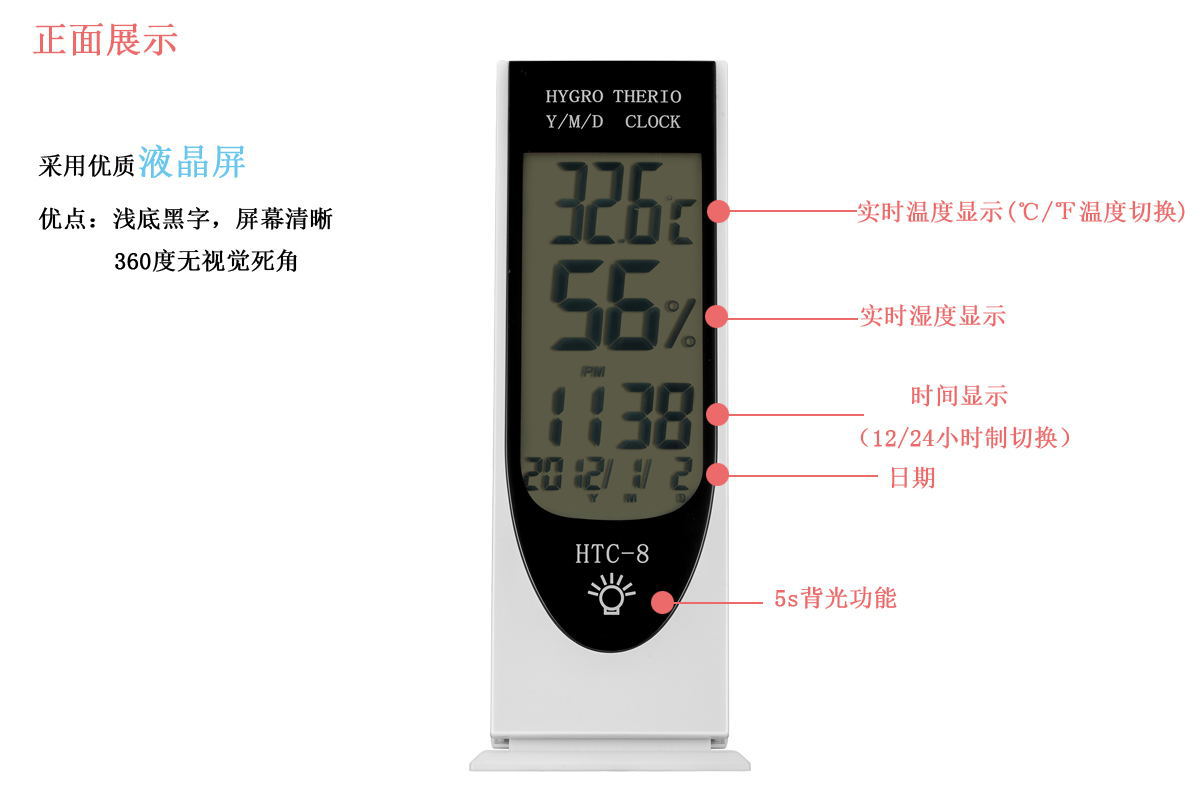

Temperature, humidity, year, month, day and clock are displayed on the same screen

2.12/24-hour clock

3. Daily alarm clock and hourly announcement function

4.℃/℉ temperature display. Memory of the highest and lowest temperatures and humidity

5. Luminous function

6. Temperature measurement range: 0 to 50℃ (-32 to 122℉)

7. Temperature resolution display: 0.1℃ (0.2℉)

8. Temperature measurement accuracy: ±0.5℃ (0℃ to 50℃), ±1℃ for others

9. Humidity measurement range: 10%RH to 99%RH

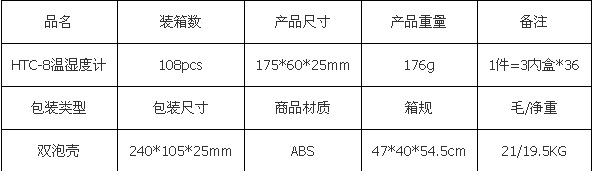

Product dimensions: 175X60X25mm

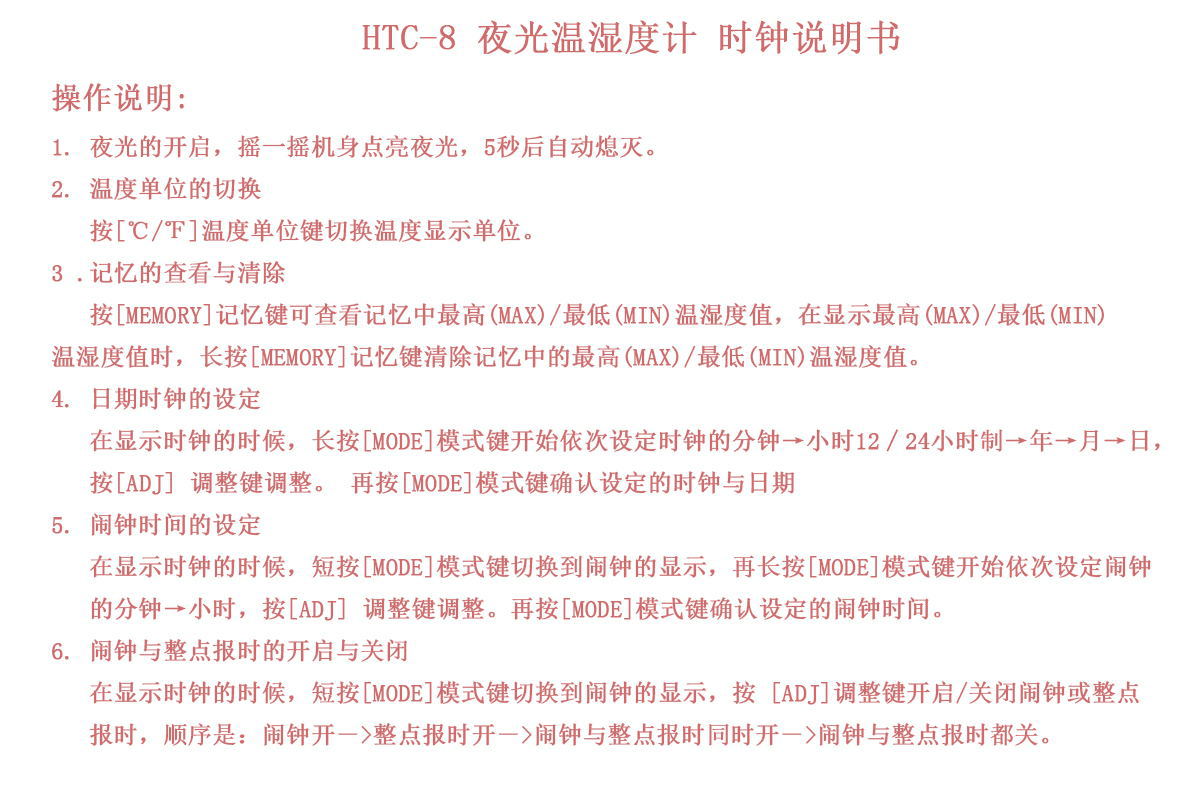

Operating Instructions

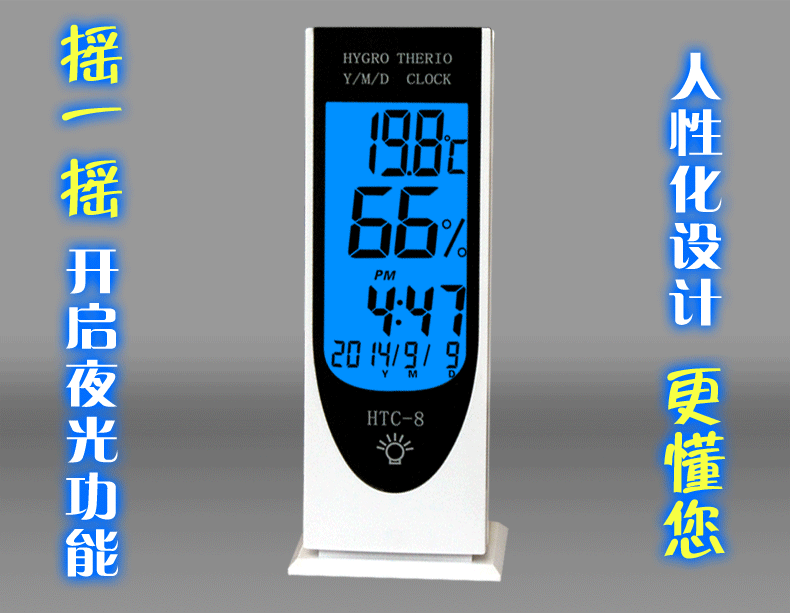

To activate the night light, shake the body to light it up and it will automatically go out after 5 seconds.

2. Switching of temperature units

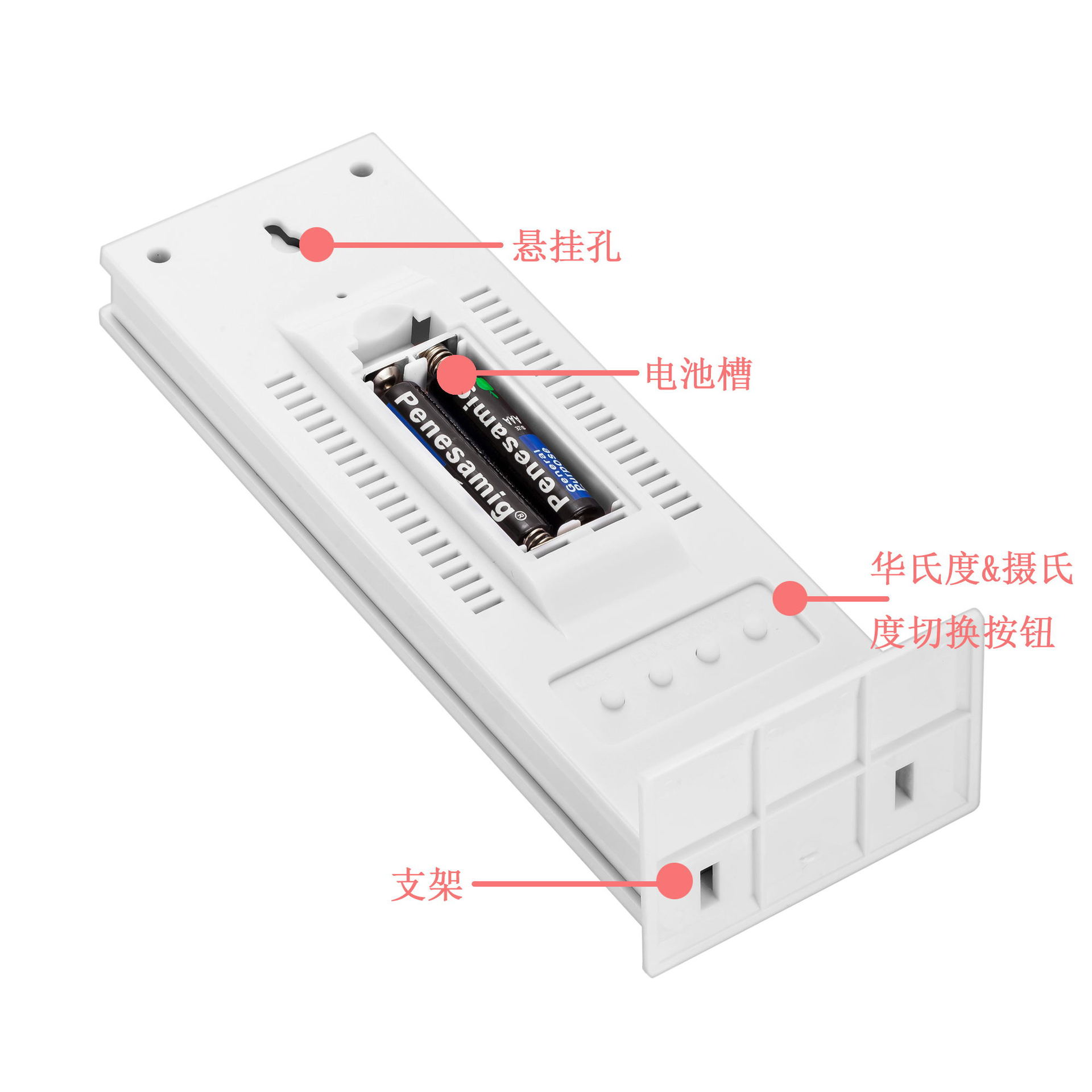

Press the [℃/℉] temperature unit key on the back of the device to switch the temperature display unit.

3. Viewing and clearing memories

Press the [MEMORY] MEMORY key on the back of the device to view the highest (MAX)/ lowest (MIN) temperature and humidity values in your memory. When the highest (MAX)/ lowest (MIN) temperature and humidity values are displayed, hold down the [MEMORY] memory key for a long time to clear them from your memory.

4. Setting of the date clock

When displaying the clock, long press the [MODE] mode key to start setting the clock in sequence: minute → hour → 12/24-hour system → year → month → day, and press the [ADJ] adjustment key to make adjustments. Press the [MODE] mode key again to confirm the set clock and date.

5. Setting the alarm clock time

When displaying the clock, briefly press the [MODE] MODE key to switch to the alarm clock display, then long press the [MODE] mode key to start setting the alarm clock from minute to hour in sequence, and press the [ADJ] adjustment key to adjust. Press the [MODE] mode key again to confirm the set alarm time.

6. The on and off of alarm clocks and hourly timekeeping

When displaying the clock, briefly press the [MODE] mode key to switch to the alarm clock display, and press the [ADJ] adjustment key to turn on/off the alarm clock or the hourly announcement. The sequence is: alarm clock on → hourly announcement on → both alarm clock and hourly announcement on → Both alarm clock and hourly announcement off.

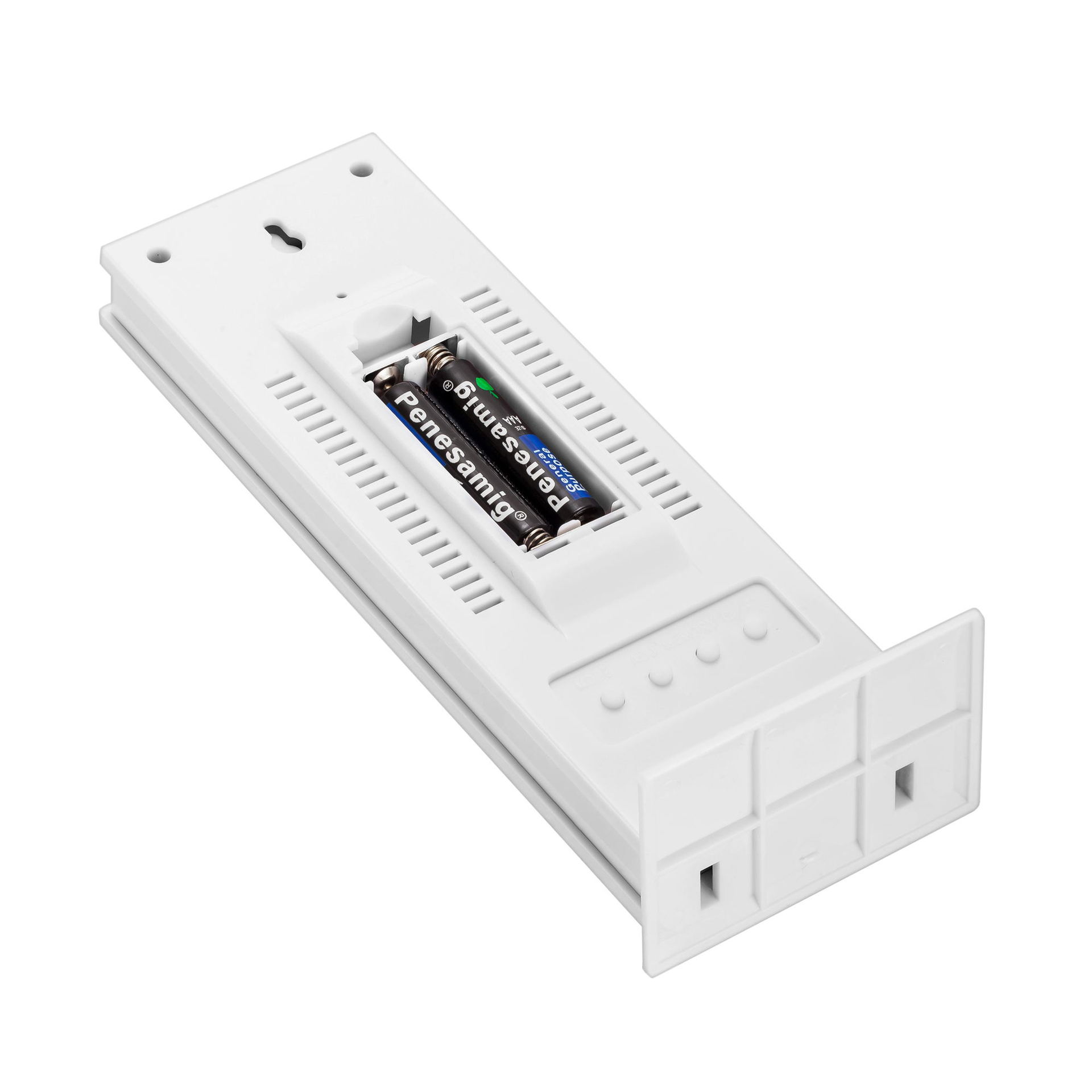

This product uses 1.5V X 2 AAA battery

The font display is blurry. Please replace the battery

HTC-8 luminous temperatureand humidity meterclock manual

The basicfeaturesof

1. Temperature, humidity, date(year, mouth, day), clock, with screen display
2. 2. Clock for 12/24 hours
3. 3. Daily alarm. The whole point timekeeping function
4. 4. ℃/℉temperature display. The maximum and minimum memory of temperature and humidity
5. 5. Luminousfunction
6. 6. Temperature measurement range: 0℃ to 50℃(-32℉ to 122℉)
7. 7. Temperature display resolution: 0.1℃(0.2℉)
8. 8. The temperature measurement precision:±0.5℃(0℃ - 50℃),others±1℃
9. 9. Humidity measurement range: 10%RH~99%RH

Operating instructions:

1. 1. The luminous opens: Press the button of light icon to lit luminous, automatically extinguished after 5 seconds.
2. 2. Switching temperature unit:

Press the [℃/℉] buttonto switch temperature display unit.

3.Checkand clean the memory:

Press the [MEMORY] memory button can check the maximum (MAX)/minimum (MIN) temperature and humidity value in the memory. When see Maximum (MAX)/ minimum (MIN) temperature and humidity value in display, press and hold the [MEMORY] memory button to clean the maximum (MAX)/minimum (MIN) temperature and humidity value in the memory.

4. The date and clocksetting:

When display the clock,press hold the [MODE] buttonstart to set the clockfollowed by minutes→hours→12∕24hours→year→mouth→day, press the [ADJ] key to adjust, then press the [MODE] button to confirm the clock and date.

5.The alarm time setting:

When display the clock,press [MODE]buttonto switch to the alarm display,and then press and hold the [MODE] button start to set thealarm timefollowed byminutes→hours, press the [ADJ]buttonto adjust. Then press the [MODE] button again to confirm the alarm time setting.

6.The alarm clock and the whole point timekeeping opening and closing

When display the clock,press [MODE]buttonto switch to the alarm display, and then press the [ADJ]buttonto open and close alarm clock or the whole point timekeeping, followed by the alarm clock opened->the whole point timekeeping opened->both the alarm clock and the whole point timekeeping opened-> both the alarm clock and the whole point timekeeping closed.

Note:

1. This machine for precision instruments, users to remove the damage is beyond the scope of the warranty.

2. The battery after use, please back the government designated collection points.
