Product Model: F40 (Pipeline Water Flow Generator, DC Output)
1. Scope of application

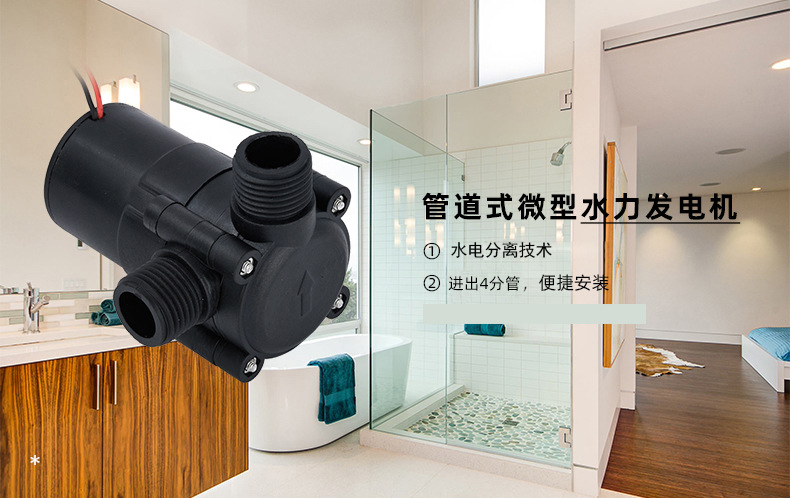

The pipe-type micro hydroelectric generator adopts a high-efficiency generator with low magnetic resistance and water and electricity separation technology. It is equipped with standard 4-inch external threaded pipes for water inlet and outlet. It is suitable for various smart faucets, sensor faucets, shower room lighting and sound systems, gas water heaters, solar automatic water supply controllers and other electronic and electrical products that need to be powered by hydroelectric power.
2. Product Features:

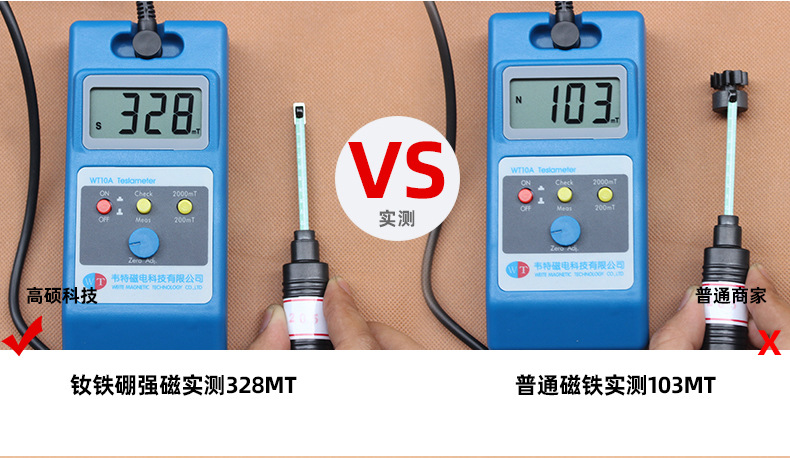

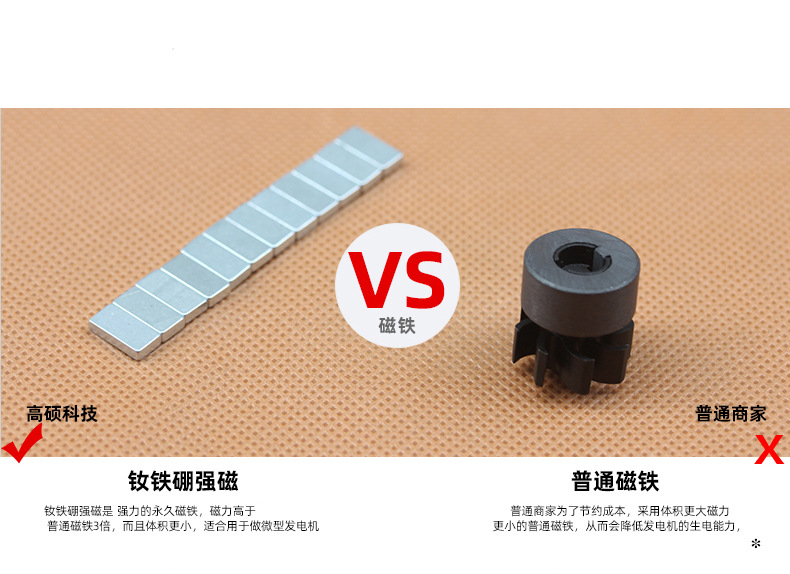

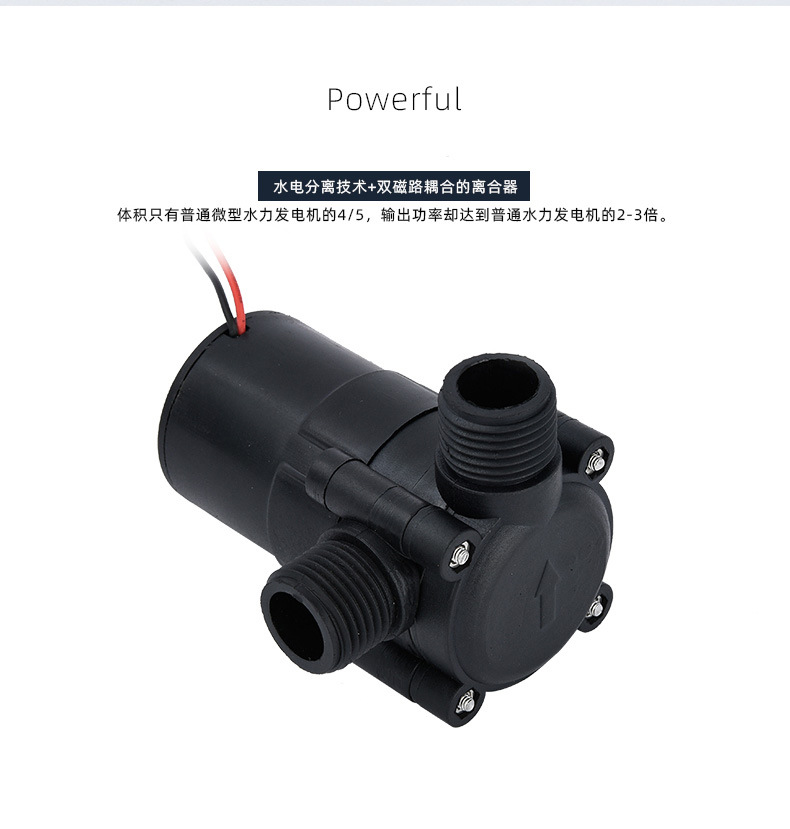

① The water and electricity separation technology, the clutch with dual magnetic circuit coupling, is only 4/5 the size of a common micro hydroelectric generator, but its output power is 2 to 3 times that of a common hydroelectric generator.
② The ingenious structural design allows the inlet and outlet pipe angles to be installed in a straight line or an L shape as required.

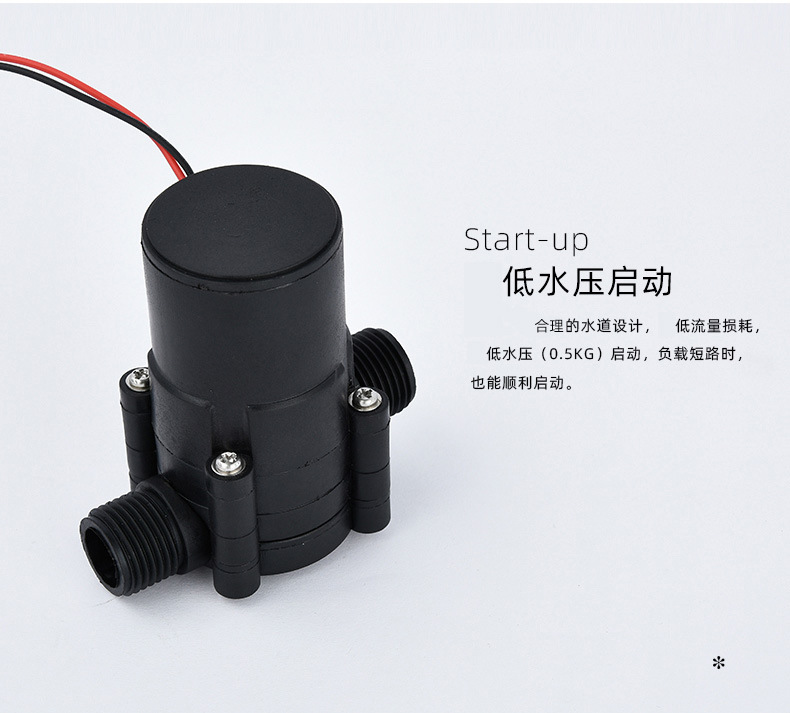

③ Reasonable waterway design, low flow loss, low water pressure (0.05Mpa) start-up, and smooth start-up even when the load is short-circuited.

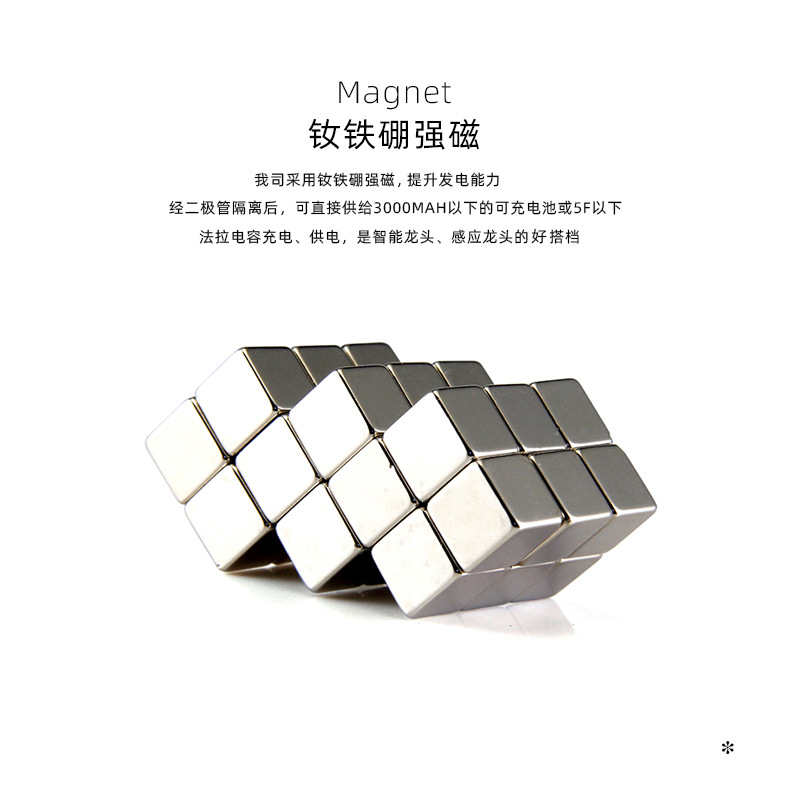

After being isolated by a diode, it can directly supply charging and power to rechargeable batteries of 3000MAH or less or farad capacitors of 5F or less, making it a good partner for smart faucets and sensor faucets.
This product has been widely applied for many years and has undergone multiple optimizations, offering excellent cost performance.

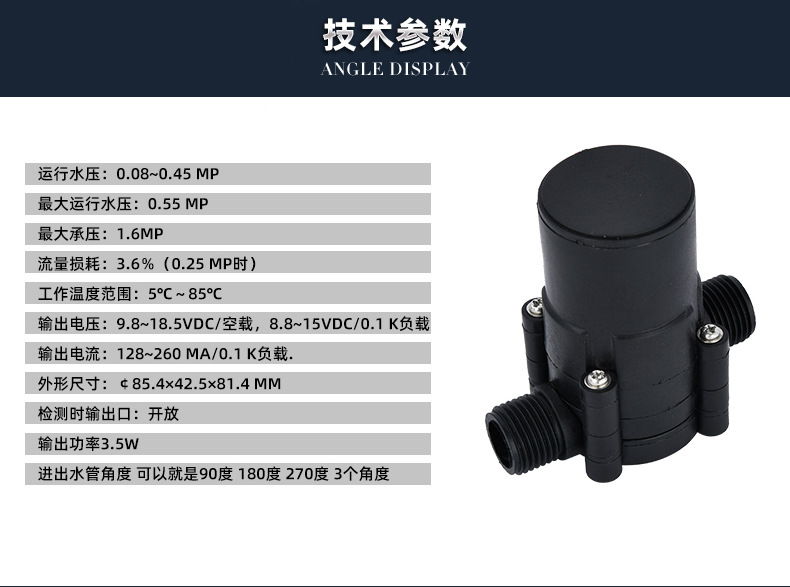

3. Technical Parameters
① Operating water pressure: 0.05-0.5Mpa
② Peak operating water pressure: 0.55Mpa
③ Peak pressure resistance: 1.6Mpa
④ Flow loss: 3.6% (at 0.25 MP)
⑤ Operating temperature range: 5℃ to 85℃
⑥ Output voltage: 9.8-18.5VDC/ no-load, 8.8-15VDC/0.1 K load
⑦ Output current: 128-260 MA/ 0.1K load.
⑧. Dimensions: ￠85.4×42.5× 81.4MM
⑨ Output port during detection: Open
10. Output power: 3.5W

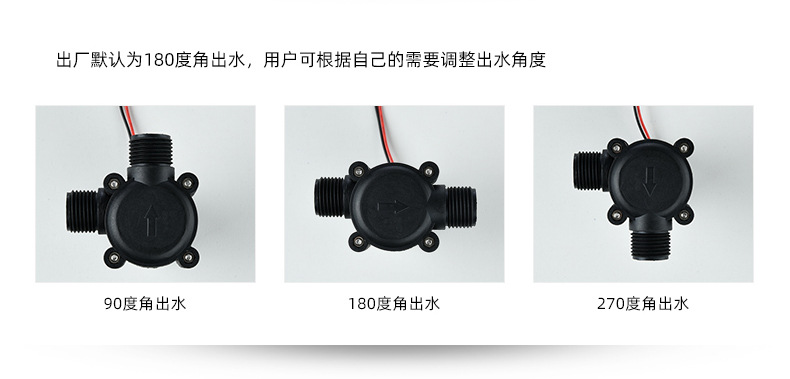

The angles of the inlet and outlet pipes can be 90 degrees, 180 degrees or 270 degrees

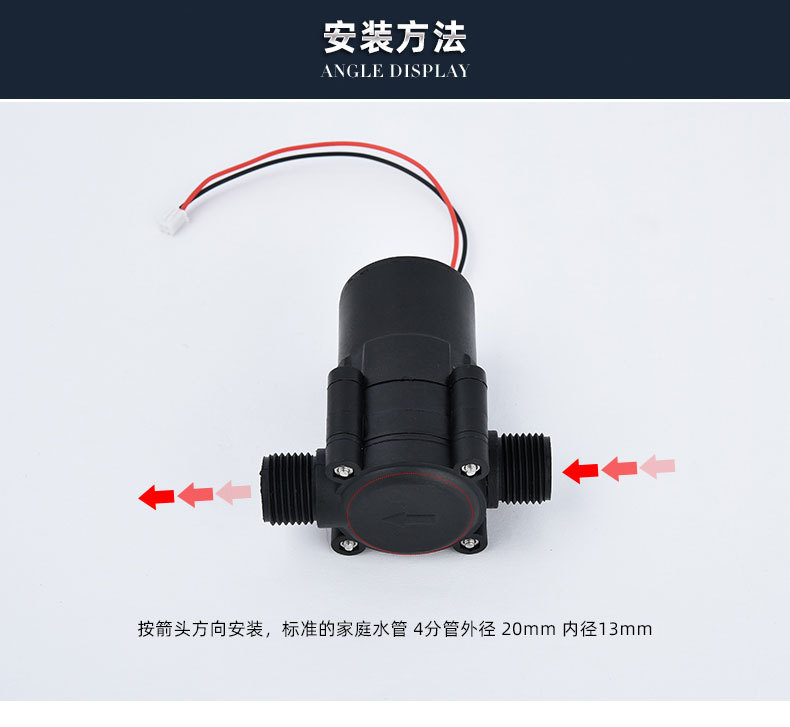

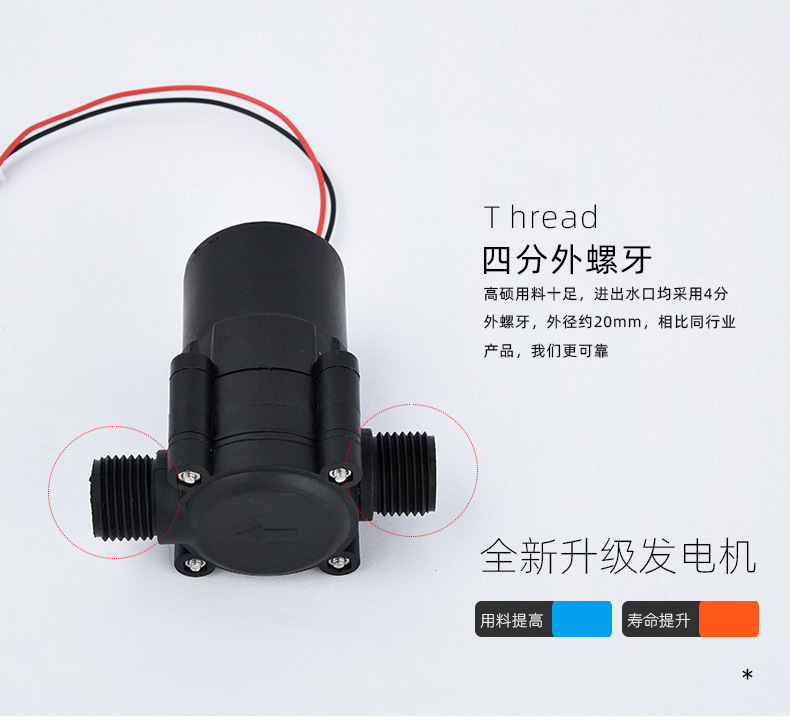

Installation method: Install in the direction of the arrow. Standard 4-inch household water pipe
