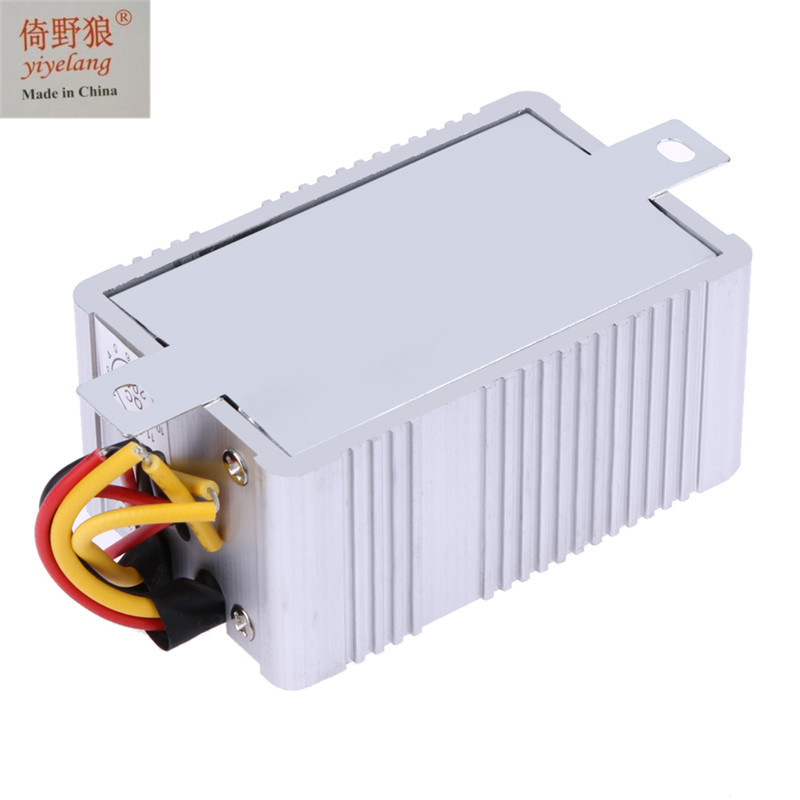

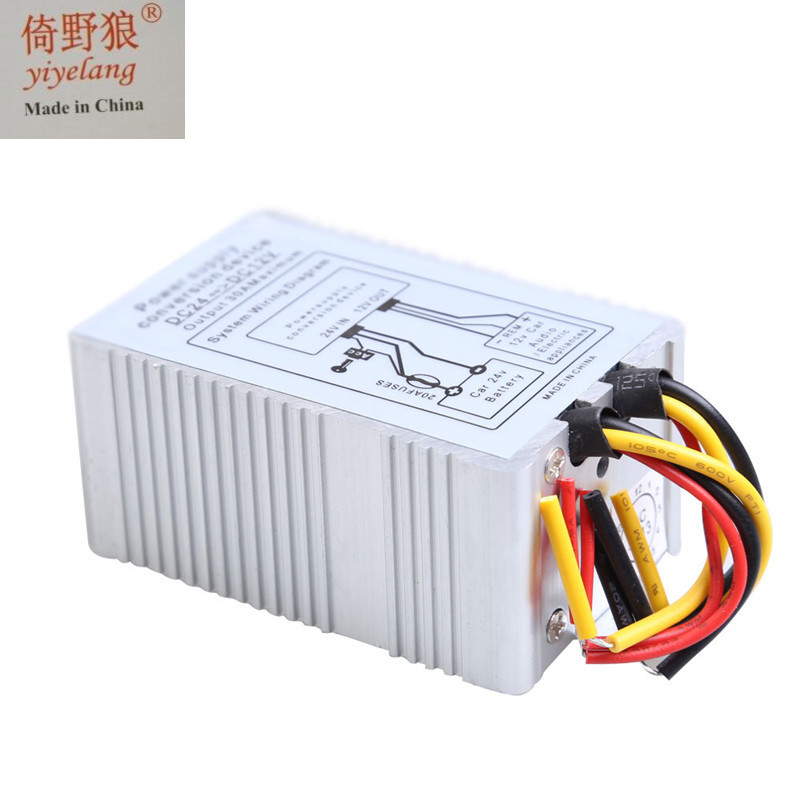

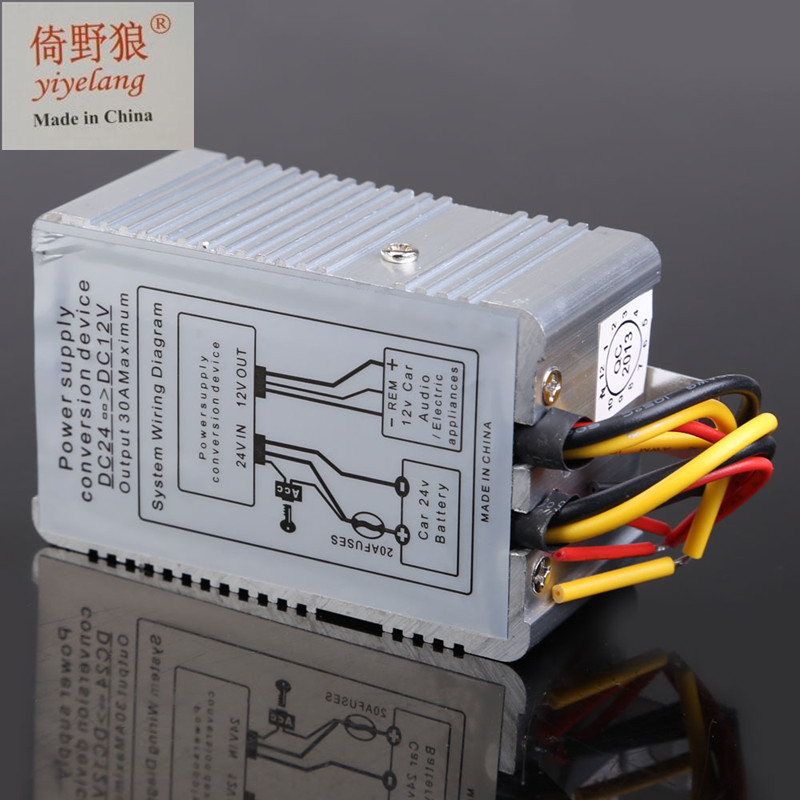

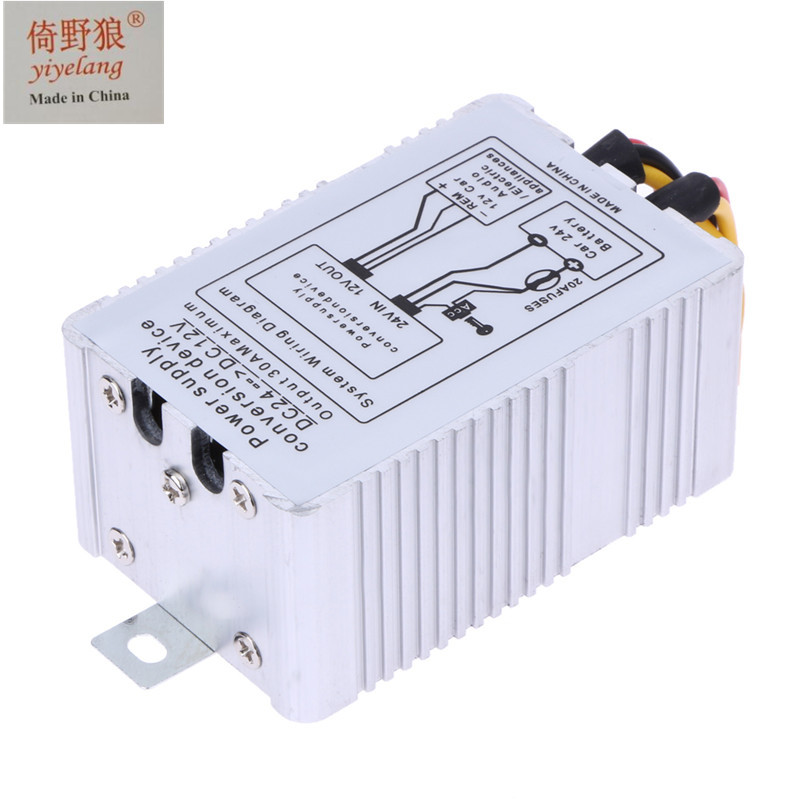

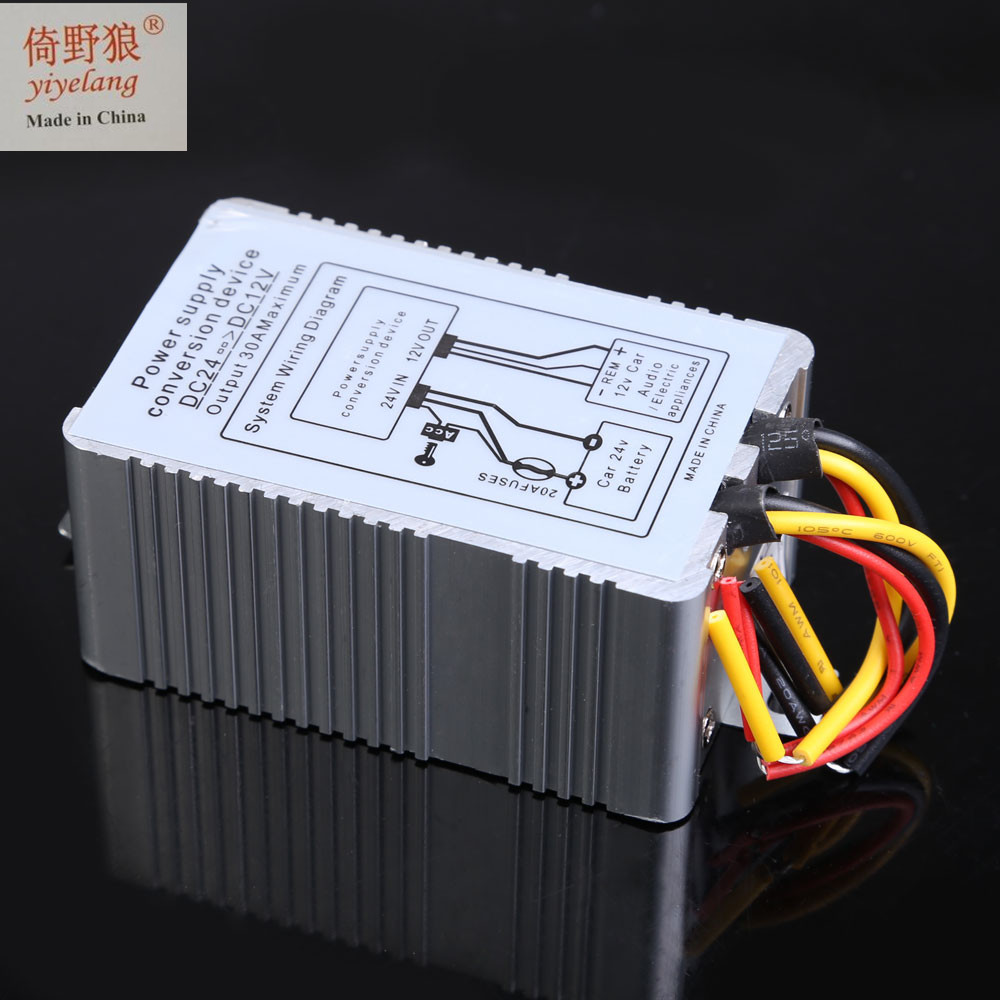

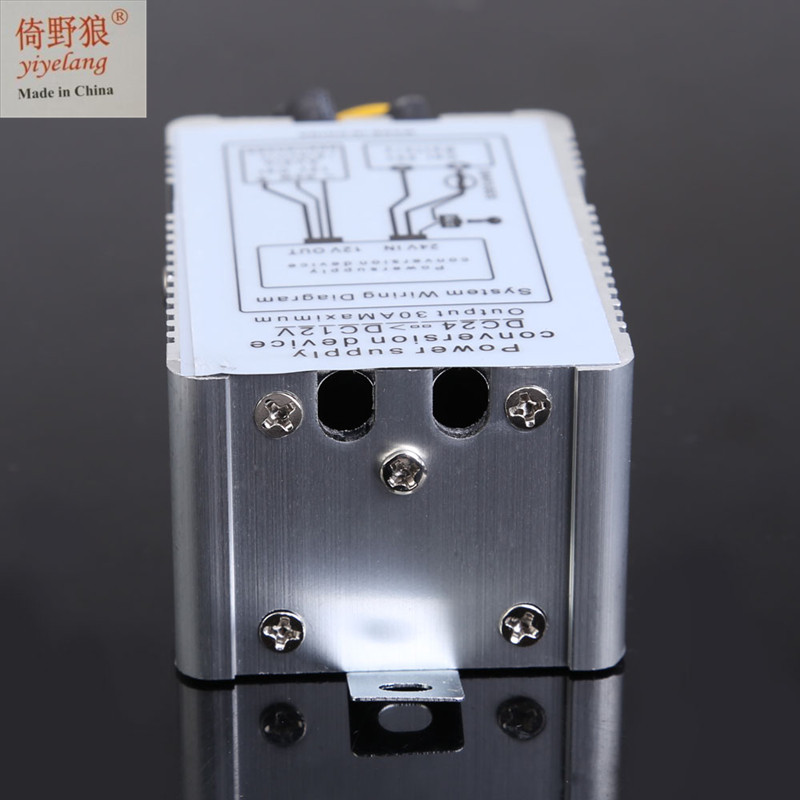

Yihua Electronic Voltage Reducer Instruction Manual

Product Name: 24V to 12V

Model 2:10A

3 Introduction: This product adopts a starting power supply voltage stabilizing module, which stabilizes the input DC voltage (13-40V) and outputs 12V DC, and realizes automatic protection against overcurrent, overvoltage, overheating and short circuit.

      4 Main performance parameters:

Input DC voltage: DC13-40

        Output DC voltage: DC12±1V

         Maximum output current: 20A

         Maximum operating temperature: 85℃

         Rated output current: 10A

         Rated output power: 360W

         Static operating current: < 60mA

 Instruction Manual

Product Name: Power Converter

      Model 2:20A

3 Introduction: This product adopts a starting power supply voltage stabilizing module, which stabilizes the input DC voltage (13-40V) and outputs 12V DC, and realizes automatic protection against overcurrent, overvoltage, overheating and short circuit.

      4 Main performance parameters:

Input DC voltage: DC13-40

         Output DC voltage: DC12±1V

         Maximum output current: 45A

         Maximum operating temperature: 85℃

         Rated output current: 20A

         Rated output power: 360W

         Static operating current: < 60mA

Instruction Manual

Product Name: Power Supply 220 to 12V

      Model 2:80A

3 Introduction: This product adopts a starting power supply voltage stabilizing module, which stabilizes the input DC voltage (13-40V) and outputs 12V DC, and realizes automatic protection against overcurrent, overvoltage, overheating and short circuit.

4 Main performance parameters:

Input DC voltage: DC13-40

         Output DC voltage: DC12±1V

         Maximum output current: 130A

         Maximum operating temperature: 85℃

         Rated output current: 80A

         Rated output power: 360W

         Static operating current: < 60mA

Instruction Manual

Product Name: Power Converter

      Model 2:30A

3 Introduction: This product adopts a starting power supply voltage stabilizing module, which stabilizes the input DC voltage (13-40V) and outputs 12V DC, and realizes automatic protection against overcurrent, overvoltage, overheating and short circuit.

      4 Main performance parameters:

Input DC voltage: DC13-40

         Output DC voltage: DC12±1V

         Maximum output current: 32A

         Maximum operating temperature: 85℃

         Rated output current: 30A

         Rated output power: 360W

         Static operating current: < 60mA

......................................................................................................................................................................................................................................................................................................................................
