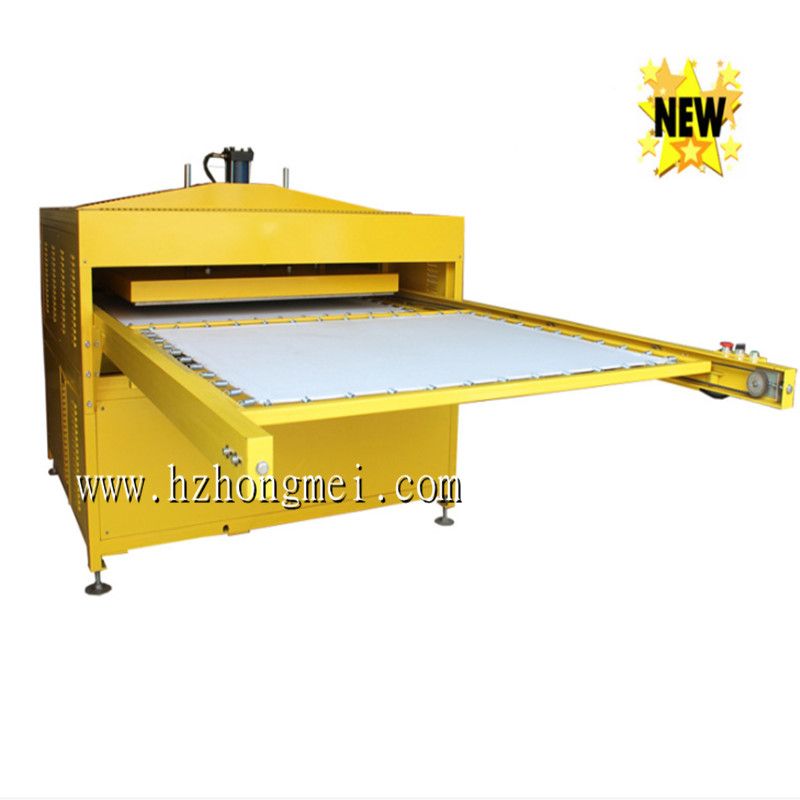

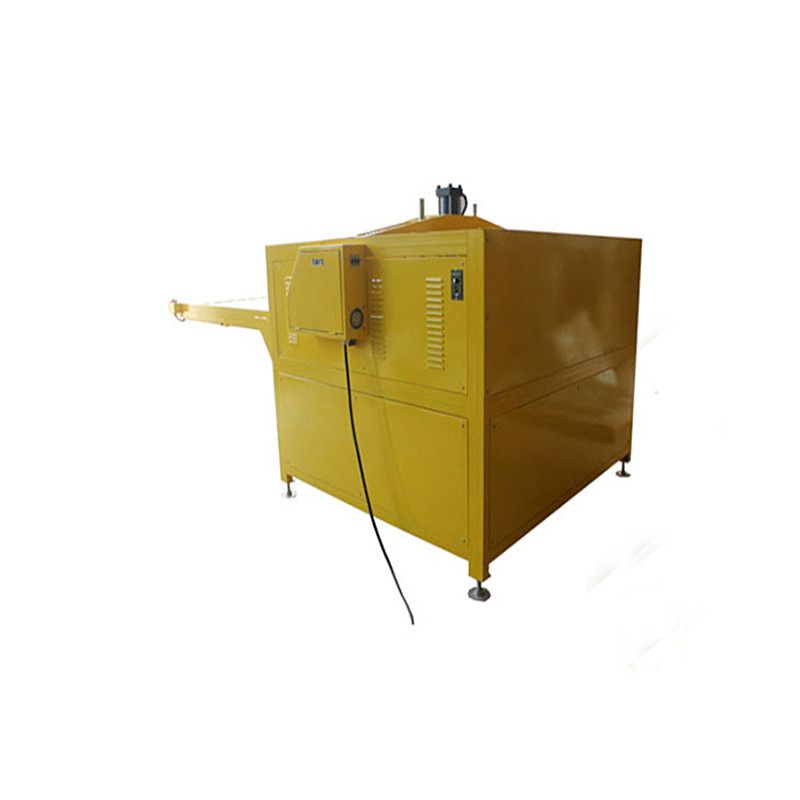

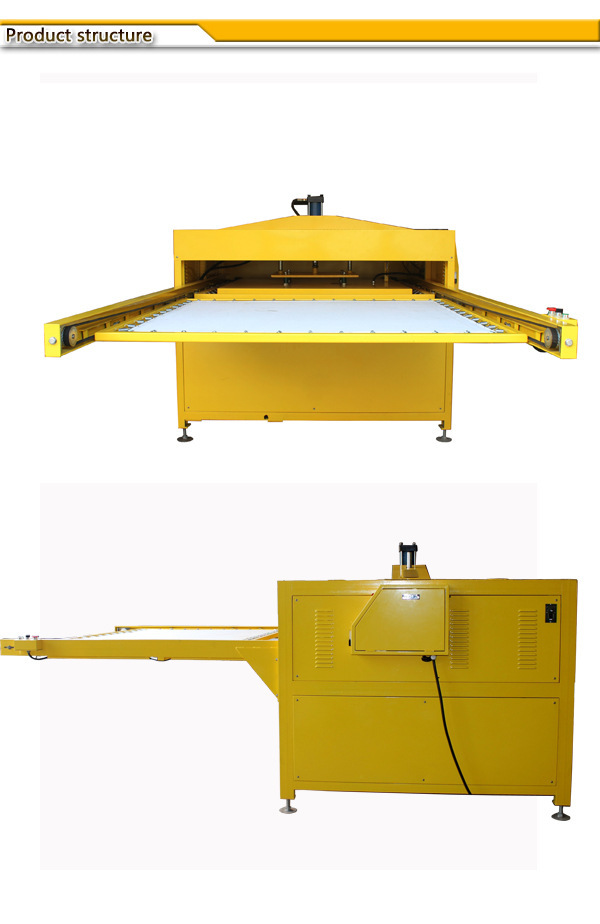

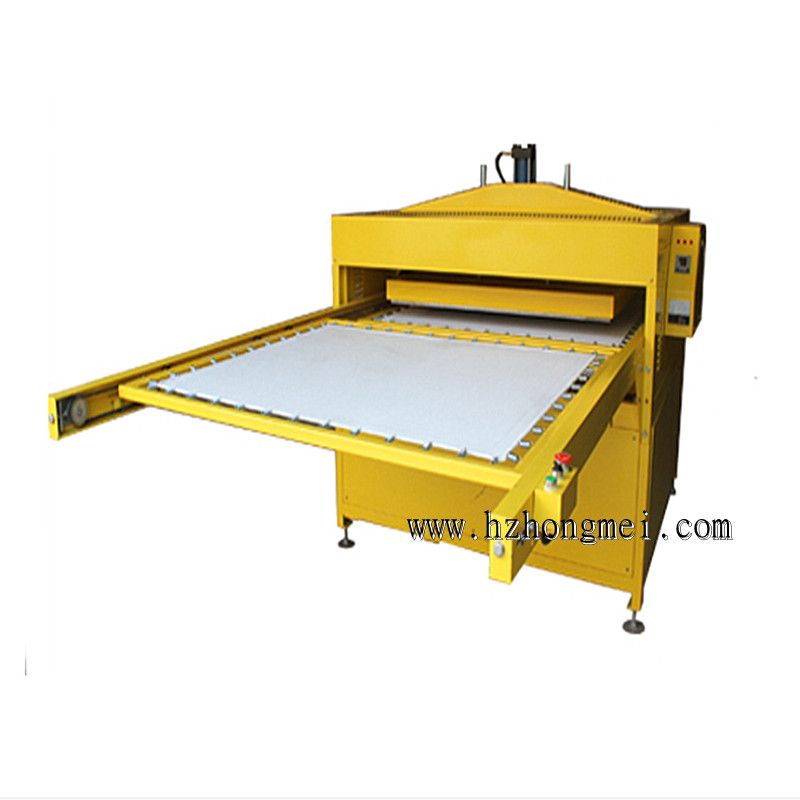

| Product Name | Hydraulic double-station fully automatic heat transfer printing machine |
| Product model | CKB5-1 |
| Product voltage | 110V/220V/380V |
| Product power | 14000W |
| Product weight | 930kg |
| Product size | 100*200cm, 60* 80cm, 80*100cm,100*150cm,100* 120cm, 110*170cm are also available. Special customization is accepted |
| Product features | The high-pressure pull-out design is more suitable for transfer printing + no need for an air compressor + fully automatic operation + heat transfer printing |
This machine can sublimate. The colored patterns or characters of dissolving inks are heat-transferred onto cotton. On fabrics such as linen and chemical fibers, heat treatment processes like bristle transfer printing and foam printing can also be carried out, which are economical and convenient

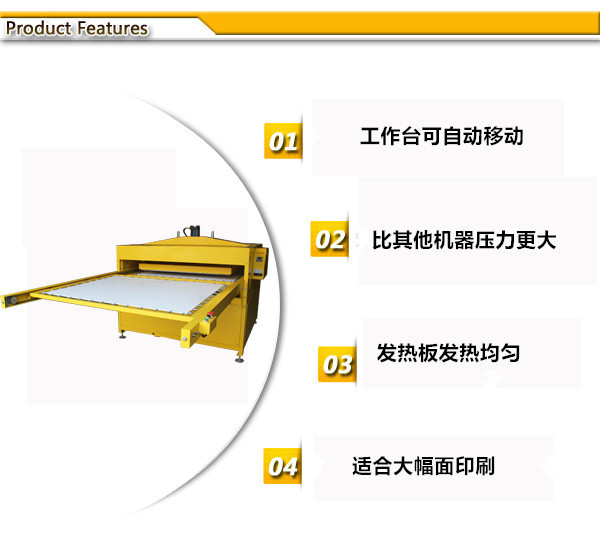

1. It heats up evenly and has an extremely large working area, making it suitable for large-scale hot stamping requirements.
2. Adopt a single-sided double-layer pull-out type base frame. Only one person is needed to operate. Double workstations can enhance work efficiency. True effort yields twice the result with half the effort.
3. The pull-out sliding frame is made of high-temperature resistant mesh fabric. The operation is more lightweight and effortless.

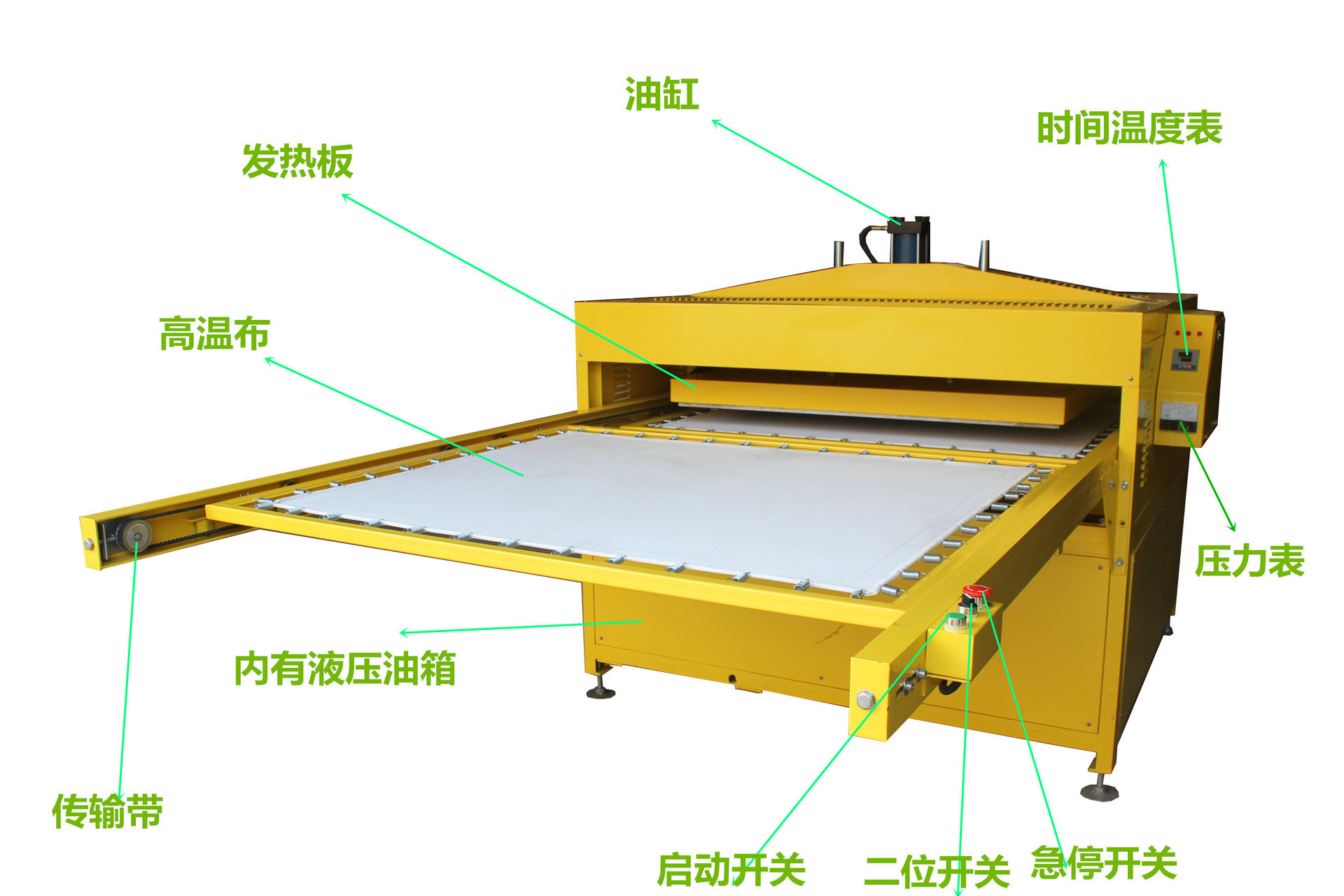

4. Both the heating plate and the base worktable are cast aluminum parts, ensuring the uniformity of hot stamping pressure and temperature.
5. The single-sided design saves more space compared to other dual-station machines.
6. Fully automatic hydraulic design, more convenient and labor-saving.
7. The hydraulic system is noiseless
Default specification
