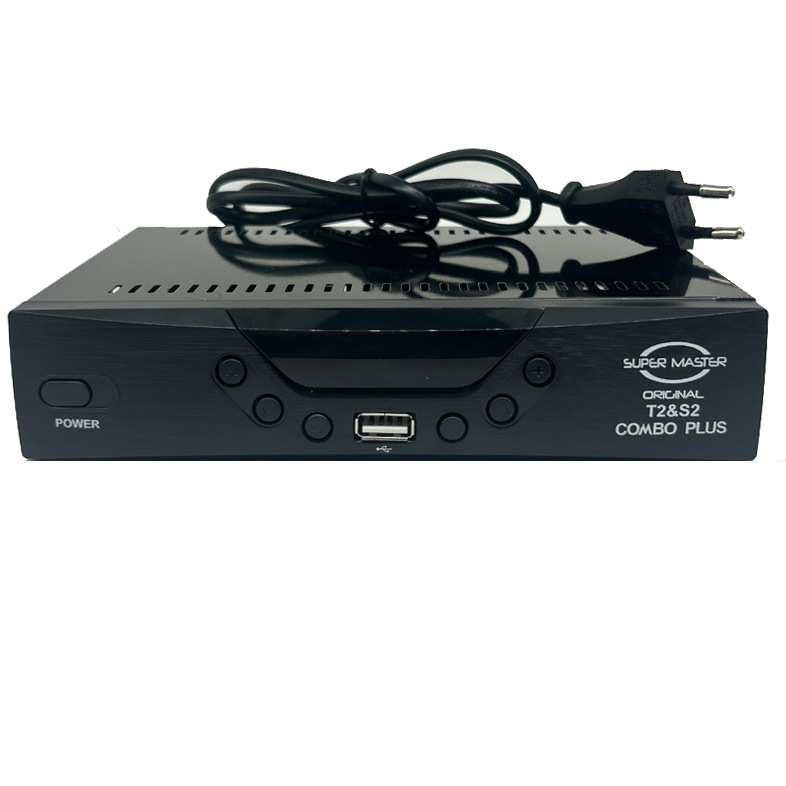

African Master DVB T2 S2+C Combo decoder HD TV set-top box H.264 in stock details Picture

African Master DVB T2 S2+C Combo decoder HD TV set-top box H.264 in stock Specification image

African Master DVB T2 S2+C Combo decoder HD TV set-top box H.264 in stock Application Scenario

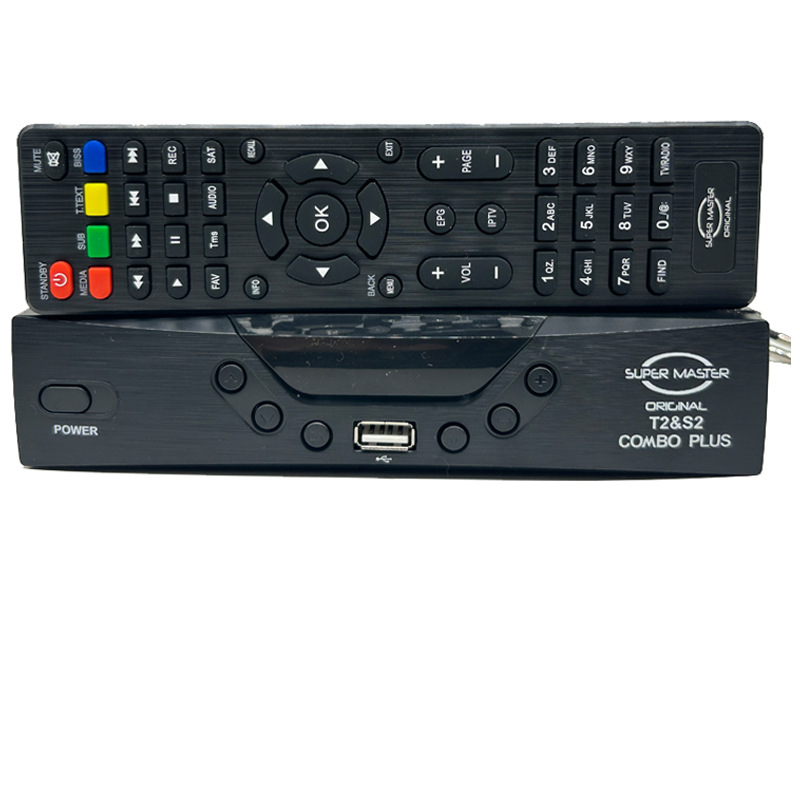

African Master DVB T2 S2+C Combo decoder HD TV set-top box H.264 in stock Item Picture

Attributes

Key attributes

Place of origin

China

Material

Others

Product code

115322747397

Bestseller in AfricaDVB-T2+S2 Combo decoderHigh-definition digital TV set-top box H.264

GX6605S，doubleUSBmouth，AC/DC 12VInterface DVB C

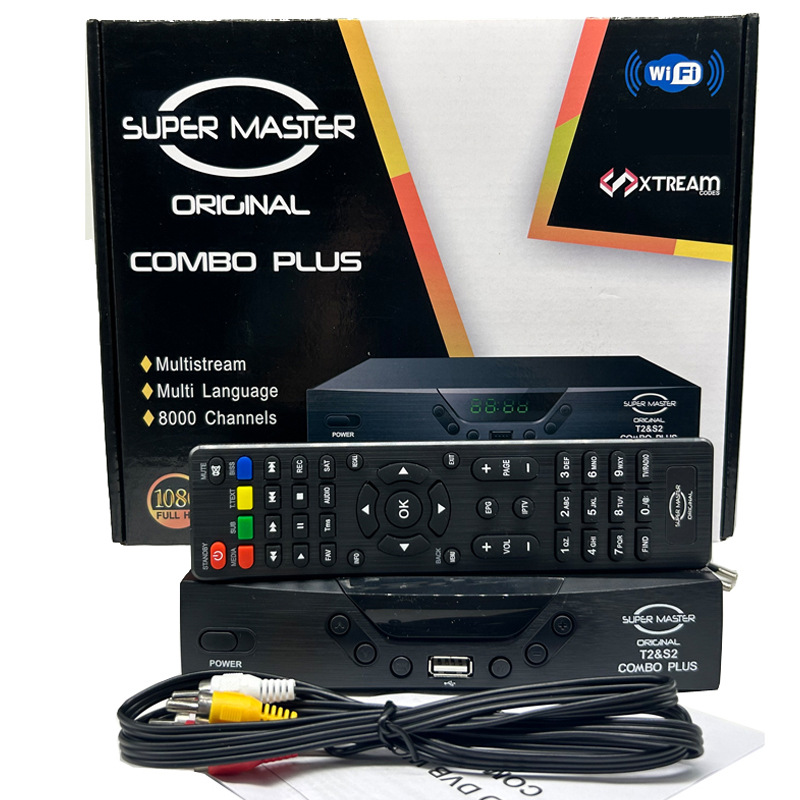

African Master DVB T2 S2+C Combo decoder HD TV set-top box H.264 in stock pic 1

DVB S2+T2 combo receiver H.264

Bright Spot: DVB-S2+T2 +Network Application, USB Port, Wi-Fi,Tik tok

Dailymotion
Ⅰ. Technical specification
Product Type Name Produce Type Number T2+S2

Main Features

STB Type DVB-S2+T2 Combo Receiver
Main Chipset GX6605S
Memory 512Mbit DDR2 f@800MHz
Flash 8M bytes
Function/Interface CVBS,AR,AL,YPbPr,SPDIF,HDMI, 1*USB2.0,LEDDisplay，LNB IN(DVB-S/S2),ANT(DVB-T/T2),7 Keys on Front Panel

Special Features
Heat Sink Yes
TUNER Type R848
Demodulator Type AVL6762
Ⅱ. Hardware Features

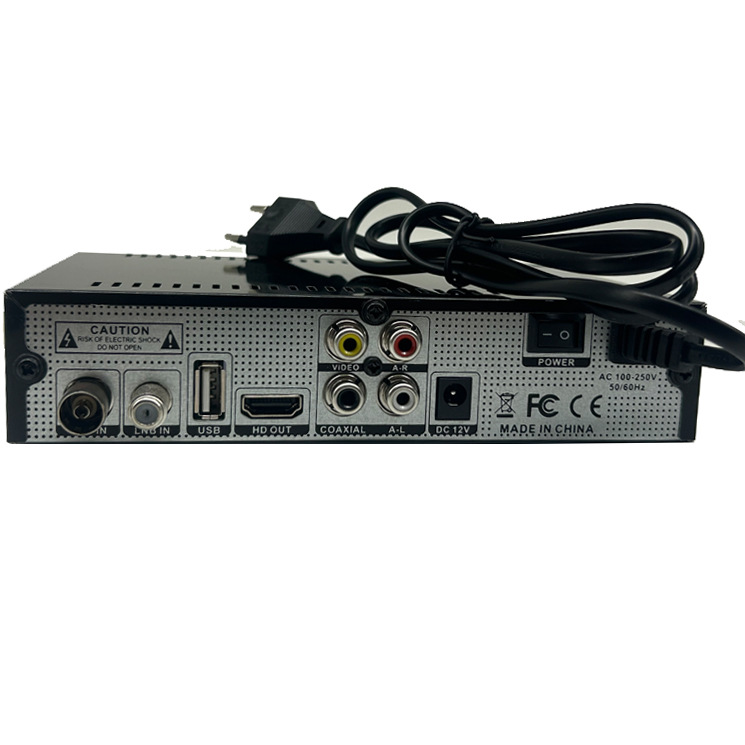

Rear panel
USB 2.0 NO
T2 ANT IN For DVB-T/T2 signal input
S2 LNB IN For DVB-S/S2 signal input
COAXIAL For Coaxial output for other audio decoder device
HDMI 19 PIN Female HDMI 1.3
AC-IN AC 100～250V，50Hz/60Hz
RF OUT NO
CVBS+R/L Audio+YPbPr 4 RCA for CVBS+L/R Audio

DAT/SRT/SUB/BMP/ JPG/JPEG/GIF/PNG/TIF/MP3/M4A files
USB Wi-Fi Dongle MTK7601
Ⅳ.Electric Performance

2. DVB-S/S2 Tuner

Tuner Type R848
Frequency Range 950 ～ 2150MHz for DVB-S/S2
Input Impedance 75Ω
LNBPowerand Vertical13VDC;Horizontal 18VDC @ 400mA (max)
Polarization 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection
Input Level Range -65dBm ～ -25dBm
Loop-Through NO

3. DVB-T/T2
Tuner Tuner Type R848
Frequency Range 174MHZ-860MHZ
Input Impedance 75Ω
Input Level Range Min -78dbm max -20dbm（64QAM,8K 1/8,7

6. Video Decoder
Video Decode MPEG-2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL
Aspect Ratio 4:3、16:9
Video Resolution 1920×1080,1280×720,720×480

7. Audio

Decode Audio Decode MPEG-1 layerI/II，PCM down mixIEC958

SPDIF，Dolby 5.1 channel，Dolby down mix 2 channel，Dolby Prologic2(Optional)
Sound Mode LEFT/RIGHT/STEREO/MONO
Sampling Frequency 32KHz、44.1KHz、48KHz

8. AV Output

Video Bandwidth SD: 5.0MHz(-3dB),HD:30MHz(-3dB)
Video Impedance 75Ω
Video Voltage Level 1.0Vp-p
Audio Freq. Range 20～20KHz
Audio Impedance 600Ω
Audio Voltage Level 2Vrms(5.6Vp-p)

9. Environment Input
Voltage AC 00～250V，50Hz/60Hz
Consumption Max 8W
Standby ＜1W
Temperature 0～40℃
Humidity <95％
Size of the color box 180*215*50mm
Outer box size 530*400*365mm
Quantity of one piece 20pcs
MAO Zhong 12kgs
