Instruction Manual for 12-volt Learning Four-Channel Remote Control Switch GV-RK044-12
I. Functional Features:
It is mainly applied in: remote control electric doors, Windows, switches, security and other industrial or lighting remote control fields.
2. Four-channel passive output.
3. The working mode can be changed through the jumper cap. Non-locked, latched and interlocked outputs are available.
4. It features high receiving sensitivity and a remote control distance of up to 50 to over 100 meters.
6. Large-capacity relays are adopted, which can control electrical appliances and equipment with a capacity of over one kilowatt.
7 It adopts wireless coding technology, has no directionality, and the switches do not interfere with each other.
Ii. Main Technical Indicators
Working voltage: DC12V (Other voltages can be customized)
Receiving frequency: 315MHZ (Other frequencies can be customized)
Receiving sensitivity -105db
The working mode is point operation, interlock and self-lock
Maximum load: 20A
Coding type learning type Switching methods to pick up the issue
Iii. Remote Control Pairing Method:

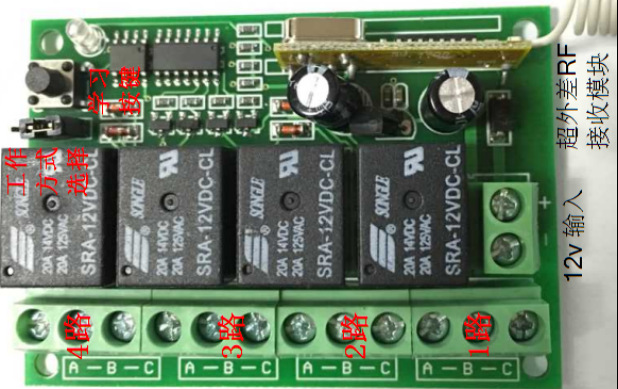

1) Learning matching: Press the learning button, the learning indicator light goes off. Release the learning button and press any key on the remote control you want to learn. The learning indicator light will flash three times, indicating that the learning is successful. Up to 16 different coded remote controls can be learned.
2) Clear the learning code: After holding down the learning button for 6 seconds, the learning indicator light will change from off to on, indicating a successful reset.
After resetting to zero, all the previously paired remote controls will no longer function.
◆ Note: The remote control provided with this product can only be a fixed code or learning code remote control with four or fewer keys, and each key channel has a specified key code. Therefore, different key positions or key combinations can all output!
◆ IV. Selection of Working Mode:
1. Self-locking: If JP2 is not plugged into the jumper cap, its working mode is point operation
2. Interlocking: If the 1st and 2nd sockets of JP2 are plugged into the jumper caps, they are interlocked
3. Point operation: If the 3rd and 4th sockets of JP2 are plugged into the jumper caps, it will be self-locking
